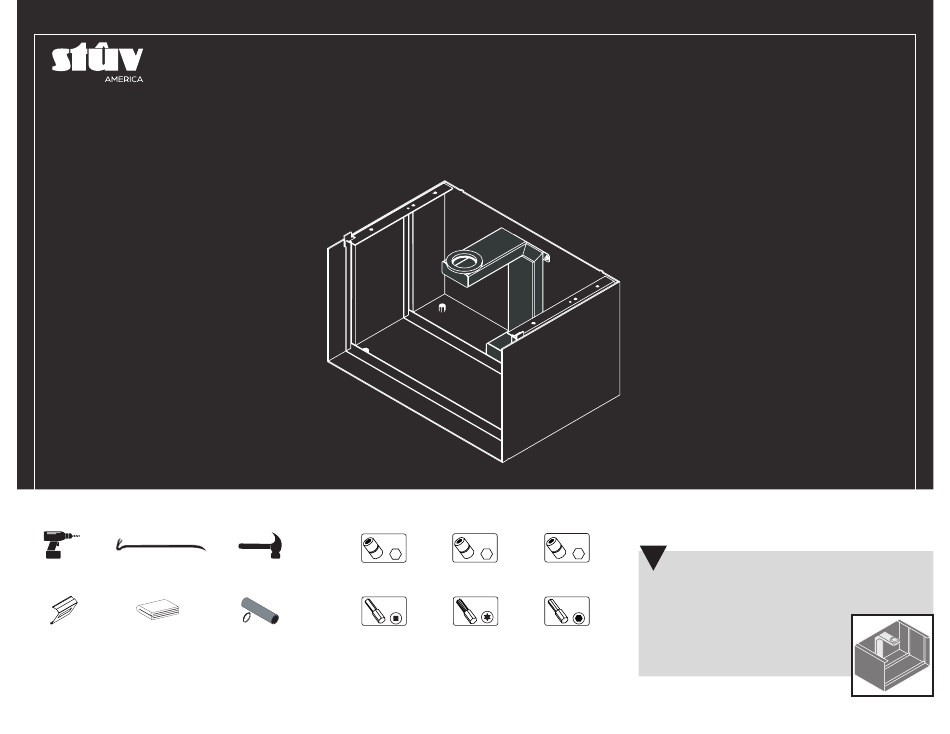

REQUIRED TOOLS
Impact driver
Crowbar
Cube handles
Protective fabric
or cardboard
INSTALLATION MANUAL
REQUIRED HARDWARE
7
mm
Hammer
5 mm
hex socket
#2
Ø4''Clamping collar
No. 2
and flexible duct
square bit
(option)
H B A S E
S T Û V 1 6
8
10
mm
mm
8 mm
10 mm
hex socket
hex socket
T20
3
mm
Torx 20 bit
3 mm
hexagonal bit
!
IMPORTANT
This document is an appendix to the Stûv 16
installation manual. For a successful installation,
it is important to follow these
instructions carefully. Look for
this symbol in the Stûv 16
installation manual to know
when to refer to this appendix.
EN
Advertisement
Related Manuals for Stuv 16
Summary of Contents for Stuv 16
- Page 1 Impact driver Crowbar Hammer 5 mm 8 mm 10 mm This document is an appendix to the Stûv 16 hex socket hex socket hex socket installation manual. For a successful installation, it is important to follow these instructions carefully. Look for...
- Page 2 DIMENSIONS...
-
Page 3: Exploded View
VIEW 16-58 22 7/8" 16-68 26 3/4" 11 3/4" H base 2 5/8" 2 1/2" 16-78 30 3/4" DESCRIPTION 16-58 16-68 16-78 *See Stûv 16-cube installation Non-combustible* H base AW1301001200 AW1301001300 AW1301001400 manual for more details . H BASE STÛV 16 DIMENSIONS... - Page 4 INSTALLING A 16-Z WITH AN H BASE PROTECTION OF THE COMBUSTIBLE MATERIALS additional All components added between the H base and the external dimensions of the NOTE non-combustible insulated shell (V) must be made of non-combustible materials. Sealing strip These...
- Page 5 INSTALLATION UNPACKING ............................ 5 OPTION: OUTSIDE AIR INTAKE KIT ................... 6 INSTALLING THE STOVE ......................7 POSITIONING THE CUBE SHELL ....................9...
- Page 6 Stûv 16 pallet. Step 3 Dismantle the pallet and check its contents against the list on page 3. You will need the Stûv 16 base plate for the next several steps. Step 4 Remove the 4 screws securing the H base to the pallet.
- Page 7 See the sectional view in the circle in Figure 9. Step 10 Using the four (4) M4 nuts provided, attach the air inlet channel to the H base. H BASE STÛV 16 INSTALLATION...
-
Page 8: Installing The Stove
An air damper is also recommended when installing an outside air intake. 10’ Step 15 Remove the air traps from the Stûv 16 base plate. These items will not be used in this installation. Outisde air kit 4" air damper... - Page 9 INSTALLING THE STOVE Step 16 Place the base plate on the H base. Locate the threaded holes adjacent to the leg insert notches. Step 17 Thread the M6x16 hex bolts, but do not screw them in completely. ATTENTION Confirm that the positioning respects all the safety standards indicated in the Stûv 16 installation manual.
- Page 10 Step 21 Use the cube handles to position the shell on the stove. Step 22 Align the cut-out in the shell with the stove's flue. Step 23 Secure the shell with the 4 screws in the front, starting with the lower screws. H BASE STÛV 16 INSTALLATION...
- Page 11 In order to increase the safety of your installation, we recommend limiting the storage of logs to the interior area of the H base. Do not store any highly flammable material, such as paper and fire starters. H BASE STÛV 16 INSTALLATION...
- Page 12 Stûv fireplaces are designed by : Stûv sa – Belgique stuv.com Rue Jules Borbouse n°4 B-5170 Bois-de-Villers And manufactured in North America by : Stûv America inc. – Canada stuvamerica.com 34, Boulevard de l’ A éroport Bromont Qc Canada J2L 1S6...
