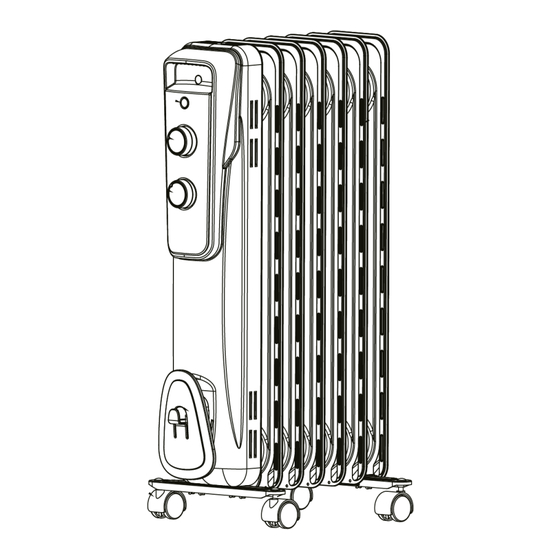

9 Fin Oil Filled Radiator
Model Number:
ZOFR5004 (B)
Product only suitable for well insulated spaces or occasional use
For Customer Services & Spare Parts please call 0330 1230 597
Or visit us at www.zanussiheatingandcooling.uk
PLEASE RETAIN
FOR FUTURE REFERENCE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zanussi ZOFR5004
Summary of Contents for Zanussi ZOFR5004
- Page 1 9 Fin Oil Filled Radiator Model Number: ZOFR5004 (B) Product only suitable for well insulated spaces or occasional use For Customer Services & Spare Parts please call 0330 1230 597 Or visit us at www.zanussiheatingandcooling.uk PLEASE RETAIN FOR FUTURE REFERENCE...
- Page 2 CONTENTS Page(s) Safety Instructions 3 - 5 Product Overview Base Assembly Using your Heater Safety Instructions Cleaning and Care Problem Solving Guarantee and Customer Services Connection to the Mains Supply Specification Disposable Information...
- Page 3 SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be observed, including the following: • Read all instructions. • Check that the your mains voltage corresponds with the rating on the appliance. • The appliance must not be left unattended while it is connected to the mains supply.
- Page 4 SAFETY INSTRUCTIONS • Never use the appliance in a room with explosive gas such as petrol, or while using any kinds of flammable glues, sprays or solvents. • The appliance must not be used with an extension lead. • Do not place any part of your body near the air inlet, outlet or on the fins ,to avoid personal injury, electric shock or fire.
- Page 5 SAFETY INSTRUCTIONS • Warning: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to make sure that they do not play with the appliance.
- Page 6 PRODUCT OVERVIEW 1. Handle 5. Power cord storage 2. Power indicator light 6. Castors/Wheels 3. Thermostat control dial 7. Fins 4. Power/heat setting dial...
- Page 7 BASE ASSEMBLY 1. Turn the heater upside down. 2. Align the mounting holes on the caster assembly units with the screws on the caster pad plates, one at the bottom of the control panel and one at the bottom of the end radiator fin. 3.
- Page 8 USING YOUR OIL FILLED RADIATOR 1. Before connecting your appliance to the mains socket, position the appliance upright on the floor, at least 90cm away from the wall, away from curtains, furniture or wall coverings. 2. Insert the mains plug into a suitable 13 amp mains socket. 3.
- Page 9 USING YOUR OIL FILLED RADIATOR Note: If the thermostat dial is set toward the maximum setting and the power control is set to off then the indicator light will stay illuminated. No heat will be emitted as the power to the heating elements is off.
- Page 10 SAFETY FEATURES Safety Protection Devices – This appliance is fitted with an overheat and tip over protection system. 1. Overheat Protection – the power to the heating elements will automatically cut off if the temperature of the heating element exceeds a certain limit. In the event of overheating, the heater will stop operating.
- Page 11 CLEANING AND CARE WARNING: Electrical Shock Hazard. Before you clean the appliance, disconnect the mains plug from the wall socket. • Allow the appliance to cool down completely before cleaning. • Do not immerse cord, plug or appliance in any liquid or allow moisture to come into contact with electrical parts.
- Page 12 PROBLEM SOLVING My appliance does not work when I turn it on: 1. Check that your appliance is plugged in and the power is turned on at the mains socket. 2. Try another mains socket. 3. Check the appliance is in an upright position. 4.
- Page 13 GUARANTEE AND CUSTOMER SERVICES At Zanussi, we take all our customer feedback seriously. Feel free to contact our Customer Service Team on 0330 1230 597 who will be more than happy to assist you. This product is guaranteed for 12months from the date of the original purchase.
- Page 14 CONNECTION TO THE MAINS SUPPLY This appliance is designed to operate from a mains supply of 220-240V~50Hz. Check that the voltage marked on the product corresponds with your supply voltage. How to change the fuse 1. Slot the end of a screwdriver into the recess in the fuse holder of the plug.
- Page 15 SPECIFICATION Information requirements for electric local space heaters Model number ZOFR5004 (B) Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only Nominal heat Manual heat charge control, with output Pnom...
- Page 16 ZANUSSI is a registered trademark used under license from AB Electrolux (publ). Made under license by G2S Limited, Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD. For Customer Services & Spare Parts please call: 0330 1230 597 Or visit us at www.zanussiheatingandcooling.uk The ‘wheelie bin’...
