arboleaf J2 Manual

SPECIFICATIONS

Model: J2
Dimensions: 3.74 x 1.89 x 5.63 inches (95 x 48 x 143 mm)
Net weight: 0.82 lb/370 g/ 13 oz
Speed settings: 4
Speed: 1500 - 3000 rpm
Auto-off: Every 15 mins
Power supply: Rechargeable lithium battery
Battery: 2 x 2000 mAh
Charging time: 2-3 hours
Working time: Max. 8 hours
Rated voltage: 7.4 V
Rated current: 4.5 A
Rated power: 33.3 W
Rated input: 5 V 2 A
Working noise: < 45 dB

PRODUCT OVERVIEW

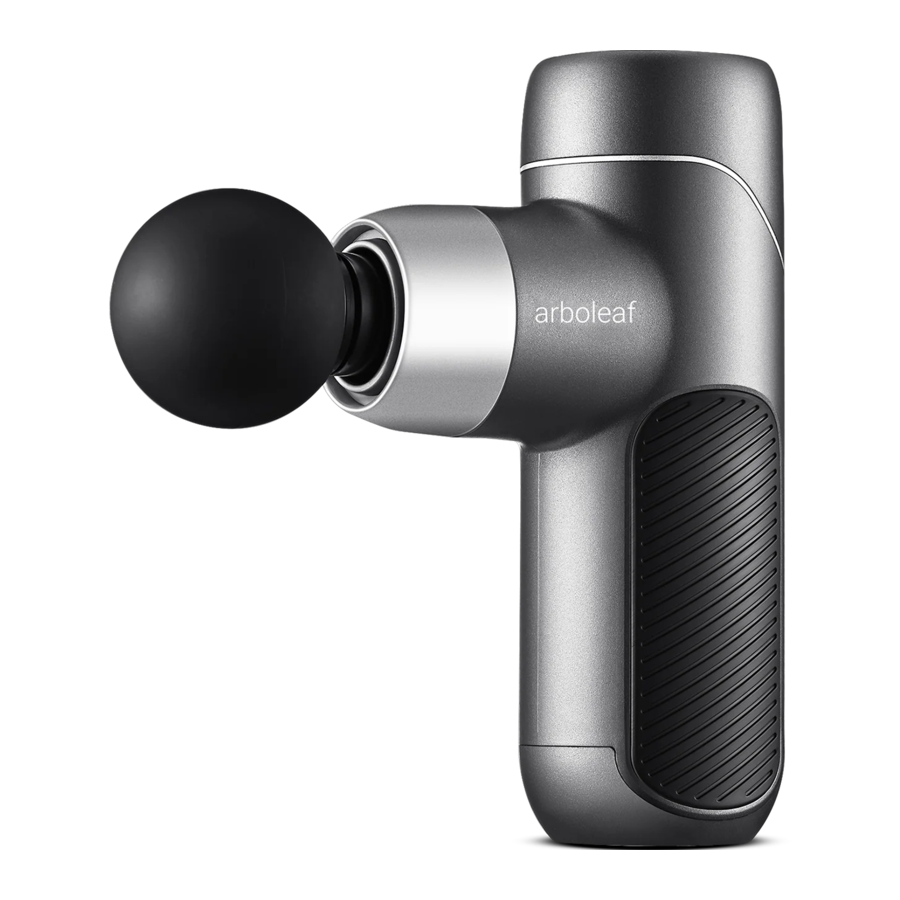

Device

1. Replaceable massage head
2. Handle
3. Speed indicator
4. Battery indicator
5. Power on-off / Speed switch button
6. Charging port

Accessories

1. Attachment heads
   1. Ball head

   2. Fork head

   3. Bullet head

   4. Flat head

2. USB charging cable


QUICK START GUIDE

1. Charge the device
   Connect the enclosed USB cable with a power adapter (not included). The battery indicator shows battery level.
   1. The red light flashes - means battery level is low.
   2. The red light stays on - means battery is in charging.
   3. The green light stays on - means battery is fully charged.
2. Select an attachment head
   1. Ball head: Low impact for massaging sensitive and sore areas
   2. Fork head: Designed for massaging the spine and neck
   3. Bullet head: Pinpoint massage including hands, feet and knots
   4. Flat head: Great for massaging large muscle groups and overall use
3. Insert the selected attachment head to the device
   Note: Never change an attachment head when the device is on.
4. Turn on the device
   Press the Power on-off/Speed switch button for 2 seconds to turn on the massager. Initially it will be set at Speed 1.
   Note: Press the Power on-off/Speed switch button for 2 seconds toggles power on and off.
5. Set your desired speed
   After the device is on, tap the Power on-off/Speed switch button , speed will be shifted up and the next speed light is on. Keep tapping the button until your desired speed light is on. The speed setting is done.
   Note: The higher the speed, the higher the intensity of the massage. Below is the general guideline for your reference.
   1. Speed 1 – 1500 rpm: for warming up muscles or very sore muscles
   2. Speed 2 – 2000 rpm: for soothing tired muscles or sore muscles
   3. Speed 3 – 2500 rpm: for relaxing stiff muscles
   4. Speed 4 – 3000 rpm: for massaging very stiff muscles or deep tight knots
6. Massage
   Apply massage head to your body's soft tissues or the target areas of the body.
   Note: When using the massage gun, please avoid the following areas: areas with dense lymph, nerves and blood vessels, bone areas, internal organs.
7. Auto power off protection
   1. Battery low protection. When the voltage is dropped to 7.3V, the red indicator starts to flash. The device will be shut off when the voltage below 7V.
   2. Maximum run-time protection: This device will auto-off every 15 mins. To re-start, press the Power on-off/Speed switch button for 2 seconds to turn on the massager, and then tap the button to set the next speed.

IMPORTANT SAFEGUARDS

1. Read all instructions.
2. This device is not intended to diagnose, treat, cure or prevent any disease.
3. Consult your physician before use if you experience any pain or have any following health conditions:
   1. You are pregnant, or have diabetes, retinal problems, or neuropathy.
   2. You have internal medical devices in your body.
   3. You have other medical conditions or health concerns.
   4. You are injured, after surgery, fracture. Or you are infants, or elderly people with poor physical fitness.
4. This device is charged by a 5V/2A charger or some fast charging power adapter.
5. Fully charge the device before its first use. Do not turn on this device during charging.
6. Do not replace the attachment head while it is working.
7. Do not immerse this device in the water or other liquid.
8. Do not use this device to massage your head, chest, genital, or any area with wounds. Avoid massaging the surgical area during the healing process.
9. Do not attempt to repair the device yourself.

WARRANTY

Arboleaf Corporation warrants this product purchased from an authorized seller to be free from defects in workmanship and materials, under normal use and conditions, for a period of one (1) year following the date of purchase. Proof of purchase is required.

Arboleaf Customer Support
1-800-658-1148
support@arboleaf.com

Arboleaf Corporation
5465 Legacy Drive, Suite 650 Plano, TX 75024
1-800-658-1148
support@arboleaf.com
www.arboleaf.com
