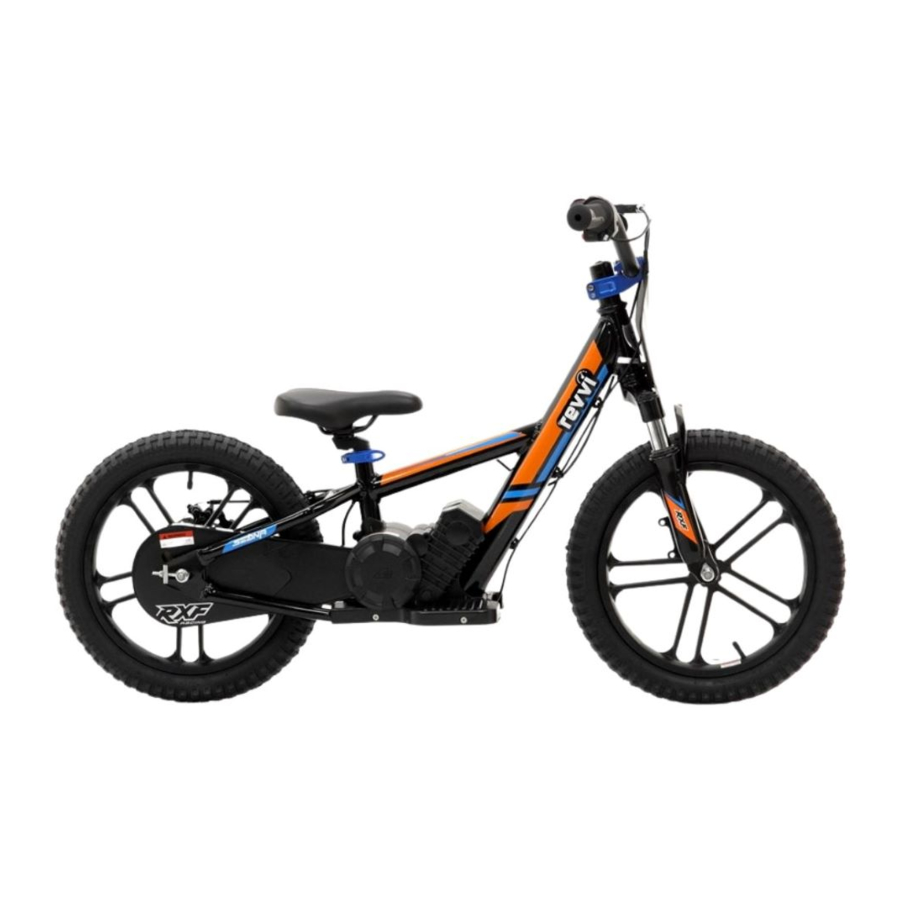

Revvi 16 Plus Manual

Bike Specification

Bike Dimensions

Rider Age Guidline: Only suitable for riders of 5 years +. It is always at the discretion of parent or person supervising as to the age of the rider.

CHILDREN MUST BE ACCOMPANIED BY AN ADULT.

Maximum rider weight: 40kgs

Vehicle structure

1. Front wheel
2. Tire
3. Front fork
4. Stem
5. Frame
6. Saddle
7. Seat post
8. Inner tube
9. Rear wheel
10. Chain adjuster
11. Chain cover
12. Side cover
13. controller
14. battery
15. seat post release
16. Right grip
17. throttle
18. Handlebar
19. Left brake lever
20. Left grip
21. Braking cable
22. Rear brake system

Protective Clothing

Advice on the first ride

1. Wear protective gear before riding: helmet, riding clothes, riding boots, gloves, knee pads, elbow pads, goggles
2. On your first ride, you should adjust the speed mode and select one according to the road conditions and your riding ability
3. This bike is not allowed to carry passengers;
4. The load of this bike is not allowed to exceed the specified load 50kgs;

Safety suggestion

This product should be checked for potential safety risks before riding:

1. Whether the fasteners of the whole bike has any loosening.
2. Whether the tires have scratch, puncture or crack.
3. Whether the tire pressure meets the riding requirement.
4. Wear protective gear before riding: helmet, riding clothes, riding boots, gloves, knee pads, elbow pads, goggles;

Tampering warning

It is forbidden to modify the bike without permission, otherwise it cannot guarantee the safe operation.
For examples:

1. Replace batteries or motors without permission
2. Replace fasteners without permission
3. Unauthorized replacement of frame structure

Safe operation

1. Children should not be out of sight of adults while riding
2. When the motor is overheated, wait for the motor to cool down before riding

Protective clothing

Accessories

Bike Assembly

1. Please take the bike out of it's box, remove the packaging,
2. Fix the handlebars to the stem with the allan key and bolts supplied. Use one cable tie to secure the throtttle cable to the handlebars, please see picture below.
3. Now fit the front wheel to the forks with tools and fixings supplied. The washer locates into the hole in the forks as shown below
   ( Note: Please keep your bikes box and packing for the duration of your bikes warranty)

   Please note: Use the locating washers and wheel nuts supplied, to fit the front wheel. The washer locates into the hole in the forks!


4. Charge the battery fully before use: please remove the protection plate and open the cover for the battery, Plug the charger DC head into charging port and then fit the plug to the power supply. The light on the charger will be red when the bike is Charging. The light will change to green when it is fully Charged.

5. Check that the four 4mm allen key bolts for the handlebars are tight. Straighten the bikes handlebars and then tighten the two 5mm allen key bolts on the handlebar clamp as show below.
   1. Fit the front number board to the forks using the M6 bolt supplied. It is important to fit this part to the bike to stop your handlebars over rotating. Numbers and letters are also supplied with the bike so you can apply your race number and name.

   2. The handlebars need to be symmetrical
   3. Set the horizontal angle of the brake lever to about 45°

How to use

1. Please wear personal protective equipment, helmet, protective goggles, protective shoes, glove, elbow pad, knee pad etc.
2. Throttle/Display instruction,
   Please note: The battery indicator only indicates the battery level when the bike is being ridden under load.

3. Press power switch button to turn on. Press power switch button to turn off.
4. Use the hand to twist throttle and control the power
5. For safety when the power switch is turned on, the display shows that the power is on.
6. Speed switch instructions:
   For safety and to aid riders learning the bike has three speed settings, the figure below shows the controller speed switch. Press the speed switch to change between the to speed settings:
   I I = Fast: Bike speed is 12MPH.
   0 = Medium: Bike speed 10MPH
   l = Slow: Bike speed is 8MPH.

   The operation of this speed switch requires an adult to operate, Please physically check the speed mode is correct by operating the bike before letting the child ride the bike.
   1. Detail operate process:
      • Remove the bung that covers the speed switch.
      • Then you will see the speed Switch inside the frame, press the switch to change the speed.
      • Turn the handlebar power switch on, twist the throttle with the wheel off the ground to check whether the speed changes or not.
7. Changing the battery.
   1. Turn off the power. Rest the bike on its side gently or put it updside down. Remove the protection plate fixings and protection plate. Open the rubber cover for the battery to access the release latch.
   2. Lift the release latch up as shown below and use it to gently pull the battery out from the bike, using your other hand to hold the battery.
   3. When you re- fit the battery dont forget to close the latch and re- fit the protection plate.

      When you slide the battery into the bike it is important gently place it into the bike rather than letting it slide in with gravity. Letting it slide in with gravity will damage the bike and your battery casing.

   4. Push the chosen battery into the frame along the track, pay attention to the direction of battery.

   5. Turn the key to lock the battery. Remove the key and close the rubber battery cover. Re fit the protection plate over the battery.

8. Start- up process: sit, push, push the throttle, brake, practice (Please wear protective clothing and ride outdoors in large open spaces under the supervision of an adult)

Unpowered training:

1. Turn off the power.
2. Adjust the seat height to suit the rider.
3. Push with your feet on the ground as you would with a conventional balance bike.
4. Practice balance, gliding turning.
5. Use the brakes to safely stop while maintaining balance.

Electric mode:

6. Turn on the power switch.
7. Choose the suitable speed setting.
8. Place your feet on the ground, apply the throttle and slowly move forward practice accelerating slowly and braking.
9. When the rider has mastered controlling the throttle and braking, place your feet on the pedals.
10. Please keep a safe distance between the rider and the obstacles. Pay attention to avoiding pedestrians and pay attention to controlling the speed.
11. Turn off the power before you get off the bike.

Daily maintenance

1. Chain Tension: Loosen axle nuts and the bolt that holds the rear drum brake to the frame. Turn the chain adjuster nut on each side of the bike to adjust the chain. If you are just taking some slack from the chain ensure you turn the nut the same amount on both sides of the axle to ensure the front and rear sprocket stay aligned. After adjusting tighten axle nuts. Tighten the rear drum brake bolt.

2. After riding the bike for a period of time, if there is any side to side movement in the wheel tighten the wheel lock nuts.

3. Braking performance adjustment: there are multiple ways to adjust your brake, we recommend checking the bikes brake function/adjustment after every ride, REPLACE THE BRAKE PADS WHEN THE FRICTION MATERIAL IS LOW.
   Please see images below:

4. You can also adjust the rear pad position on your bikes brake caliper, undo the grub screw before adjusting the rear pad position. Re- tighten the grub screw after adjustment.

5. You can also fine- tune the braking nut on brake lever.

6. Charging battery: please remove the protection plate and open the battery cover, plug the charger DC head into charging port and then fit the plug to the power supply. The light on the charger will be red when the bike is Charging. The light will change to green when it is fully Charged.


Charger safety information

Input: 100 - 240Vac, 50/60Hz, 0.8A.
Output: 29.4Vdc, 1.0A

• Keep the charger dry at all time.
• For your own safety never use this device with wet or damp hands due to the possibility of electrocution.
• Only use a soft clean dry cloth to clean the surface of this plug. Do not use water or chemicals to clean.
• Do not drop or knock the charger, this may result in damage. Rough handling can break the internal circuit boards and mechanics.
• Keep away from dust, extreme humidity and direct sunlight.
• Keep away from fire.
• Never attempt to dismantle parts of this device.
• Never leave chargers unattended for long periods of time.
• Dispose of this product safely!
• All products are tested comprehensively to ensure quality. If heat discoloration or transformation are found during usage or storage stop use immediately and contact dealer.
• Children should be supervised to ensure that they do not play with this product.
• Only use the genuine Revvi charger that has been supplied with the bike! Never use a different charger! If you need a replacement charger please contact Revvi ltd or an authorized dealer.

Adjusting the seat height: Use the quick release clamp to tighten or release the seat. Move the seat up and down to the desired height. Use the adjuster to increase or reduce the strength of the clamp. The seat post should not be set higher then the security line.

You can adjust the handlebar height on your bike by moving the 10mm headstock spacers below and above the handlebar clamp. This model has 2 x 10mm headstock spacers.

Please note: Tighten the handlebar clamp bolts before riding.

Please follow the maintenance schedule shown below:

Safety Precautions

1. Note: the product pictures are for illustration purpose only. These pictures may not reflect the exact product. Specifications may change. Before using the bike, please read the manual carefully and inspect whether the parts are in good condition to ensure riding safety. If there is any problem, please contact the dealer immediately. Also check the bike is set on the correct speed setting for the rider before allowing them to ride. (SLOW SPEED - 8MPH / MEDIUM SPEED – 10MPH / FAST SPEED - 12MPH)
2. Children are required to use the bike under the supervision of parents or adults.
3. This bike is not waterproof! Avoid riding in wet conditions. The bike should be parked in a dry and ventilated place. Do not rinse/clean the bike with water. It is recommended to wipe it clean with a cloth to clean the bike.
4. Please comply with local laws or regulations. Avoid public roads, pavements and pathways.
5. Non- professional maintenance persons are prohibited from disassembling and replacing parts.
6. The bike is forbidden to do stunt riding.
7. Please inspect and ensure all screws are tight before riding.
8. The bike is not designed to ride up steep inclines!
9. When the bike cannot drive due to a hill or soft ground, please turn off the power off to prevent electric component damage.
10. Please turn off the power when you get down from the bike or you are pushing it, in case the rider applies the throttle unintentionally.
11. Never operate the bike if side cover and chain cover are not installed. Do not allow hands, feet, body, clothing or other similar items to come into contact with any rotating or moving parts.
12. Pleases charge the bike using the supplied Revvi charger only! Other chargers will damage the battery.

Tel: 01276 485 800

E- mail: sales@revvi.co.uk
