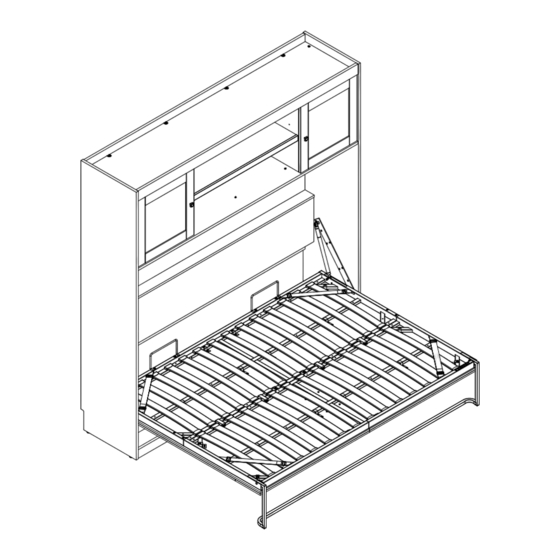

5305306COM (FEDERAL WHITE)
5305335COM (NIGHTFALL OAK)
Wall Bed - Full Size Daybed
Date of Purchase ___ / ___ / ___
Lot Number:
WARNING:
* WARNING FOR YOUNG CHILDREN -
This product contains small components,
please ensure that they are kept away
from small children. Children under the
age of 6, small infants and babies must
not sleep on this bed for safety reasons.
To prevent injury and damage to this unit,
PROHIBIT jumping on it.
* This product is designed for home use
and not intended for commercial use.
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-800-489-3351 (toll free)
Visit: www.ameriwoodhome.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Professional installation is
required for this unit.
WARNING
- Unit can tip over causing severe injury or death.
- Anchor unit to stud in wall
- Do Not allow children to climb on unit
Follow Ameriwood Home
You
Tube
B345305000COM0

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5305306COM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Novogratz 5305306COM

Summary of Contents for Novogratz 5305306COM

  • Page 1 5305306COM (FEDERAL WHITE) 5305335COM (NIGHTFALL OAK) Wall Bed - Full Size Daybed B345305000COM0 Date of Purchase ___ / ___ / ___ Lot Number: WARNING: * WARNING FOR YOUNG CHILDREN - This product contains small components, please ensure that they are kept away from small children.
  • Page 2 Contact Us! Do NOT return this product! Contact our friendly customer service team first for help. Assembly Tips Call us! 1-800-489-3351 Tube Visit ameriwoodhome.com to view the limited warranty valid in the U.S. and Canada. Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 2 - Open your item in the area you plan to keep it to avoid excessive heavy lifting.
  • Page 3 Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Parts are labeled on the surface or edge of the part Give yourself enough room for the assembly process Have the following tools: #2 Phillips Head Screwdriver, Hammer, Level, Stud Finder, Pencil, Step Ladder, Rubber Mallet and a Drill with 1/8"...
  • Page 4 Board Identification Not actual size ameriwoodhome.com...
  • Page 5 Board Identification 5305306COM (Federal White) Parts List PART ITEM QTY DESCRIPTION NUMBER 35305306010 LEFT PANEL 35305306020 RIGHT PANEL 35305306030 35305306040 BOTTOM 35305306050 VALANCE 35305306060 KICK 35305306070 UPPER BACK PANEL 35305306080 CENTER BACK PANEL 35305306090 BACK SHELF 35305306100 HEADBOARD PANEL 35305306110...
  • Page 6 Board Identification 5305335COM (Nightfall Oak) Parts List PART ITEM QTY DESCRIPTION NUMBER 35305335010 LEFT PANEL 35305335020 RIGHT PANEL 35305335030 35305335040 BOTTOM 35305335050 VALANCE 35305335060 KICK 35305335070 UPPER BACK PANEL 35305335080 CENTER BACK PANEL 35305335090 BACK SHELF 35305335100 HEADBOARD PANEL 35305335110 BOTTOM STRINGER 35305335120 FIXED SHELF...
  • Page 7 Note that your unit may contain extra hardware Part List Actual Size (x26) (x36) (x19) (x36) (x19) #A22610 #A21660 #A22920 #A22620 #A22910 wood dowel cam lock cam bolt connector connector bolt (x12) (x28) (x4) (x16) #A15520 #A14220 #A12400 #A23030 #10 x 1/2" pan #14 x 1/2"...
  • Page 8 Note that your unit may contain extra hardware Part List (x4) #A65685 euro hinge plate (x12) (x8) #A53470 #A53460 door bracket door bracket (x4) (x2) #A65680 #A65690 euro hinge glissando soft close ATTENTION / ATENCION / ATTENTION (x1) (x2) (x2) #B64481 #A50790 #A51560...
  • Page 9 Bed Frame Identification Not Actual Size Note: Not all parts will be identified. Mattress Holder (2) Right Assembly Left Assembly 4813096-21c 4813096-21d 4813096-21b 4813096-21a Right Pivot Arm Wood Slat (28) Plastic Cap (56) Left Pivot Arm Gas Piston (2) U-Bracket (4) 4813096-21f 4813096-21e 4813096-21g...
  • Page 10 Before you start! VERY IMPORTANT INFORMATION! Caution: Failure to use 2 professionals for this assembly could result in unit damage or personal injury. ameriwoodhome.com...
  • Page 11 STEP 1 (x4) (x4) (x6) Proper orientation of Cam Lock Proper orientation of Cam Lock FLIP ameriwoodhome.com...
  • Page 12 STEP 2 (x4) (x6) Proper orientation of Cam Lock Proper orientation of Cam Lock ameriwoodhome.com...
  • Page 13 STEP 3 (x6) (x8) (x4) Proper orientation of Connector Proper orientation of Cam Lock Proper orientation of Cam Lock Proper orientation of Cam Lock ameriwoodhome.com...
  • Page 14 STEP 4 (x2) (x4) (x4) Proper orientation of Connector FLIP Proper orientation of Cam Lock Proper orientation of Cam Lock ameriwoodhome.com...
  • Page 15 STEP 5 (x8) ameriwoodhome.com...
  • Page 16 STEP 6 (x4) (x4) ameriwoodhome.com...
  • Page 17 STEP 7 (x3) (x3) Proper orientation of Connector ameriwoodhome.com...
  • Page 18 STEP 8 Turn clockwise to lock in place Assembly orientation is critical! Connector bolt (4) closer to edge Center Shelf (P) should be almost flush with Center Shelf Rail (Q) ameriwoodhome.com...
  • Page 19 STEP 9 (x2) (x4) ameriwoodhome.com...
  • Page 20 STEP 10 (x2) (x4) (x8) Proper orientation of Cam Lock Proper orientation of Connector Proper orientation of Connector Proper orientation of Cam Lock ameriwoodhome.com...
  • Page 21 STEP 11 (x4) Turn Top (C) over and screw in cam bolts (2) as shown. ameriwoodhome.com...
  • Page 22 STEP 12 (x2) (x4) Proper orientation of Cam Lock Proper orientation of Cam Lock ameriwoodhome.com...
  • Page 23 STEP 13 (x16) ameriwoodhome.com...
  • Page 24 STEP 14 (x8) The Left Pivot Arm (21e) is located in the 4813096COM Wall Bed Mechanism box ameriwoodhome.com...
  • Page 25 STEP 15 (x16) ameriwoodhome.com...
  • Page 26 STEP 16 (x8) The Right Pivot Arm (21f) is located in the 4813096COM Wall Bed Mechanism box ameriwoodhome.com...
  • Page 27 STEP 17 Turn clockwise to lock in place Assembly orientation is critical! unfinished surface REFERENCE HOLE ameriwoodhome.com...
  • Page 28 STEP 18 Assembly orientation is critical! Turn clockwise to lock in place ameriwoodhome.com...
  • Page 29 STEP 19 Turn clockwise to lock in place Assembly orientation is critical! unfinished surface ameriwoodhome.com...
  • Page 30 STEP 20 unfinished surface unfinished surface ameriwoodhome.com...
  • Page 31 STEP 21 Carefully turn the assembly onto it's back as shown. Assemble Left Partition (M) and Right Partition (N) onto the Top (C). Lock cams. Left & Right Partitions (M & N) finished edges to be facing up. finished edge finished surface finished surface ameriwoodhome.com...
  • Page 32 STEP 22 (x4) Lock cams (x2) ameriwoodhome.com...
  • Page 33 STEP 23 With the help of another person, turn the assembly back onto its side before starting this step. finished surface ameriwoodhome.com...
  • Page 34 STEP 24 unfinished surface ameriwoodhome.com...
  • Page 35 STEP 25 unfinished surface unfinished surface ameriwoodhome.com...
  • Page 36 STEP 26 Start at one end and work your way to the other end to line parts up before locking cams ameriwoodhome.com...
  • Page 37 STEP 27 (x4) (x4) With the help of another person, gently lay the unit onto it's front so the glides will be facing the wall. Tap in bushings (14) with a hammer. Screw in adjustable glides (13) all the way. ameriwoodhome.com...
  • Page 38 The next steps are to assemble your unit to the wall Assembled unit MUST be square on the height, width, and depth to function properly Assembled unit MUST be placed flat against the wall Assembled unit MUST be screwed into 3 DIFFERENT wall studs at the top and bottom for safety Screws provided are for drywall and wood studs.
  • Page 39 STEP 28 With the help of another person, place your unit FLUSH against the wall Do NOT cut into bed There are notches provided at the back of your unit. These notches are to fit around the baseboard on your wall.
  • Page 40 STEP 29 Assembled unit MUST be flush on the height, width, and depth to function properly A step ladder will be required. Do not lean against the top of the unit, it may cause sagging If required, unscrew the Glides counter-clockwise as necessary in all 4 corners until your unit is level in all directions...
  • Page 41 STEP 30 Locate the studs in the wall using a stud finder. Using a pencil, mark the stud locations on the upper surface of the Upper Back Panel (G) just above the Top (C). Using a level, carry the stud locations down to the Bottom Stringer (K), and with a pencil, mark the stud locations.
  • Page 42 STEP 31 (x8) First, make sure that your unit is still level in all directions. Drill 1/8" (3mm) pilot holes through the Upper Back Panel (G) and Bottom Stringer (K) at the stud locator marks. Fasten the unit to the studs in the wall with the screws (12).
  • Page 43 The next steps are to assemble the metal bed frame and mechanism These parts are located in the #4813096COM Wall Bed Mechanism Carton ameriwoodhome.com...
  • Page 44 STEP 32 (x3) (x4) (x1) press in each hole May need a rubber mallet ameriwoodhome.com...
  • Page 45 STEP 33 (x8) (x1) (x8) (x4) ameriwoodhome.com...
  • Page 46 STEP 34 (x1) (x4) (x2) ameriwoodhome.com...
  • Page 47 STEP 35 (x2) (x2) (x2) long end short end The "long" end of each piston is to be fastened to the frame long end long end The ends of both pistons need to be inserted into the groove of the bed frame when assembled. ameriwoodhome.com...
  • Page 48 STEP 36 (x1) (x2) (x2) The cabinet is not shown to allow a clear view of the bed frame assembly Pistons & Corner Straps have been removed from image to better view step Already fastened to your unit Already fastened to your unit With a person on each side, lift the bed mechanism, line up the holes of the Bed...
  • Page 49 STEP 37 (x2) (x1) With a person on each side, carefully lift the bed frame in the closed position. While one person pushes the bed frame into the cabinet, passed the 90 degrees, the other person is to engage the "front" Gas Piston (21h) on each side of the unit, to the front pin of the Left and Right Pivot Arm (21e &...
  • Page 50 STEP 37 continued... Image is showing the bed frame pushed into the cabinet, passed 90 degrees. Please note: it is normal to see the bed frame in this state prior to the gas pistons being installed. ameriwoodhome.com...
  • Page 51 STEP 38 ATTENTION / ATENCION / ATTENTION (x1) (x2) (x2) (x1) The cabinet is not shown to allow a clear view of the bed frame assembly Pull the bed frame down, then attach Leg (21c) as shown Apply Warning Label here The bed frame is equipped with a locking mechanism to lock the Leg (21c) in place.
  • Page 52 STEP 39 (x4) (x8) Assembly orientation is critical! Proper orientation of Bracket unfinished edge ameriwoodhome.com...
  • Page 53 STEP 40 (x2) (x1) With the help of another person, turn the Left Door Assembly (T) onto it's side and attach the Handle (25) on the opposite side of the brackets (19). Assembly orientation is critical! ameriwoodhome.com...
  • Page 54 STEP 41 (x4) (x8) Assembly orientation is critical! Proper orientation of Bracket unfinished edge ameriwoodhome.com...
  • Page 55 STEP 42 (x2) (x1) Assembly orientation is critical! With the help of another person, turn the Right Door Assembly (U) onto it's side and attach the Handle (25) on the opposite side of the brackets (19). ameriwoodhome.com...
  • Page 56 STEP 43 IMPORTANT: First, unlock and flip the leg into the cabinet. Then, lower the bed frame down a bit to allow clearance to hook door assemblies (T & U) With the help of another person, lift the Left Door Assembly (T), position the Brackets (19) over the two support rails of the bed frame,...
  • Page 57 STEP 44 (x12) (x12) (x12) Screw (6) attaches the door bracket (20) to the door panel assemblies (T & U). Screw (7) attaches the door bracket (20) to the bed frame. Align the entire assembly so that the edges are lined up with the bed frame and push up against the leg.
  • Page 58 STEP 44 continued... View is looking from the top... showing location of brackets (20). Bed Frame Leg ameriwoodhome.com...
  • Page 59 STEP 45 (x28) (x56) Press a Plastic Cap (21j) at each end of a Wood Slat (21g). Press both Plastic Caps (21j), attached to the Wood Slat, into the holes of the Metal Bed Frame. Repeat the procedure for all 28 wood slats and 56 plastic caps.
  • Page 60 STEP 46 (x5) Press in face connector (10) into the holes in the Fixed Shelf (L) then engage the other end of the face connectors (10) into the holes in the Stop Rail (R). Press the two parts together to lock together. Please note: the parts will be loose in the holes until you press both parts together.
  • Page 61 STEP 47 While one person closes the bed frame, keep the bed frame slightly opened and hold in place. Another person will insert the connector bolts installed in the Kick (F) onto the connectors of the Bottom (D). open frame slightly Turn the connectors clockwise to lock in place.
  • Page 62 STEP 48 (x12) Place twelve Shelf Supports (11) in desired locations. Place both Side Shelves (O) and Center Shelf (P). ameriwoodhome.com...
  • Page 63 STEP 49 (x4) (x2) (x8) (x4) (x2) Press in door bumpers (17). Knob (26) will be assembled on the opposite side of the hinges (24). ameriwoodhome.com...
  • Page 64 STEP 50 (x4) ameriwoodhome.com...
  • Page 65 STEP 51 Assemble both Upper Door Assemblies (S) as shown. Slide each hinge (24) from the door into the hinge plates (21) located on the Left Panel (A) and Right Panel (B). Eccentric adjustment screw - shifts the whole hinge up and down.
  • Page 66 STEP 52 This step is optional... Place the glissando soft close (22) on the lower hinge (24) of each door (S). (x2) Hooks ameriwoodhome.com...
  • Page 67 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. This bed is designed to accommodate a Full Size Mattress, up to 10" inches thick. * with a maximum weight of 60 lbs (27.2 kgs) * with a minimum weight of 30 lbs (13.6 kgs) After you have finished assembling...
  • Page 68 Register your product to receive the following: * New trend details - sneak peek on what's new * Surveys - have a voice within our community * Exclusive deals and discount codes * Quick and easy replacement part service To register your product, visit ameriwoodhome.com Visit your local retailer's website, rate your purchased product and leave us some feedback! ameriwoodhome.com...
  • Page 69 Espa ol Cubierta Delantera Cama de pared: cama de d a de tama o completo Fecha de compra N mero de lote ADVERTENCIA: * ADVERTENCIA PARA NI OS PEQUE OS: Este producto tiene piezas peque as, aseg rese de mantenerlas fuera del alcance de los ni os peque os. Los ni os menores de 6 a os, lactantes peque os y beb s no deben dormir en esta cama por cuestiones de seguridad.
  • Page 70 Espa ol Consejos de montaje Consejos tiles PERSONAS NECESARIAS PARA EL ENSAMBLAJE: 2 - Abra el art culo en la zona donde piensa colocarlo para evitar levantarlo por su peso. - Identifique, clasifique y cuente las piezas antes de intentar ensamblarlo. - Aseg rese de orientar siempre la punta que est en la parte superior del bloqueo de leva hacia el borde exterior.
  • Page 71 Espa ol Lista de piezas N mero de pieza Descripci n Art culo Cantidad Panel izquierdo 35305306010 / 35305335010 35305306020 / 35305335020 Panel derecho Pieza superior 35305306030 / 35305335030 35305306040 / 35305335040 Pieza inferior 35305306050 / 35305335050 Cenefa 35305306060 / 35305335060 Kick Panel trasero superior 35305306070 / 35305335070...
  • Page 72 Espa ol P gina 9: Identificaci n del marco de cama No es el tama o real Nota: No se identificar n todas las piezas. 21k - Pasador giratorio 21a - Ensamblaje izquierdo 21l - Pasador de horquilla grande 21b - Ensamblaje derecho 21m - Pasador de horquilla peque o 21c - Pata 21n - Pasador...
  • Page 73 Espa ol P gina 20: Paso 10 Orientaci n correcta del bloqueo de leva Orientaci n correcta del conector P gina 21: Paso 11 D la vuelta a la parte superior (C) y atornille los pernos de leva (2) como se muestra. P gina 22: Paso 12 Bloquear las levas P gina 24: Paso 14...
  • Page 74 Espa ol Borde acabado Superficie acabada P gina 32: Paso 22 Bloquee las levas (2) P gina 33: Paso 23 Con la ayuda de otra persona, vuelva a girar el conjunto sobre su lado antes de iniciar este paso. Superficie acabada P gina 34: Paso 24 Superficie inacabada P gina 35: Paso 25...
  • Page 75 Espa ol P gina 39: Paso 28 Con la ayuda de otra persona, coloque el aparato AL RAS de la pared. NO lo corte en la cama! En la parte trasera de la unidad hay unas muescas que deben ajustarse alrededor de la placa base en la pared.
  • Page 76 Espa ol P gina 47: Paso 35 Extremo largo Extremo corto El extremo "largo" de cada pist n debe fijarse al marco. Los extremos de ambos pistones deben insertarse en la ranura del marco de cama cuando est n ensamblados. P gina 48: Paso 36 No se muestra el gabinete para permitir una visi n clara del conjunto del marco de cama.
  • Page 77 Espa ol P gina 52: Paso 39 La orientaci n del montaje es fundamental! Orientaci n correcta del soporte Borde inacabado P gina 53: Paso 40 La orientaci n del montaje es fundamental! Con la ayuda de otra persona, gire el conjunto de la puerta izquierda (T) sobre su lado y fije el asa (25) en el lado opuesto de los soportes (19).
  • Page 78 Espa ol P gina 59: Paso 45 Presione una Tapa de Pl stico (21j) en cada extremo de un List n de Madera (21g). Presione ambas tapas de pl stico (21j), unidas a la tablilla de madera, en los agujeros del somier met lico. Repita el procedimiento para las 28 tablillas de madera y las 56 tapas de pl stico.
  • Page 79 Espa ol P gina 66: Paso 52 Este paso es opcional... Coloque el cierre suave glissando (22) en la bisagra inferior (24) de cada puerta (S). Ganchos P gina 67: Cargas m ximas Esta unidad est dise ada para soportar las cargas m ximas indicadas. Exceder estos l mites de carga podr a causar pandeo, inestabilidad, colapso del producto o lesiones graves.
  • Page 80 Fran ais Page de couverture Lit mural : lit de jour complet Date d achat Num ro de lot AVERTISSEMENT : * AVERTISSEMENT POUR LES JEUNES ENFANTS : Ce produit contient de petits l ments, veuillez vous assurer qu'ils sont tenus l' cart des jeunes enfants. Les enfants de moins de six ans, les nourrissons et les b b s ne doivent pas dormir sur ce lit pour des raisons de s curit .
  • Page 81 Fran ais Conseils d assemblage Conseils utiles PERSONNES N CESSAIRES POUR L'ASSEMBLAGE : 2 - Ouvrez votre article l'endroit o vous pr voyez de le conserver afin d' viter de le soulever trop lourdement. - Identifiez, triez et comptez les pi ces avant de proc der l'assemblage. - Veillez toujours orienter la pointe de la partie sup rieure de la serrure came vers le bord ext rieur.
  • Page 82 Fran ais Lista de piezas N mero de pieza Descripci n Art culo Cantidad Panneau gauche 35305306010 / 35305335010 35305306020 / 35305335020 Panneau droit 35305306030 / 35305335030 Dessus 35305306040 / 35305335040 Dessous 35305306050 / 35305335050 Cantonniere 35305306060 / 35305335060 Kick Panneau arriere superieur 35305306070 / 35305335070 35305306080 / 35305335080...
  • Page 83 Fran ais Page 8: Identification du cadre de lit Taille non r elle Remarque : toutes les pi ces ne sont pas identifi es. 21k - Goupille de pivot 21a - Cadre gauche 21l - Grande broche de chape 21b - Cadre droit 21m - Petite broche de chape 21c - Jambe 21n - Goupille fendue...
  • Page 84 Fran ais Page 20 : tape 10 Orientation correcte du verrou came Orientation correcte du connecteur Page 21 : tape 11 Retournez la partie sup rieure (C) et vissez les boulons came (2) comme indiqu . Page 22 : tape 12 Orientation correcte du verrou came Page 24 : tape 14 Le bras pivotant gauche (21e) est positionn dans la bo te de m canisme de lit mural 4813096COM.
  • Page 85 Fran ais Page 32 : tape 22 Verrouillez les cames (2) Page 33 : tape 23 Avec l'aide d'une autre personne, retournez l'ensemble sur le c t avant de commencer cette tape. Surface finie Page 34 : tape 24 Surface non finie Page 35 : tape 25 Surface non finie Page 36 : tape 26...
  • Page 86 Fran ais Page 39 : tape 28 Avec l'aide d'une autre personne, placez votre appareil contre le mur. Ne coupez PAS dans le lit! Des encoches sont pr vues l'arri re de votre appareil. Ces encoches sont destin es s'adapter la plinthe de votre mur.
  • Page 87 Fran ais Page 47 : tape 35 Extr mit longue Extr mit courte L'extr mit "longue" de chaque piston doit tre fix e au cadre. Les extr mit s des deux pistons doivent tre ins r es dans la rainure du cadre du lit lorsqu'elles sont assembl es. Les extr mit s des deux pistons doivent ins rer dans la rainure du cadre de lit lorsqu'il est assembl .
  • Page 88 Fran ais Appliquez l' tiquette d'avertissement ici. Le cadre de lit est quip d'un m canisme de verrouillage pour bloquer la jambe (21c) en place. Pour verrouiller ou d verrouiller la jambe, tirez sur le m canisme de verrouillage. Page 52 : tape 39 L'orientation de l'assemblage est essentielle! Orientation correcte du support Bord non fini...
  • Page 89 Fran ais Alignez l'ensemble de mani re ce que les bords soient align s avec le cadre du lit et poussez contre le pied. Cette action permet d'ajuster l'espace sup rieur. Fixez ensuite les panneaux au cadre du lit l'aide des supports (20). Reportez-vous la page suivante pour conna tre la position des supports.
  • Page 90 Fran ais Page 65 : tape 51 Assemblez les deux portes sup rieures (S) comme indiqu . Faites glisser chaque charni re (24) de la porte dans les plaques de charni re (21) situ es sur le panneau gauche (A) et le panneau droit (B).
  • Page 91 Fran ais Page 68 : enregistrez votre produit pour recevoir les informations suivantes : * D tails des nouvelles tendances : un aper u de ce qui est nouveau * Sondages : faites entendre votre voix au sein de notre communaut * Offres exclusives et codes de r duction * Service de remplacement de pi ces rapide et facile Pour enregistrer votre produit, rendez-vous sur ameriwoodhome.com...
