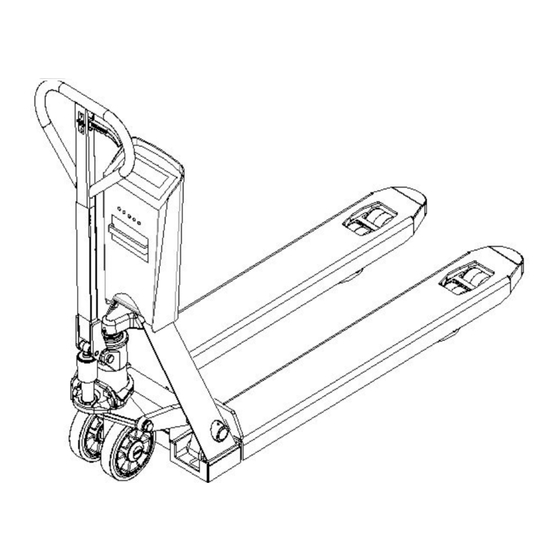

USER MANUAL
MODEL LFTSC 2.0
Serial Number: 22491313.245201 and Up
We would like to inform you about the fact that this
Lift-Rite
product is 100% recyclable on the basis that the
parts are processed and disposed of in the right manner.
Published: 2024-12-06
Printing/Typographical errors and model changes reserved.
1
MANUAL – 1401217/001A
USER

Advertisement

loading
Need help?

Need help?

Do you have a question about the LFTSC 2.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Lift-Rite LFTSC 2.0

Summary of Contents for Lift-Rite LFTSC 2.0

  • Page 1 USER MANUAL MODEL LFTSC 2.0 Serial Number: 22491313.245201 and Up We would like to inform you about the fact that this Lift-Rite product is 100% recyclable on the basis that the parts are processed and disposed of in the right manner.
  • Page 2 PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE If you have any queries concerning the duration and terms of the guarantee, please contact your supplier. We would also refer you to our General Sale and Supply Conditions, which are available on request. The manufacturer accepts no liability for any damage or injury caused by failure to follow these instructions, or from negligent operation or assembly, even if this is not expressly stated in this instruction manual.
  • Page 3 Table of Contents 1. Introduction 2. Warning & Safety measures 2.1 Lithium-ion Battery (option) 3. System setup 3.1 Placing the battery pack in the pallet truck 3.2 Switching on/off 4. Changing battery 4.1 Low battery indication 4.2 Charging the battery pack of the pallet truck 5.
  • Page 4 Always do things in the correct order. This manual should be kept in a safe and dry place. In case of damage or loss, the user may request a new copy of the manual from Lift-Rite. 2. Warning & Safety measures When using the LFTSC 2.0, please observe carefully the instructions and guidelines contained in this manual.
  • Page 5 2.1 Lithium Ion Battery (option) Important Safety Information DANGER • Use the specific Li-ion charger and observe the specified charging conditions when charging the battery. • Avoid exposure to high temperature and keep away from fire. • Do not deform, modify, or disassemble the battery.
  • Page 6 Specifications Battery Operating range Nominal voltage / capacity BA-14.8V-5A: 5 Ah (used for hand pallet trucks) During use: -10°C - +50°C Operating temperature range (14°F - 122°F) During charging: 0°C - +40°C (32°F - 104°F) Operation • Normal charging - Charging takes up to 6-7 hours for a full charge (a partially discharged battery will be fully charged sooner).
  • Page 7 3. System setup 3.1 Placing the battery pack in the pallet truck The power supply to the system takes place through an exchangeable battery pack. With a completely charged battery pack, the total weighing time is about 75 hours for a Li-ion battery (for a system without a printer).
  • Page 8 3.2 Switching on/off ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Start up the 3 sec. Switch off the indicator. Press indicator by the on/off key. pressing the on/off key for 3 seconds. After 5 seconds all electronics are warmed up and you can start weighing. 4.
  • Page 9 4.2 Charging the battery pack of the pallet truck The system is equipped with a rechargeable battery pack and a smart charger. After charging for at least 8 hours, the charger will shut off when the battery pack is completely full. The red LED on the adapter will change to green once the battery is fully charged.
  • Page 10 5. Use 5.1 Use (accurate weighing) 1401217/001A USER MANUAL –...
  • Page 11 Wrong way of lifting the load Correct way of lifting the load Check the zero reading before each weighing! Before each weighing it is necessary to check whether the system is unloaded and free. If the indicator does not determine the zero point automatically, it must be done manually using the >0<...
  • Page 12 5.2 Auto shut-off indicator / Sleep mode 20 sec. ID CODE TOTAL KG/LB 20 min. no action! 2 min. Countdown starts: Press any key during countdown to cancel auto-shut-off and go back to the weighing mode. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB...
  • Page 13 5.3 Indicator functions the weighing system (including load) is stable the weight shown is negative >0< the weight shown is within the zero range the display is showing the net weight displayed weight is in range 1 (option multi range) displayed weight is in range 2 (option multi range) displayed weight is in range 3 (option multi range) stp1...
  • Page 14 Key functions Each key has 2 operational and one entry function. Standard function Special function Value entering (short key press) (long key press) function (entry mode) Zero setting code entry enter automatic tare pre-set tare decrease the value of the digit flashing print weight and add to check subtotal and...
  • Page 15 (only legal for trade version) automatic ntEP action not allowed (only legal for trade version) automatic SCALL audit trail number out of range Contact Lift-Rite Service department Wrong combination of firmwares ESoFt Contact your dealer EConF P96 not set Contact your dealer 1401217/001A...
  • Page 16 5.5 Net / Tare / Gross weight EXPLANATION: Net(1) + Tare(2) = Gross(3) 5.5.1 Net weighing: automatic tare ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB The indicator is set to zero. The “NET” pointer shows that the tare weight is activated.
  • Page 17 ID CODE TOTAL KG/LB The display shows the net value of the weighed load. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB The gross weight is displayed again. NOTE: for NTEP approved scale truck the tare will be erased automatically when the weight returns to gross zero! For the next weighing the tare must be activated again.
  • Page 18 5.5.2 Net weighing: manual tare (PT) ID CODE TOTAL KG/LB 3 sec. Press the >T< key for 3 seconds. ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up or down key until the desired value is reached. ID CODE TOTAL KG/LB ID CODE...
  • Page 19 ID CODE TOTAL KG/LB The “NET”pointer lights up. ID CODE TOTAL KG/LB NOTE For NTEP approved scale truck, the tare will be erased automatically when the weight returns to gross zero! For the next weighing, ID CODE TOTAL KG/LB the tare must be activated again. The last used preset tare value will remain in When the pallet truck...
  • Page 20 5.6 Adding & reset ID CODE TOTAL KG/LB NE T ID CODE TO TAL KG/LB Press the TOTAL C L R key to add the weight load to the total weight. If a printer is installed, a printout will be made. The gross, net, and tare...
  • Page 21 ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB 3 sec. The subtotal can be checked by pressing the TOTAL key for 3 sec. 3 sec. TOTAL = RESET TOTAL & PRINT KG/LB = RESET TOTAL NOTE: In case the total is not manually used or reset, the system will do this automatically as soon as the total number has reached 99 or as soon as the total weight has reached a value of 99999 kg.
  • Page 22 5.7 Entering ID-Code Last used code is shown (e.g. 20500). Right digit is flashing. Press the ID-code key for 3 sec. ID CODE TOTAL KG/LB To accept the old Press < to scroll through the digits value press Enter. and press the up or down key until the desired value is reached.
  • Page 23 5.8 Print out (option) If the weighing system has been equipped with a printer, obtained and entered weighing data can be printed. Date and time are only printed out with the option board installed. In the printout, a gross weight is indicated with the letters “B/G”, and a net weight with the letter “N”.
  • Page 24 5.10 Changing the time and date (on the printout) ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB 10 sec. Press enter to Select. The user menu can be entered by pressing the TOTAL key for 10 sec. ID CODE TOTAL KG/LB Press enter to change the time.
  • Page 25 ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press the up / Press < to change down key until the next digit. the desired value is reached. ID CODE TOTAL KG/LB To accept the new value press enter. Repeat the procedure to accept or change: - the minute setting “m_00”...
  • Page 26 5.11 User settings ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB Press enter to 10 sec. Select. The user menu can be entered by pressing the TOTAL key for 10 sec. EXIT & SAVE 3 sec. Back to weigh mode. These user settings can be changed if desired.
  • Page 27 5.11.1 User Menu explanation list 1401217/001A USER MANUAL –...
  • Page 28 5.12 Supervisor menu (password protected *1 The Supervisor menu is password protected since version 1.01. Earlier versions of the software are not password protected. Please contact Lift-Rite Service department for the password. ID CODE TOTAL KG/LB Press to change to 10 sec.
  • Page 29 5.12.1 Supervisor menu explanation list3 1401217/001A USER MANUAL –...
  • Page 30 Overview of Auto shut-off and Sleep settings. The settings mentioned below are the standard settings and advised for optimal use. These settings can be changed in the user menu, as described above. Auto Shut-off & Sleep Settings Lift-Rite Model LFTSC 2.0 SLEEP Options -> WiFi / RS / Bluetooth A_OFF 14.8...
  • Page 31 5.13 Alibi Memory scale truck indicator has the possibility of an alibi memory. The alibi memory will only be used when parameter 13 is set for OIML or NTEP. If parameter 13 is set for ‘NONE’, the alibi memory will remain unused. The indicator stores every weighing in its alibi memory and adds a unique number to it.
  • Page 32 For reading out the data saved in the alibi memory please follow next steps: ID CODE TOTAL KG/LB ID CODE TOTAL KG/LB 10 sec. > Press enter to Select. The user menu can be entered by pressing the TOTAL key for at least 10 sec.
  • Page 33 The display now shows the date (first day, then month and year) and the time (first hours, Press enter to then minutes) of the weighing continue to the year. with alibi number 02. Press enter to continue to the month. Press enter to Press enter to continue to the hour.
  • Page 34 For 0.5 sec the display shows the text For 0.5 sec the display shows the text ‘Net’ or ‘Net_C’. ‘tArE’ or ‘PtArE’. Next the display shows the net weight. Next the display shows the tare weight. Net: weight is measured. tare: weight is measured.
  • Page 35 • Always follow the operating, maintenance and repair instructions of the pallet truck and ask the supplier when in doubt; • Lift-Rite is not responsible for errors that occur due to incorrect weightings or inaccurate scales. 1401217/001A USER MANUAL –...
