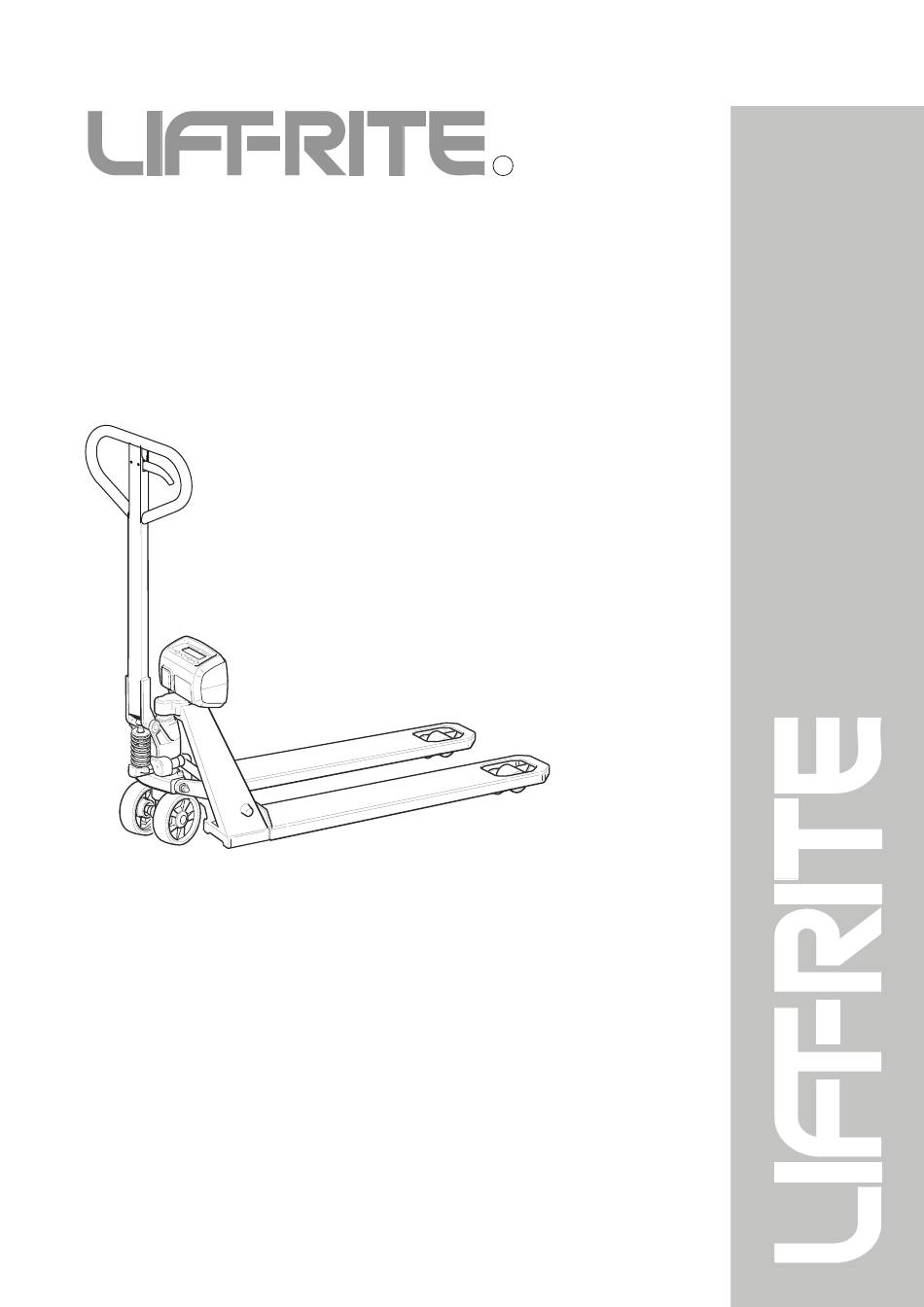

LEC 2000 SC/ SCQ
Hand Pallet Truck with scale
Operator's Manual/Service
Transpallettes avec balance
Manuel de instrucciones/Servicio
Transpaletas Manuales con báscula
Manuale di Istruzioni/Servizio
Spare Parts Catalogue
Valid from serial number:
Order number: 242484-017
Issued: 2006-12-22
R
en
fr
es
Advertisement
Table of Contents
Related Manuals for Lift-Rite LEC 2000 SC
Summary of Contents for Lift-Rite LEC 2000 SC
- Page 1 LEC 2000 SC/ SCQ Hand Pallet Truck with scale Operator’s Manual/Service Transpallettes avec balance Manuel de instrucciones/Servicio Transpaletas Manuales con báscula Manuale di Istruzioni/Servizio Spare Parts Catalogue Valid from serial number: Order number: 242484-017 Issued: 2006-12-22...
- Page 2 Page Operator’s Manual/Service 3 - 34 Manuel d’instructions/Entretien Manual de instrucciones/Mantenimiento Spare Parts Catalogue...
- Page 3 CAUTION! Warns that an accident can occur if the instructions are not followed. The consequences are personal injury and/or material damage. NOTE! NOTE! Marks the risk of damage of the truck if the instructions are not followed. © Lift-Rite 242484-017...
- Page 4 Always follow the warnings given in this Operator’s Manual and on the truck to avoid accidents and incidents from occurring. Lift-Rite Europe GmbH © Lift-Rite 242484-017...
-
Page 5: Safety Regulations
• It is prohibited for persons to be present in the area around the truck when there is a risk of personal injury, e.g. areas that can be reached by falling goods, lowering load handling devices or in the truck’s manoeuvring area. © Lift-Rite 242484-017... -
Page 6: Handling Loads
The weight of the load must be within the truck's permitted lifting capacity, see the truck’s identification plate. NOTE! If a plate is unreadable a new plate must be ordered. The length/width of the forks should be adapted to the load’s shape and dimensions. © Lift-Rite 242484-017... - Page 7 • Lower the forks fully to the floor. • Never park the truck on an incline. • Never park the truck so that it obstructs emergency exits. • Never park the truck so that it obstructs traffic or work. © Lift-Rite 242484-017...

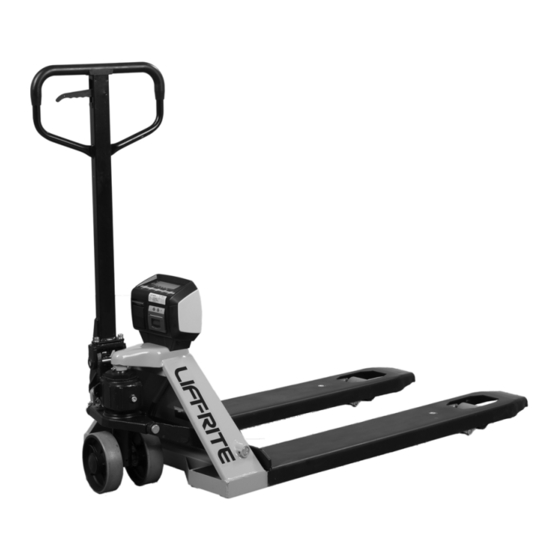

- Page 8 Presentation of the truck Presentation of the truck The LEC 2000 SC is a hand pallet truck with an integrated scale. Thanks to the highly precise scale, it is now possible to weigh pallets and containers at the moment of transport. To prevent errors and increase the efficiency of the logistics process, the flow of materials can be verified by weighing goods.
- Page 9 Presentation of the truck Truck dimensions The diagrams show external dimensions for the truck. h 14 © Lift-Rite 242484-017...
- Page 10 Fork width 170 mm Fork length 1150 mm Width over fork 540 / 700 mm Ground clearance, centre of wheel 25 mm base Aisle width requirement, min. Pallet 1770 mm size 800x1200 mm Turning radius 1405 mm © Lift-Rite 242484-017...
-
Page 11: Switching On The Scale
Scale Scale General The LEC 2000 SC is a hand pallet truck with an integrated scale. In ambient temperatures of -10 to +40°C, maximum deviation of the weighed gods is 0.1%. Outside this temperature range, the deviation may reach 0.3%. - Page 12 Weighing will be more precise when the goods is placed in the centre of forks. If the load is placed off-centre, the forks can bend and twist causing deviations in the weight result. © Lift-Rite 242484-017...
- Page 13 The indicated value is the net weight Displayed weight shown is in range 1 Displayed weight shown is in range 2 Displayed weight shown is in range 3 stp1 setpoint 1 is activated stp2 setpoint 2 is activated © Lift-Rite 242484-017...
-
Page 14: Operation Buttons
Enter a piece weight Shift to the next digit on the left On/off switch Toggle units Clear entry NOTE: Operation is only possible when the load has been firmly placed on the forks (and the "Load Stable" pointer lights up). © Lift-Rite 242484-017... -
Page 15: Error Messages
Action only allowed in start-up units (kg/lb) Automatic WARNING! Overload. If the weighed load exceeds the maximum weight, the message "Err02" is displayed. Immediately unload the truck to prevent damage to the display and the load cells. © Lift-Rite 242484-017... -
Page 16: Display Messages
Display the word stop ho 00 Display the settings for hours m 00 Display the settings for minutes dA 00 Display the settings for days m 00 Display the settings for months yE 00 Display the settings for years © Lift-Rite 242484-017... -
Page 17: Display Functions
- "NET" is displayed, indicating that the tare weight has been activated. 3. Adding/removing net weight - The net weight of the weighed load is displayed. - When unloading, this value becomes negative. 4. Depress the T button again, the gross weight is dis- played. © Lift-Rite 242484-017... - Page 18 - The display will show the last used code with the right digit flashing. ↵ 2. To accept the old value press ENTER ( - The code is activated and the display returns to the weigh- ing mode. © Lift-Rite 242484-017...
- Page 19 2. Take or place the correct number of pieces from/on the ↵ weighing system and press the ENTER ( ) key. - The sampling is done and the display will show the total number of pieces on the weighing system. © Lift-Rite 242484-017...
- Page 20 3. Depress to change to the next digit. 4. Repeat this procedure until the required piece weight is dis- played. ↵ 5. To accept the new value depress ENTER ( - The display shows the number of pieces currently on the weighing system. © Lift-Rite 242484-017...
- Page 21 It is not possible to use any of the scale functions when the display has been changed to the second unit. If any key is pressed the indicator will display "ERR99" and return to nor- mal weighing mode. © Lift-Rite 242484-017...
-
Page 22: Printer (Option)
5. Repeat the above procedure to accept or change the date of the month setting. - The display will show "m_00" or the previous month set- ting, with the right digit flashing. © Lift-Rite 242484-017... -
Page 23: Relay (Option)
- The display shows the last entered value with the left digit blinking. The pointer for set-point 1 is on. ↵ 2. Depress to accept the old value. - The set-point value is activated and the display returns to the weighing mode. © Lift-Rite 242484-017... - Page 24 3. Depress < to change to the next digit. - Repeat this procedure until the required value is displayed. ↵ 4. Depress to accept the new value. - The set-point value is activated and the display returns to the weighing mode. © Lift-Rite 242484-017...
- Page 25 - The display shows "done" for a few seconds and will return in the normal weighing mode. - The net weight is displayed. A printout may be made at this point. It is possible to cancel the filling procedure at any time by press- ing the CE key © Lift-Rite 242484-017...
- Page 26 2. Depress to accept the old value. - The value for set-point 1 is activated. The display shows the last entered value for set-point 2 with the left digit blink- ing. The pointer for set-point 2 is on. © Lift-Rite 242484-017...
- Page 27 - The gross weight is the weight of the container with rest material. - The tare weight is the weight of the container with material before dosing. - The net weight will show a minus sign as token of weight being removed from the scale. © Lift-Rite 242484-017...
- Page 28 Stp2 will be turned on. 1. Depress the CE key to stop the procedure. - The display shows "done" for a few seconds and will return in the normal weighing mode. - The net weight is displayed. © Lift-Rite 242484-017...
-
Page 29: Check Points
Never use a truck that has faults. Only approved original spare parts shall be used with service and repairs. It is recommended that you sign a service and maintenance agreement with your closest representative to ensure the truck's operating economy and safety. © Lift-Rite 242484-017... -
Page 30: Troubleshooting
Daily service and function checks Troubleshooting LEC 2000 SC Fault Cause Action Pump does not take a full Air in the hydraulic system. Pump 5 strokes with lowering valve stroke open. Insufficient hydraulic oil. Contact a service technician. Lift, neutral and lowering... -
Page 31: Maintenance
• Carry out general cleaning and washing weekly. • Always rinse the truck with plentiful of water each time it has been cleaned. • Always lubricate the truck after washing according to the lubrication diagram and table. © Lift-Rite 242484-017... - Page 32 5 litres: 233328-002 ISO 6743-4 category HM DIN 51524 part 2 category HLP Hydraulic oil ISO-VG27,5 Statoil 131 1 litre: 233916-001 <-15° C Quality level: 5 litres: 233916-002 ISO 6743-4 category HV DIN 51524 part 3 category HVLP © Lift-Rite 242484-017...
-
Page 33: Lifting The Truck
Always use work gloves when lifting by hand. WARNING! Risk of crushing. There is a risk of crushing when the truck is lifted by hand and holding it by the hydraulics body. Always use work gloves when lifting by hand. © Lift-Rite 242484-017... -
Page 34: Hydraulic System
Disposal acc. to local directives Top nut Aluminium Assembly parts Steel, aluminium, brass, rubber, polyurethane, nylon Weighing system Housing indicator Plastic Load cells Steel Cables Copper cores with PVC sheaths Electronic board Reinforced glass fibre circuit board laminate © Lift-Rite 242484-017...
