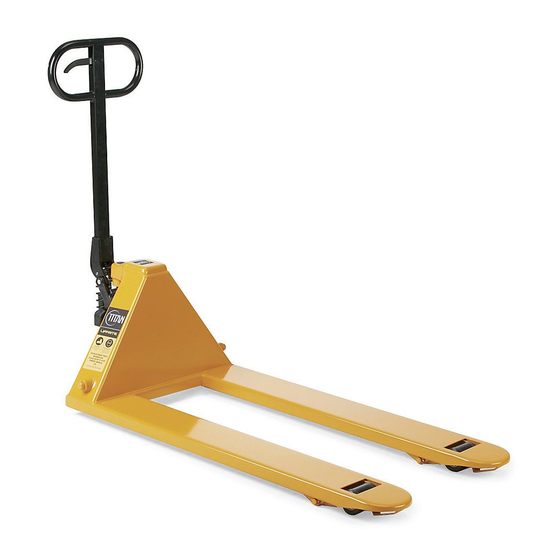

Lift-Rite Titan Series Owner's Manual, Operating Instructions Manual, And Replacement Parts Manual
Hand pallet trucks
Hide thumbs
Also See for Titan Series:
- Owner's manual (20 pages) ,
- Owner's manual, operating instructions manual, and replacement parts manual (16 pages) ,
- Owner's manual operating instruction & parts list (13 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Lift-Rite Titan Series
Summary of Contents for Lift-Rite Titan Series

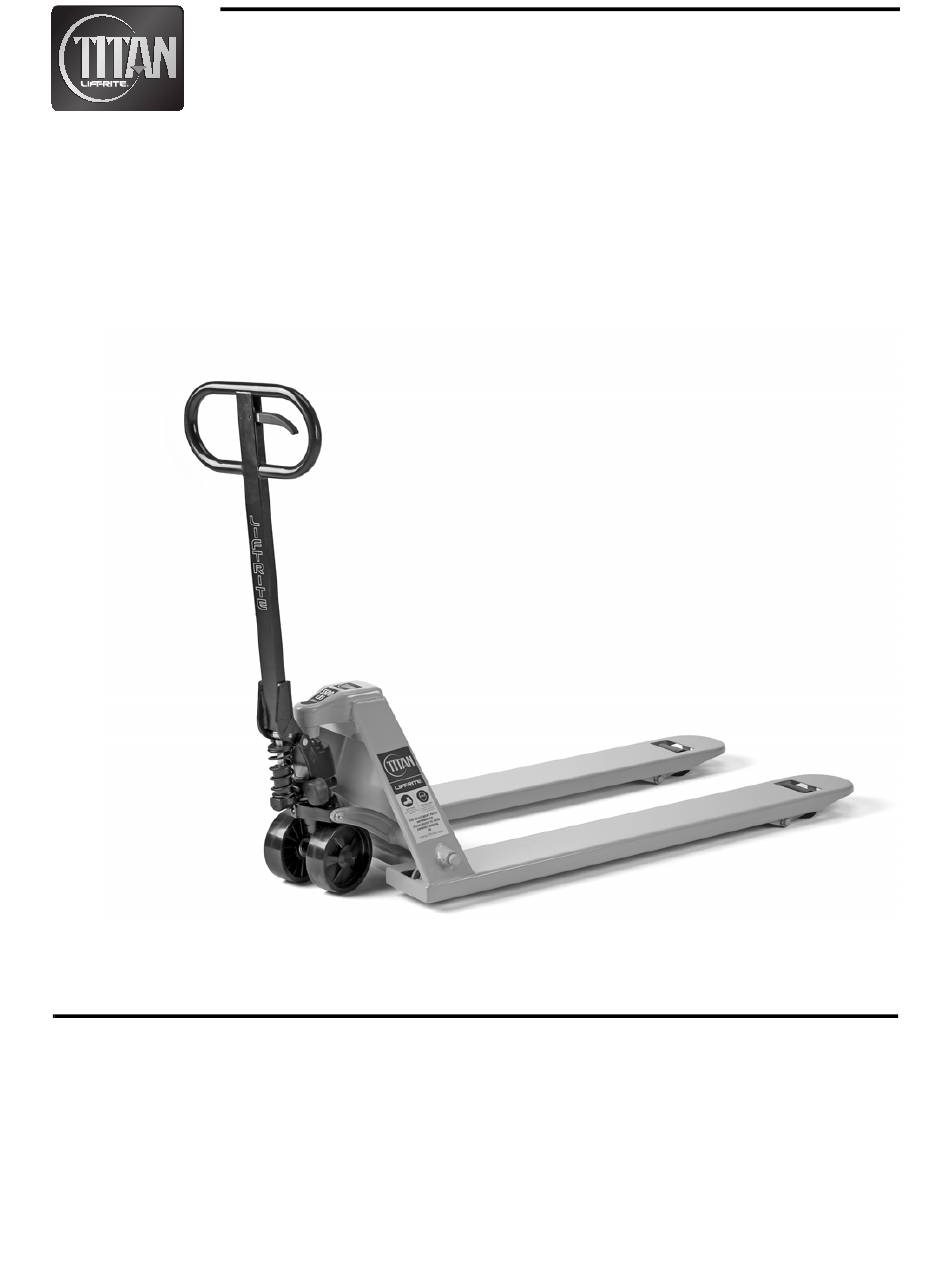

- Page 1 Owner’s Manual, Operating Instructions Manual, and Replacement Parts Manual Lift-Rite Titan Series Hand Pallet Trucks Models LCM50, LCU50, LCUUF, and Four-Way Versions Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020...
- Page 2 To order additional copies of this manual, part number 1149374/001D, contact your local authorized Lift- Rite Sales and Service Center. If you need assistance with your lift truck, contact your local authorized Lift-Rite Sales and Service Center. For more information please visit www.liftrite.com...
-
Page 3: Table Of Contents
SAFETY PROCEDURES DAILY INSPECTION MAINTENANCE TROUBLESHOOTING PARTS Hydraulic Assembly LCM50 and LCU50 Chassis LCM4W and LCU4W Chassis LCUUF Chassis Recycling Old Parts WARRANTY Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 4: Delivery Inspection
For free handle movement, place the fingertip control in the neutral position. Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 5: Safety Procedures
Check for Check for rotation excessive oil damage, and damage and function readability on exterior remove debris remove debris and check for function Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 6: Maintenance
Distance (inches) 5-1/8 in. 4-3/4 in. 4-3/8 in. 4 in. 3-1/2 in. 3-1/8 in. 2-3/4 in. 2-3/8 in. Oil to add (Fl. Oz.) Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... - Page 7 (20066). Take care when adding oil not to introduce impurities into the hydraulic system. 6. Tighten the screw (221586) fully and return the truck upright. Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020...
-
Page 8: Troubleshooting
Forks are not lowering Push jam nut is loose. Push bars Refer to Push Bar Linkage Adjustment completely. require adjustment. in the MAINTENANCE section. Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 9: Hydraulic Assembly
(REQUIRED WITH 200965BT ONLY) AXLE 220310 BEARING 22226 WHEEL COMPLETE NYLON 251189 POLY 160422 POLY/STEEL 200965BT STEEL 160433 HYDRAULIC UNIT PM-30277BN REBUILD KIT 243772 Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 10: Lcm50 And Lcu50 Chassis
- FOR LCU4W Consult (1.75 IN. ULTRALOW PROFILE) Factory TORSION BAR - 33 IN. WIDE(LCM4W & LCU4W) PF-30203 BUSHING PL-20226A SPLIT PIN PM-20269 Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 11: Lcuuf Chassis
Ax x Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 12: Parts
Cast iron Handle Steel Wheel Nylon, polyurethane, steel Bushings Brass Hydraulic oil Disposal in accordance with local regulations Assembly parts Steel, brass, nylon Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020... -
Page 13: Warranty
Additionally, freight charges for parts involved in the replacement or repair of a defective component will be paid by Lift-Rite, provided that the replacement or repair is made by an authorized Lift-Rite Sales and Service Center. Labor or miscellaneous costs involved in the replacement of any components determined to be defected are not covered. - Page 17 Part Kit Number 1357097/001 Lift-Rite, Tel: Toll Free from USA: 1-800-558-6012, Greene, NY 13778, Publication Number 1149374/001D ©2020 Dated 31 Jan 2020...
