Super Anchor Safety 1220 SRL-RMH Instruction Manual

S U P E R A N C H O R S A F E T Y
1215 SRL-UH
No.
Instruction/Specification Manual
Materials
Base Plate: 3/8" Q235 steel
Fixed/Adjustable Sides: 1/8" Q235 Steel
Finish: HDG coating
Detent Pin: SAS No.2015-6.0-8
3/8" grade 300 sst.
Skid Plates: 3/16" and 3/8" polymer
Anchorage Bolt/Lock Nut: 5/8-11 grade 5
SAS in this manual = Super Anchor Safety
Qualified/Competent Person = OSHA definition.
 Inspection Points.
Compliance
ANSI Z359.1-07/OSHA 1926.502
Specified Use
Rotating holder for SRL/SRD self retracting lifelines.
5-1/4" maximum casing width (Fig.4). SRL compatibility
with the SRL-UH holder must be approved by a qualified or
competent person prior to use.
User wt: 310lb including tools and equipment
Max. Free Fall: 6ft Max. Slope: 8/12
PPE: Required to use current ANSI, CSA or OSHA compliant PPE.
Use of a personal energy absorber (E/A) or SRL
equipped with an internal or external E/A is required.
SRL-UH Compatibility
The SRL-UH is required to be bolt attached to a
SAS Compatible anchor model specified in Table 1
and shown on pages 2 and 3 of this manual.
Attachment to anchorages mfg. by others may be
specified by a qualified or competent person.

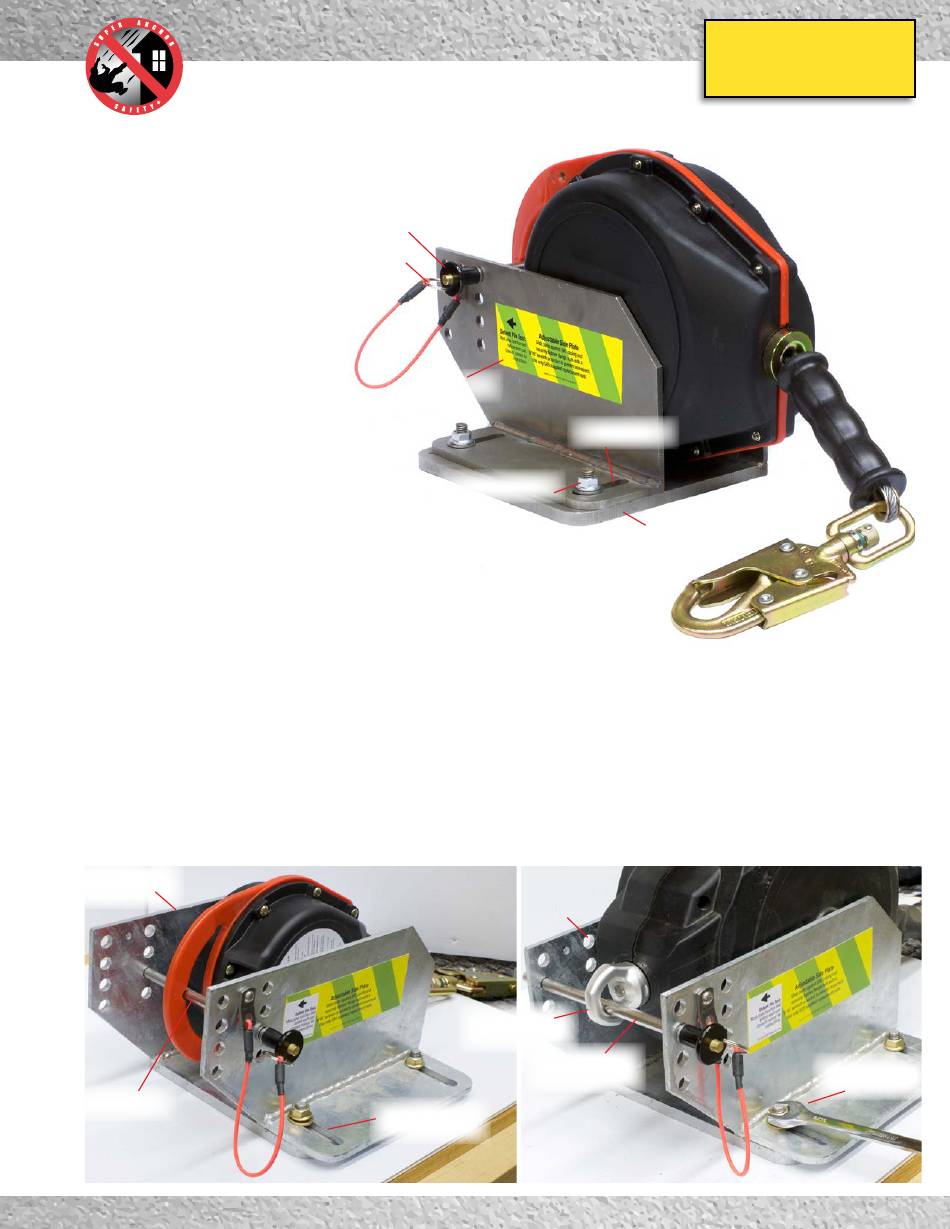

Attaching SRL to the Holder
1) Before setting the SRL in the holder, attach the SRL-UH to one of
the SAS anchorage models shown on page 2 and 3 of this manual.
2) Remove detent pin from connector adjustment holes.
3) Loosen the adjustable side flange nuts, slide open the adjustable
side, and set SRL in place (Fig.2).
Fixed Side

SRL Connector
Super Anchor Safety | 17731 - 147th St. SE, Monroe, WA 98272 USA
Detent Pin
Tether
Instruction Label

Fig.2
Adjustable Side

SRL Holder
02-2021
Fig.1
SRL-UH
Adjustable Side
3/8" Flange Nuts

Base Plate
Structural Support
The supporting structure to which the
SRL-UH anchor type is attached must
be capable of supporting 5,000lb or 2x
the intended fall protection load per
OSHA 1910.140(13).
4) Slide adjustable side against SRL casing and tighten flange nuts with a 9/16"
socket or open-end wrench using moderate force. DO NOT overtighten (Fig.3).
5) With SRL casing level, align the connector end with the detent pin connector
holes that are nearest to level. (Fig.2,3).
6) Insert detent pin through adjustable and fixed side corresponding to connector
holes so that detent pin is levelled (Fig.3).
7) Prior to use, perform the detent pin locking test as specified on page 3.
Connector
Holes
Detent Pin Level

SRL Connector
Swivel Type
| (425) 488-8868 | www.superanchor.com
®
!WARNING TO USER!
You are required to read and use the Instruction/
Specification manual supplied at the time
ENGLISH this device was shipped. Improper use and
installation can result in serious injury or death.
VERSION
Follow inspection requirements before each use.
Fig.3
9/16" Wrench
©SCN 2021 [MIT]
