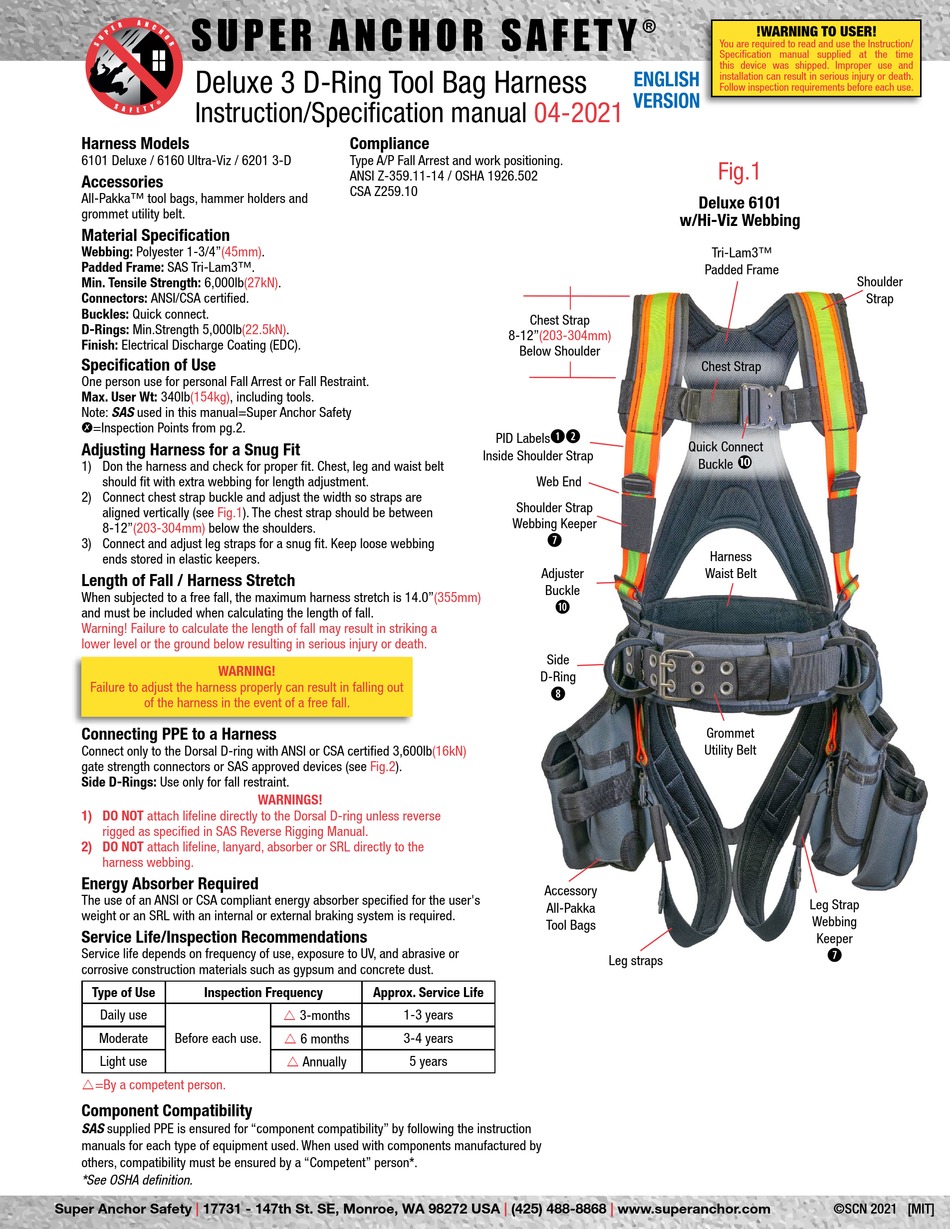

Super Anchor Safety Deluxe 3 D-Ring Instruction Manual And Specifications

S U P E R A N C H O R S A F E T Y
Deluxe 3 D-Ring Tool Bag Harness
Instruction/Specification manual
Harness Models
6101 Deluxe / 6160 Ultra-Viz / 6201 3-D
Accessories
All-Pakka™ tool bags, hammer holders and
grommet utility belt.
Material Specification
Webbing: Polyester 1-3/4"(45mm).
Padded Frame: SAS Tri-Lam3™.
Min. Tensile Strength: 6,000lb(27kN).
Connectors: ANSI/CSA certified.
Buckles: Quick connect.
D-Rings: Min.Strength 5,000lb(22.5kN).
Finish: Electrical Discharge Coating (EDC).
Specification of Use
One person use for personal Fall Arrest or Fall Restraint.
Max. User Wt: 340lb(154kg), including tools.
Note: SAS used in this manual=Super Anchor Safety
=Inspection Points from pg.2.
Adjusting Harness for a Snug Fit
1) Don the harness and check for proper fit. Chest, leg and waist belt
should fit with extra webbing for length adjustment.
2) Connect chest strap buckle and adjust the width so straps are
aligned vertically (see Fig.1). The chest strap should be between
8-12"(203-304mm) below the shoulders.
3) Connect and adjust leg straps for a snug fit. Keep loose webbing
ends stored in elastic keepers.
Length of Fall / Harness Stretch
When subjected to a free fall, the maximum harness stretch is
and must be included when calculating the length of fall.
Warning! Failure to calculate the length of fall may result in striking a
lower level or the ground below resulting in serious injury or death.
WARNING!
Failure to adjust the harness properly can result in falling out
of the harness in the event of a free fall.
Connecting PPE to a Harness
Connect only to the Dorsal D-ring with ANSI or CSA certified
gate strength connectors or SAS approved devices (see Fig.2).
Side D-Rings: Use only for fall restraint.
1) DO NOT attach lifeline directly to the Dorsal D-ring unless reverse
rigged as specified in SAS Reverse Rigging Manual.
2) DO NOT attach lifeline, lanyard, absorber or SRL directly to the
harness webbing.
Energy Absorber Required
The use of an ANSI or CSA compliant energy absorber specified for the user's
weight or an SRL with an internal or external braking system is required.
Service Life/Inspection Recommendations
Service life depends on frequency of use, exposure to UV, and abrasive or
corrosive construction materials such as gypsum and concrete dust.
Type of Use Inspection Frequency
Daily use
Moderate Before each use.
Light use
=By a competent person.
Component Compatibility
SAS supplied PPE is ensured for "component compatibility" by following the instruction
manuals for each type of equipment used. When used with components manufactured by
others, compatibility must be ensured by a "Competent" person*.
*See OSHA definition.
Super Anchor Safety | 17731 - 147th St. SE, Monroe, WA 98272 USA
Compliance
Type A/P Fall Arrest and work positioning.
ANSI Z-359.11-14 / OSHA 1926.502
CSA Z259.10
14.0"(355mm)
3,600lb(16kN)
WARNINGS!
Approx. Service Life
 3-months 1-3 years
 6 months 3-4 years
5 years
 Annually
®
ENGLISH
VERSION
04-2021
Chest Strap
8-12"(203-304mm)
Below Shoulder

PID Labels
Inside Shoulder Strap
Web End
Shoulder Strap
Webbing Keeper

Adjuster
Buckle

Side
D-Ring

Accessory
All-Pakka
Tool Bags
Leg straps
| (425) 488-8868 | www.superanchor.com
!WARNING TO USER!
You are required to read and use the Instruction/
Specification manual supplied at the time
this device was shipped. Improper use and
installation can result in serious injury or death.
Follow inspection requirements before each use.
Fig.1
Deluxe 6101
w/Hi-Viz Webbing
Tri-Lam3™
Padded Frame
Shoulder
Chest Strap
Quick Connect

Buckle
Harness
Waist Belt
Grommet
Utility Belt
Leg Strap
Webbing
Keeper

©SCN 2021 [MIT]
Strap
