Delaney NEXUS Quick Start Manual

Smart lock

Advertisement

Quick Links

NEXUS
SMART LOCK
Quick Start Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEXUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Delaney NEXUS

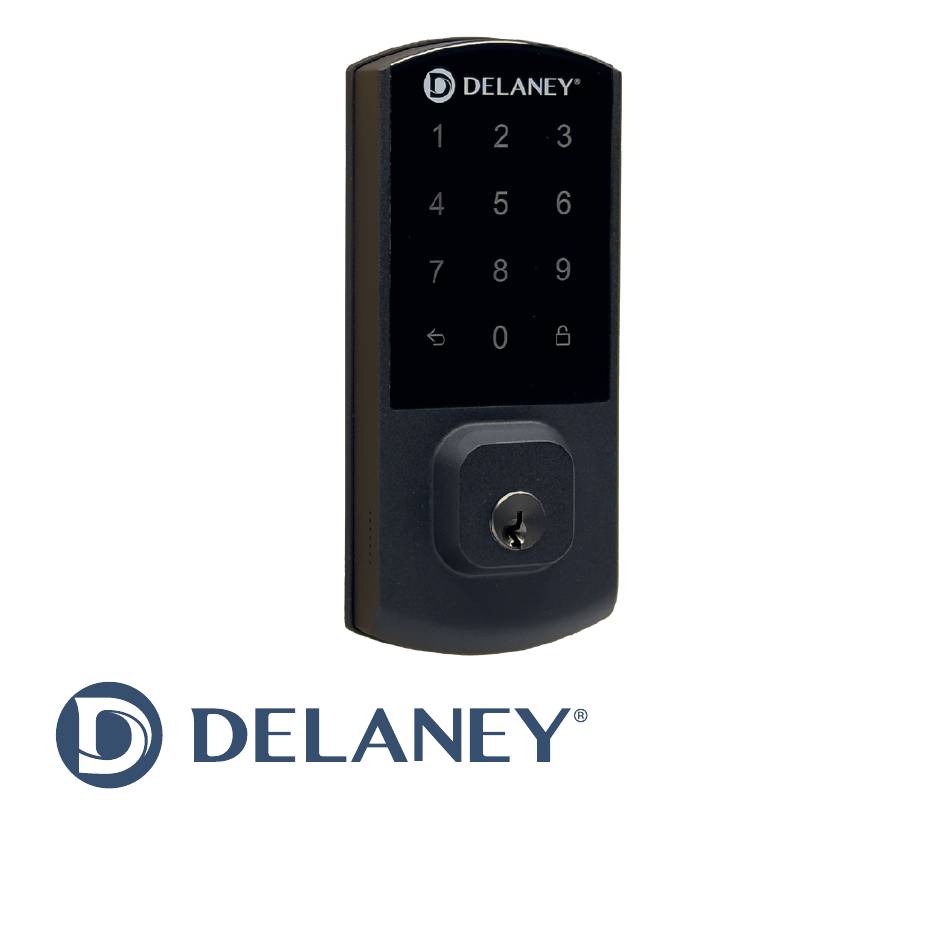

  • Page 1 NEXUS SMART LOCK Quick Start Guide...
  • Page 2 In the Box Keys Mounting Plate with mounting sticker template included Battery Cover Exterior Touchscreen Assembly Interior Assembly Reset Pin Auto-Lock Strike AA Alkaline Door Sensor Plate Batteries Latch Wi-Fi Gateway Top Screws for Screws for Mounting Smart Lock Plate M4 x .40in.
  • Page 3 Lock Overview Interior Assembly Exterior Assembly Keypad Battery cover Door sensor Unlock Button LED indicator Lock/ Return Button Turn piece Key way Privacy button USB-C Port Reset button USB Connector Plug it into a 5V/2A Reset USB power adaptor. LED Indicator Reset button...
  • Page 4 System Alerts Lock Activity Buzzer Interior LED Keypad Power-on beep*2 Lights up White Button Press beep*1 White Flashes 1 time Low Battery Lights up RED Return Button lights up RED Critical Low Battery beep*3 Return Button lights up RED Lights up RED Enable Privacy Mode 1/5/9/3/7 Button Flashes White Successfully Locked...
  • Page 5 Definitions Factory Reset (Smart Lock) This procedure will delete all User Codes, Wi-Fi, and Bluetooth associated with the lock. 1. Keep the door open and unlocked. 2. Insert the Reset pin into the hole in bottom of the unit and press the Reset Button for 5 seconds until your hear a long beep.
  • Page 6 Definitions Emergency Power In case battery power is completely lost, please charge it by the USB bank power in the TYPE-C port below the keypad. Minimum voltage requirement is 5V. Auto Lock Auto Lock feature will automatically extend the dead-bolt after it has been unlocked.
  • Page 7 Tools Step Screws needed: Latch Screws Phillips screwdriver Do not use a power drill! Install the latch. You may have to adjust your latch length. Make sure the slot in the bolt is centered in the hole. Standard latch backset is 2-3/8.” Slot is Make sure centered...
  • Page 8 Step Screws needed: Strike Screws Install the provided strike plate into the door frame.
  • Page 9 Step Having trouble installing the touchscreen & tailpiece? Email orders@delaneyhardware.com Install the touchscreen assembly to the exterior door as shown. Route the cable through the door ABOVE the latch. Align the tailpiece as shown and push the touchscreen onto the door.
  • Page 10 Step Screws needed: Screws for Mounting Plate Phillips screwdriver M5 x 1.18in For 1.96 in. door thickness Install the Caution: Do not use a power drill! You may damage your lock! Screws for Mounting Plate mounting M5 x 1.57in For 2.36 in. door thickness plate to the interior door as shown.
  • Page 11 Step Connect the cable to the back of interior lock. Once attached you will hear a click. Tuck the cable and connector in the space below the tailpiece. tailpiece...
  • Page 12 Step Screws needed: Top Screws for Secure the lock to the door. Smart Lock M4 x .40in. If the bump on the tailpiece doesn’t align Bottom Screw for with the slot in the back of the inside Smart Lock assembly, make sure your turn button is M4 x .55in.
  • Page 13 Step Install the four AA batteries (included) in the direction shown on the case and replace the battery cover.
  • Page 14 Step Attach the auto-lock door sensor to the interior trim of the door as shown.* Peel off the adhesive barrier and attach the auto-lock door sensor within 1” to the interior trim aligning to the arrow on the side of the interior lock. Note: Your Exterior Lock will start to beep and blink red.
  • Page 15 You’ve installed your Nexus Smart Lock. Now download the “Delaney Home” App to your smart device to connect to your Nexus and unlock more features. Features: •Assign customizable user codes so you can know who accessed your home. •Remotely lock and unlock your door.
  • Page 16 APP Guide 3. Click the verification and find the code in your Create new account email box. 1. Click the Register 2. Input the email *After you retrieving the icon. address that you have verification code do not access to and click next. re-enter your email address.
  • Page 17 How to Add Your Lock 1. Click to add device icon and scan the QR code in battery cover. Make sure your Bluetooth and Wi-Fi are turned on in your device settings. 2. Follow the Wizard to complete the Bluetooth door lock pairing.
  • Page 18 4. Door open Direction Setup setup passwords. 9 22 AM 9 22 AM Connecting 5. Door lock pairing successfully 6. To connect your Nexus to Wi-Fi, select “Binding Gateway.” You can skip this step and come back to it at any time.
  • Page 19 What you’ll need: Pairing Wi-Fi Gateway 1. Click the add device icon and scan the QR code on Wi-Fi gateway 5V/2A USB Power Adapter Wi-Fi Gateway (Not Included) Select to pair gateway Pair gateway 2. Please make sure to plug in the Wi-Fi gateway and it powers on. If the Wi-Fi Gateway does not power on, please email orders@delaneyhardware.com Follow the Wizard to complete the Wi-Fi gateway pairing.The distance between the gateway and lock should be within 30ft from the inside of the door.
  • Page 20 3. Name the Wi-Fi 4. Select your Wi-Fi network and input Gateway. your Wi-Fi password. 5. Wi-Fi Gateway pairing successfully...
  • Page 21 Home Page Return to Device List Advanced setting Wi-Fi connection Unlock status Bluetooth connection Lock status Door open status Battery status Door closed status Return to Device List Account information Event list Device List (Red) Device offline Low battery status (Green) Device online Door open status Door closed status...
  • Page 22 Advanced Settings Allows a door to remain unlocked for a specific period or under certain conditions. When it is activated, the door will Keep Unlocked not automatically lock, providing continuous access without the need to re-enter codes or use a key. System Setting Setup device name, location and time format.
