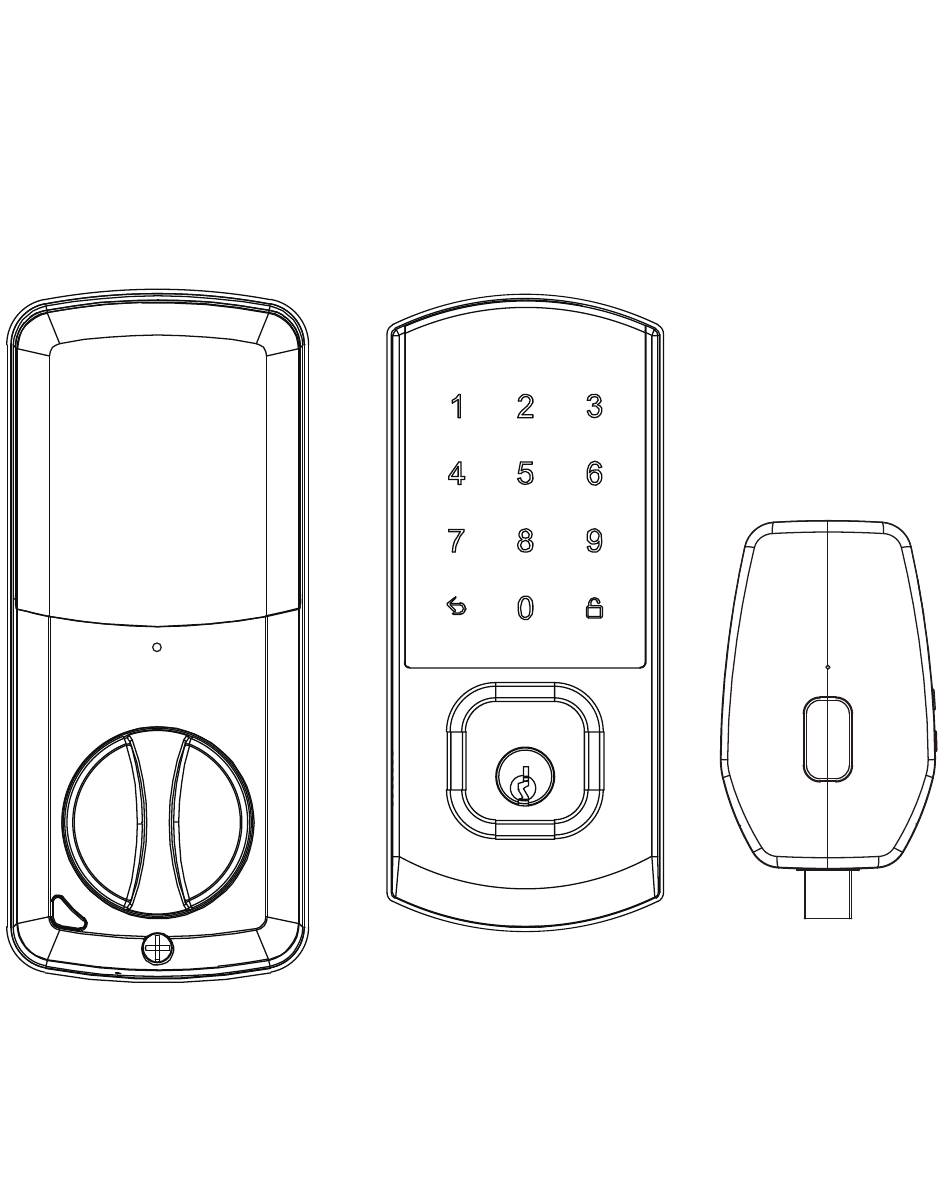

- Page 1 Delaney Smart Deadbolt Model: W3U-Nexus &W3U-Nexus-B Version 1.0 PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Kit Content
Kit Content Screw Pack Exterior Lock S3：M5*30mm* 3 For 50mm door thickness S4：M5*40mm* 3 Interior Lock For 60mm door thickness Smart Bridge Physical Key Door Sensor S5： Screw for Smart Lock (M4 *14mm) AA Alkaline Battery *4 S6： Screw for Smart Lock (M4 *12mm) Exclused Reset Pin... - Page 3 1. PREPARE DOOR AND CHECK DIMENSIONS a. Make sure that the main hole diameter in the door face is 2-1/8"(54mm). b. The backset is the distance from the door edge to the center of the 2-1/8" main hole. lt should be either 2-3/8"(60mm) or 2-3/4" (70mm) c.
- Page 4 60mm 70mm default optional Rotate 2. PREPARE THE DEADBOLT LATCH a. The Deadbolt Latch is already set for a 2-3/8"(60mm) backset but can be adjusted to a 2-3/4" (70mm) backset if needed. b. To adjust the 2-3/4" (70mm) backset, hold the tail of the latch and rotate the front of the latch 180 degrees.
- Page 5 Strike Plate Slotted Cam 3. INSTALL THE LATCH AND STRIKE PLATE a. With the bolt retracted, insert the Deadbolt Latch into the 1"(25mm) hole in the door edge with the word "TOP" in the upper position and the slotted cam at the bottom. b.
- Page 6 IC Wire Tailpiece 4. INSTALL THE EXTERIOR ASSEMBLY a. Make sure that the latch bolt is retracted (unlocked) b. Orient the Tailpiece in a horizontal position. c. Pass the IC Wire over the latch and insert the Tail piece into the slotted cam of the latch. d.
-
Page 7: Install The Mounting Plate
5.INSTALL THE MOUNTING PLATE a. Pass the IC Wire through the WIRE HOLE opening as shown. b. Place the plate against the door and make sure it is straight. c. Insert the upper Mounting Plate Screw first and partially tighten with a #2 Phillips Head screwdriver, so that the mounting plate position can still be adjusted. - Page 8 6.CONNECT THE IC WIRE a. Remove the battery cover from the Interior Assembly by holding the two sides to push it up and pull it out. b. Connect the IC Wire connector to the PCB connector by aligning them as shown and inserting firmly. The IC Wire connector is color coded red to indicate the correct side to face out.
- Page 9 7.INSTALL THE INTERIOR ASSEMBLY a. Place the Interior Assembly against the Mounting Plate and door face, making sure not to pinch the IC Wire. b. The Turnpiece should be oriented vertically. Make sure the tailpiece slides into the horizontal slot of the Turnpiece. c.
-
Page 10: Insert The Batteries
8.INSERT THE BATTERIES a. Make sure that the latch bolt is retracted (unlocked) b. Insert 4 new AA alkaline batteries according to the diagramin the battery compartment. When replacing batteries, removeall old batteries before inserting new batteries. -
Page 11: Interior Assembly
Lock overview Interior Assembly Exterior Assembly Keypad Battery cover Lock Door sensor button LED indicator Return button Turnpiece Keyway Privacy button USB-Port Reset button USB Connector Plug it into a 5V/1A Reset USB power adaptor. LED Indicator Pair... - Page 12 System Alerts Lock Activity Buzzer Interior LED Keypad Power-on beep*1 Lights up White Button Press beep*1 White Flashes 1 time Low Battery Lights up RED Return Button lights up RED Critial Low Battery Return Button lights up RED beep*3 Lights up RED Enable Privacy Mode 1/5/9/3/7 Button Flashes White Successfully Lock...
- Page 13 Definitions Factory Reset(Bridge) Press and hole the reset button on the bridge for 8 seconds until the red LED flashes Wrong Entry After 5 consecutive unsuccessful attempts to open the deadbolt, the deadbolt will emit one long beep, the 13579 button will flash white and the keypad will shutdown for 3 minutes Critical Low Battery lf keypad stops lighting up after unlocking one time, then battery power is at a critically...
-
Page 14: App Guide
APP Guide Please download the "Keyfree Manager Plus" App from Google play and App store. Create new account ① Click the Register ② Input the email ③ Click the verification address and click next and find the code in your email box ④... - Page 15 Add Lock ① Click the add device icon and scan the QR code in battery door ② Follow the Wizard to complete the doorlock pairing...
- Page 16 Add Lock ③ Name the lock and setup passwords ④ Door open Direction Setup 9 22 AM 9 22 AM Connecting ⑤ Doorlock pairing successfully ④ Door open Direction Setup ⑥ Click the Binding gateway if you own a gateway. If not, please skip this step.
- Page 17 Binding Bridge ① Click the add device icon and scan the QR code in gateway ② Follow the Wizard to complete the gateway pairing...
- Page 18 Binding Bridge ③ Name the device ④ Select your appropriate Wi-Fi setting ⑤ Gateway pairing successfully...
- Page 19 Home Page Return to Device List Advanced setting Wi-Fi connection Unlock status Bluetooth connection Lock status Door open status Battery status Door closed status Return to Device List Account information Event list Device offline Device online Low battery status Door open status Door closed status...
-
Page 20: Advance Setting
Advance setting Keep Unlocked Allows a door remains unlocked for a specific period or under certain conditions. When it is activated, the door will not automatically lock, providing continuous access without the need to re-enter codes or use a key. System Setting Setup device name, location and time format. - Page 21 This device complies with Part 15 of the FCC rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate...
