Basalte 0401-03 Instruction Manual

SOCKET POWER OUTLET
Installation Manual
Safety instructions
Before installing the unit, read this manual thoroughly and retain it for future reference.
The device should be installed in compliance with official regulations valid in country of use.
The device may only be installed and connected by qualified electricians.
Ensure that electricity is switched off when installing or unmounting the device.
Do not open, dismantle, alter or modify the device.

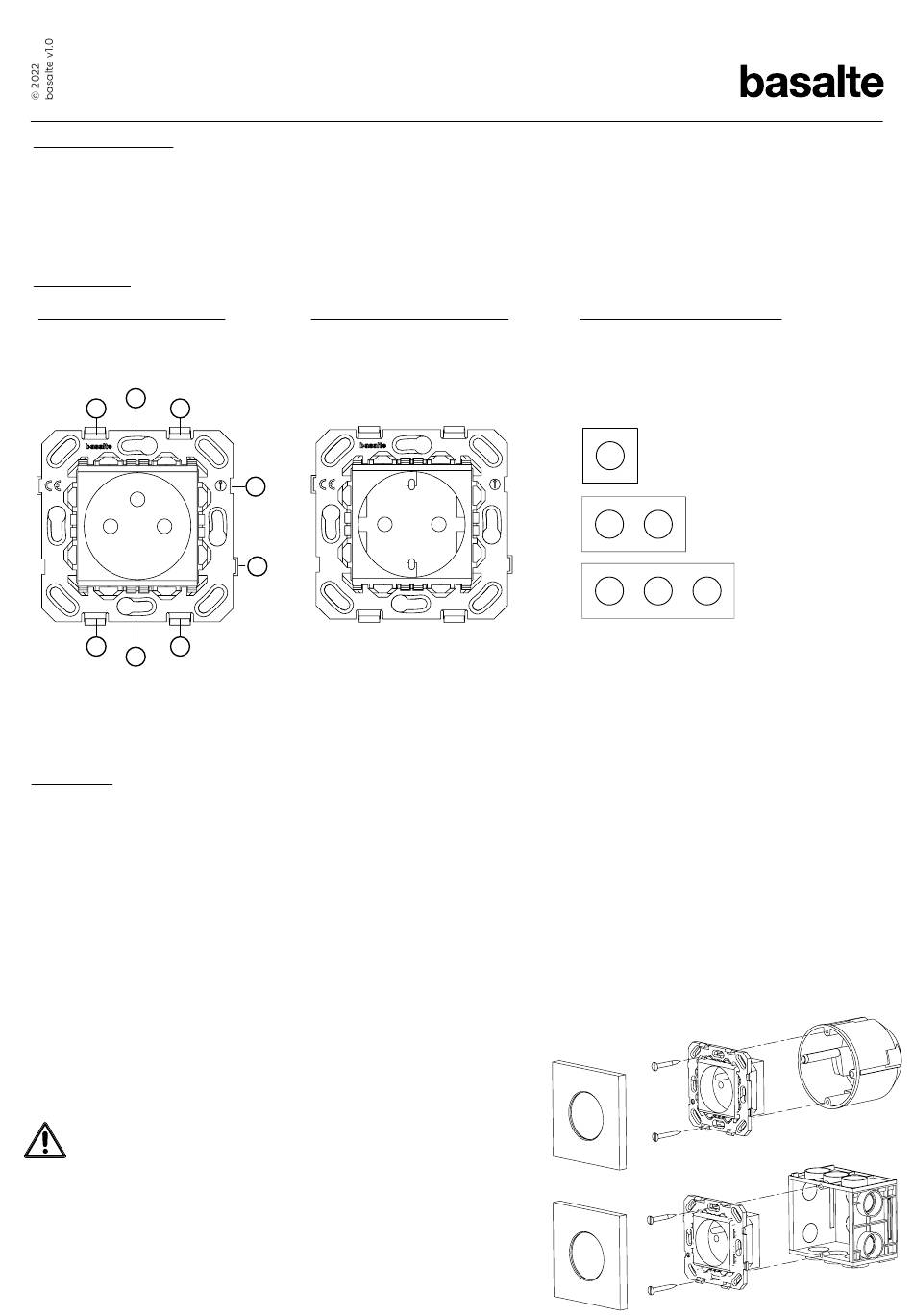

Components
TYPE E (French standard)
0401-03 : black insert
0401-04 : white insert
A
B B
B B
A
A Opening to fix the outlet to the wall box
B Clips to mount the cover plate
C Alignment guides for 2-gang and 3-gang installations
Wall boxes
The sockets should be installed in European wall boxes with screws.
The distance between the screws needs to be 60 mm, and a minimal
depth of 45 mm is required.
Square wall boxes size 60 x 60 mm are compatible with the sockets.
Round wall boxes should have an inner diameter of 64 mm or more.
For multi gang sockets, make sure the back boxes are aligned perfectly
horizontal with a centre to centre distance of 71 mm. Preferably use a
multigang backbox.
The following round wall boxes are compatible with the Basalte sockets:
• Helia round with cut hole 68 mm (type 247, 261).
• Kaiser round with cut hole 68 mm (type 9063-xx, 9064-xx, 9062-xx).
• Legrand batibox round (ref 080051, 080061, 080052, 080053).
• ABB round Hafobox MD4050 and hollow wall boxes HW-50,
HW50-G, HW52-F (Except HW52-F IGD and HW52-F BW).
When using other round boxes, please verify the
compatibility upfront.
Do not use following wall boxes:
• Helia O-range
• Kaiser (1055-xx – 1056-xx)
• ABB 3040
• ABB HW52-F IGD and HW52-F BW
TYPE F (German standard)
0401-13 : black insert
0401-14 : white insert
C
C
Compatible Socket covers
(not compatible with universal
socket U4X1-cc)
Model No. 0411-CC
Model No. 0421-CC
Model No. 0431-CC
