Basalte CORE CONNECT Installation Manual

CORE CONNECT
Installation Manual

Description

Basalte Beam is a dedicated wireless mesh network that Basalte wireless devices (e.g. Basalte Miro remote) use
to communicate with our Core servers.
The use of the Core Connect enables extending the Basalte Beam via a wired Ethernet connection, which
could be useful in case the Beam mesh network needs to be extended to a large distance (i.e. between
different floors).
Connect the Core Connect to Ethernet POE to start using the product. Alternatively, the device can be
powered via the USB type-C connector on the back.
7

How to start up

Prepare your Core server for Beam
• Core S4 - connect Beam.link with USB
• Core Plus and Core Mini have built-in Beam.link, make sure antenna is mounted
Open your Basalte Home project in Basalte Studio, enable Basalte Beam in the Beam tab and push to server.
Add a Core Connect from the library to the topology of the project and discover it on the network.
For more information, please refer to basalte.world.

LED feedback

The central LED on the front of the Core Connect will report its status.
• White: Normal operating mode.
• Blue: Device is booting.
• Green: Update available.
• Orange: Device is updating, do not power down.
• Red: The Core Connect is in error mode or can't see the core server
5
inside
6
7
Before operating the unit, please read this manual
thoroughly and retain it for future reference.
Model No. 0790-95
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
5

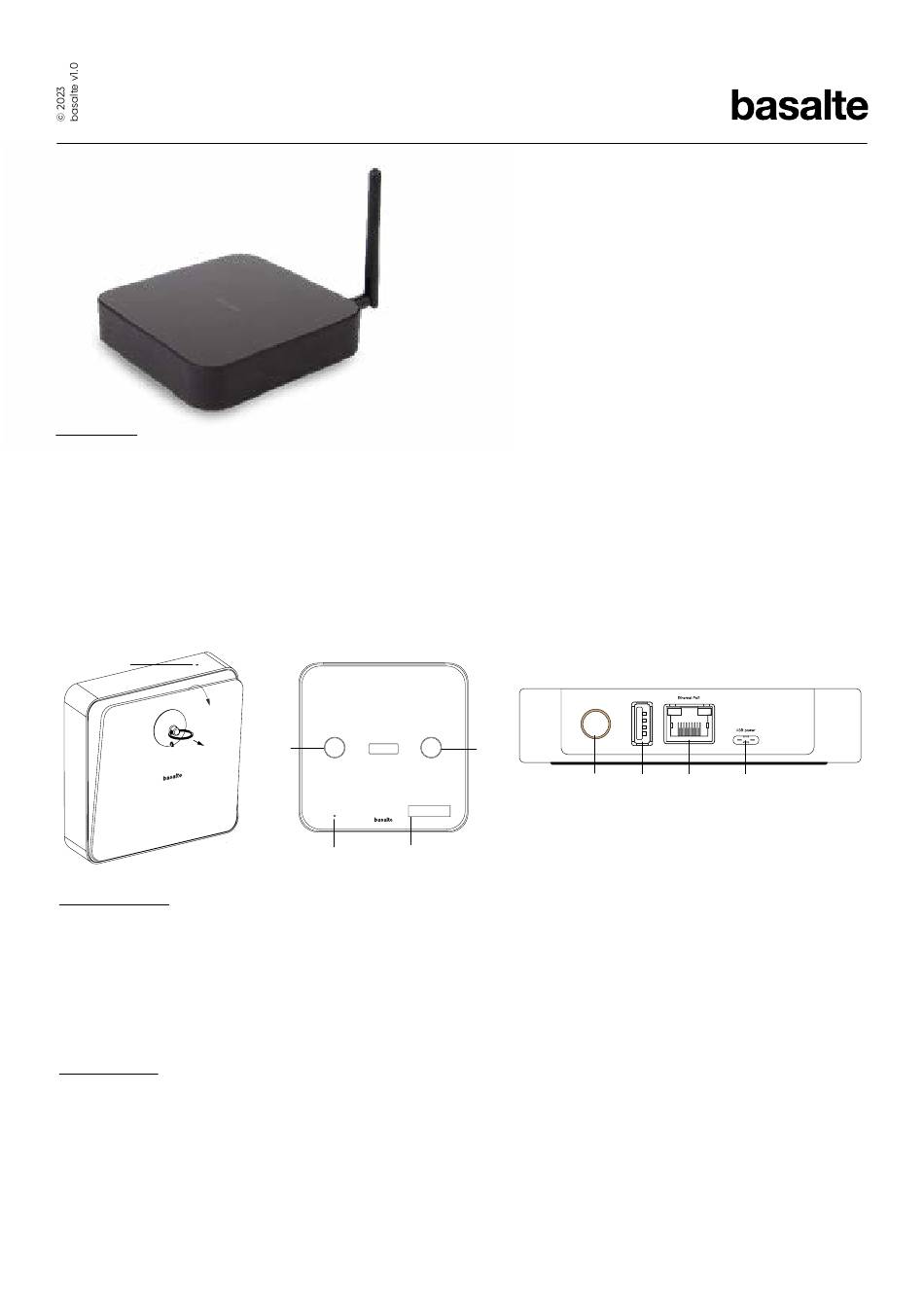

1 2
1 Antenna
2 USB Port
3 Ethernet
4 USB Power
3 4
5 Magnets
6 Programming Key
7 Reset button
