JOSI-Wismi

John GmbH

Ziddelrasen 1b

D-99830 Treffurt

Phone: +49 36923 8388-0

Fax: +49 36923 8388-10

E-mail: info@johngmbh.com

Internet: www.johngmbh.com

Rev: 00/11.2024

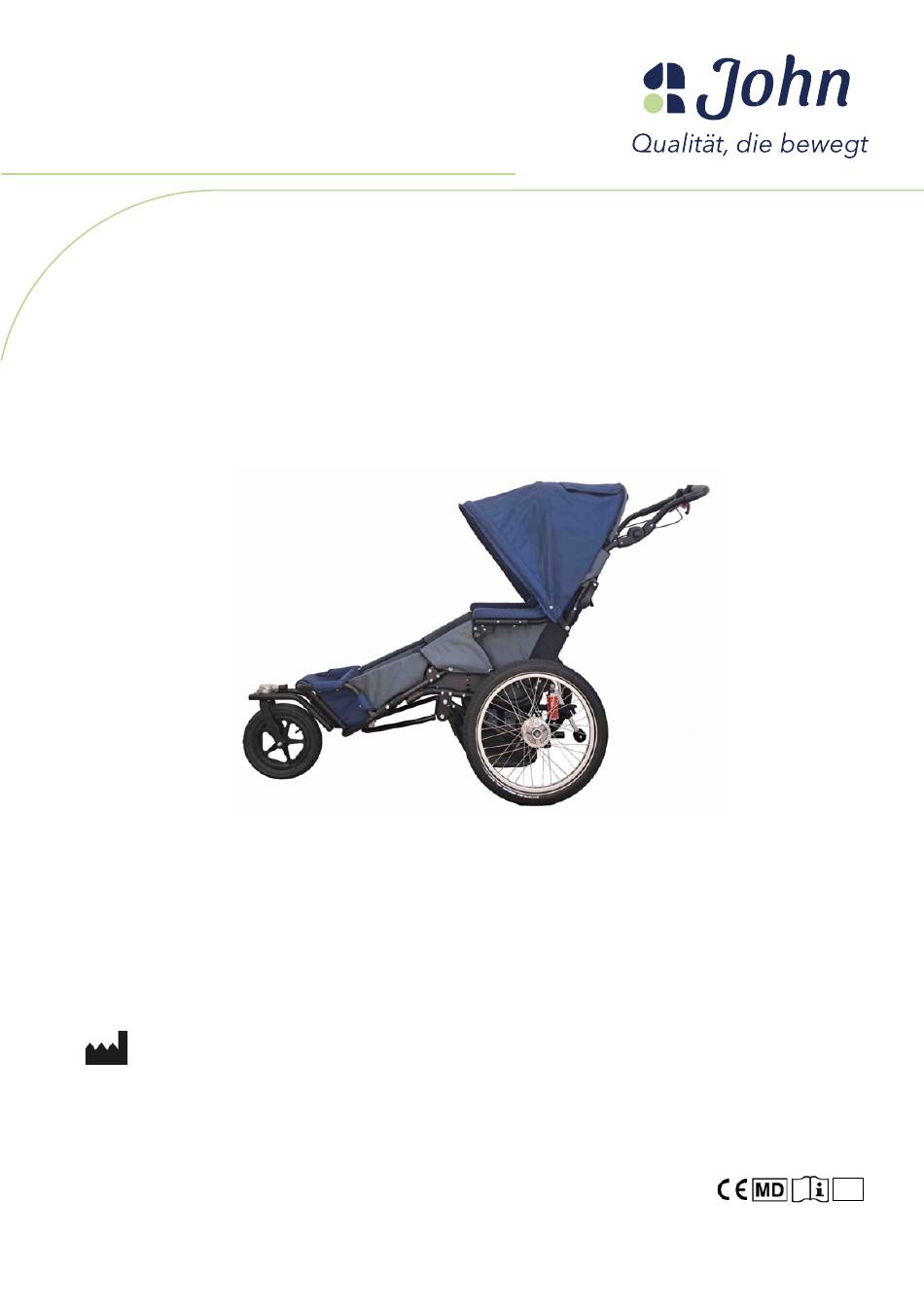

John GmbH

Rehab buggy

Instructions for use

for specialised trade and users

Size

Size S

Size M

Size L

Art. No.

JW-30002

JW-30003

JW-30004

AL-JWG2-EN

Table of Contents

Need help?

Do you have a question about the JOSI-Wismi G2 and is the answer not in the manual?

Questions and answers

Summary of Contents for John JOSI-Wismi G2

Page 1 Size Art. No. Size S JW-30002 Size M JW-30003 Size L JW-30004 John GmbH Ziddelrasen 1b D-99830 Treffurt Phone: +49 36923 8388-0 Fax: +49 36923 8388-10 E-mail: info@johngmbh.com Internet: www.johngmbh.com Rev: 00/11.2024 AL-JWG2-EN John GmbH...
Page 2: Table Of Contents
Combination options with other medical devices ..............32 Maintenance and care ......................33 Useful life and long-term durability ..................33 Re-use ........................... 34 Disposal ..........................34 Guarantee ..........................34 Reporting of serious incidents ....................34 Technical data ........................35 Type-label ..........................36 © John GmbH page 2/36...
Page 3: Introduction
JOSI-Wismi G2 is suitable for indoor and outdoor use in both urban and rural areas. According to the user requirements, JOSI-Wismi G2 can be used as a rehabilitation buggy and as a bike trailer. The wide range of equipment variants and the modular design allow it to be used, among other things with: high or low muscle tone, loss of extremities, limb defects and/or deformities, joint contractures and joint damage.
Page 4: Safety Instructions And Application Risks
Always use the safety line on your wrist (see chapter Wrist safety line). When using the JOSI-Wismi G2, always use the anti-tipper if there is a risk of tipping over due to increased muscle tone or due to slopes or uneven paths, for example.
Page 5 The person transported must always wear a bike helmet. Do not make any changes to the coupling and do not make any subsequent extensions. Custom-made constructions for the JOSI-Wismi G2 are not approved for use as a bicycle trailer (e.g. table).
Page 6: Setting Up
Remove transportation strap A) Open buckle Open the buckle and remove the transportation strap around the bottom frame and the back that keeps the JOSI-Wismi G2 together when folded. 8.2 Back arch A) Open back arch Unfold the back. B) Locking the back arch Fold the back completely open and lock it by pressing lightly in the direction of the arrow.
Page 7 See chapter Backrest adjustment. Fold out foot section A) Fold out until locking bolt engages Lift the front part of the JOSI-Wismi G2 slightly and fold out the foot section so that the locking bolt engages. B) Screw in the lock The snapped-in locking bolt must be additionally secured by turning it clockwise.
Page 8: Rear Wheels
Open the cover in the foot area to reach the back of the adapter. B) Mount the front wheel Mount the front wheel. See chapter Front wheel adapter for assembly instructions. C) Close cover Close the cover in the foot area. © John GmbH page 8/36...
Page 9: Push Handle
Attention! Only lift the JOSI-Wismi G2 by the frame. JOSI-Wismi G2 must not be lifted by the push handle! Only hang the original bag on the sliding arch as described in the Bag chapter.
Page 10: Close Covers
C) Safety cover The safety cover prevents hands from getting between the back and side cover. Use the Velcro fastener to close the safety cover so that the brake cables (1) are under the cover. ❶ © John GmbH page 10/36...
Page 11: Folding
For a lower preload, the ❶ adjustment ring can be loosened (turn adjustment ring anti-clockwise). Please note: (2) When loaded (JOSI-Wismi G2, user and luggage), the spring deflection (2) must not exceed 35% and should not fall below 17 Attention! ❷...
Page 12: Anti-Tip And Tipping Lever (If Equipped)
Anti-tip and tipping lever (if equipped) A) Anti-tip and tipping aid JOSI-Wismi G2 is optionally equipped with a ❷ combined adjustable anti-tipper (1) with integrated tipping aid (2). ❶ B) Mount Insert the anti-tipper into the frame tube and secure it with the locking bolt.
Page 13: Wrist Safety Line
The safety line should not be too loose so that the wrist cannot slip out. Front wheel A) Available front wheels JOSI-Wismi G2 can optionally be equipped with the following pneumatic wheels: (1) 12.5" rigid front wheel (2) 12.5" swivel wheel Pro with locking function ❸...
Page 14: Front Wheel Adapter And Wheel Change
(2) Place the adapter on the holder. ❶ ❷ C) Locking screw (1) Fold up the locking screw, ❶ (2) Tighten the locking screw, ❷ (3) Close the cover in the foot area. ❸ © John GmbH page 14/36...
Page 15: Footrest
The seat angle can be adjusted approximately Backrest adjustment (if equipped) A) Quick-release levers Hold the top of the back arch and unlock the quick-release levers (left and right). B) Adjust the back Adjust the back to the desired position. © John GmbH page 15/36...
Page 16: Adjusting The Seat And Backrest Tension
C) Adjusting the back straps Adjust the individual back straps to the desired position and close the zips again. Please note: The individual back straps can be adjusted to different lengths depending on your wishes and body shape. © John GmbH page 16/36...
Page 17: Seating System
(1) Pull the back cushion forwards out of the Velcro (2) Fold the back cushion backwards on the ❷ upper side to the desired height and velcro it to the inside. (3) Place the back cushion against the back ❸ again. 20.3 © John GmbH page 17/36...
Page 18: Adjusting The Seat Depth
A) Open the sun canopy on the back Open the sun canopy on the back side with the zip. B) Open the back Open the back with the zip to access the belt connector (1). ❶ © John GmbH page 18/36...
Page 19 Depending on the version, you can adjust the belt length using the belt buckles above (1) or below (2) the suspension: • Unlock the belt adjuster. • Adjust the belt to the desired length. • Close the belt adjuster. ❷ © John GmbH page 19/36...
Page 20 21.2 Pelvic belt / Chest-shoulder belt / seat trousers A) Belt systems ❶ The following belt systems can alternatively be attached to the JOSI-Wismi G2: (1) Chest-shoulder belt ❶ (2) Pelvic belt ❸ (3) Seat trousers ❷...
Page 21 ❸ ❹ ❺ ❻ C) Seat trousers fastening straps Wrap the two fastening straps around the arch of the back. Close the two straps with the buckle and adjust the correct belt length. © John GmbH page 21/36...
Page 22: Sun Canopy With Extension Zips
(2) Two extension zips on the front. The following extension accessories can be ❶ attached to one of the zips (maximum two at a time): • Extension for sun canopy • Mosquito net • Rain cover ❷ © John GmbH page 22/36...
Page 23: Rain Cover & Mosquito Net (If Equipped)
Rain cover & mosquito net (if equipped) A) Rain cover & mosquito net The rain cover and the mosquito net are attached to the JOSI-Wismi G2 in the same way. B) Attachment to the sun canopy Attach the rain cover / mosquito net to the sun canopy using the zip.
Page 24: Bag (If Equipped)
Attach the magnetic fastener to the frame at the bottom corner of the bag. Basket (if equipped) A) Basket underneath the seat The basket underneath the seat is suitable for transporting for example the small front wheel while cycling. © John GmbH page 24/36...
Page 25: Bike Option (If Equipped)
Bike option (if equipped) A) JOSI-Wismi G2 as a bike trailer With the bike option JOSI-Wismi G2 can also be used as a bike trailer. The bike drawbar can be quickly fitted using the adapter system of the front wheel.
Page 26 Attention! The anti-tipper must always point towards the wheel of the JOSI-Wismi G2 and NOT ❹ towards the bike. Ensure that the cable (5) of the locking pin (3) is guided above the wheel deflector.
Page 27: Transport In Vehicles
(hereinafter ISO 7176-19). The JOSI-Wismi G2 should always be used as a seat in a motor vehicle facing forwards in the direction of travel. The shortest possible turning radius of a wheelchair generally allows easier access to the vehicle and better manoeuvrability in a forward-facing position.
Page 28 They have the same design with the same dynamic properties and are therefore also approved by John GmbH for vehicle transport. The size L and all models with front wheels other than 8" with locking function have not been crash tested and are excluded from vehicle transport.
Page 29 If the backrest adjustment is mounted, it must be moved to the upper position and fixed with the safety bolts (see section 2.4). The adjustable footrest may remain in the set position. Loose parts should not be left in the JOSI-Wismi G2 during vehicle transport and must be removed and stowed safely.
Page 30 (3) 2 x safety bolt for the backrest adjustment (if ❷ ❸ equipped). B) Push handle forwards The push handle of the JOSI-Wismi G2 should be turned completely forwards and serves as an extra safety bar for the head. Attention! The plastic joints (1) must be engaged.
Page 31 E) Integrated red-coloured lap belt The integrated red-coloured lap belt is always included in the JOSI-Wismi G2 and must be used during vehicle transport: (1) Place the belt around the user's pelvis and ❶ close the buckle. Tighten the belt so that it fits close around stomach and thighs.
Page 32: Combination Options With Other Medical Devices
E-Drive). Attention! The maximum user weight of 85kg incl. load/luggage must not be exceeded, even in combination with the JOSI-Wismi G2 with E- Drive. Two anti-tippers (left & right) must be mounted and used (see chapter Anti-tip and tipping lever).
Page 33: Maintenance And Care
Useful life and long-term durability The useful life of JOSI-Wismi G2 is set by the manufacturer at 5 years. With regular and proper care, maintenance and repair by the manufacturer, the service life of JOSI-Wismi G2 can be extended depending on the intensity of use.
Page 34: Re-Use
Reporting of serious incidents All serious incidents occurring in connection with the products must be reported to the manufacturer (John GmbH) and the competent authority. „Serious incident“ means any incident that directly or indirectly led, might have led or might lead to any of the following: •...
Page 35: Technical Data
Technical data 35.1 Dimensions and weights folded depth JOSI-Wismi G2 Size S Size M Size L Article number JW-30002 JW-30003 JW-30004 Body size approx. 105 - 145 cm approx. 125 - 165 cm approx. 150 - 185 cm Height: H...
Page 36: Materials Used
Plastic or aluminium rim with pneumatic tyres Type-label The weather-resistant type label of the JOSI-Wismi G2 is located on the frame tube between the two rear axle plates. If the type-label is no longer legible, be sure to contact your specialist dealer so that a new type- label can be requested from the manufacturer.
