Quantum Travan 20GB User Manual

Internal storage system
Hide thumbs Also See for Travan 20GB:

Advertisement

Quick Links

Download this manual
50002766

Advertisement

loading
Need help?

Need help?

Do you have a question about the Travan 20GB and is the answer not in the manual?

Questions and answers

Related Manuals for Quantum Travan 20GB

Summary of Contents for Quantum Travan 20GB

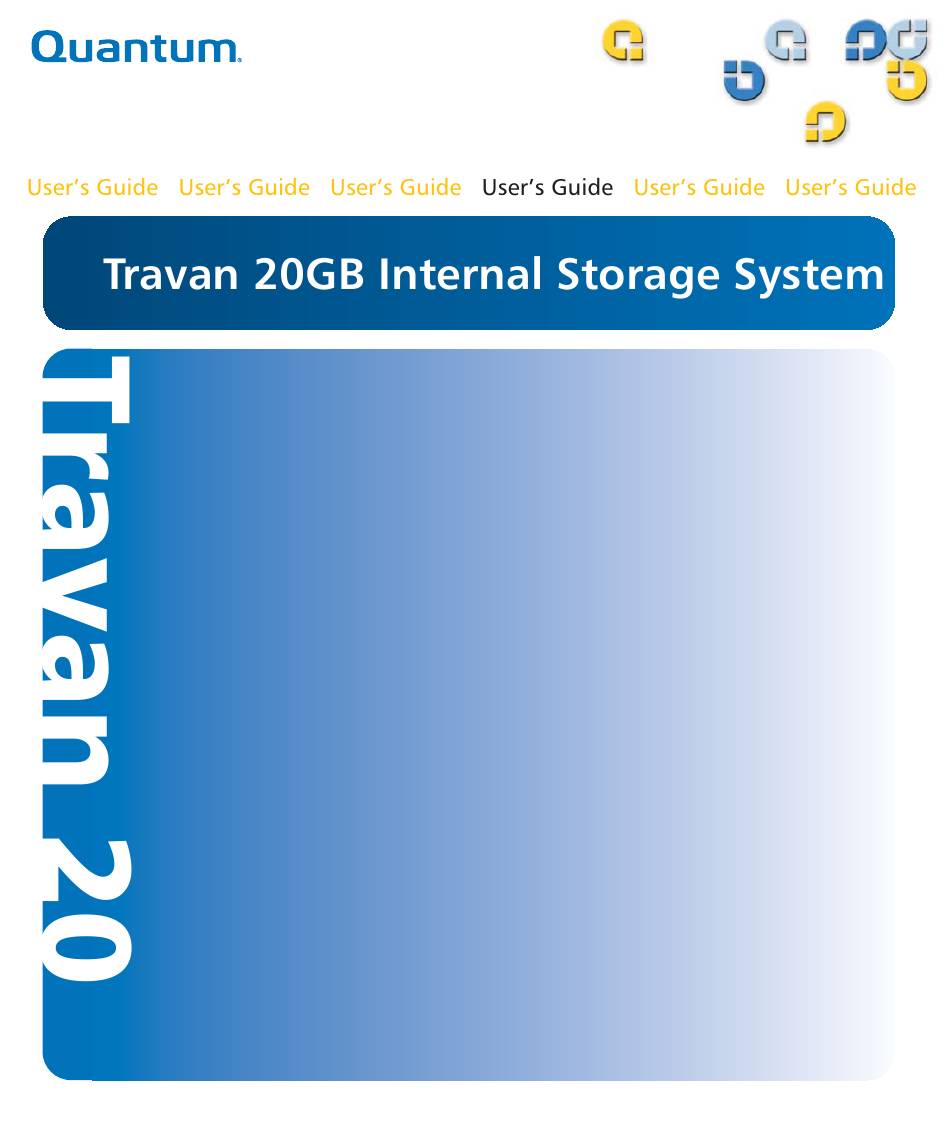

  • Page 1 50002766...
  • Page 2 Quantum Travan 20GB Internal Storage System, P/N 50002766, May 2005 Made in USA. Quantum Corporation provides this publication “as is” without warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability or fitness for a particular purpose.
  • Page 3 Mount the Drive....................9 Attach Tape Drive to the Secondary IDE Port ..........9 Connect the Power Cable................11 Check All Cables in Your Computer System..........11 Reinstall Your Computer Cover ..............11 Travan 20GB Internal Storage System User’s Guide...
  • Page 4 Handling Travan Cartridges ..............22 Retensioning Tapes ..................23 Cleaning the Tape Drive Mechanism ............23 Setting the Write-Protect Switch ..............24 Recommended Tape Cartridges..............25 Chapter 5 Troubleshooting Installation Troubleshooting................27 Installation Troubleshooting (SCSI Drives)..........28 Tape Operations Troubleshooting ..............29 Travan 20GB Internal Storage System User’s Guide...
  • Page 5 Introduction This manual provides instructions on installing your new TapeStor Travan 20GB tape drive. Two sets of drive installation instructions are provided: one for ATAPI drives and another for SCSI drives. This manual also describes how to operate your tape drive and how to care for the tape drive and cartridges.
  • Page 6 Chapter 1 Introduction About Your Travan Tape Drive About Your Travan Tape Drive The TapeStor Travan 20GB features a capacity of 20 Gbytes and a data transfer rate of up to 120 Mbytes per minute. Note: These values are based on 2:1 data compression.
  • Page 7 Do not touch any printed circuit boards or electronic chips on your drive or in your computer. Note: We recommend that you install your backup software before you install your tape drive. For more information, see the instructions that came with the backup software. Travan 20GB Internal Storage System User’s Guide...
  • Page 8 Chapter 1 Introduction Important Precautions Travan 20GB Internal Storage System User’s Guide...
  • Page 9 If your computer has only one IDE port, it is probably being used by a hard disc (see figure 1). In this case you must obtain an ATAPI host adapter card and attach your tape drive to the secondary IDE port on this card. Travan 20GB Internal Storage System User’s Guide...
  • Page 10 Is there a 40-pin IDE cable already attached to your secondary IDE port? • If you do not already have a cable for your secondary IDE adapter, you will need to obtain one before installing your tape drive. Travan 20GB Internal Storage System User’s Guide...
  • Page 11 If your tape drive will be the only device on the IDE cable, you need to configure your tape drive as a “master.” Turn the drive over and set the master/slave jumper to the “master” position, as shown. Travan 20GB Internal Storage System User’s Guide...
  • Page 12 Figure 4 Attach Mounting Brackets • If you are mounting the tape drive in a 3.5-inch drive bay, you may need to remove the mounting brackets from each side of the drive (see figure Travan 20GB Internal Storage System User’s Guide...
  • Page 13 If no other devices are attached to your secondary IDE port, use a new 40-pin IDE cable to attach the tape drive to the secondary IDE port (see figure 6). The tape drive must be configured as “master.” Travan 20GB Internal Storage System User’s Guide...
  • Page 14 In either case, make sure that pin 1 on the tape drive is connected with pin 1 on the IDE cable and on the IDE port connector. Pin 1 on the tape Travan 20GB Internal Storage System User’s Guide...
  • Page 15 Reinstall Your Computer Cover Your new tape drive is now ready for use. Travan 20GB Internal Storage System User’s Guide...
  • Page 16 Chapter 2 Installing an ATAPI Drive Reinstall Your Computer Cover Travan 20GB Internal Storage System User’s Guide...
  • Page 17 SCSI ID numbers used by the other devices. Then set the drive’s SCSI ID to a number that is not being used by any of the other devices. Figure 9 shows jumper settings for each SCSI ID number. Travan 20GB Internal Storage System User’s Guide...
  • Page 18 6) you must disable SCSI termination on the drive. To disable SCSI termination on the tape drive, remove the termination jumper (see figure 10). Make sure that the last SCSI device on the cable has termination enabled. Travan 20GB Internal Storage System User’s Guide...
  • Page 19 Check Additional SCSI Options The drive’s factory-default settings for termination power and parity should work with most computer systems and SCSI host adapters. Do not change these settings unless you have problems accessing your tape drive. Travan 20GB Internal Storage System User’s Guide...
  • Page 20 • If you are mounting the tape drive in a 3.5-inch drive bay, you may need to remove the mounting brackets from each side of the drive (see figure 12). Travan 20GB Internal Storage System User’s Guide...
  • Page 21 Slide the drive into an unused drive bay, so that the bezel is flush with the front of the computer (see figure 13). Secure the drive using four mounting screws. Do not overtighten the screws. Figure 13 Removing Mounting Brackets 3.5-inch 5.25-inch drive bay drive bay Travan 20GB Internal Storage System User’s Guide...
  • Page 22 Connect a 4-pin power cable to the back of the tape drive (see figure 15). If all the power cables in your computer are being used by other devices, you can purchase a Y-shaped power-cable splitter from your computer dealer. Travan 20GB Internal Storage System User’s Guide...
  • Page 23 Reinstall Your Computer Cover Your new tape drive is ready to use. Travan 20GB Internal Storage System User’s Guide...
  • Page 24 Chapter 3 Installing a SCSI Drive Reinstall Your Computer Cover Travan 20GB Internal Storage System User’s Guide...
  • Page 25 Wait until the drive-activity light is OFF. Then grasp the exposed sides of the cartridge and pull the cartridge straight out. If the drive-activity light has gone out, but you believe your backup or restore operation did not complete, repeat the operation. Travan 20GB Internal Storage System User’s Guide...
  • Page 26 Do not expose cartridges to temperature extremes or rapid changes in temperature. • Keep cartridges away from sources of electromagnetic fields, such as telephones, computer monitors, printers, dictation equipment, mechanical or printing calculators, motors or bulk erasers. Travan 20GB Internal Storage System User’s Guide...
  • Page 27 Be sure to clean the drive immediately if you observe an increase in the number of errors while running your backup software, or if a TapeAlert cleaning message is displayed. Travan 20GB Internal Storage System User’s Guide...
  • Page 28 Cartridges are shipped from the factory with the write-protect switch set to the “unlocked” positionb (see figure 17). Figure 17 Write- Write protected Write enabled Protect Switch Travan 20GB Internal Storage System User’s Guide...
  • Page 29 (all other tape formats are incompatible) Note: *Capacities based on 2:1 data compression. Uncompressed values are one half as high. Capacities, backup speeds and transfer rates will vary with file type and system configuration. Travan 20GB Internal Storage System User’s Guide...
  • Page 30 Chapter 4 Operation and Maintenance Recommended Tape Cartridges Travan 20GB Internal Storage System User’s Guide...
  • Page 31 Chapter 5 Troubleshooting Installation Troubleshooting If, after installing the Travan 20GB drive, your computer does not recognize your tape drive or CD-ROM: • Make sure all cables are attached firmly. • Make sure you have installed and configured your backup software properly.
  • Page 32 SCSI devices, consult your SCSI host adapter manual for proper termination settings. • Make sure you are using the latest drivers for your SCSI host adapter and operating system. Contact the manufacturer of your SCSI host adapter for driver information. Travan 20GB Internal Storage User’s Guide...
  • Page 33 (see table 1 on page 25). You cannot use TR-1, TR-2, TR-3 or QIC-80 tapes with the 20GB Travan drives. • Clean the tape mechanism (see Cleaning the Tape Drive Mechanism on page 23). Travan 20GB Internal Storage User’s Guide...
  • Page 34 Chapter 5 Troubleshooting Tape Operations Troubleshooting Travan 20GB Internal Storage User’s Guide...
