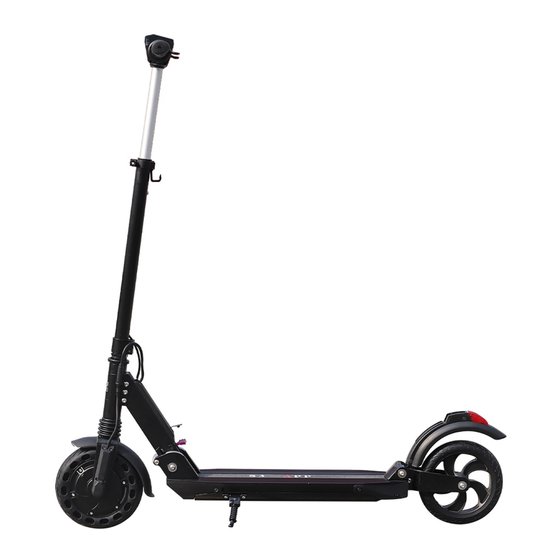

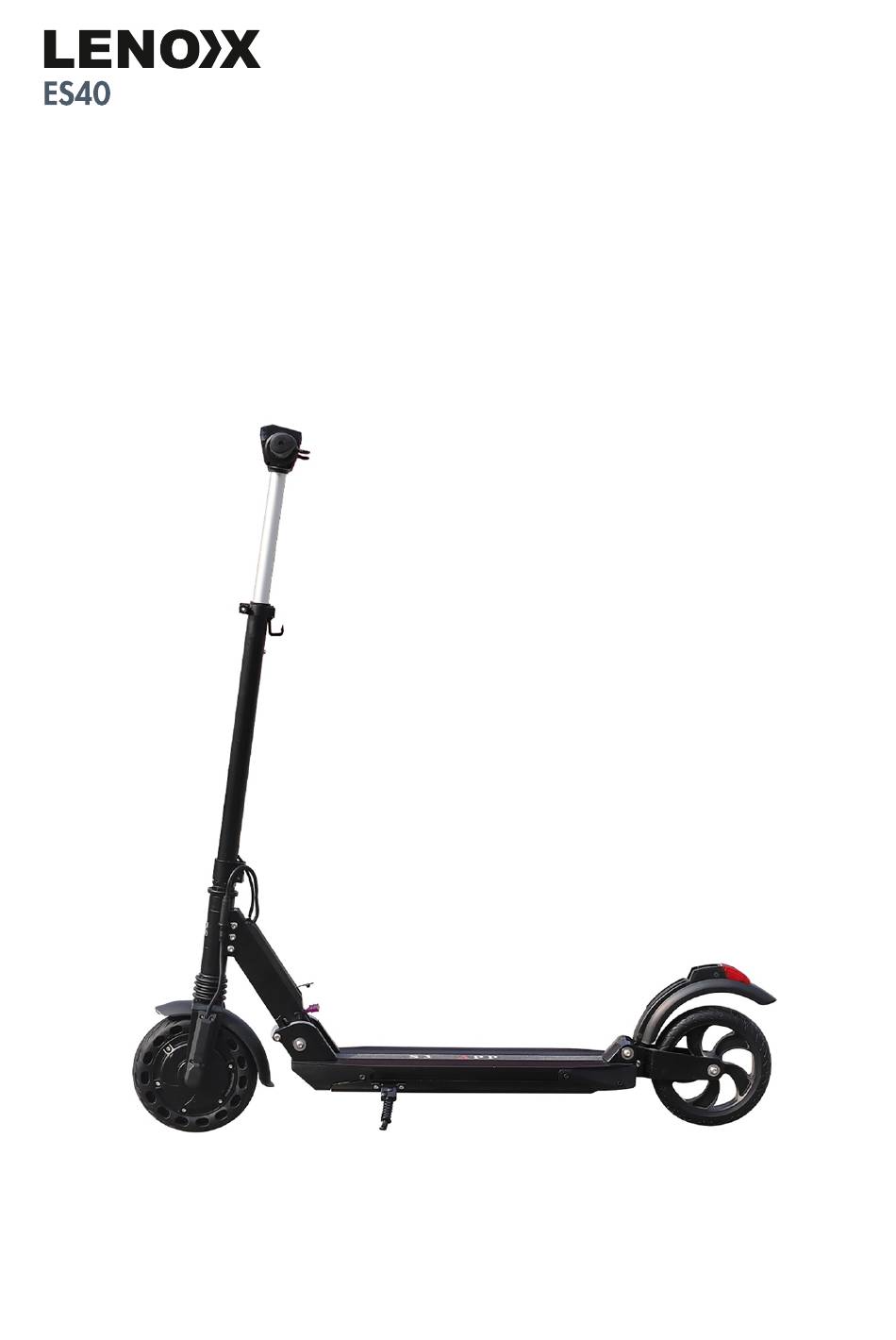

- Page 1 36V 7.8Ah Folding Electric Scooter Model: ES40 Batch: PR5084 PLEASE READ AND RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
- Page 2 Do not modify the Electric Scooter. Modifications to the Electric Scooter without the prior written approval from the manufacturer could interfere with the operation of the Electric Scooter, could result in serious injury and/or damage, and could void the Lenoxx Electronics Australia Pty Ltd Warranty.
- Page 3 SAFETY AND WARNINGS: Riding an electric scooter can be a dangerous activity. Certain conditions may cause components to fail without fault of the manufacturer. The scooter can and is intended to move and it is therefore possible to lose control, fall off and/or get into dangerous situations that no amount of care, instruction...
- Page 4 RIDING PRACTICES AND CONDITIONS Check and obey any local laws or regulations which may affect the locations where the electric scooter may be used. Always ride defensively. Watch out for obstacles that could catch your wheel or force you to tum suddenly or lose control.
- Page 5 GENERAL SAFETY INFORMATION: 1. Do not submerge the scooter or it’s charger in water or any other liquid. 2. Do not charge the scooter with a broken or damaged charger. Please call 1300 666 848 to order a replacement charger. 3.
- Page 6 PRODUCT STRUCTURE: 1. Handlebar 2. Screen display 3. LED headlight 4. Horn 5. Lock lever 6. Folding hook 7. Battery charging jack 8. Folding lever 9. Lock bolt 10. Rear brake...
- Page 7 FOLDING THE SCOOTER:...
- Page 8 Folding steps 1. Open the lock lever, in the direction of arrow, as shown in figure (a). 2. Press the red button, figure (b), at the same time press down handlebars as shown in figure (c) and push the lock lever to the lock position. 3.
- Page 9 Unfolding steps 1. Press the rear brake in the direction of the arrow in the figure (a) until the folding hook release from the opening located on the rear brake. Then, lift the handlebar until it reaches the working position and the locking bolt comes into place, like in figure (b).
- Page 10 OPERATION: 1. Thumb Accelerator 2. Thumb Brake 3. Horn Button 4. Setting Button 5. On/Off button 6. Light button 7. LCD display 8. Speed level button Operation instructions: M BON/OFF Press the on/Off for 1 second, and the display will light be indicating the power is on. Press for 3 seconds if you want to turn it off.
- Page 11 d. Horn Press the horn button to sound the horn. Press and hold on the horn button for a continual horn sound until the button is released. e. LED headlight. Press the light button to turn on the LED headlight. An indicator will be shown on the LCD display screen to indicate that the headlight is turned on.
- Page 12 RIDING OPERATION For your safety, please limit the speed within 0 – 20 Km/H. At night, it is recommended to limit the speed to 15 km/H or less and use the LED headlight. Choose a suitable venue for riding. Adjust the T-pipe to the suitable height according to your height. Start 1.
- Page 13 For cleaning use a damp cloth and mild detergent. Charger Only use the supplied battery charger. If charger is damaged discontinue use immediately and replace with a Lenoxx recommended charger. Wheels Wheels and drive system components are subject to normal wear and tear. It is the responsibility of the user to regularly inspect wheels for excess wear and adjust and replace drive train components as required.
- Page 14 Battery care and disposal Do not store the battery in temperatures above 21°C (70°F) or below 0°C (32°F). THIS SCOOTER CONTAINS SEALED LEAD ACID BATTERIES WHICH MUST BE RECYCLED IN ACCORDANCE TO YOUR LOCAL AND STATE LAWS. PLEASE CAREFULLY READ AND UNDERSTAND THE FOLLOWING DISPOSAL INSTRUCTIONS: Disposal:...
- Page 15 Battery may need to be replaced. Even with proper care, rechargeable batteries do not last forever. The average rechargeable battery life is 1 to 2 years depending on scooter conditions and use. Replace only with Lenoxx recommended replacement batteries. Scooter runs Scooter is overloaded...
- Page 16 CLEANING: Clean the scooter with a soft damp cloth. Do not use any wax or spray liquids for cleaning. It could erode the power switch. Do not submerge scooter or charger into water or other liquid at any time SPECIFICATIONS: Product Size：101*113*43CM（unfold）/92*34*20CM（fold）...
