Installation and Operating Instructions

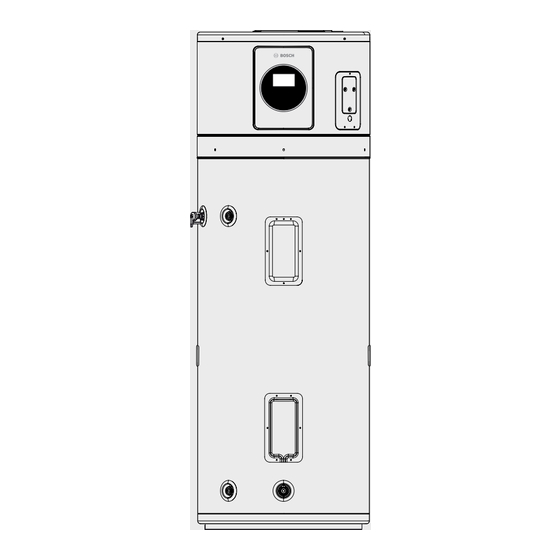

Hybrid Electric Water Heater
GreenTronic 7000 T
TR7000T-50US | TR7000T-65US | TR7000T-80US | TR7000T-50CA | TR7000T-65CA | TR7000T-80CA
WARNING:
The information in these instructions must be followed exactly.
Improper installation, adjustment, service or maintenance will void
warranty and can cause property damage, personal injury or death.
WARNING:
Installation and service must be performed by a qualified installer or
service agency.
WARNING:
READ ALL INSTRUCTIONS BEFORE USING THIS WATER HEATER. Install
or locate this water heater only in accordance with the installation
instructions. Use this water heater only for its intended use as
described in this manual.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bosch GreenTronic TR7000T-65US
Summary of Contents for Bosch GreenTronic TR7000T-65US
- Page 1 Installation and Operating Instructions Hybrid Electric Water Heater GreenTronic 7000 T TR7000T-50US | TR7000T-65US | TR7000T-80US | TR7000T-50CA | TR7000T-65CA | TR7000T-80CA WARNING: The information in these instructions must be followed exactly. Improper installation, adjustment, service or maintenance will void warranty and can cause property damage, personal injury or death.
- Page 2 Installation and Operating Instructions Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 3 6.2.5 Vacation Mode 6.2.6 Schedule 6.2.7 Legionella Protection 6.2.8 Turning Off Water Heater 6.3 Demand Response 6.4 Advanced Options for Technician 6.4.1 Operating Parameters 6.4.2 Advanced Settings Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 4 145 °F (62 °C) Less than 3 seconds 150 °F (65 °C) Approx. 1.5 seconds 155 °F (68 °C) Approx. 1 second Table 1 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 5 DO NOT add any chemicals to the system piping which will contaminate the potable water supply OWNER: Retain these instructions and warranty for future reference. Retain the original receipt as proof of purchase. Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 6 75 ½“ x 30 ¼ “ x 29 “ 79 ½“ x 30 ¼ “ x 29 “ Shipping Weight 265 lbs 335 lbs 360 lbs Specifications by model Table 2 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 7 46 ¾ (119 cm) 5 ½ (14 cm) 5 ½ (14 cm) 12 (31 cm) TR7000T-80CA Table 3 * Not visible from the front of the water heater Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 8 50 Gallon: 25.5" (65 cm) 20" (51 cm) 65 Gallon: 25.5" (65 cm) 80 Gallon: 32" (81.3 cm) Table 6 Required minimum clearances Table 4 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 9 Required breaker size: 208V/240V (60Hz) 30A double pole breaker Required wiring gauge: 10 AWG Table 9 Power supply for a condensate pump is not supplied from the water heater. Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 10 Place drain pan. Lift water heater from the base (foam is bolted to the pallet). Position water heater to maintain access and clearance requirements. 10 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 11 This should be placed on the supply to the entire building in order to maintain equal hot and cold water pressures. Always ensure that all fittings are free from leaks. Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 11...
- Page 12 Excessive length, over 30 feet, or use of more than four elbows can cause Relief valve installation Figure 3 restriction and reduce the discharge capacity of the valve. 12 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 13 Open shut off valve on cold water inlet and hot water outlet to fill tank. As each hot water outlet delivers water free from air, it can be shut off. Check the system for leaks. Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 13...
- Page 14 68 ft (21 m) 26 ft (7.9 m) Maximum total equivalent duct length Table 12 Wiring connection Figure 5 White Yellow Black 208VAC 60Hz 240VAC 60Hz Figure 6 14 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 15 Duct adapter kit part number Table 13 Wall Air Inlet 6" Clearance for filter Intake Cold Air Duct Exhaust Adapter Exhaust Duct Adapter Horizontal duct installation example Figure 7 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 15...
- Page 16 It is recommended that a qualified person or service technician performs the work. 6.2 End User Operation 6.2.1 Overview of Control Display Figure 10 Operation Figure 8 16 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 17 If there is an emergency shutdown request, the icon will flash quickly. Display icon descriptions Table 14 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 17...
- Page 18 It is the most HEAT PUMP Very High Very Low efficient way to heat up the water but also takes the longest. Operation modes Table 15 Figure 11 18 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 19 6 slots. Set operation mode by pressing the mode button. Set target temperature by pressing the up and down button. Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 19...
- Page 20 Different programs might be offered by utilities and service providers to use the port. Bosch does not supply the UCM module which connects to the CTA-2045 port, nor offers any programs to take part...
- Page 21 65 (equals 149 °F) set point temperature Current amperage draw Variable (0 – 25) Fan speed RPM x 10 Variable (0 – 140) EPROM Variable Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 21...
- Page 22 Legionella protection temperature Select 60 - 70°C (equals 140 - 158°F) Maximum temperature setpoint Select 65 - 70°C (equals 149 - 158°F) Advanced Settings Table 17 22 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 23 Manual activation of legionella protection 1 – on 0 – no duct Duct settings 1 or 2 – select if duct is installed Advanced Settings Continued Table 18 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 23...
- Page 24 (field supplied) Regular maintenance requirements Table 19 Draining the water heater Figure 16 Utilize F02 and F03 settings to remind the user of maintenance. 24 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 25 Open faucets to let air escape. Fill the tank with water until water runs normally. Check for leaks before turning on power. Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 25...
- Page 26 Check and/or replace anode rod and screw back in. Fill water heater by opening the cold water line again. Check for leaks before mounting the head cover and powering the unit. 26 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 27 2. Check if expansion tank is full. 3. Replace T&P valve and/or expansion tank Leak from tank Inspect tank for leakage, and replace whole unit if necessary Table 21 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 27...
- Page 28 Make sure water is in the tank by opening hot water faucet Water heater will operate by using electric PHL1 Water detected in condensate tray Check if condensate drain is blocked heating elements only. Table 22 28 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 29 Put back the insulation and screw on upper heating element cover before 17.6 kOhm (at 50°C) turning on the power to the water heater. Electrical resistance specifications Table 23 Thermal cutout (TCO) location Figure 21 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 29...
- Page 30 Water Heater Wattage (Fuse or Circuit Breaker) Amperage Rating Based on N.E.C. Table 310-16 (75°C) Phases at 240V 208 - 240V 208 - 240V 5,500 Table 24 30 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 31 Alternatively, please visit our Service & Support webpage to find FAQs, videos, service bulletins, and more; www.boschheatingcooling.com/service or use your cellphone to scan the code below. Figure 23 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 31...
- Page 32 Hot Water Outlet Cover Upper Electric Heating Element Lower Electric Heating Element Drain Valve Cold Water Inlet Cover Insulating Cover Water heater components Figure 24 32 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 33 Has the owner received the manual and knows how to operate the display? Has the owner received the warranty document and is aware of the maintanence required to ensure warranty? Table 25 Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 33...
- Page 34 Installation and Operating Instructions Notes: 34 | Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024)
- Page 35 Installation and Operating Instructions Notes: Bosch GreenTronic 7000 T Hybrid Electric Water Heater - BTC 755003301 D (12.2024) | 35...
- Page 36 United States and Canada Bosch Thermotechnology Corp. 65 Grove St. Watertown, MA 02472 Tel: 800-283-3787 www.bosch-homecomfort.us BTC 755003301 D / 12.2024 Bosch Thermotechnology Corp. reserves the right to make changes without notice due to continuing engineering and technological advances.
