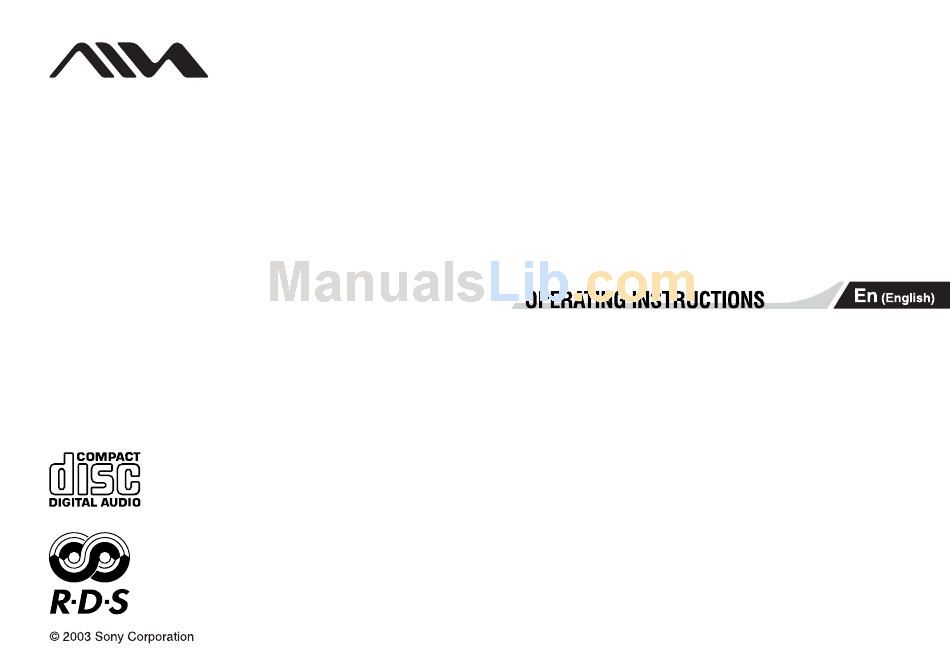

- Page 1 4-247-459-21 030108AMI-H-B Micro Hi-Fi Component System XR-FA500...
-
Page 2: Precautions
WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. -
Page 3: Table Of Contents
CD standard and may not be playable by this product. If you have any questions or problems concerning your stereo system, please consult your nearest Aiwa dealer. TABLE OF CONTENTS PRECAUTIONS ... 2 PREPARATIONS ... -
Page 4: Preparations
PREPARATIONS Connection Plug in the AC power cord to the AC power socket after all other connections are made. 1 Connect the speaker cords to the speakers. Connect the copper cords to the + terminals and the silver cords to the - terminals. 2 Connect the speakers to the main unit. -
Page 5: Parts And Controls
PARTS AND CONTROLS Main unit: front Refer to the pages indicated in parentheses for details. 1 POWER 6STANDBY/ON (7) Switches the unit on and off (standby). ECO (7) Sets the ECO mode on or off. RDS (10-12) Activates RDS features. 2 PHONES jack Plug in optional headphones set with a stereo mini plug (ø3.5 mm). - Page 6 Remote commander Refer to the pages indicated in parentheses for details. Buttons with the same or similar names on the main unit basically have the same function. 1 POWER (7) 2 1–10/0, >10 (8, 10) CD: selects a track of the specified number. Tuner: tunes in the station with the specified preset number.
-
Page 7: Adjustments Before Operation
ADJUSTMENTS BEFORE OPERATION POWER 6STANDBY/ON Power Turning the unit on Press POWER 6STANDBY/ON (POWER on the remote ). Alternatively, press d TAPE, TUNER/BAND, AUX or ECD. Playback will start automatically if a disc or tape is loaded. Turning the unit off Press POWER 6STANDBY/ON again. -
Page 8: Playing Cd
CD OPERATIONS zOPEN/ CLOSE This unit plays back finalized CD-R/RW discs as well as audio CDs. Playing a CD 1 Press z OPEN/CLOSE to open the disc compartment. Place a disc with the label side up. Then close the disc compartment by pressing zOPEN/CLOSE. -
Page 9: Programmed Play
Programmed play Plays back up to 30 selected tracks in programmed order. 1 In stop mode, press SHUFFLE/PROGRAM on the remote repeatedly so that "PRGM" indicator is displayed. 2 Press the numbered buttons on the remote to program a track. -To select the 15th track, press >10, 1 and 5. -
Page 10: Tuner Operations
RADIO OPERATIONS TUNER/ BAND Manual tuning 1 Press TUNER/BAND repeatedly to select a band. The unit switches to the tuner from any other function and alternates between FM and AM. 2 Press f or g repeatedly to tune in a station. "TUNE"... - Page 11 Tuning in preset stations 1 Select the band. 2 Press PRESET N ,M on the remote repeatedly. With each press, the station with the succeeding or preceding preset number is tuned in. You can tune in the desired preset station directly by pressing the numbered buttons on the remote.
-
Page 12: Pty Search
PTY Search The unit can search for a station broadcasting your desired PTY easily. To do so, you need to preset every available station in advance since the unit searches only the preset stations. 1 Press RDS repeatedly until the program type of the currentry tuned station is displayed. -
Page 13: Sound Adjustments
Adjustments To switch to monaural FM reception Hold down SHIFT and press TUNER MODE on the remote so that "MONO" is displayed. To cancel, repeat the above so that "STEREO" is displayed. Tip: When FM stereo reception is poor, switching to monaural reduces noise. -
Page 14: Tape Playback
TAPE PLAYBACK SYNCHRO REC REC START/ REC PAUSE Playback Use only type I (normal) tapes. 1 Press zPUSH EJECT to open the cassette holder. 2 Insert the tape. Insert with the exposed side down, and press zPUSH EJECT to close the cassette holder. 3 Press dTAPE (REC MUTING) (dTAPE on the remote) to start play. -
Page 15: Tape Recording
TAPE RECORDING To record a CD Use only type I (normal) tapes. 1 Press zPUSH EJECT to open the cassette holder. 2 Insert the recordable tape. Insert with the exposed side down, and the side to be recorded on first facing out from the unit. Press zPUSH EJECT to close the cassette holder. -
Page 16: Timer Operations
TIMER OPERATIONS POWER 6STANDBY/ON Sleep timer Turns off the unit automatically after a specified time. Press SLEEP on the remote. "SLEEP" flashes in the display. With each press, the timer duration changes as follows: AUTO 90 MIN 80 MIN 10 MIN...70 MIN If you set to "AUTO", the unit turns off automatically when the current CD or tape finishes playback or elapsed 100 minutes. -
Page 17: Timer Recording
Timer recording Timer recording is available only for TUNER sources. 1 Hold down SHIFT and press TIMER on the remote repeatedly so that "5" and "REC" are displayed. 2 Within 6 seconds, press ENTER. "ON TIME" is displayed. 3 Press f or g to set the timer start hour, and press ENTER. -
Page 18: Reference
Operating Instructions. First check that the AC power cord and the speakers are connected correctly and firmly. Should any problem persist, consult your nearest Aiwa dealer. General There is no sound •Are the speakers and AC power cord connected properly? •Turn VOLUME clockwise and hold. - Page 19 CD player The sound drops out. •The lens is dirty. Clean it with a commercially available blower. The CD does not play. •The CD is not lying flat in the disc compartment. •The CD is dirty. •The CD is inserted label side down. •Moisture condensation has built up.
-
Page 20: Specifications
Specifications MAIN UNIT CX-LFA500 TUNER FM tuning range 87.5 MHz to 108 MHz FM usable sensitivity (IHF) 16.8 dBf 75 Ω (unbalanced) FM antenna terminal AM tuning range 531 kHz to 1602 kHz AM usable sensitivity 350 µV/m AM antenna Loop antenna AMPLIFIER Power output... - Page 21 Sony Corporation http://www.aiwa.com Printed in China...
