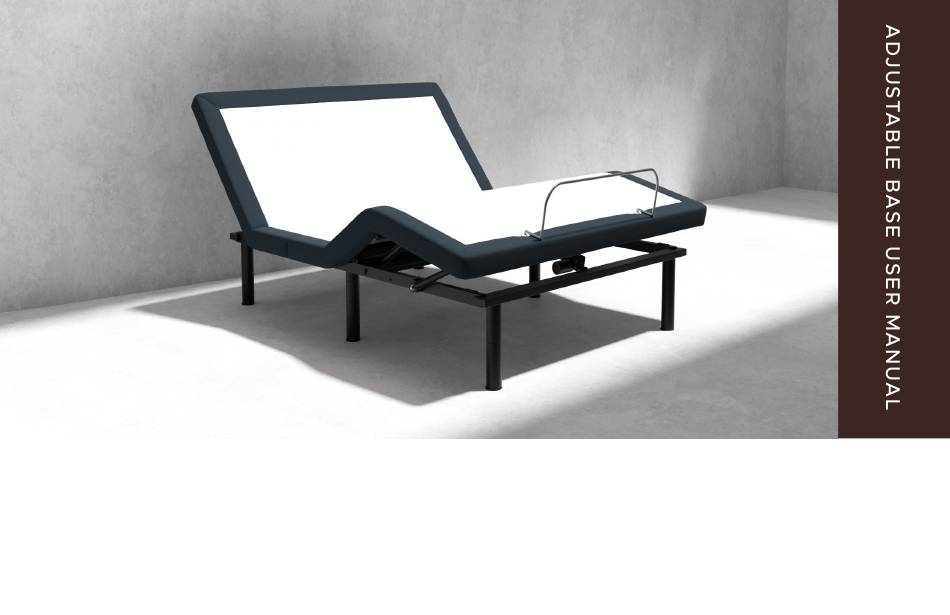

- Page 1 SBKDP2 PLEASE READ AND KEEP FOR FUTURE REFERENCE. THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. SERIAL NUMBER:...
- Page 2 TABLE OF CONTENTS SAFETY INFORMATION ..................3-4 INTRODUCTION ......................5 SETUP GUIDE ......................6-8 CONNECTING STRAPS ....................9 SYNCHRONIZATION CABLE ..................10 HOOK AND LOOP SECURING STRAPS ..............11 CHILD SAFETY LOCK .....................12 WARRANTY ........................13 TROUBLESHOOTING ..................14-15 REFERENCE GUIDE ....................16 ..........................17 CUSTOMER SERVICE 1-877-622-6550 FROM 7:30AM TO 5:00PM PST MONDAY-FRIDAY PAGE 2 TABLE OF CONTENTS...
- Page 3 SAFETY INFORMATION PLEASE READ ALL SAFETY INFORMATION AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE. VIOLATING ANY SAFETY Do not operate the adjustable base when a person or animal is underneath INFORMATION WILL VOID THE WARRANTY AND MAY RESULT IN the adjustable base. INJURY OR DAMAGE.
- Page 4 SAFETY INFORMATION WEIGHT LIMITS ZERO CLEARANCE BEDFRAME REQUIREMENTS The weight limit of the adjustable base is 750 pounds evenly distributed across the If the legs on the adjustable base are not used, it is the consumer’s responsibility to: surface. The weight limit includes the weight of the mattress and users. Exceeding this Ensure the surface or bedframe paired with the adjustable base can withstand weight limit could damage the adjustable base and/or cause injury and will void the and support the combined weight of the mattress, users and adjustable base in a...
- Page 5 INTRODUCTION FEATURES CAPABILITIES Wireless Remote Zero Clearance: designed to sit on top of a flat surface or compatible bed Head up/down frame, without the use of legs. Foot up/down Weight limit: 750 lbs. including mattress and users. Flat Position Preset Adjustable bases can be used within or on top of a bedframe Zero Gravity Preset or as a standalone bed.
- Page 6 SETUP GUIDE OPEN AND UNPACK POWER CORD ASSEMBLY Lay the box flat, open the box and unpack the list of components. Locate the control box built into the underside of the adjustable base. Connect No tools are required for assembly. the control box power cord, the AC/DC Power Adapter, and the Power Cord.
- Page 7 SETUP GUIDE ZERO CLEARANCE PLACEMENT Designed to sit on top of a flat surface or compatible Return the adjustable base to an upright and secure location, then plug in bedframe, without the use of legs. Legs are not required. the power cord to an outlet. SEE ZERO CLEARANCE SAFETY INFORMATION PAGE.
- Page 8 REMOTE Head: Up/Down MEMORY BUTTONS To program a memory button: move the adjustable base into Foot: Up/Down a desired position, then hold the memory button down for 5 seconds. Flat Preset FLAT DUAL MASSAGE Zero Gravity Preset Press the : 1x for 10 minutes, 2x 20 for 20 minutes, and 3x for 30 minutes.
- Page 9 CONNECTING STRAPS OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS The Connecting Straps will join two adjustable bases together to prevent drifting apart if they are not used within a bedframe. With the adjustable bases in their desired location, slightly loosen both legs to Slide side (A) of the Connecting Strap onto the leg bolt.
- Page 10 SYNCHRONIZATION CABLE OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS The synchronization cable will link two adjustable bases in movement and features. Unplug the adjustable bases from the power outlets. Synchronization Cable Connect the Synchronization Cable to the Master Control Box on each adjustable base.
- Page 11 HOOK AND LOOP SECURING STRAPS The Hook and Loop Securing Straps and Securing Screws are for zero clearance applications to secure the adjustable base to a bedframe slat system. Secure the adjustable base to the slat system by placing two Hook and Loop Securing Straps at the head and two at the foot. Optional step for added security: Securing Screws are included to drill through wood on a bedframe to secure the adjustable base.
- Page 12 CHILD SAFETY LOCK OPTIONAL To lock movement of the adjustable base while using the remote, follow the instructions below. Press “FLAT” and “Head UP” simultaneously for 4 seconds. When the remote flashes twice the child safety lock is on. The adjustable base will not respond when you press any button;...
- Page 13 10-YEAR LIMITED WARRANTY FULL 1-YEAR WARRANTY ADDITIONAL TERMS AND CONDITIONS The Adjustable Base is warranted against defects in materials or workmanship for a Warranty does not include reimbursement for inconvenience, removal, installation, period of one year from the date of purchase to the original purchaser. During the first setup, loss of use, shipping, or any other costs or expenses not expressly covered in this year, manufacturer will repair or replace any defective part at no cost to the original warranty.
- Page 14 TROUBLESHOOTING IF ONE OR MORE FUNCTIONS ON THE ADJUSTABLE BASE HAVE IF THE HEAD OR FOOT MECHANISMS WILL ELEVATE BUT WILL NOT STOPPED OPERATING RETURN TO THE FLAT POSITION Check under the adjustable base to verify that the wired connections are secure and Check the undercarriage for obstructions.
- Page 15 TROUBLESHOOTING POWER OUTAGE – EMERGENCY BATTERY STRIP In case of an electrical outage, the Emergency Battery Strip allows you to operate the adjustable base without power to your home. Only use the Emergency Battery Strip to lift or lower the adjustable base into your desired sleeping position. * Disconnect the adjustable base(s) from the power outlet.
- Page 16 REFERENCE GUIDE Hook and Loop Hook and Loop Securing Straps Securing Straps Location Location Head Actuator USB Ports USB Ports Massage Motor Massage Motor Master Control Box Night Light Night Light Massage Motor Massage Motor Foot Actuator Hook and Loop Night Light Hook and Loop Securing Straps...
- Page 17 WILL THE ADJUSTABLE BASE FIT INSIDE MY CURRENT BED FRAME? EASTERN KING SPLIT (EKS) CALIFORNIA KING SPLIT (CKS) Yes, we designed the adjustable base width and length to be 1/2” shorter than standard bed sizes to ensure the adjustable base fits within most bed frames. ADJUSTABLE BASE DIMENSIONS Twin XL or Twin XL or...
- Page 18 NOTES:...
- Page 19 NEED TO TALK TO OUR COMFORT EXPERTS? CALL 1-877-622-6550 CUSTOMER SERVICE HOURS: MONDAY THRU FRIDAY FROM 7:30AM TO 5:00PM PST...
