Summary of Contents for South Bay International SBKD2

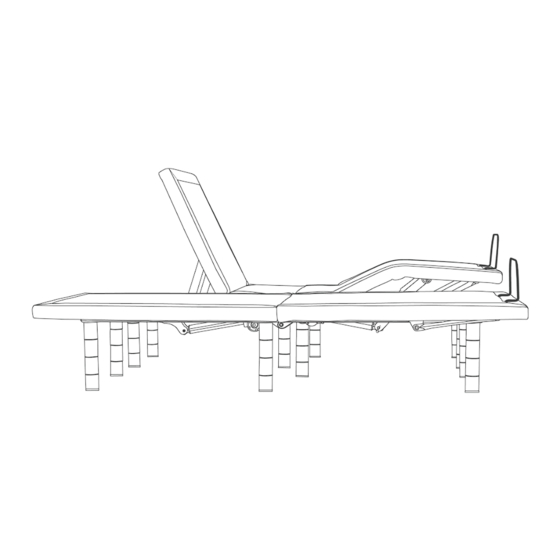

- Page 1 ADJUSTABLE BASE USER MANUAL MODEL: SBKD2 SERIAL NUMBER: Please read and keep for future reference. This manual contains important safety information.
-
Page 3: Table Of Contents
TABLE OF CONTENTS ..........4 ....12 IMPORTANT SAFETY INFORMATION KD2 HEADBOARD FOOTBOARD BRACKET INSTALLATION ......5 .........13 WEIGHT RESTRICTIONS AND EMERGENCY BACKUP REMOTE ASSEMBLY AND FREQUENCY SET UP ................6 ..14 FEATURES REMOTE CONTROL SYNCHRONIZING TWO ADJUSTABLE BASES ..............7 ............15 GETTING STARTED REMOTE CONTROL FEATURES ..............8 ..................16... -
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION PLEASE READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY • Do not operate the adjustable bed base when a person or animal is underneath BEFORE USE AND ASSEMBLY the adjustable bed base. • Mattresses may move or shift on bases – use caution. SAFETY INFORMATION •... -
Page 5: Weight Restrictions And Emergency Backup
WEIGHT RESTRICTIONS EMERGENCY BACKUP The recommended weight restriction for the adjustable base is 750 pounds, In case of a power failure, the adjustable base features an emergency backup that which is calculated to include the weight of the mattress. To calculate the allows you to return the bed to the flat position without power. -
Page 6: Features
FEATURES • Head and foot up/down positions • 5 button wireless remote control • Pre-programmed flat position • Six legs with customizable heights • Undercarriage is made with reinforced steel components for strength and durability • Emergency backup battery box •... -
Page 7: Getting Started
GETTING STARTED (1x) Back-Up (1x) AC/DC Power Battery pack Adapter per Base NO TOOLS REQUIRED FOR ASSEMBLY. Use caution at pinch points and unfolding the base as parts may have shifted during shipping. (1x) Master Control Box (Already installed under base) (1x) Power Cord Input voltage 100-240V per base... -
Page 8: Power Cord Setup
POWER CORD SETUP CAREFULLY open the adjustable bed base into an (1x) Back-Up (1x) AC/DC Power L position on its side or lay flat with the bottom Battery pack Adapter per Base facing up. This step may require two adults for safety. Ensure all power cord connections circled to the right are completely plugged-in. -
Page 9: Joining Two Adjustable Bases (Connecting Strap)
JOINING TWO ADJUSTABLE BASES If any split setup is being installed, plastic Slide side of the connecting strap onto leg bolt. connecting straps are provided (one per base) to Swing the strap and connect side to the leg bolt. secure the bases together. Use both straps to secure Secure the strap by shifting to the left. -
Page 10: Leg Assembly
LEG ASSEMBLY Locate the legs and choose one of the heights. The legs must be a minimum of 6” to maintain articulating clearance and must not exceed 12”; Make sure the leg with the solid end is touching the anything taller is considered unstable. floor. -
Page 11: Mattress Retainer Bar Assembly
MATTRESS RETAINER BAR ASSEMBLY Locate the mattress retainer bar in the packaging. Secure the retainer bar (Figure 1) with the included wing-nuts (Figure 2). This will hold the mattress At the foot of the base, there are two openings to retainer bar in place. -
Page 12: Kd2 Headboard Footboard Bracket Installation
KD2 HEADBOARD & Recommended Tools • Socket Wrench FOOTBOARD BRACKET • Crescent Wrench *Optional Accessory Included (8x) Nut (8x) Washer (8x) Long Bolt (8x) Short Bolt (4x) T-Connector (2x) Side Bracket 1 (2x) Side Bracket 2 Figure 2A Figure 1A Figure 1B Hardware: (2x) Short Bolts, (2x) Nuts, Hardware: (2x) Long Bolts, (2x) Nuts,... -
Page 13: Remote Assembly And Frequency Set Up
REMOTE ASSEMBLY AND FREQUENCY SET UP Locate the wireless remote control and insert (3x) AAA batteries (included). The remote control is pre-programmed to work with the adjustable bed base. If you have more than one adjustable bed base, each remote control and adjustable bed base set should be pre-programmed to work separately. -
Page 14: Remote Control Synchronizing Two Adjustable Bases
REMOTE CONTROL SYNCHRONIZING TWO ADJUSTABLE BASES Step 1: Unplug base from power source. Step 2: Connect the male end of the simultaneous synchronization cable to each control box, only one sync cord is required. Step 3: Plug base back into the power source. Step 4: Check to ensure all cords are securely attached. -
Page 15: Remote Control Features
REMOTE CONTROL FEATURES Head Up Foot Up Head Down Foot Down Flat Position PAGE NEED ASSISTANCE? REMOTE CONTROL FEATURES CALL US AT 1- 877- 622- 6550 FROM 8:0 0AM TO 5:0 0PM PDT MONDAY-FRIDAY... -
Page 16: Faq
Will the adjustable base fit inside my current What size of sheets do I buy for a King Split or Cal bed frame? King Split adjustable base? Yes, we designed the adjustable base width and Eastern Split King (EKS): Eastern King Split sheet length to be ½”... -
Page 17: Troubleshooting Guide
TROUBLESHOOTING GUIDE If you have any questions regarding this product If one or more functions on the base have stopped operating: • Check under the bed base to verify that the wired connections are secure and or if you need assistance with that there are no cords or bedding obstructing the movement of the base. -
Page 18: Component Guide
COMPONENT GUIDE Head Actuator Master Control Box Foot Actuator PAGE NEED ASSISTANCE? TROUBLESHOOTING COMPONENT GUIDE CALL US AT 1- 877- 622- 6550 FROM 8:0 0AM TO 5:0 0PM PDT MONDAY-FRIDAY... -
Page 19: 10 Year Limited Warranty
10 YEAR LIMITED WARRANTY FULL 1-YEAR WARRANTY ADDITIONAL TERMS AND CONDITIONS The Adjustable Base is warranted against defects in Warranty does not include materials or workmanship for a period of one year from the date of purchase to reimbursement for inconvenience, removal, installation, set up, loss of use, shipping, the original purchaser.
