Summary of Contents for South Bay International SBKDT2

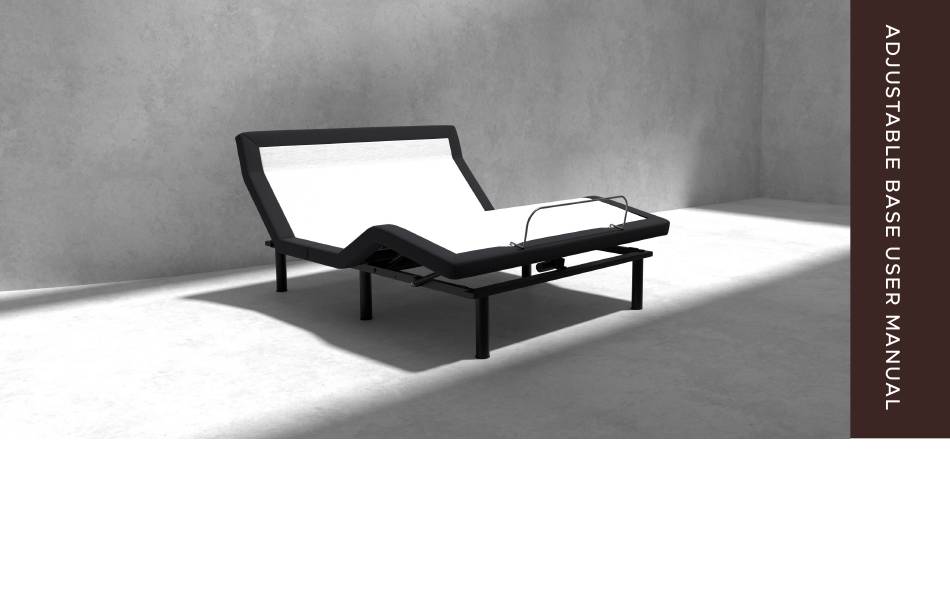

- Page 1 SBKDT2 PLEASE READ AND KEEP FOR FUTURE REFERENCE. THIS MANUAL CONTAINS IMPORTANT SAFETY INFORMATION. SERIAL NUMBER:...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ..................3-4 INTRODUCTION ......................5 SETUP GUIDE ......................6-8 CONNECTING STRAPS ....................9 SYNCHRONIZATION CABLE ..................10 HOOK AND LOOP SECURING STRAPS ..............11 CHILD SAFETY LOCK .....................12 WARRANTY ........................13 TROUBLESHOOTING ..................14-15 REFERENCE GUIDE ....................16 ..........................17 CUSTOMER SERVICE 1-877-622-6550 FROM 8:00AM TO 5:00PM PST MONDAY-FRIDAY PAGE 2 TABLE OF CONTENTS... -
Page 3: Safety Information
SAFETY INFORMATION PLEASE READ ALL SAFETY INFORMATION AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY AND USE. VIOLATING ANY SAFETY Do not operate the adjustable base when a person or animal is underneath INFORMATION WILL VOID THE WARRANTY AND MAY RESULT IN the adjustable base. INJURY OR DAMAGE. - Page 4 SAFETY INFORMATION WEIGHT LIMITS ZERO CLEARANCE BEDFRAME REQUIREMENTS The weight limit of the adjustable base is 750 pounds evenly distributed across the If the legs on the adjustable base are not used, it is the consumer’s responsibility to: surface. The weight limit includes the weight of the mattress and users. Exceeding this Ensure the surface or bedframe paired with the adjustable base can withstand weight limit could damage the adjustable base and/or cause injury and will void the and support the combined weight of the mattress, users and adjustable base in a...
-
Page 5: Introduction

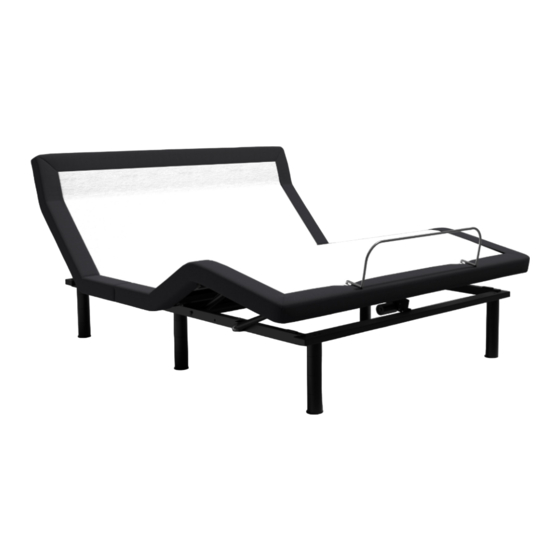

INTRODUCTION CAPABILITIES FEATURES Zero Clearance: designed to sit on top of a flat surface or compatible bed Wireless Remote frame, without the use of legs. Head up/down Weight limit: 750 lbs. including the mattress and users. Foot up/down Adjustable bases can be used: Pillow Tilt up/down Within a bedframe with or without slats Flat Position Preset... -
Page 6: Setup Guide
SETUP GUIDE OPEN AND UNPACK POWER CORD ASSEMBLY Lay the box flat, open the box and unpack the list of components. Locate the control box built into the underside of the adjustable base. Connect No tools are required for assembly. the control box power cord, the AC/DC Power Adapter, and the Power Cord. - Page 7 SETUP GUIDE ZERO CLEARANCE PLACEMENT Designed to sit on top of a flat surface or compatible Return the adjustable base to an upright and secure location, then plug in bedframe, without the use of legs. Legs are not required. the power cord to an outlet. SEE ZERO CLEARANCE SAFETY INFORMATION PAGE.
- Page 8 REMOTE MEMORY BUTTONS Head: Up/Down To program a memory button: move the adjustable base into a desired position, then hold the memory button down for 5 Foot: Up/Down seconds. Pillow Tilt: Up/Down DUAL MASSAGE Press the : 1x for 10 minutes, 2x 20 for 20 minutes, and 3x Night Light for 30 minutes.
-
Page 9: Connecting Straps
CONNECTING STRAPS OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS The Connecting Straps will join two adjustable bases together to prevent drifting apart if they are not used within a bedframe. With the adjustable bases in their desired location, slightly loosen both legs to Slide side (A) of the Connecting Strap onto the leg bolt. -
Page 10: Synchronization Cable
SYNCHRONIZATION CABLE OPTIONAL FOR SPLIT KING OR SPLIT CAL KING ADJUSTABLE BASE SETS The synchronization cable will link two adjustable bases in movement and features. Unplug the adjustable bases from the power outlets. Synchronization Cable Connect the Synchronization Cable to the Master Control Box on each adjustable base. -
Page 11: Hook And Loop Securing Straps
HOOK AND LOOP SECURING STRAPS The Hook and Loop Securing Straps and Securing Screws are for zero clearance applications to secure the adjustable base to a bedframe slat system. Secure the adjustable base to the slat system by placing two Hook and Loop Securing Straps at the head and two at the foot. Optional step for added security: Securing Screws are included to drill through wood on a bedframe to secure the adjustable base. -
Page 12: Child Safety Lock
CHILD SAFETY LOCK OPTIONAL To lock movement of the adjustable base while using the remote, follow the instructions below. Press “FLAT” and “Head UP” simultaneously for 4 seconds. When the remote flashes twice the child safety lock is on. The adjustable base will not respond when you press any button;... -
Page 13: Warranty
10-YEAR LIMITED WARRANTY FULL 1-YEAR WARRANTY ADDITIONAL TERMS AND CONDITIONS The Adjustable Base is warranted against defects in materials or workmanship for a Warranty does not include reimbursement for inconvenience, removal, installation, period of one year from the date of purchase to the original purchaser. During the first setup, loss of use, shipping, or any other costs or expenses not expressly covered in this year, manufacturer will repair or replace any defective part at no cost to the original warranty. -
Page 14: Troubleshooting
TROUBLESHOOTING IF ONE OR MORE FUNCTIONS ON THE ADJUSTABLE BASE HAVE IF THE HEAD OR FOOT MECHANISMS WILL ELEVATE BUT WILL NOT STOPPED OPERATING RETURN TO THE FLAT POSITION Check under the adjustable base to verify that the wired connections are secure and Check the undercarriage for obstructions. - Page 15 TROUBLESHOOTING POWER OUTAGE – EMERGENCY BATTERY STRIP In case of an electrical outage, the Emergency Battery Strip allows you to operate the adjustable base without power to your home. Only use the Emergency Battery Strip to lift or lower the adjustable base into your desired sleeping position. * Disconnect the adjustable base(s) from the power outlet.
-
Page 16: Reference Guide
REFERENCE GUIDE Hook & Loop Pillow Tilt Hook & Loop Securing Straps Securing Straps Location Location Head Actuator USB Ports USB Ports Massage Motor Massage Motor Master Control Box Night Light Night Light Massage Motor Massage Motor Foot Actuator Hook & Loop Night Light Hook &... -
Page 17: Faq
WILL THE ADJUSTABLE BASE FIT INSIDE MY CURRENT BED FRAME? EASTERN KING SPLIT (EKS) CALIFORNIA KING SPLIT (CKS) Yes, we designed the adjustable base width and length to be 1/2” shorter than standard bed sizes to ensure the adjustable base fits within most bed frames. ADJUSTABLE BASE DIMENSIONS Twin XL or Twin XL or... - Page 18 NEED TO TALK TO OUR COMFORT EXPERTS? CALL 1-877-622-6550 CUSTOMER SERVICE HOURS: MONDAY THRU FRIDAY FROM 8:00AM TO 5:00PM PST...
- Page 19 NOTES:...
