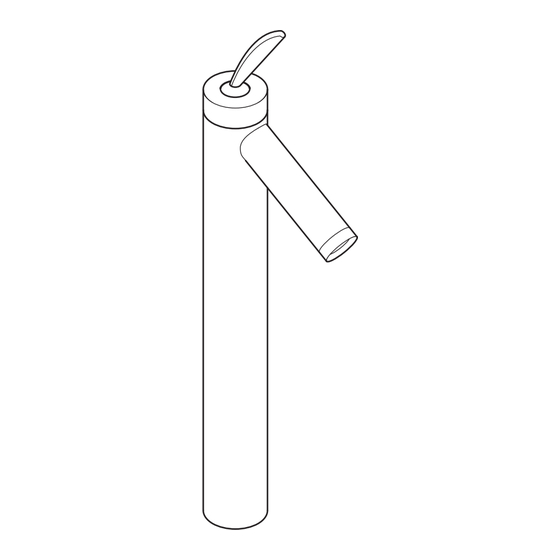

- Page 1 Installation Instructions / Warranty Starck Starck 10020XX1 10022XX1 10028XX1 10029XX1...
- Page 2 10020XX1 10022XX1 Do not twist or kink the supply hoses! less drain 10028XX1 less drain 10029XX1 Technical Information Installation Considerations • For best results, Hansgrohe recommends that Recommended water pressure 14.7 - 72.5 psi this unit be installed by a licensed, professional Max.
- Page 3 Installation Place the faucet and sealing ring on the mounting surface. Install the friction washer, metal washer and mounting nut. Tighten the mounting nut by hand. Tighten the tensioning screws. 10020XX1, 10022XX1 only: Install the drain pull rod. Connect the hot and cold supply lines to the stops.
- Page 4 Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. Unscrew the tailpiece from the tee. Wrap the threads with Teflon tape and replace. Install the white, flexible sealing gasket to the flange. Place it in the sink outlet. Install the black mack gasket, white friction ring and retainer nut on the flange.
- Page 5 Replacement parts Flange 9627XX0 Handle 10090XX0 Handle "Puro" 10092XX0 cartridge 969000 Aerator 118000 Lift rod 9006XX0 Supply hose Fixing set 1961000 XX = Color code: 00 = chrome 82 = brushed nickel...
- Page 6 Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning.
- Page 7 the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A.
- Page 8 Hansgrohe, Inc. • 190 Bluegrass Lakes Parkway • Alpharetta, GA 000 Tel. 770-60-9880 • Fax 770-60-9887 www.hansgrohe-usa.com...
