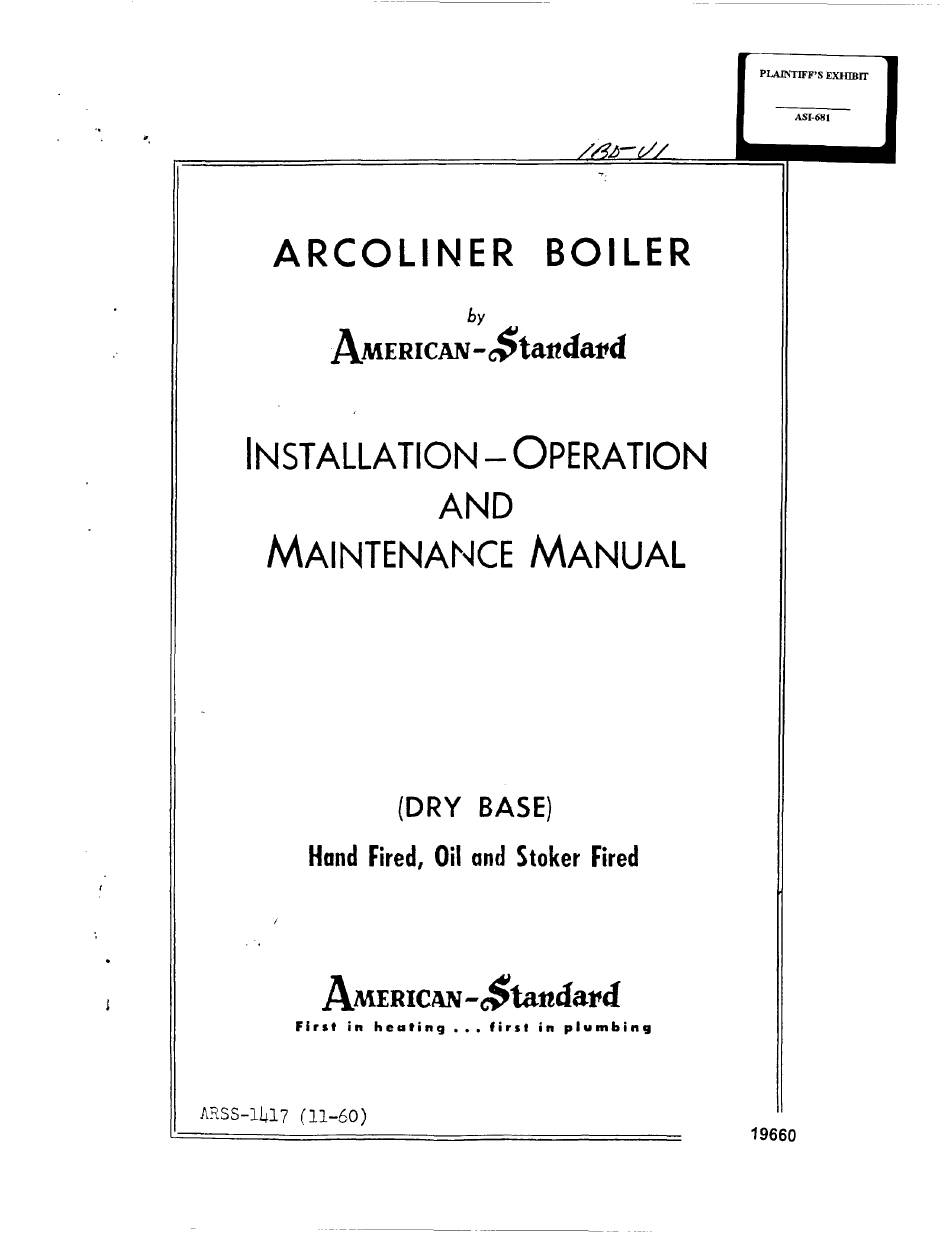

- Page 1 PLAINTIFF’S EXHIBIT //%£-(// ARCOLINER BOILER AMERiCAN-c»>ta«da#d nstallation peration aintenance anual (DRY BASE) Hand Fired, Oil and Stoker Fired -Standard merican First in heating ... first in plumbing ARSS-li+17 (11-60) 19660...
- Page 2 ARCCLIIJER ErILER ( dry base FRONT VIEW BACK VIEW HAND FIRED BOILER HAND FIRED BOILER 3" TAP SECTION THRU HAND FIRED BOILER CENTER SECTION 19661...
- Page 3 ARCOLIUER BOILER (DRY BASE) CONTROL TAPPINGS FOR DRY BASE BOILER BOILER DIMENSIONS Boiler Dimensions Number (Steam and Water) and Size of Boiler Tappings Assemblage Tank Type Water Heater Number Flow Return 153-D 1-3" 1 3" 154-D 1-3" 13" 2Y:4 155-D 2 3"...
- Page 4 ARCOLINER BOILER (DRY BASE) USE THIS BOOK FOR REFERENCE 'SIKH ERECTIHG BOILER, ORDERJL’G PARTS AND FOR OPERATION. The boiler is shipped assembled with the sections in the following sequence; Boiler Number Assemblage Code Letters DF-DXU-DB ’ DF - Front Section 153-D DF-DC-DXU-DB DC - Center Section...
- Page 5 AIlCCLI!^ BOILER (DRY EASE) '.,rhen locating boiler allow free space at side of the boiler if a water heater is to be used in the front section. Allow 20" for insertion or removal of No. 701; or 15" for No. 702 heater. Install coil cover in Back section if water heater is not used in the combustion chamber.
- Page 6 ARCOLIHER BOILER (DRY BASE) Fig. U Fig. 3 Steam Boiler - Handfired Section Assembly 19665...
- Page 7 ARCOLINER BOILER (DRY DASH) AUTOMATIC DRAFT REGULATOR Face regulator with the screw in the rocker toward FRONT of the boiler. IMPORTANT - USE Y.'EENCH on hexagon portion of regulator for installing or adjusting after the installation. Insert the regulator lever in the rocker and tighten screw to engage notch in the lever.
- Page 8 ARCOLIHER BOILER (DRY BASE) ATTENTION TO FIRE - Attend to fire at regular intervals. Grates should be shaken once a day unless weather is mild in which case grates may be shaken only as required to sustain fire. '.Then shaking, rock handle about 5" to left and right of center position. BEFORE REMOVING HANDLE MOVE IT SO THAT HANDLE POINTS STRAIGHT UP OTHERWISE GRATES MAY BURN OUT.
- Page 9 ARCOLINER BOILER (DRY BASE) ATTENTION TO BOILER WHEN MOT IM OPERATION At end of heating season clean boiler surfaces thoroughly and remove ash and unburncd fuel from grate and ash pit. Spray flue and firebox surfaces with light lubricating or crankcase oil using rum with extended stem so as to reach all corners. Leave boiler doors and dampers open to permit air circulation through boiler.
- Page 10 ARCOLINER BOILER (DRY BASE) CLEARING BOILERS The grease used to lubricate the cutting tools during erection of new piping systems serves as a carrier for sand and dirt, with the result that a scum of fine particles and grease accumulates on the surface of the water in all new boilers, while heavier particles may settle to the bottom of the boiler and form sludge.
- Page 11 ARCOLINER BOILER (DRY BASE) FOR HANDFIRED, OIL AND STOKER BOILERS - STEAM AND Y.'ATER COMPLETE BOILER CONSISTS OF: Sections assembled complete with grates for handfired boilers. Sections assembled complete less grates for Oil and Stoker fired boilers. Platework Crate Fire Tool Bundle (Coal) Trim Box (Steam or Yfater) Jacket NO.
- Page 12 Plumbing ond Hasting DivUion AMERICAN RADIATOR ft STANDARD 9ANITARY CORPORATION 40 WEST 40TH STREET. NEW YORK IS. N.Y. 19671...
