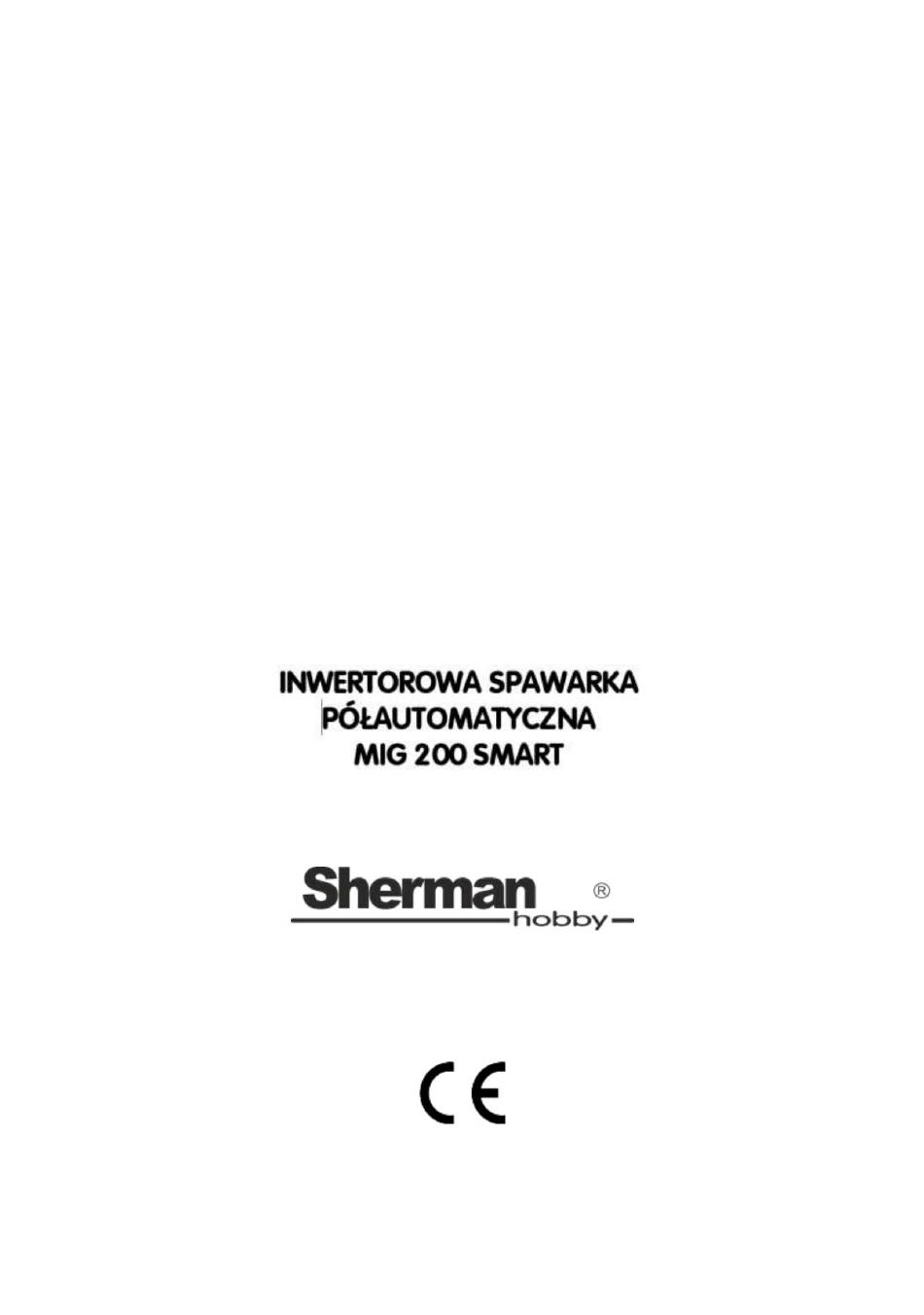

  • Page 1 Machine Translated by Google V1.2 08.03.24 USER MANUAL...
  • Page 2 Machine Translated by Google ATTENTION! Before installing and starting the device, please read this manual 1. GENERAL REMARKS The device may only be started and operated after carefully reading this Operating Instructions. Due to the continuous technical development of the device, the external appearance and some of its functions may be subject to modifications and their operation may differ in detail from the descriptions in the instructions and on the carton.
  • Page 3 Machine Translated by Google Prevention of poisoning by vapors and gases emitted during welding from electrode coating and metal evaporation: • Use ventilation devices and exhaust systems installed in places with limited air exchange. air, • Blow with fresh air when working in a confined space (tanks), •...
  • Page 4 3. GENERAL DESCRIPTION The synergic MIG 200 SMART welder is designed for manual welding of steel. It enables welding using the following methods: MMA (covered electrode), TIG Lift, and MIG/MAG in synergistic mode. Thanks to the change of polarity, the device allows for MIG/MAG welding using both standard wires in a protective gas shield and self-shielded flux-cored wires.
  • Page 5 Machine Translated by Google Work cycle The duty cycle is based on a 10-minute period. A duty cycle of 60% means that after 6 minutes of operation, a 4- minute break is required. A duty cycle of 100% means that the device can operate continuously without interruption. Note! Heating tests were conducted at ambient air temperature.
  • Page 6 Machine Translated by Google 1. MIG gun socket 6. Power switch 2. Spool Gun Control Socket 3. Polarity Change 7. Shielding gas connection stub 8. Wire Plug spool pin 4. Socket "-" 9. Wire feeder 5. Socket "+" 10. Spool Gun Handle Switch 5.1 Connecting the cables 5.1.1 MMA method The ends of the welding cables should be connected to the sockets (4) and (5) located on the front panel so that...
  • Page 7 Machine Translated by Google 5.1.3 MIG method 5.1.3.1 Welding in protective gases The current plug of the torch should be connected to the MIG torch socket (1). The gas hose from the reducer should be led and secured to the gas connector (7) located on the rear wall of the device. The polarity change plug (3) should be placed in the socket (5).
  • Page 8 1. The device should only be used in a single-phase power supply system, three-wire, with grounded neutral point. 2. The MIG 200 SMART inverter rectifier is designed to work with a 230V50 Hz network protected by 20 A delayed fuses. The power supply should be stable, without voltage drops.
  • Page 9 Machine Translated by Google spool D200 spool D100 5.5 Preparing the MIG gun for work Depending on the type of material being welded and the diameter of the electrode wire, fit the appropriate current tip and wire guide insert to the MIG torch. 6.
  • Page 10 Machine Translated by Google A – Display The display shows the welding current and the selected welding method. B – Current Adjustment Knob The knob is used to adjust the welding current. The value of the set current is indicated by the display. C - Welding voltage correction knob Knob active only during MIG welding.
  • Page 11 Machine Translated by Google Welding with coated electrode (MMA method) TIG Lift welding MIG welding with 0.8 wire MIG welding with wire 1.0 MIG welding with self-shielded flux-cored wire 0.8 MIG welding with self-shielded flux-cored wire 1.0 7. PARAMETER SETTINGS After selecting the MMA and TIG Lift methods, it is possible to adjust the welding current.
  • Page 12 10. OPERATING INSTRUCTIONS The MIG 200 SMART welder should be operated in an atmosphere free from corrosive components and high dust levels. The device should not be placed in dusty places, near working grinders, etc. Dust and contamination with metal filings of control boards, cables and connections inside the device may lead to an electrical short circuit and, consequently, to damage to the welder.
  • Page 13 If the welding machine is to be used outdoors, it should be placed under a roof to protect it from adverse weather conditions. The MIG 200 SMART device should be used in the following conditions: - changes in the effective value of the supply voltage not greater than 10% - ambient temperature from -10°C to +40°C...
  • Page 14 Machine Translated by Google The warranty will be honored upon presentation by the claimant of proof of purchase (invoice or receipt) and a warranty card with the product name, serial number, date of sale and the stamp of the point of sale.
  • Page 15 Machine Translated by Google 15. ELECTRICAL DIAGRAM...
  • Page 16 1G Krzyÿowa Street POLAND We declare that the product listed below: Inverter welder Trade name: MIG 200 SMART MIG/MMA 200 Type: Manufacturer's trademark: to which this declaration relates complies with the requirements of the following European Union directives and national provisions implementing these directives:...
