Portable Air Conditioner – PA210
User Manual
[Revision 1.0 September 2018]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 201 Carson
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Carson PA210
Summary of Contents for Carson PA210
- Page 1 Portable Air Conditioner – PA210 User Manual [Revision 1.0 September 2018] READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
- Page 2 Portable Air Conditioner – PA210 Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or...
- Page 3 Portable Air Conditioner – PA210 General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must • The equipment must be serviced or cords, power bars, and electrical fittings have an approved cord and plug and repaired at authorised service centres for damage or wear before each use.
- Page 4 Portable Air Conditioner – PA210 Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc, replace them. Flammable Material Hazard...
- Page 5 Portable Air Conditioner – PA210 Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the Do NOT attempt "slam dunk" confined areas or without...
- Page 6 Portable Air Conditioner – PA210 Table of Contents Safety ..............................2 Safety Symbols ............................4 Parts Identification ..........................7 Assembly ............................8 Operation ............................12 Control Panel ............................12 Operating Instructions ..........................13 Remote Control ............................14 Multiple Protection Functions ........................14 Anti-Freeze Protection ........................

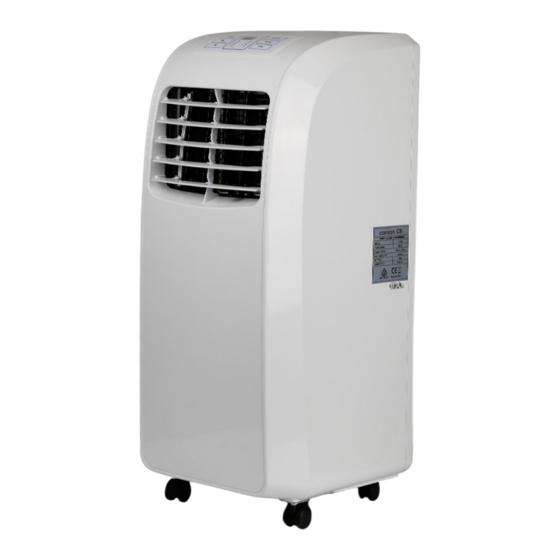

- Page 7 Portable Air Conditioner – PA210 Parts Identification Name Name Name Control panel Back shell Condenser filter frame C-shape buckle of the heat Base plate (Right side: Horizontal louver exhaust remote control storage area) Vertical louver Power cord Remote control Heat exhaust hose outer...
- Page 8 Portable Air Conditioner – PA210 Assembly Leave this mobile air-conditioner in an upright position for at least 2 hours before first use. This air-conditioner may be moved indoor conveniently; leave the air-conditioner in an upright position while moving it. The air-conditioner should be placed on a flat ground surface. Do not install or operate this air- conditioner in a bathroom or other wet environments.
- Page 9 Portable Air Conditioner – PA210 Installation of the C shape buckle of the heat exhaust hose and unit Sliding path of the back shell. Rotary hole Rotation shaft of back shell. Snap joint of the C- shape buckle of back shell.
- Page 10 Portable Air Conditioner – PA210 Position of lower air duct bottom step Lower air duct bottom joint 2. Hold the unit with one hand and the heat exhaust hose short connector with another hand; or two people cooperating with one person holding the unit and the other person pulling the heat exhaust hose to extend the heat exhaust hose gently.
- Page 11 Portable Air Conditioner – PA210 Installation of the unit 1. Move the unit with the heat exhaust hose assembly installed beside the window and keep the unit at least 50cm away from walls or other objects. (As shown in Figure 9).
- Page 12 Portable Air Conditioner – PA210 Operation Control Panel Name Name ON/OFF Button Cool indicator Mode Button Dehumidify indicator Up/Down Button Fan indicator Fan Button Sleep mode indicator Remote control sensor Timer Button location Display screen Temperature indicator Timer indicator High/Low indicator Water Full indicator E&OE...
- Page 13 Portable Air Conditioner – PA210 Operating Instructions • When the unit is turned ON for the first time, the buzzer will play a short music and the Display screen will show the ambient temperature value. The temperature display range is 10 – 35°C. The unit will then enter standby mode.
- Page 14 Portable Air Conditioner – PA210 − Press the Up and Down buttons simultaneously to switch between Fahrenheit and Celsius. When Celsius has been chosen, the Celsius degree indicator will illuminate. Remote Control 1. Power button: Press this button to turn the unit ON/OFF.
- Page 15 Portable Air Conditioner – PA210 Water Drainage Manual Drain Water plug Drain cap Water outlet 1. Once the unit shuts down when the water tray is full, turn OFF the unit and then unplug it. NOTE: Move the unit carefully to avoid spilling water from the water tray.
- Page 16 Portable Air Conditioner – PA210 NOTE: • The drain hose must be installed only when there is no water in the tray. • When in Cooling mode, it is not recommended that continuous drain be set far from the unit when in use. This is to ensure that there will be water for the condenser and enhance the cooling effects of the unit.
- Page 17 Portable Air Conditioner – PA210 Maintenance Turn the unit OFF and unplug it before attempting any maintenance and servicing. Surface Cleaning Clean the surface of the unit with a soft, wet cloth. Do not use chemical solvents such as alcohol and gasoline.
- Page 18 Portable Air Conditioner – PA210 Re-Installing the Filter Frame and Filter Mesh IMPORTANT: Install the filter mesh first and then install the filter frame. 1. To install the evaporator filter mesh and condenser filter mesh, point the back end of the filter mesh towards the socket and then push the filter mesh evenly and gently into the socket.
- Page 19 Portable Air Conditioner – PA210 Handling the Unit To handle or move the unit, hold the top of the air outlet of the front shell with one hand and the handle position at the top of the back shell with another hand, and leave the unit in an upright position (as shown in Figure 19).
- Page 20 Portable Air Conditioner – PA210 Storage 1. Screw off the drain cap, unplug the water plug and drain the water in the water tray to another container that holds water. 2. Start the unit, turn the mode to the Low Fan Speed state of the Air Supply mode. Keep this state for half a day and dry the interior of the unit to prevent moulds from forming.
- Page 21 Portable Air Conditioner – PA210 Troubleshooting Never repair or remove parts from the air-conditioner by yourself. Faulty repair will void the warranty and may be dangerous to you and to others. If you encounter any of the problems listed in the table below or the recommended solution does not work, contact an authorised technician.
- Page 22 Portable Air Conditioner – PA210 Specifications Model PA210 Cooling Capacity 4.4kW (15000BTU) Noise level 55dB Refrigerant R410A Airflow Volume 350m³/h Input voltage 240V AC Power Plug Australian Standard (10Amp) *The frequency of emptying water is dependent on the level of humidity in the air and also the mode the unit is operating in e.g.
- Page 23 ©2018 Carson. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
