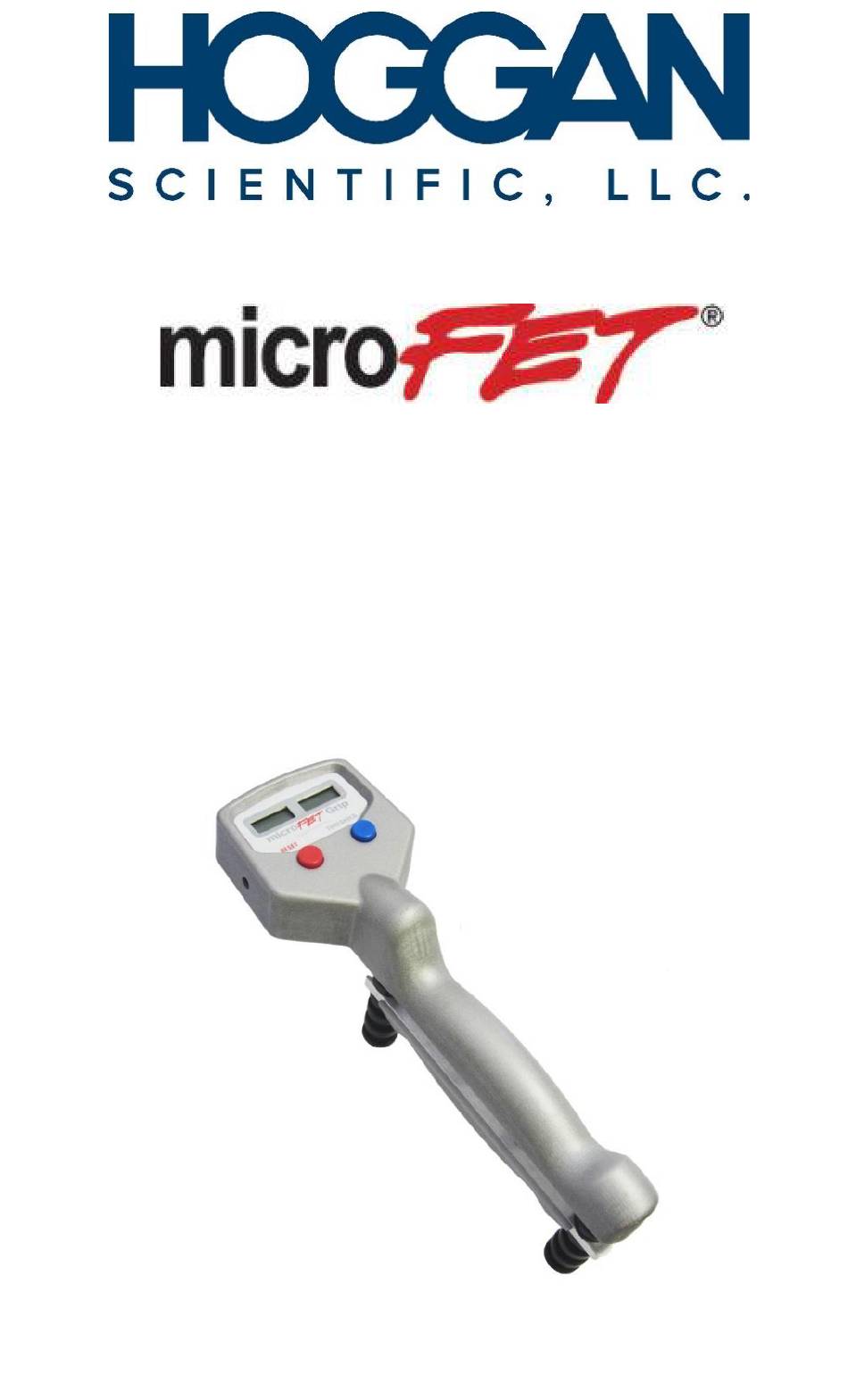

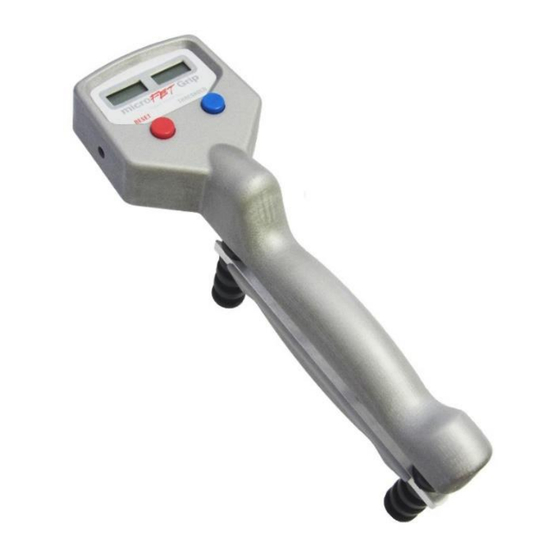

- Page 1 Handgrip USER GUIDE IFU 04.EN.E ECO-0864 Page | 1...
- Page 2 This Page Intentionally Left Blank IFU 04.EN.E ECO-0864 Page | 2...
- Page 3 Table of Contents Page How Supplied Contraindications Warnings and Precautions Directions for Use Operating Features General Use Data Retrieval Mode (Saved Tests) Wireless RF Operation Threshold Setting Force Measurement Setting Battery Check Rapid Exchange Grip Test Low Battery Charging Battery Replacing Battery Storage and Transporting Service / Maintenance / Cleaning...
- Page 4 microFET® handGRIP System CAUTION: Federal (USA) law restricts the sale of this device by or on the order of a physician. USER QUALIFICATION ® microFET handGRIP must be used by a physician or by medical personnel under the supervision of a physician. The user must have received sufficient training in clinical procedures.
- Page 5 CONTRAINDICATIONS ® microFET handGRIP is contraindicated under the following: On or near open wounds Patients having severe osteoporosis On or near burned tissue On or near the eye On or near fractures Not to be used for any purpose other than indicated ®...
- Page 6 Do not service the battery while in use with patient. Making any modifications or using any accessories not specifically approved by Hoggan Scientific, LLC may void the warranty as well as reduce immunity to electromagnetic interference, or increase electromagnetic emissions, and result in improper operation.
- Page 7 DIRECTIONS FOR USE OPERATING FEATURES • Reset Button – turns on device. Device will power up in testing mode last used. • Sleep Mode – The device enters a low power mode after being left on for three minutes. The device can be awoken by pressing the reset button.
- Page 8 for desired test and place the top part of the handle into selected rung of top shaft. Rotate the lower part of the handle onto the lower shaft until clicks into place. Select and place the removable handle on the appropriate rung test position on posts of device. Snap handle to secure into place on posts.
- Page 9 DATA RETRIEVAL MODE (View Saved Tests) • With the device in the test mode (displaying zeroes in both display windows), hold down the threshold button and click the reset button, this puts the device in data retrieval mode to view saved tests.
- Page 10 • The duration screen will display the current wireless power mode as “On” or “Off”. • Toggle the wireless power setting by pressing the threshold button. • Return to test mode by pressing the reset button. • Wireless power on will be indicated by a wireless indicator dot that appears after the “L”...
- Page 11 Figure 5. LCD Display Windows • The threshold can be toggled between high and low by pressing the threshold when the device is in test mode. FORCE MEASUREMENT SETTINGS • The force unit of measure may be changed between Pounds force, Newtons, and Kilogram force.
- Page 12 BATTERY CHECK • With the device powered on in test mode, hold down the threshold button and click the reset button. • Continue to hold the threshold button for five seconds. The device will display “P” in the duration LCD window and a number from 1 to 100 in the peak force LCD window.
- Page 13 Rapid Exchange Grip Consistency If the patient is exerting maximal effort, the display on the Hand Grip will deflect to approximately the same pounds of force with each repeated trial. LOW BATTERY INDICATOR Blinking readouts in LCD displays or unlit segments of the LCD display are ®...
- Page 14 REPLACING THE BATTERY When replacing rechargeable battery, use only rechargeable battery supplied by Hoggan Scientific, LLC: Model ICR14250 (1) 3.7V 1/2 AA Lithium-ion rechargeable battery, 280 mAH. Other batteries may cause damage to device and void warranty. The battery can be purchased from Hoggan Scientific, LLC.
- Page 15 (1) year of the ship date, it will be repaired free of charge by Hoggan Scientific, LLC. (return shipping not included). Extended warranties are available for an additional fee.
- Page 16 Hoggan Scientific, LLC to arrange to have the equipment repaired. Hoggan Scientific, LLC reserves the right to repair or replace the unit with new or refurbished parts or equipment. Hoggan Scientific, LLC Customer Service Department can be contacted at 800-678-7888/801-572-6500, or by email at sales@hogganscientific.com.
- Page 17 7:00 am to 4:30 pm Monday- Thursday, Friday 7:00 am to 1:30 pm MDT at Ph: 800-678-7888/801-572- 6500 to meet your needs. You can also contact Hoggan Scientific, LLC online regarding your customer service issue or calibration needs by e- mailing us at sales@hogganscientific.com.
- Page 18 IEC 61000-4-8 (2009) CISPR 11 Emissions Class B (2009), +A1:2010 Radiated Emissions Conducted Emissions FCC Part 15B TECHNICAL ASSISTANCE For further assistance, contact Hoggan Scientific at: www.hogganscientific.com Phone: 800-678-7888 / 801-572-6500 Email: sales@hogganscientific.com Electromagnetic Compatibility Guidance (in accordance with EN/IEC 60601-1- IFU 04.EN.E ECO-0864...
- Page 19 2:2014) TABLE 1: Manufacturer’s Declaration – Electromagnetic Emissions The microFET® handGRIP is intended for use in the electromagnetic environment specified below. The customer or the user of the microFET® handGRIP should ensure that it is used in such an environment. Emissions EMC Environment Compliance Compliance...
- Page 20 Portable and mobile RF communications equipment should be used no closer to any handGRIP part of the microFET® including cables, than the recommended separation distance calculated from the equation appropriate to the frequency of the transmitter. Recommended separation distance For 80 MHz to 800 For 800 MHz to 2.3 3 V/m 80 MHz...
- Page 21 TABLE 4: Recommended separation distanced between portable and mobile RF communications equipment and the microFET® handGRIP The microFET® handGRIP is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the microFET®...
- Page 22 GRAPHIC SYMBOLS AND DEFINITIONS Device will not work when connected to AC outlet Attention, See Instructions for Use Model number Serial Number Keep Dry For prescription use only IPX0 Do not wet the device Class II Electrical Equipment Type B applied part – External Body only contact FCC Compliant Device Direct Current Device is provided non-sterile...
- Page 23 © 2023, Hoggan Scientific, LLC. All Rights reserved. Printed in the U.S.A. microFET is a registered trademark of Hoggan Scientific, LLC. Bluetooth is a registered trademark of the Bluetooth Special Interest Group (SIG). 2797 0086 Hoggan Scientific, LLC UK RP 3653 West 1987 South, Bldg.
- Page 24 3653 WEST 1987 SOUTH, BLDG. #7 SALT LAKE CITY, UT 84104 USA PH: 800-678-7888 / 801-572-6500 www.hogganscientific.com IFU 04.EN.E ECO-0864 Page | 24...
