  • Page 1 Pinch USER GUIDE IFU 05.EN Rev C Page | 1...
  • Page 2 This Page Intentionally Left Blank IFU 05.EN Rev C Page | 2...

  • Page 3: Table Of Contents

    Table of Contents Page How Supplied Contraindications Warnings and Precautions Directions for Use Operating Features General Use Data Retrieval Mode (Saved Tests) Wireless RF Operation Threshold Setting Force Measurement Setting Battery Check Low Battery Charging Battery Replacing Battery Storage and Transporting Service / Maintenance / Cleaning Calibration Warranty...

  • Page 4: How Supplied

    microFET Pinch System ® CAUTION: Federal (USA) law restricts the sale of this device by or on the order of a physician. USER QUALIFICATION ® The microFET Pinch must be used by a physician or by medical personnel under the supervision of a physician. The user must have received sufficient training in clinical procedures.

  • Page 5: Warnings And Precautions

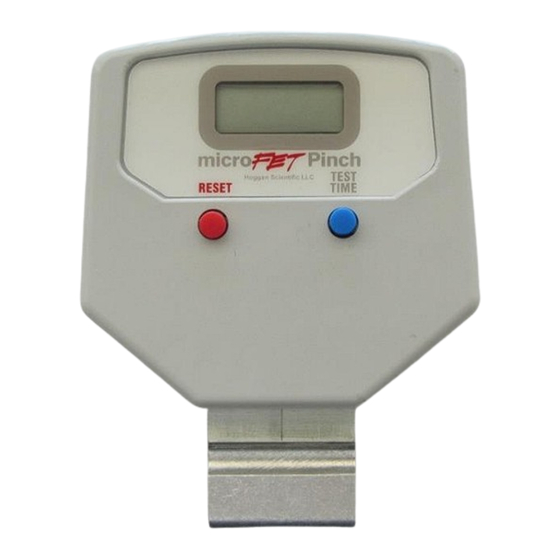

    On or near fractures Not to be used for any purpose other than indicated ® Figure 1. The microFET Pinch Device WARNINGS AND PRECAUTIONS ® The microFET Pinch device should only be used by trained professionals. ® The microFET Pinch device and accessories are provided non- sterile and are not compatible with autoclave or other sterilization techniques.

  • Page 6: Directions For Use

    Do not service the battery while in use with patient. Making any modifications or using any accessories not specifically approved by Hoggan Scientific, LLC may void the warranty as well as reduce immunity to electromagnetic interference, or increase electromagnetic emissions, and result in improper operation.

  • Page 7: General Use

    static discharge. Figure 2. Device Buttons / LCD Window • LCD Window – Displays Test Results and Option Settings (See Figure 2). Peak Force – Displays peak force of Pinch test in LCD window. Duration – Displays the duration of the Pinch test in LCD window when Test Time button pressed.

  • Page 8: Data Retrieval Mode (Saved Tests)

    Figure 3. Test Result Display Example • To view duration or time length of completed test, press the TEST TIME button. When TIME TEST button is released, the display window will revert back to force measurement. • To begin another test, press the reset button, and the device will display zeroes in display window.
  • Page 9 • To turn the wireless mode on, hold down the TIME TEST button for ten (10) seconds. • The device will enter force unit of measure setting mode after five (5) seconds, continue to hold down the TIME TEST button until the display window shows "OFF", (see Figure 4).

  • Page 10: Threshold Setting

    Figure 6. Wireless Mode Indicator Dot ® If the microFET Pinch device is to be used with the optional software, software setup and USB driver installation is required. Please refer to software and USB driver set up instructions included with software purchase.

  • Page 11: Battery Check

    • Press the TIME TEST button to toggle through the available units of measure. • Once the desired unit is selected, press the reset button to set the unit of measure, and return to test mode. BATTERY CHECK • With the device powered on in test mode, hold down the TIME TEST button and click the RESET button.

  • Page 12: Charging Battery

    Figure 9. Device Charging Power Connector REPLACING THE BATTERY When replacing rechargeable battery use only rechargeable battery supplied by Hoggan Scientific: Model ICR14250 (1) 3.7V 1/2 AA Lithium- ion rechargeable battery, 280 mAH. Other batteries may cause damage to device and void warranty. The battery can be purchased from Hoggan Scientific, LLC.

  • Page 13: Storage And Transporting

    Check power level of rechargeable battery to see if needs charging before use. • If after installing replacement battery, the segments do not light up in LCD displays, please contact Hoggan Scientific LLC Customer Service Department at ph: 800-678-7888 / 801-572-6500 or email at sales@hogganscientific.com. Figure 10. Battery Replacement STORAGE AND TRANSPORTING ®...

  • Page 14: Calibration

    Pinch fails to operate because of defect in materials or workmanship at any time within one (1) year of the ship date, it will be repaired free of charge by Hoggan Scientific, LLC. (return shipping not included). Extended warranties are available at an additional fee.

  • Page 15: Customer Service And Repair

    7:00 am to 4:30 pm Monday- Thursday, and 7:00 am to 1:30 pm Friday, MDT at Ph: 800-678-7888/801- 572-6500 to meet your needs. You can also contact Hoggan Scientific, LLC online regarding your customer service issue or calibration needs by e- mailing us at sales@hogganscientific.com.

  • Page 16: Specifications

    • Contact Hoggan Scientific LLC. Replacement parts (attachments) will be shipped directly from Hoggan Scientific, LLC. All repair services will be performed at Hoggan Scientific, LLC Manufacturing plant. Except for replacing battery, do not attempt to repair device. Attempted repairs will void all warranties.

  • Page 17: Device Classifications

    IEC 61000-4-8 (2009) CISPR 11 Emissions Class B (2009), +A1:2010 Radiated Emissions Conducted Emissions FCC Part 15B TECHNICAL ASSISTANCE For further assistance, contact Hoggan Scientific at: www.hogganscientific.com Phone: 800-678-7888 / 801-572-6500 Email: sales@hogganscientific.com Electromagnetic Compatibility Guidance (in accordance with EN/IEC 60601-1- 2:2014) TABLE 1: Manufacturer’s Declaration –...
  • Page 18 specified below. The customer or the user of the microFET® Pinch should ensure that it is used in such an environment. IEC 60601 Compliance Electromagnetic Environment - Immunity Test Test Level Level Guidance Floor should be wood, concrete, IEC 61000-4-2 - ±6kV or ceramic tile.
  • Page 19 NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radio, AM and FM radio broadcast, and TV broadcast cannot be predicted theoretically with accuracy.
  • Page 20 NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people. IFU 05.EN Rev C Page | 20...

  • Page 21: Graphic Symbols And Definitions

    GRAPHIC SYMBOLS AND DEFINITIONS Device will not work when connected to AC outlet Attention, See Instructions for Use Model number Serial Number Keep Dry For prescription use only IPX0 Do not wet the device Class II Electrical Equipment Type B applied part – External Body only contact FCC Compliant Device Direct Current Device is provided non-sterile...

  • Page 22: Manufacturer Information

    © 2023, Hoggan Scientific, LLC. All Rights reserved. Printed in the U.S.A. microFET is a registered trademark of Hoggan Scientific, LLC. Bluetooth is a registered trademark of the Bluetooth Special Interest Group (SIG). 2797 0086 Hoggan Scientific, LLC 3653 West 1987 South, Bldg. 7...
  • Page 23 This Page Intentionally Left Blank IFU 05.EN Rev C Page | 23...
  • Page 24 3653 WEST 1987 SOUTH, BLDG. #7 SALT LAKE CITY, UT 84104 USA PH: 800-678-7888 / 801-572-6500 www.hogganscientific.com IFU 05.EN Rev C Page | 24...
