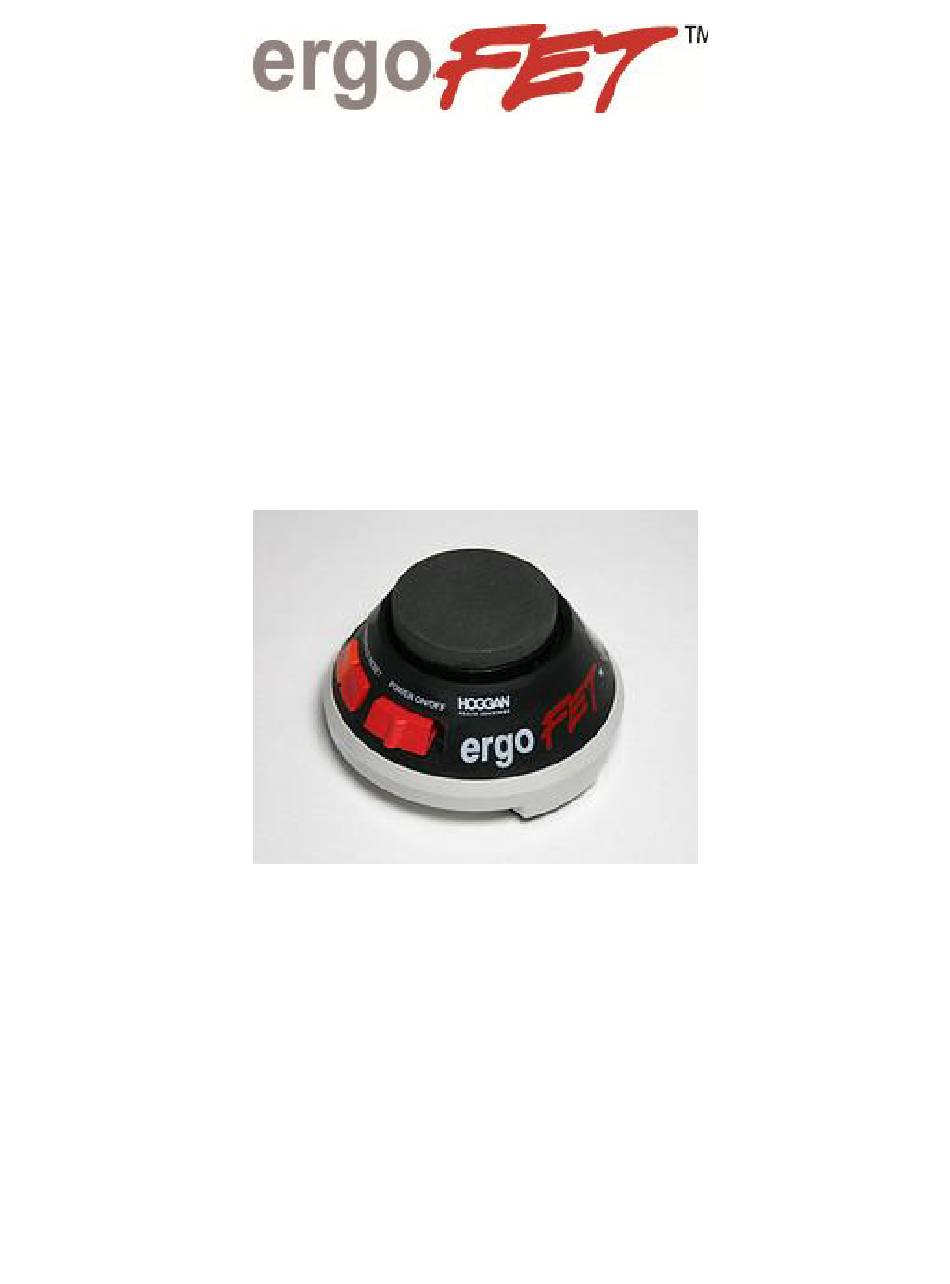

- Page 1 Dual Function Push/Pull Force Gauge ergoFET User Guide...
- Page 2 The new ergoFET wireless allows testing to be done FREE of cords in conjunction with optional FDC FET Data Collection Software. This provides freedom and ease of use performing force measurement tests. Its compact, ergonomic design fits comfortably in your hand for direct compression testing, and is excellent for small to medium push and pull force test applications.
-
Page 3: Table Of Contents
Table of Contents Page ergoFET Wireless Overview What is Included Specifications Care and Cleaning Calibration Transporting ergoFET Operating Features On/Off Switch Sleep Mode Reset Button Threshold Button LCD Windows Display Settings Force Measurement Bluetooth / FET Stick Battery Check Battery Saver / Sleep mode... -
Page 4: Ergofet Wireless Overview

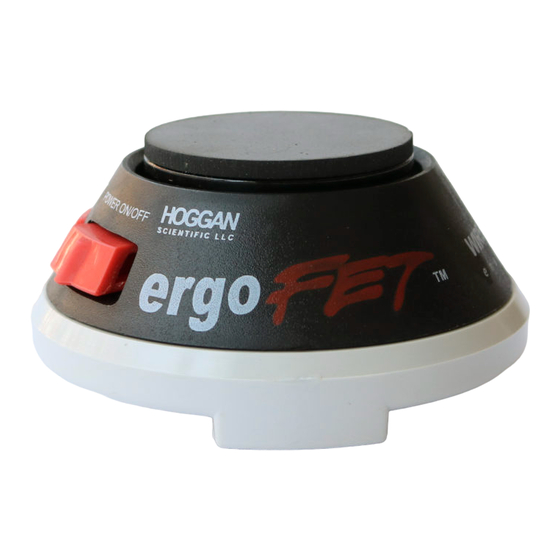

This battery operated, hand- held device weighs less than a pound, and fits comfortably in the palm of your hand. ergoFET provides you with objective, quantifiable data for measuring both compression (push) and tension (pull) forces for a variety of job activities and other force measurement applications. -
Page 5: What Is Included
What is Included: ergoFET Wireless Digital Force Gauge Flat Transducer Pad Large Curved Transducer Pad Small Round Flat Transducer Tip Handle Rechargeable Li-ION batteries, Charger included 16 Inch Strap with “D” Rings Open End Stationary Hook #2 Hook with Clasp... -
Page 6: Care And Cleaning
On/Off Switch The On/Off switch slides left and right to turn the unit on and off. Even though the ergoFET is equipped with Sleep Mode battery saver feature, we recommend that the unit be turned off when not in use. Refer to Image A for Power On/Off Switch. -
Page 7: Threshold Button
The High Threshold is most commonly used. In the High setting, three pounds of force must be exerted before ergoFET begins recording test data. The High threshold allows for easier placement of the unit, and reduces false starts. High threshold displays force in 0.1 lb increments (.44N) during testing. Begins recording test data at 3.0 lbs force (12.1N) Records data in 0.1 lb increments up to 300 lbs (.44N increments to 1320N) -
Page 8: Display Settings
Force Measurement Settings You may choose the unit of measure, (lbs, Newtons, KGF) by putting the ergoFET in the Force Measurement mode press and hold the Threshold button for five seconds, the display will go blank only showing hash mark for the unit of measurement currently chosen. -
Page 9: Bluetooth / Fet Stick
Bluetooth / FET Stick Included with your ergoFET is a Bluetooth / FET Stick. Refer to Image F. The Bluetooth / FET Stick is needed when the ergoFET is used with software for testing. The Bluetooth / FET Stick is included when the software CD disk is ordered. -
Page 10: Battery Saver/Sleep Mode
The ergoFET is ambidextrous. It can be held in either the left or right hand for compression testing, or you may switch hands from test to test, depending on stabilization requirements. To secure the ergoFET in your hand, place the strap over your hand, and perform one hand direct push test. - Page 11 Images I below for attaching handle to gauge. Image I Below are examples of the ergoFET with one hand handle using two hands to perform a push test, lifting to weigh contents of bucket, and pull test. See Images J, K, and L below.
-
Page 12: Recording And Retrieving Test Data
The ergoFET was designed as standalone gauge for simple measurements. However, with newly incorporated wireless, the unit allows you the option to use ergoFET, cord free, with Hoggan Scientific data collection/research software. Using software will increase your evaluation, documentation and research capability. -
Page 13: Low Batteries
Carefully remove the batteries from their holders. When installing new batteries, make sure the positive (+) posts align with the (+) marks on the ergoFET body. If segments do not light up after installing new batteries, please contact Hoggan Scientific LLC Customer Service Department at 800-678-7888. -
Page 14: Customer Service/Repairs
Any repairs to the ergoFET unit should be completed by qualified service technician. Ordering Replacement Parts Hoggan Products are manufactured to exacting specifications. When replacing worn or damaged parts, use only original 'Hoggan' manufactured parts. The use of substitute or unauthorized parts will void your warranty and may increase the possibility of injury to the user, or cause additional damage to the unit. - Page 15 Hoggan Scientific, LLC 3653 West 1987 South , Bldg 7 Salt Lake City, UT 84104 Ph: 800-678-7888 / 801-572-6500 Fax: 800-915-3439 E-mail: contact@hogganhealth.net www.hogganhealth.net...
