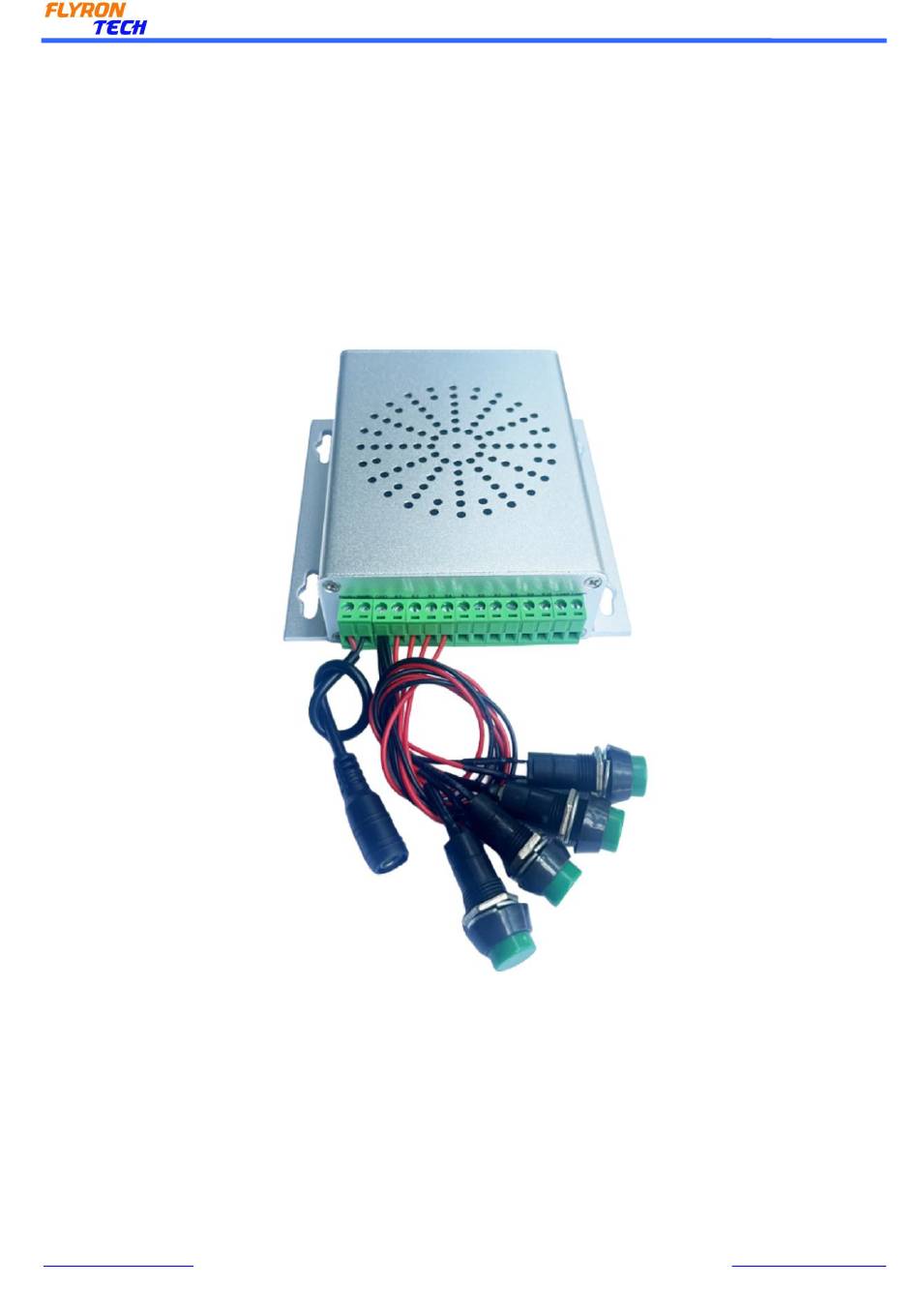

4 Button Triggered MP3 Audio Player
1. Overviews
1.1. Features
Built-in high quality audio decoder
Built-in 8MB flash memory.
Supports inserting USB flash drive and micro SD card as the extended storage devices.
Supports max. 32GB USB flash drive and max. 32GB micro SD card.
www.flyrontech.com
User's Manual
Model No.: FN-4BTN
Version: V1.0
1
4 Button Triggered MP3 Audio Player
E-mail: info@flyrontech.com
Advertisement
Related Manuals for Flyron FN-4BTN
Summary of Contents for Flyron FN-4BTN
- Page 1 4 Button Triggered MP3 Audio Player 4 Button Triggered MP3 Audio Player User’s Manual Model No.: FN-4BTN Version: V1.0 1. Overviews 1.1. Features Built-in high quality audio decoder Built-in 8MB flash memory. Supports inserting USB flash drive and micro SD card as the extended storage devices.
- Page 2 4 Button Triggered MP3 Audio Player Attached with 4 push buttons (self-reset type) that work as 4 triggers to trigger sounds. Supports 9 types of trigger modes and each trigger mode can be set easily through a text document. ...
- Page 3 4 Button Triggered MP3 Audio Player www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 4 Button Triggered MP3 Audio Player 2. Wiring Schematic Notes: 1). Because it's not convenient to connect more buttons, we just leave the trigger terminals K5-K10 alone. 2). The terminals Load+ and Load- are used to connect to an external LED light. It's necessary that the LED light can work at 12V as well.
- Page 5 4 Button Triggered MP3 Audio Player The same as mode “3” above. The only difference is that once an audio file is triggered, Pulse uninterruptible the audio file will not be able to be interrupted /canceled during playback. The playback will only end when the audio file has played its entirety.
- Page 6 4 Button Triggered MP3 Audio Player 3). Save it and close it. 4). Rename the file “Config” or any other name you like. 3.3. Audio Files Loading/Updating Users can use a USB data cable to connect the device to computer. The built-in flash memory will be detected as a USB flash drive on computer.
- Page 7 4 Button Triggered MP3 Audio Player folders. And then create a config file (with number “5”/”6”/”7”/”8”inside) in the root directory. See the screenshot as below. After that, copy your audio files to each associated folder, and rename them 001.mp3, 002.mp3, and so on. In these four modes, the module recognizes the audio files by physical index order, so when you copy audio files to each folder, please note the copy order.
- Page 8 4 Button Triggered MP3 Audio Player Users need to create a folder and name it 00, and put the audio files, which need to be played automatically in a loop when powered on, in this folder. The audio files in this folder need to be renamed 01, 02, 03..in this way. Those audio files used to interrupt the auto-play sound need to be placed in the root directory of the storage medium (built-in flash memory or the micro SD card).
