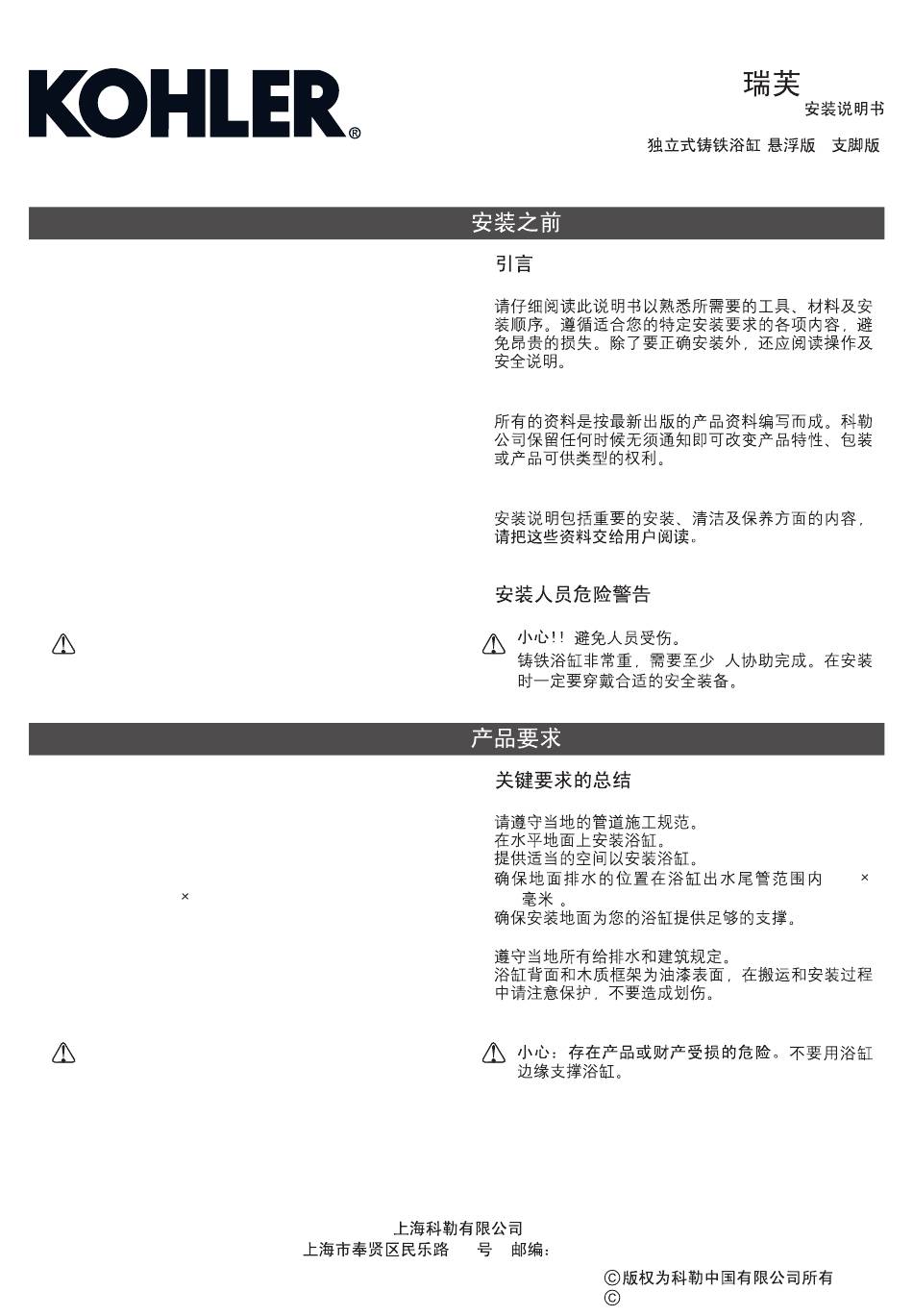

BEFORE YOU BEGIN

A. Introduction

Please read these instructions carefully to

familiarize yourself with the required tools, materials,

and installation sequences. Follow the sections that

pertain to your particular installation. This will help

you avoid costly mistakes. In addition to proper

installation, read all operating and safety instructions.

All information is based on the latest product

information available at the time of publication.

Kohler Co. reserves the right to make changes in

product characteristics, packaging, or availability at

any time without notice.

These instructions contain important care, cleaning,

and warranty information-please leave these

instructions for the consumer.

B. Installer Hazard Notification

CAUTION!! Risk of personal injury.

Cast iron baths are extremely heavy, and need

at least 5 persons for help. Wear appropriate

safety equipment when installing these products.

PRODUCT REQUIREMENTS

A. Summary Of Key Requirements

Observe all local plumbing codes.

Install the bath tub to a level floor.

Provide properly-dimensioned space.

Ensure that the drain locates within the range of the

bath outlet (300 300mm).

Make sure the flooring offers adequate support for

your bath.

Observe all local plumbing and building codes.

Be careful with the painted surfaces of the back of

the bath and its wood surround to avoid scratch

during transportation and installation.

CAUTION: Risk of product or property

damage.

Do not support the bath by the rim.

1129974-T01-A

FREESTANDING BATH FLOAT VERSION/

300

)

368

201419

-1-

INSTALLATION INSTRUCTIONS

(

FOOT VERSION

K-16497T/

REVE

)/(

)

K-16498T

(300

, 2009

Need help?

Do you have a question about the REVE K-16497T and is the answer not in the manual?

Questions and answers

Summary of Contents for Kohler REVE K-16497T

Page 1 All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
Page 2 B. Product Inspection Uncrate and inspect bath for damage. Leave all materials in the crate during construction to prevent damage. Carefully open the wood surround cartons and remove the components and hardware pack. Inspect all the wooden pieces for damage. If you observe any damage, do not install the bath or the wood surround.
Page 3 C. Plumbing Preparation Position the plumbing according to rough-in dimensions. Check the supplies for leaks. INSTALL THE FREESTANDING BATH INSTALL THE FREESTANDING BATH Install the adjustable feet. Unpack the bath and fix the adjustable feet on the package base. The distance between the adjustable feet bottom and the bottom apron should be 90mm.
Page 4 THIS PAGE IS ONLY TO FLOAT VERSION THIS PAGE IS ONLY TO FLOAT VERSION Install the floating board apron Lift the bath at least 120mm above the floor, put the floating board bottom base right under the bath. The gap side of the base should face the overflow side of the bath.
Page 5 THIS PAGE IS ONLY TO FOOT VERSION THIS PAGE IS ONLY TO FOOT VERSION 7. Install the decorative feet Lift the bath at least 120mm above the floor. Connect the drain plumbing with the floor drain. Apply silicone sealant to seal. Insert the decorative feet into the bottom of the bath, according to the left and right direction.
Page 6 CAUTION: Risk of product or property damage. Do not support the bath by the rim. Provide adequate support under the feet. Note: Do not move the bath by its wood surround. INSTALL THE PLUMBING INSTALL THE PLUMBING NOTE: Provide access to all plumbing connections to simplify future maintenance.
Page 7 Kohler bathtubs. NOTICE: All housekeeping and maintenance employees must be trained in the proper cleaning of Kohler bathtubs. Post a copy of this notice in a readily- visible location. DO NOT use steel wool, wire brushes, metal scrapers or abrasive sponge pads to clean a Kohler bath tub.
