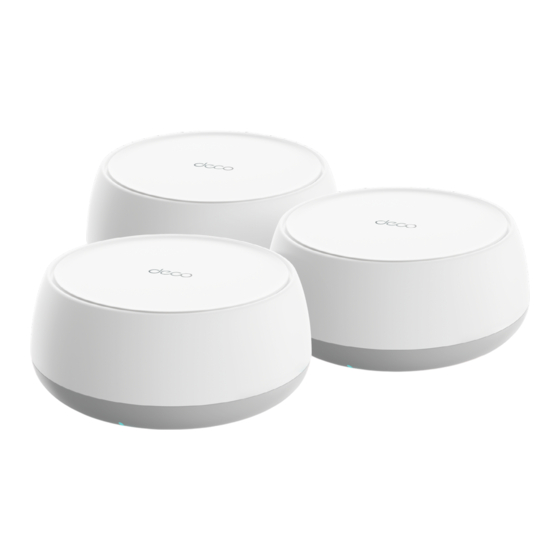

TP-Link Deco BE23 User Manual

TP-Link Deco BE23 User Manual

Be3600 whole home mesh wi-fi 7 system

Advertisement

Quick Links

Deco BE23
A True Whole-Home Multi-Gigabit Mesh Wi-Fi
User Guide
BE3600 Whole Home
Mesh Wi-Fi 7 System
1910013718 REV1.6.0 © 2024 TP-Link

Advertisement

loading
Need help?

Need help?

Do you have a question about the Deco BE23 and is the answer not in the manual?

Questions and answers

Summary of Contents for TP-Link Deco BE23

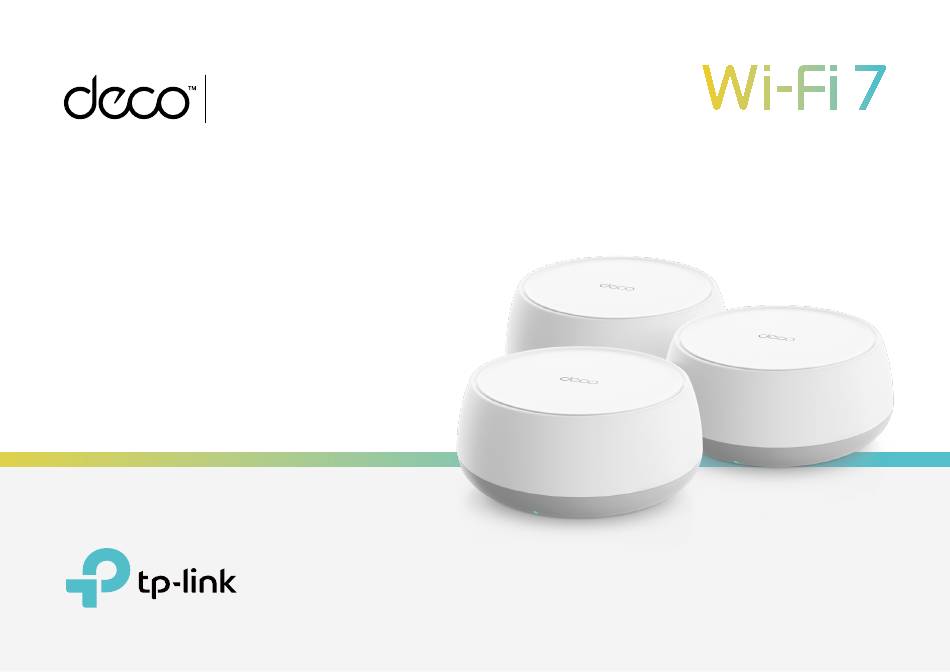

  • Page 1 Deco BE23 A True Whole-Home Multi-Gigabit Mesh Wi-Fi User Guide BE3600 Whole Home Mesh Wi-Fi 7 System 1910013718 REV1.6.0 © 2024 TP-Link...
  • Page 2 Contents About This Guide ···················································· 1 Appearance ······························································· 2 Set Up Your Deco ··················································· 3 Troubleshooting ······················································ 7 Authentication ·························································· 8...
  • Page 3 • A Technical Community is provided for you to discuss our products at https://community.tp-link.com. • Our Technical Support contact information can be found at the Help center of the Deco app and the Contact Technical Support page at https://www.tp-link.com/support.
  • Page 4 Appearance Each Deco has an LED that changes color according to its status, a WPS button, two 2.5 Gbps WAN/LAN ports, a power slot, and a Reset button. See the explanation below: Tip: The product label can be found at the bottom of the product. Pulse Yellow: Deco is resetting.
  • Page 5 Set Up Your Deco First let's start by setting up the Deco network. Get the TP-Link Deco app for iOS or Android, then follow the app to walk through the setup. 1. Get the Deco app 2. Log in or sign up with TP-Link ID 3.
  • Page 6 4. Scan your Deco's product label 5. Plug in your Deco 6. Wait until Deco's LED pulses blue Scan the product label on your Deco for Power off your modem. Connect your Deco to Wait until your Deco's LED pulses blue, then a quicker setup.
  • Page 7 7. Specify your Deco's location 8. Connect your Deco to the internet 9. Create your Wi-Fi network Select or custom a location for your Deco. Select the internet connection type and enter Set a network name and a password. These The location will be used as the name of your the information.
  • Page 8 10. Keep your Deco up-to-date 11. Connect to your Wi-Fi network 12. Setup complete Set auto update time. This allows your Deco Connect your phone/tablet to the Deco's Your Deco network is now up. You can connect to automatically update to the latest firmware Wi-Fi to continue the setup.
  • Page 9 Solutions to common problems during setup or use are provided here for reference. Follow the steps and the provided link below to diagnose and solve problems you might experience with your Deco. If problems still exist, contact us: https://www.tp-link.com/support Q1. What should I do if I fail to configure the main Deco and get stuck on “We couldn't find Deco”? Refer to the guide https://www.tp-link.com/support/faq/2239/...
  • Page 10 Authentication FCC Compliance Information Statement Product Name: BE3600 Whole Home Mesh Wi-Fi 7 System Model Number: Deco BE23 Component Name Model I.T.E Power Supply T120150-2B4 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com...
  • Page 11 We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 12 FCC Compliance Information Statement Product Name: I.T.E POWER SUPPLY Model Number: T120150-2B4 Responsible party: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Website: http://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 13 We, TP-Link Systems Inc., has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15. There is no unauthorized change is made in the equipment and the equipment is properly maintained and operated.
  • Page 14 Symbol Explanation Class II equipment Class II equipment with functional earthing Alternating current DC voltage Polarity of output terminals Indoor use only Dangerous voltage Caution, risk of electric shock Energy efficiency Marking Protective earth Earth Frame or chassis Functional earthing...
  • Page 15 Symbol Explanation Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
  • Page 16 Symbol Explanation Switch of micro-gap construction (for US version) µ Switch of micro-gap / micro-disconnection construction (for other versions except US) ε Switch without contact gap (Semiconductor switching device)
