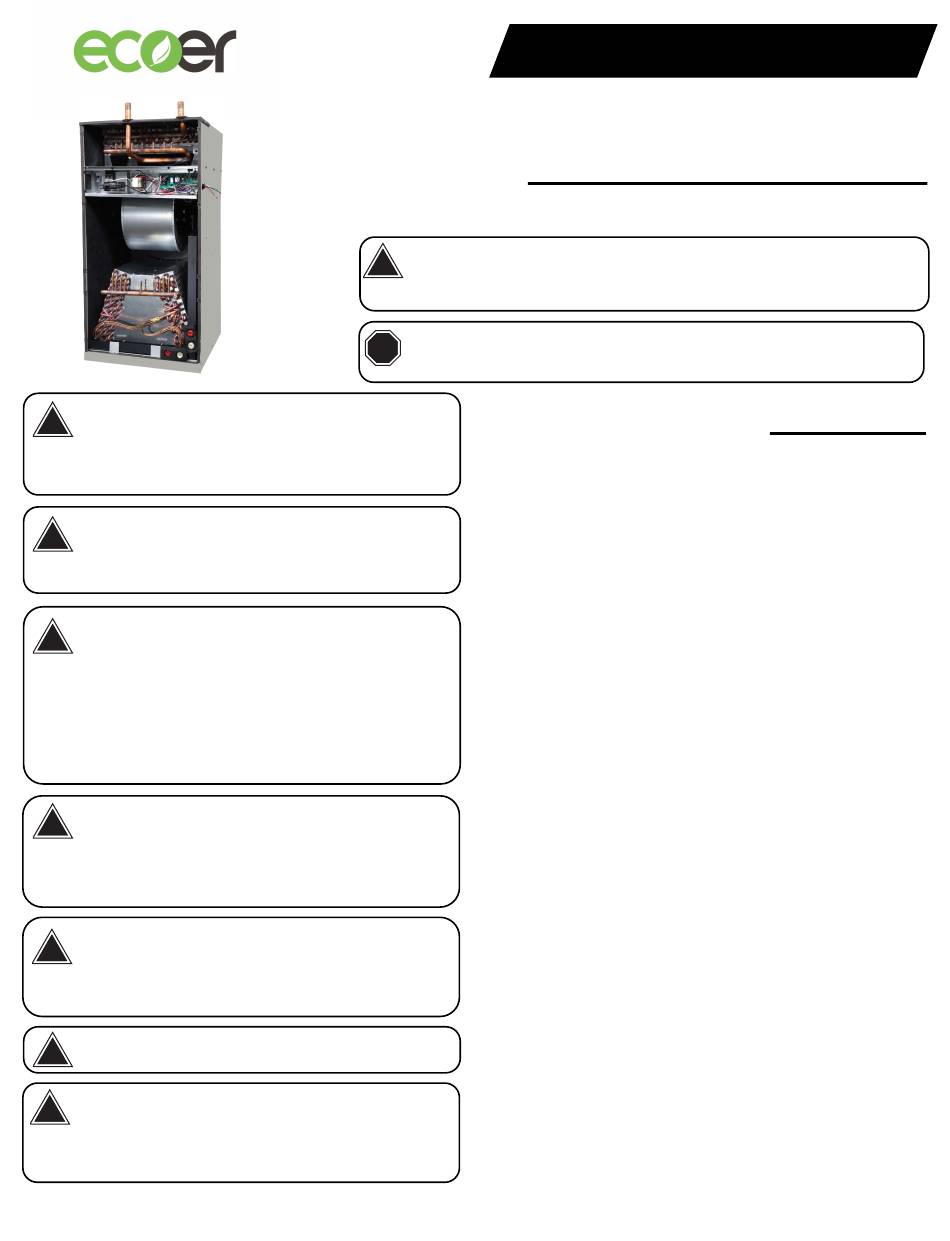

Ecoer EAHETN Series Installation Manual

Multi-position air handler (hydronic heat)

Advertisement

Quick Links

Certified technicians or those individuals
WARNING
!
meeting the requirements specified by NATE
may use this information. Property and prod-
uct damage or personal injury hazard may occur without such
!
CAUTION
background.
!
WARNING
All power sources should be disconnected
prior to servicing. Failure to do so may cause
personal injury or property damage.
!
CAUTION
Product designed and manufactured to
!
WARNING
permit installation in accordance with local
and national building codes. It is the install-
er's responsibility to ensure that product is installed in strict
!
CAUTION
compliance with national and local codes. Manufacturer takes
no responsibility for damage (personal, product or property)
caused due to installations violating regulations. In absence of
local/state codes, refer to National Electric Code: NFPA 90A &
90B Uniform Mechanical Code.
When this unit is installed in an enclosed
!
WARNING
area, such as a garage or utility room with
any Carbon Monoxide producing devices (i.e. automobile,
!
CAUTION
space heater, water heater etc.) ensure that the enclosed area is
properly ventilated.
Only factory authorized kits and accessories
WARNING
!
should be used when installing or modifying
this unit unless it is so noted in these
instructions. Some localities may require a licensed installer/
!
CAUTION
service personnel.
WARNING
!
Unit is not approved for outdoor installations.
! !
CAUTION
The unit is designed for operation with
WARNING
108/120V, single phase, 60 Hz power supply.
ecoer will not be responsible for damages
!
caused due to modification of the unit to operate with alternative
CAUTION
power sources.
INSTALLATION GUIDE
EAHETN Series - Multi-Position
Air Handler (Hydronic Heat)
1. Safety Instruction
Potential safety hazards are alerted using the following symbols. The symbol is used in
conjunction with terms that indicate the intensity of the hazard.
WARNING
!
This symbol indicates a potentially hazardous situation, which
if not avoided, could result in serious injury, property damage,
product damage or death.
WARNING
! !
CAUTION
!
CAUTION
This symbol indicates a potentially hazardous situation, which if
not avoided, may result in moderate injury or property damage.
2. Ensure These Steps are Completed to Reduce
Chances of a Frozen Hydronic Coil
Ensure the air handler motor and control board are receiving
proper power input per the wiring diagram.
Ensure the hydronic coil has access to a constant water supply
as loss of water movement can lead to a frozen coil.
Prime the water circulator pump using the purge valve per the
"Start-Up" section of this installation guide.
Run the pump for five minutes after priming to ensure no air is
in the system.
If any interruption to the water supply occurs, prime the water
circulator pump again.
Insulate the water piping in unconditioned spaces or within
structures that may be unoccupied during freezing conditions.
If the air handler does not have an internal pump and/or relies
on an external boiler system for hot water, the installer may
need torewire the system to ensure that it maintains access to a
constant water supply.
