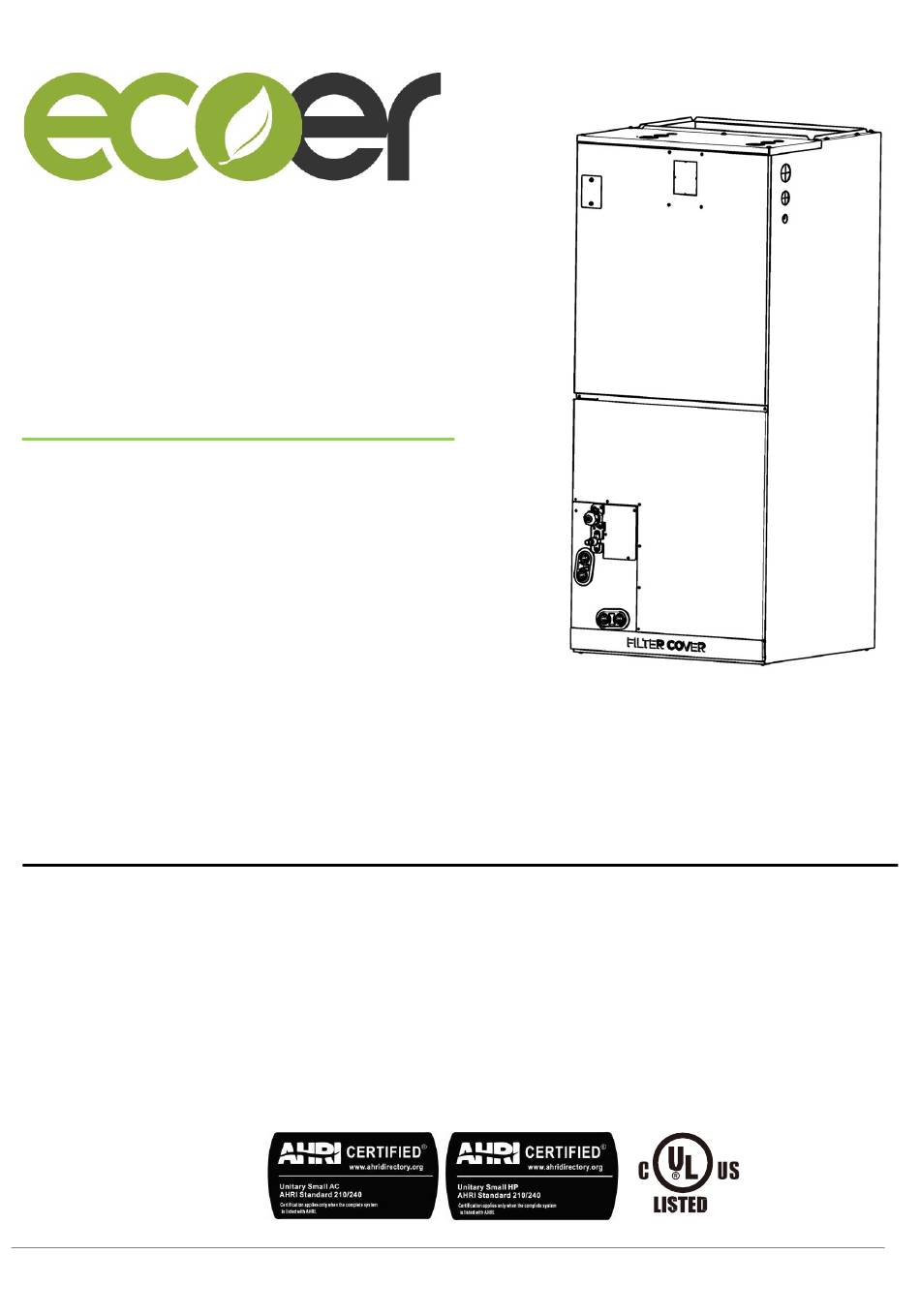

SDi Decades Extreme AHU OM
Owner's Manual
SDi Decades Extreme
Air Handlers
3/5Ton Capacity
R-410A EEV Inside
Contents
1. Safety Precaution--------------------------------------------
2. Indoor Unit Parts And Major Functions---------------
2.1 Operating Conditions------------------------------
2.2 Operating Conditions------------------------------
2.3 Features------------------------------------------------
2.4 Energy Saving Tips-----------------------------------
3. Care And Maintenance------------------------------------
4. Troubleshooting---------------------------------------------
All phases of this installation must comply with National, State and Local Codes.
IMPORTANT NOTE:
Read this manual carefully before installing or operating your new air conditioning unit. Make
sure to save this manual for future reference.
Read This Manual
Inside you'll find many helpful hints on how to use and maintain your air conditioner properly.
Just a little preventive care on your part can save you a great deal of time and money over the
life of your air conditioner. These instructions may not cover every possible condition of use, so
common sense and attention to safety is required when installing, operating and maintaining
this product.
Manufacturer reserves the right to change specifications or designs without notice.
1 of 14
2
7
7
7
8
8
NOTE: Appearance of unit may vary.
9
Installation must be performed in accordance
11
with the requirements of NEC and CEC by
authorized personnel only.
ECOER INC.
Feb. 2023
