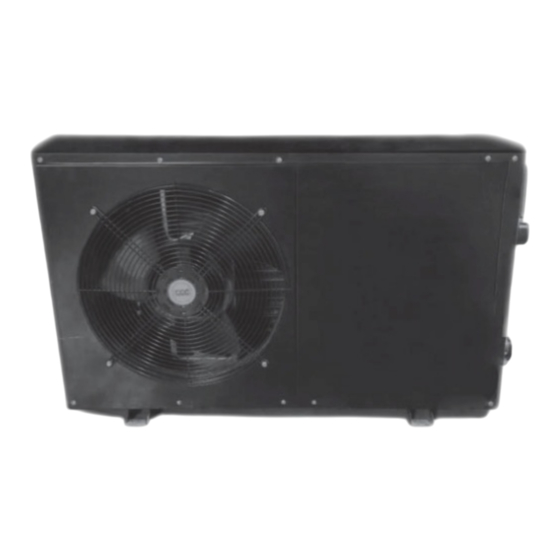

Swimming Pool Heat Pump INVERTER
INSTALLATION AND OPERATION MANUAL
IMPORTANT
It is important to register your product with us on our web site. This
will help us find your warranty when you place a service call. If we
cannot find your warranty registration, a proof of purchase will be
necessary.
www.ttifab.com
1
Advertisement
Related Manuals for TTI FABRICATION STRATOS 55 INVERTER
Summary of Contents for TTI FABRICATION STRATOS 55 INVERTER
- Page 1 Swimming Pool Heat Pump INVERTER INSTALLATION AND OPERATION MANUAL IMPORTANT It is important to register your product with us on our web site. This will help us find your warranty when you place a service call. If we cannot find your warranty registration, a proof of purchase will be necessary.
- Page 2 Content I. Application ........................ 4 II. Features ........................4 III. Technical Parameters ................... 5 IV. Positioning......................6 V. Operation Instruction ..................10 VI. Testing ........................12 VII. Precautions ......................13 VIII. Maintenance ..................... 14 IX.Trouble shooting for common faults ..............14 X.
- Page 3 Warning A. DO NOT use this unit for any other purpose than to regulate swimming pool water temperature. Utilization for any other application will void warranty. B. The inlet & outlet connection joint cannot support any other piping system’s weight. C.
- Page 4 I. Application The appliance should only be used for heating the pool water. II. Features 1. Inverter control system: The Inverter compressor operates at a variable speed without stopping all the time. It changes its frequency of rotation so that the desired temperature remains stable. This means that it is not necessary to spend more energy to turn the compressor on or off.
- Page 5 III. Technical Parameters Model STRATOS 55 STRATOS 65 STRATOS 75 STRATOS INVERTER INVERTER INVERTER INVERTER Heating capacity 55000 BTU 65000 BTU 75000 BTU 105000 BTU Breaker 30 A Voltage/Frequency/phase 240/60/1 Current (air 80°F, water 16 A 80°F, 90Hz) BTU Water/Air/Humidity/80/80/80°F Silent mode 24770 26000...
- Page 6 Fan Motor (FLA) 0,53A 0.50 A 0.45 A 0.83A Design pressure(High) ≤500 PSIG ≤500 PSIG ≤500 PSIG ≤500 PSIG Design pressure(Low) ≤250 PSIG ≤250 PSIG ≤250 PSIG ≤250 PSIG Refrigerant(R410A) 29oz (R32)/ 35oz (R32)/ 48oz(R32) 64oz(R410A) 48oz(R410A) 48oz(R410A) Net Weight pounds (kg) 120(55) 132(60) 140(64)
- Page 7 You should also clear any obstructions surrounding the heat pump, as indicated in the table below: ALL MODELS (1) in front of the evaporation coil 60 cm = 2 feet (2) in front of all other surfaces 120 cm = 4 feet (3) in front of the fan* 120 cm = 4 feet (4) in front of the service panel...
- Page 8 We recommend installing this set of valves (Fig. A) in order to be able to adjust the optimal water flow circulating in the heat exchanger (condenser). An adjustable automatic bypass valve must be installed when a water pump of 2 HP or more is used to circulate the pool water. If the above-prescribed water flows are not respected, WARNING damage will ensue and your warranty will be void.
- Page 9 BASIC CONNECTIONS, INLINE CHLORINATOR OR BROMINATOR This connection is mandatory to ensure the long working life of your pool heat pump. Any automatic distribution system for chemicals, chlorine, bromine or other, must be installed so that the distribution system’s water output is located after the pool’s heat pump. The heat pump’s warranty will be void if the installation is not compliant to this rule.
- Page 10 SALT CHLORINATORS Salt chlorinators are made to be installed as inline chlorinators. Therefore, they must be installed as prescribed in the section above (“inline chlorinator or brominator”). PRESSURIZED CHLORINATOR OR BROMINATOR Pressurized chlorinators or brominators start by using a small quantity of water as it exits the filter, then add chemicals and forward this highly concentrated solution into the pool.
- Page 11 V. OPERATION INSTRUCTION A - Operation mode display B - Display C - Clock D - On / Off E - Setting (required temperature and clock / timer) F - Operation mode G - Clock / Timer Configuration 1． Operation Display a.
- Page 12 3． Adjusting the water temperature a. Press the key to set water temperature. The controller indicates flashing temp. b. The controller display will return to normal mode a few seconds later. Setting the clock a. Available no matter whether the machine is on or off. b.
- Page 13 VI. Testing 1．Inspection before use A. Check installation of the whole machine and the pipe connections according to the pipe connecting drawing; (Blue water IN / Red water OUT) B. Check the electric wiring according to the electric wiring diagram; and grounding connection. C.
- Page 14 VIII. Maintenance A. “Cut off” power supply of the heater before any examination and/or repair. B. In winter seasons, please drain water clear of the machine, “cut off” power supply to prevent any machine damage, and cover the machine body with plastic foil to avoid dust. C.
- Page 15 E 21 Ambient temperature failure E 27 Water outlet temperature failure E 29 Suction temperature failure E 35 Compressor eletric current protect E 42 Inner coil temperature failure TTI FABRICATION Inc. 684, rue Jean-Neveu Longueuil, QC, J4G 1P1 Canada www.ttifab.com...
