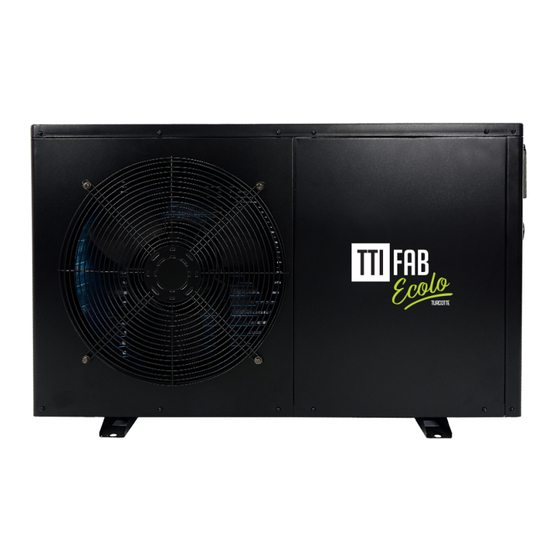

SWIMMING POOL HEAT PUMP
INSTALLATION AND OPERATION MANUAL
IMPORTANT
It is important to register your product with us on our web site. This
will help us find your warranty when you place a service call. If we
cannot find your warranty registration, a proof of purchase will be
necessary.
www.ttifab.com
1
Advertisement
Table of Contents
Related Manuals for TTI FABRICATION ECOLO 50
Summary of Contents for TTI FABRICATION ECOLO 50
- Page 1 SWIMMING POOL HEAT PUMP INSTALLATION AND OPERATION MANUAL IMPORTANT It is important to register your product with us on our web site. This will help us find your warranty when you place a service call. If we cannot find your warranty registration, a proof of purchase will be necessary.
-
Page 2: Table Of Contents
Content I. Application ........................ 3 II. Features ........................3 III. Technical Parameters ................... 4 IV. Positioning......................6 V. Operation Instruction ..................10 VI. Testing ........................12 VII. Precautions ......................12 VIII. Maintenance ..................... 13 IX.Trouble shooting for common faults ..............13 X. -
Page 3: Application
Warning A. DO NOT use this unit for any other purpose than to regulate swimming pool water temperature. Utilization for any other application will void warranty. B. The inlet & outlet connection joint can not support any other piping system’s weight. Make sure outlet air do not hurt any person, animal &... -
Page 4: Technical Parameters

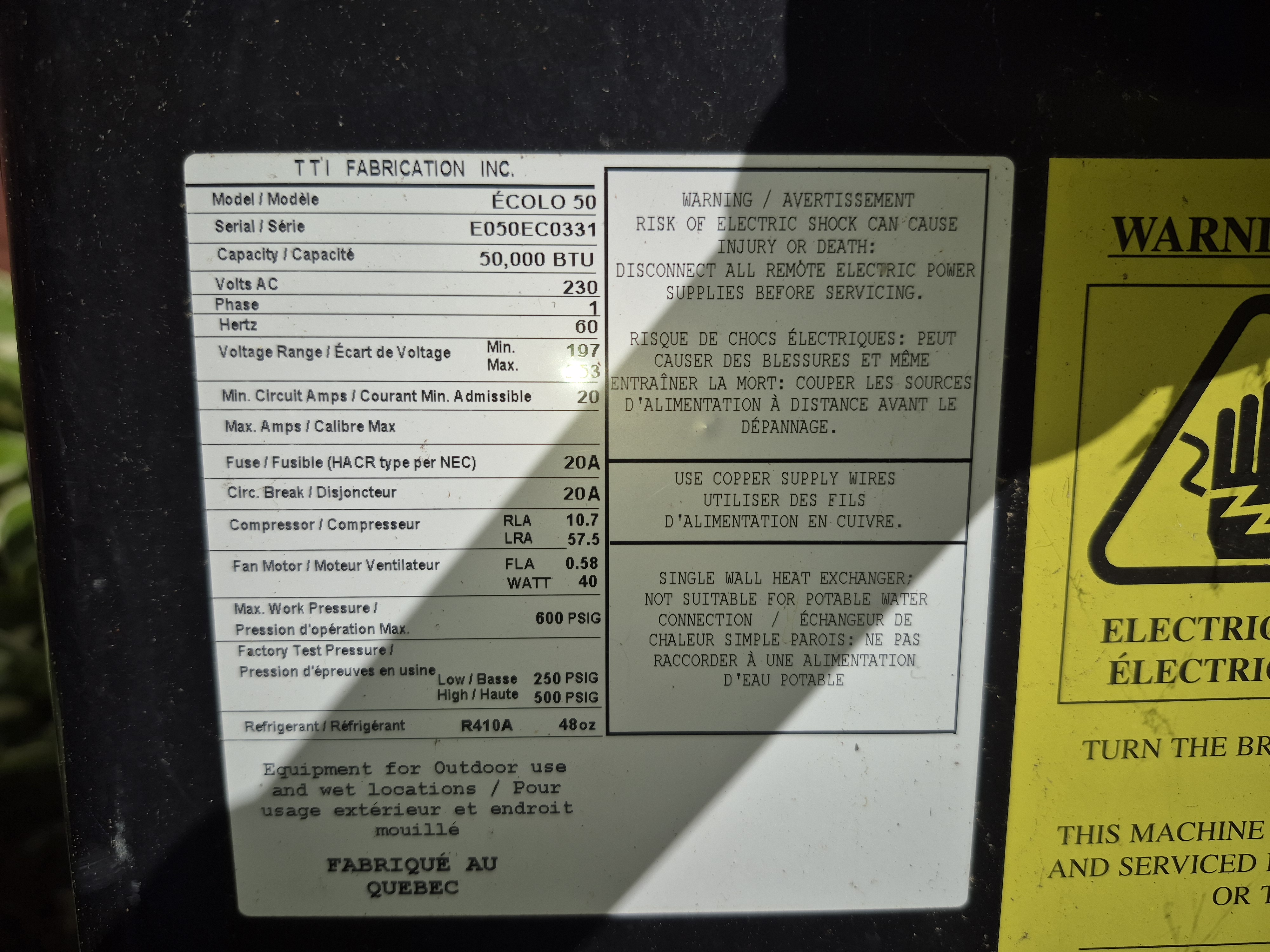

III. Technical Parameters Model ECOLO 50 ECOLO 65 ECOLO 80 Heating capacity 50000 BTU 80000 BTU 65000 BTU Voltage 20 amp 30 amp 40 amp 208-240V Voltage Frequency/phase 60Hz/1Ph 10.4 A Heating current(air80°F,water80°F) 8.7 A 14.6 A Heating power(air80°F,water80°F) 2.1 KW 2.7 KW... - Page 5 For details please refer to nameplate. 3. Machine has heat function only Note：The swimming pool heater must be grounded well. Options for protecting devices and cable specification. Model ECOLO 50 ECOLO 65 ECOLO 80 Breaker Rated current Fuse A...
-
Page 6: Positioning
IV. POSITIONING Choosing the area where your heat pump will be installed is extremely important. You must respect the following guidelines. VENTILATION AND ACCESSIBILITY Your heat pump works, in large part, in symbiosis with the surrounding air: it is important that there be adequate ventilation all around the heat pump. - Page 7 Your water pump must be able to supply each heat pump with a water flow within the limits listed below. MODEL MINIMUM IDEAL MAXIMUM Ecolo 50-65-80 57 l/m (15 GPM US) 170 l/m (45 GPM US) 170 l/m (45 GPM US) 1 U.S. gallon per minute (1GPM US) = 3.78 liters per minute (3.78 l/m)
- Page 8 Pool heat pumps normally operate with a 1.4 bar (20 PSI) water pressure. The maximum operating water pressure is 2.0 bars (30 PSI). Failure to WARNING respect the prescribed water pressures will void the warranty of your heat pump. CHLORINATORS, BROMINATORS AND OTHER AUTOMATIC SYSTEMS BASIC CONNECTIONS, INLINE CHLORINATOR OR BROMINATOR This connection is mandatory to ensure the long working life of your pool heat pump.
- Page 9 SALT CHLORINATORS Salt chlorinators are made to be installed as inline chlorinators. Therefore, they must be installed as prescribed in the section above (“inline chlorinator or brominator”). PRESSURIZED CHLORINATOR OR BROMINATOR Pressurized chlorinators or brominators start by using a small quantity of water as it exits the filter, then add chemicals and forward this highly concentrated solution into the pool.
-
Page 10: Operation Instruction
V. OPERATION INSTRUCTION 1． Operation Display The display shows Time when the machine is off b. The display shows Temperature of the swimming pool water when the machine is on. 2． Water temperature setting Press the key to set water temperature. The controller indicates flashing temp. b. - Page 11 4. Timer on and off A. Press set timer on. When the indicator light is on and the time is flashing, press again to set hour. Use to adjust. Before the flashing stops, press to set minute. to adjust. After adjusting, press B.
-
Page 12: Testing
VI. Testing Inspection before use 1． Ａ．Check installation of the whole machine and the pipe connections according to the pipe connecting drawing; Ｂ．Check the electric wiring according to the electric wiring diagram; and grounding connection. Ｃ．Make sure that the main machine power switch is off Ｄ．Check the temperature setting. -
Page 13: Maintenance
Safety A．Please keep the main power supply switch far away from the children. B．When a power cut happens during running, and later the power is restored, the heater will start up automatically. So please switch off the power supply when there is a power cut, and reset temp when power is restored. -
Page 14: Failure Codes
PP 3 Coil pipe sensor failure PP 4 Intake pipe sensor failure PP 5 Air temp sensor failure When the temperature<+45℉, auto stop protection （not Failure） PP 7 TTI FABRICATION Inc. 684, rue Jean-Neveu Longueuil, QC, J4G 1P1 Canada www.ttifab.com...
