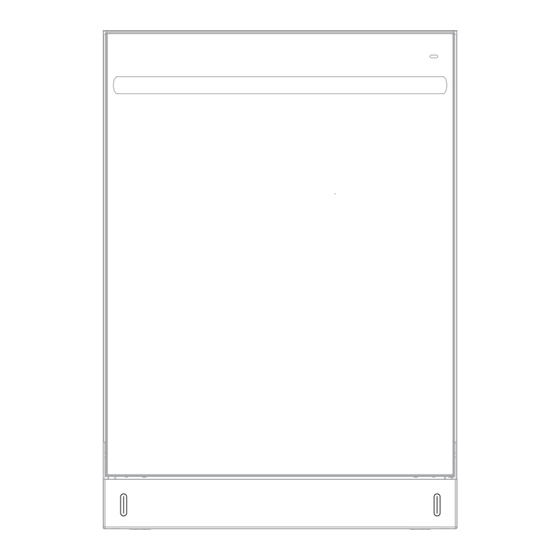

24" Built-In Dishwasher

MODEL NUMBER SERIES:

FDWBI8035-24S / FDWBI8035-24BLK / FD BI8035-24WHT

INSTRUCTION MANUAL &

INSTALLATION GUIDE

Read these instructions carefully before using your appliance, and keep it carefully.

If you follow the instructions, your appliance will provide you with many years of good service.

Need help?

Do you have a question about the FDWBI8035-24S and is the answer not in the manual?

Questions and answers

Summary of Contents for Forno FDWBI8035-24S

Page 1 24” Built-In Dishwasher MODEL NUMBER SERIES: FDWBI8035-24S / FDWBI8035-24BLK / FD BI8035-24WHT INSTRUCTION MANUAL & INSTALLATION GUIDE Read these instructions carefully before using your appliance, and keep it carefully. If you follow the instructions, your appliance will provide you with many years of good service.
Page 3 TABLE OF CONTENTS Customer Care Warning Important Safety Product Dimension Cutout Names of Parts and Accessories Installations Preparation Installation Procedure Operating Instruction Care and Maintenance Troubleshooting Wire Diagram Warranty...
Page 4 Customer Care Thank you for purchasing a Forno product. Please read the entire instruction manual before operating your new appliance practices, features, operation and care recommendations of your appliance. Both the model and serial number are listed inside the product. For warranty purposes, you will also need the date of purchase .
Page 5 WARNING FOR YOUR SAFETY We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
Page 6 Important Safety Instructions WARNING For your safety,the information in this manual must be followed to minimize the risk of fire or explosion,electric shock,and to prevent property damage,personal injury. Proper installation Please install your dishwasher properly follow the installation guide. Water supply temperature should between 50°F to 140°F. Dispose of the discarded appliance and packing material properly.
Page 7 Product Dimension 90° Overall Height Depth control Overall depth Height back shield Overall Width Overall Depth Min./Max. panel to tub frame door full open top to feet 33.70”/34.50” 23.43” 22.44” 24.43” 46.06” 7.87” 85.5cm/88.0cm 59.5cm 57cm 64.6cm 117cm 20cm Depth back Height kickplate shield 1.57”...
Page 8 Cutout 24” 34-35” 23.6” 60.96cm 86.36-88.9cm 59.94cm...
Page 9 Name of Parts and Accessories Silverware basket Handle Lower rack Door plate Upper washing arm Kick plate Upper rack Lower washing arm Middle rack Dispenser Middle washing arm Control panel Supplied Parts 2x Handle; Only for black & and 2x screws 4x Leveling leg white units*** 2x Fixing, 2x toe kick screws...
Page 10 Installation Preparation WARNING To reduce the risk of electrical shock, fire,or injury to persons, the installer must ensure that the dishwasher is completely enclosed at the time of installation. MATERIALS YOU WILL NEED (NOT INCLUDE IN THE PACKAGING): Ferrule, compression nut and 3/4”...
Page 11 Installation Preparation (continued) Method 1 - Air Gap with Waste Tee or Disposer Waste Tee Installation Disposer Installation Method 2 - High Drain with Waste Tee or Disposer Provide a method to attach drain hose to underside of countertop. Install waste tee or disposer and air gap according to manufacturer's instructions. Fasten to underside Fasten to underside of countertop...
Page 12 Installation Preparation (continued) Grounding Instructions - Power Cord Models This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electric current. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with local codes and ordinances.
Page 13 Installation Preparation (continued) Water Line Connection Turn off the water supply. Install a hand shut-off valve in an accessible location, such as under the sink.(Optional, but strongly recommended and may be required by local codes.) Water connection is on the left side of the dishwasher. Install the water inlet line, using 3/4’’ 90° elbow and copper tube no less than 3/8”...
Page 14 Installation Procedure (continued) STEP 3 INSTALL THE HANDLE Place the dishwasher at upright, find the studs on the door plate and align the two studs into the hole of handle’s gather block, use the allen socket screwdriver to fasten two screws into each holes at below of gathering block. Be sure soft treatment to prevent the door form scratches.
Page 15 Installation Procedure (continued) STEP 6 INSTALL DRAIN HOSE Step 1: Put the hose clamp to drain hose 90° elbow end, do not tighten the clamp. Step 2: Insert the drain hose 90° elbow to dishwasher drain end, tighten the hose clamp. Step 1 Step 2 STEP 7 CONNECT WATER SUPPLY...
Page 16 Installation Procedure (continued) DRAIN LINE INSTALLATION Connect drain line to air gap, waste tee or disposer using either previously determined method. Method 1 - Air Gap with Waste Tee or Disposer Method 2 - High Drain with Waste Tee or Disposer Fasten to underside Fasten to underside of countertop...
Page 17 Installation Procedure (continued) STEP 11 POSITION DISHWASHER UNDER COUNTERTOP Check to be sure that wires are secure under the dishwasher and not pinched or in contact with door springs or other dishwasher components. Push dishwasher into cabinet. The front corners of the dishwasher door should be flush with cabinet doors.Be careful not to dent font panel with knees or damage counter-top or cabinets with dishwasher parts.
Page 18 Installation Procedure (continued) Add 2 liters of water to the bottom of the dish-washer to lubricate the pump seal. Turn on water supply. Check for leaks. Tighten connections if needed. Remove protective film if present from the control panel and door. STEP 15 DISHWASHER WET TEST Turn on power supply (or plug power cord into outlet, if equipped).
Page 19 Operating Instruction (continued) Cycle Table NORMAL HEAVY DELICATE MACHINE Cycles HALF LOAD MINUTES WASH WASH MINUTES WASH REFRESH Application Family daily Low water Heavy stains Slight wash Exquisite Regular Less or small or large load in short time amount of meals and electricity glassware...
Page 20 Operating Instruction (continued) Power Button Press and hold this button for 3seconds power on, the display window default show the time of “NORMAL WASH” cycle. At door opening status, press and hold this button for 5seconds to power off. Rinse Aid light Indicator This indicator will automatically ligthing-on when the dishwasher lack of rinse aid.
Page 21 Operating Instruction (continued) CHILD LOCK Child lock help to avoid children’s danger from the running operation. Operate as below: Operate under open door and power on, press and hold the “HI-TEMP WASH” and “DELAY START” button at same time for 3seconds, the button light on and function enable . Press and hold the “HI-TEMP WASH”...
Page 22 Operating Instruction (continued) Loading Dishes Placement of racks Upper Rack Middle Rack Lower Rack CAUTION Place the stained surface facing downwards All tableware is recommended to be placed at an angle, which can improve the washing area and washing quality. If it is placed in the wrong direction, the cleaning effect may not be satisfactory.
Page 23 Operating Instruction (continued) Foldable Tines The lower rack have foldable tine design which allows to put the loads large&irregular in shape. Silverware Basket The ower ack have a silverware basket accommodate loading small or medium size scoops, nives, alad orks. Silverware Basket WARNING Do not let any item extend through bottom.
Page 24 Operating Instruction (continued) WARNING Dishwasher detergent for dishwashers must be used, and detergents etc. cannot be substituted. Please do not add the detergent if do not attend to use dishwasher. Otherwise, the dishwasher detergent may become damp, and the oil will not be fully decomposed during the next using. Fill rinse aid to the dispenser The Rinse Aid must be added when using the dishwasher for the first time.
Page 25 Care & Maintenance (continued) Clean the filter Steps to clean the filter Cylinder align to triangle before turn it clockwise. Turn the filter When filter cylinder Clean under running Put filter back and tighten it. cylinder by arrow got loose, pull it out water or use a soft brush.
Page 26 Troubleshooting Opening the door requires a lot of force There is dirt in the groove of the inner door which increases the resistance of opening the door. Pressing the power button no reaction If display window show nothing, may not plugged in or house power is shut off. If display window show contents, may child lock enabled.
Page 27 Wire Diagram...
Page 28 Retain proof of original purchase to establish warranty period. than what is normal and customary for residential use. Forno’s liability on any claim of any kind, with respect to the • Replacement of parts/service calls due to wear and tear...
Page 29 PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT SOLD BY FORNO THAT IS NOT A DIRECT RESULT OF NEGLIGENCE ON THE PART OF FORNO THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NON-TRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY.
