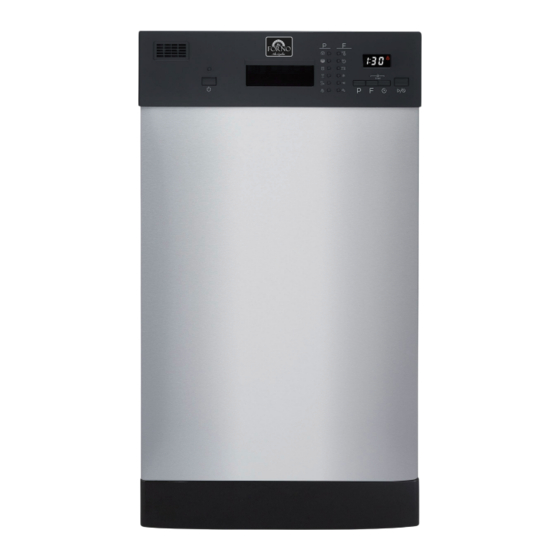

Forno FDWBI8041-18BLK Instruction Manual
  1. Manuals
  2. Brands
  3. Forno Manuals
  4. Dishwasher
  5. FDWBI8041-18BLK
  6. Instruction manual

Forno FDWBI8041-18BLK Instruction Manual

Hide thumbs Also See for FDWBI8041-18BLK:
Table of Contents

Advertisement

Quick Links

Download this manual

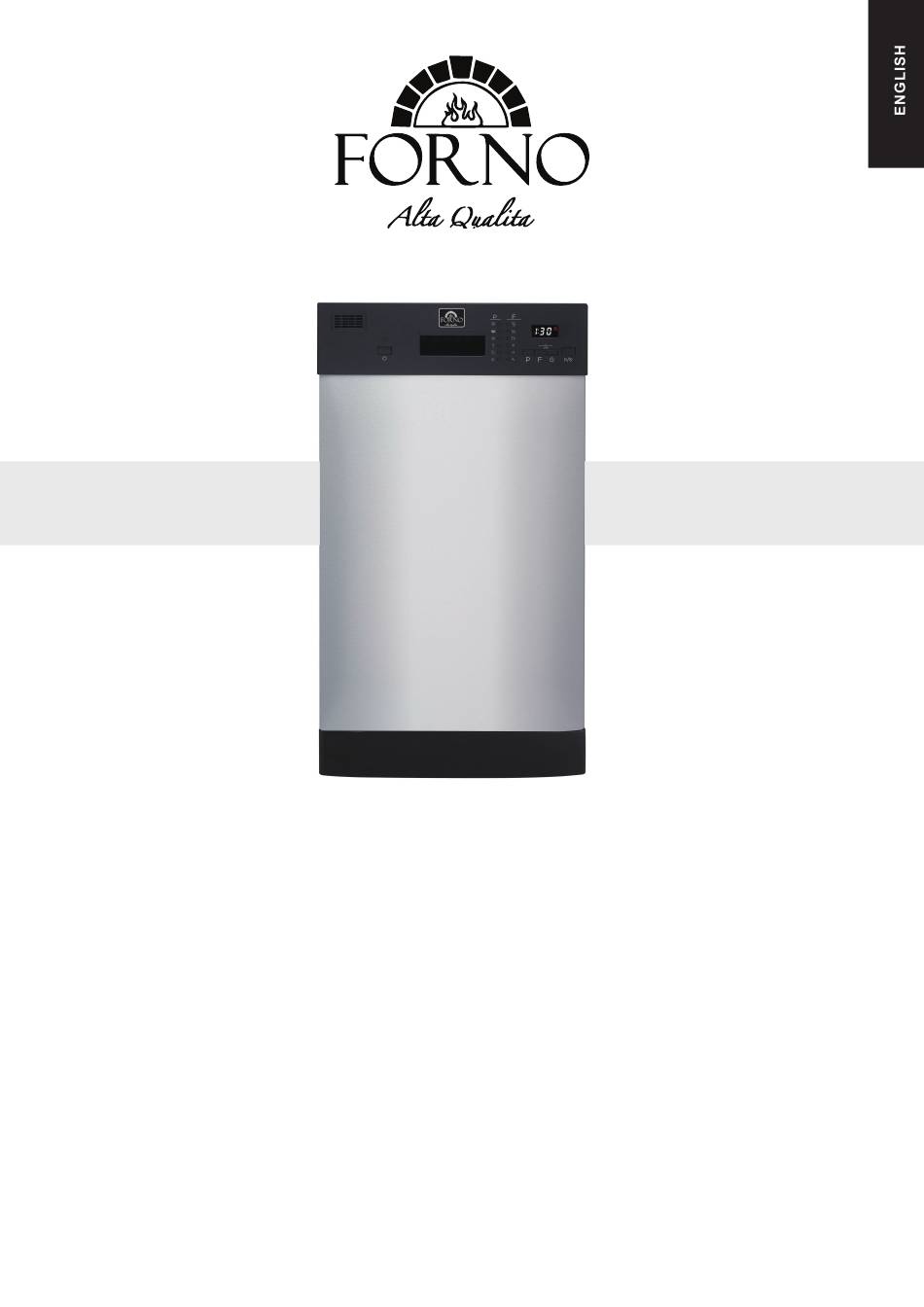

DISHWASHER
MODEL NUMBER SERIES
FDWBI8041-18S | FDWBI8041-18BLK | FDWBI8041-18WHT
INSTRUCTION MANUAL
Read these instructions carefully before using your appliance, and keep it carefully.
If you follow the instructions, your appliance will provide you with many years of good service.
01/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDWBI8041-18BLK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Forno FDWBI8041-18BLK

Summary of Contents for Forno FDWBI8041-18BLK

  • Page 1 DISHWASHER MODEL NUMBER SERIES FDWBI8041-18S | FDWBI8041-18BLK | FDWBI8041-18WHT INSTRUCTION MANUAL Read these instructions carefully before using your appliance, and keep it carefully. If you follow the instructions, your appliance will provide you with many years of good service. 01/2024...
  • Page 2 A customer service representative will contact you as soon as possible. All warranty work needs to be authorized by FORNO customer service. All our authorized service providers are carefully selected and rigorously trained by us.
  • Page 6 FEATURES OF YOUR NEW DISHWASHER Specification Capacity 8 place settings Dimension 17 6 . x 22.6 x 32.4 inches (W x D x H) Power Supply 120volts, 60Hz Rated power usage Wash motor 100W Heater 700W Water Feed Pressure ~ 145 psi (0 04 ~ 1MPa) Lock Lower Spray Arm...

  • Page 7: Operating The Dishwasher

    OPERATING THE DISHWASHER CONTROL PANEL 1. Power button: Use to turn the appliance on or off. 2. Handle 3. Programs: The light will illuminate to show which program has been selected. A: Heavywash B: Normal wash C: ECO wash D: Glass wash E: Rapid wash F: Rinse 4.

  • Page 8: Status Window

    OPERATING THE DISHWASHER Status Window Error Indication H:01- H:24 In certain situations, which are critical to If the Delay Start option is selected, the machines function and safe oper- the number of delay start hours ation, the control will shut down and shows in the status window.

  • Page 9: Preparing And Loading Dishes

    PREPARING AND LOADING DISHES Dish Preparation Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash system will remove the remaining food particles. Burned-on food should be loosened before loading. Empty liquids from glasses and cups. Food s uch as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time.

  • Page 10: Loading The Lower Basket

    PREPARING AND LOADING DISHES Loading the Lower Basket The lower basket has been especially designed for dinner dishes, soup bowls, plates, pots, lids, and casserole dishes. Load large items such as pans and pots into the dishwasher so their open sides face downwards. We recommend loading cups, stemware, and small plates into the upper basket.

  • Page 11: Loading The Silverware Basket

    PREPARING AND LOADING DISHES Loading the Silverware Basket Adding A Dish The silverware basket can be divided To add or remove items after into three separate modules that can wash cycle starts: be used in both upper and lower racks 1.

  • Page 12: Filling The Detergent Dispenser

    PREPARING AND LOADING DISHES Filling the Rinse Aid Dispenser Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under normal conditions, the rinse aid will last approximately one month.

  • Page 13: Filling The Rinse Aid Reservoir

    PREPARING AND LOADING DISHES Filling the rinse aid reservoir Your dishwasher has been designed to use liquid rinse aid only. Using a powdered rinse aid will clog the reservoir opening and cause the dishwasher to malfunction. Rinse aid improves the drying performance of the dishwasher. Do not add regular detergent to the rinse aid reservoir.

  • Page 14: Care And Cleaning

    Care & Cleaning Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. CLEANING THE EXTERIOR It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust.
  • Page 15 Care & Cleaning 4. Remove any dirt or other remains from the fil ters, and then rinse them under running water. 5. Reassemble the fi lters in the reverse order of the dissasembly, replace the fi lter insert, and rotate clockwise to the close arrow. If the fil ter insert is not closed properly, its performance will be decreased.

  • Page 16: Troubleshooting

    Troubleshooting Problem Possible cause Solution Dishwasher won't start Shut the door completely make sure it is latched Power supply or power line is not connected Check and connect the power supply Dishwasher won't start Refer to Delay Start section in this manual to reset Delay Start option has been selected Deactivate the child lock, refer to child lock Child Lock activated...
  • Page 17 Troubleshooting Problem Possible cause Solution Detergent may be too old Use fresh detergent Detergent left in dispenser cup Load the dishes, making sure the spray arms Spray arm is blocked are not blocked Detergent dispenser will not Improper operation of the detergent cover Add the detergent and rinse aid as indicated by shut the manual...

  • Page 18: Error Codes

    Error Codes When some malfunctions come on, the appliance will display error codes to warn you: Codes Meanings Possible Causes Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. Overflow. Some element of dishwasher leaks . Not reaching required temperature Malfunction of heating element.

  • Page 19: Installation Instructions

    INSTALLATION INSTRUCTIONS SAFETY INSTRUCTIONS Throughout this manual, you'll see Warning and Caution notes. These warnings, cautions, and the important safety instructions that follow do not cover all possible conditions and situations that may occur. It's your responsibility to use common sense, caution, and care when installing, maintaining, and operating the dishwasher.
  • Page 20 GROUNDING INSTRUCTIONS For a permanently connected appliance: This appliance must be connected to grounded metal, a permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. The dishwasher is very heavy.

  • Page 21: Table Of Contents

    CONTENTS PREPARING THE DISHWASHER ENCLOSURE Product dimensions Enclosure dimensions INSTALLING THE DISHWASHER STEP 1 Check the parts and tools STEP 2 Select the best location for the dishwasher STEP 3 Check water supply requirements and cautions STEP 4 Check the electrical requirements and cautions STEP 5 Unpacking and inspecting the dishwasher STEP 6...

  • Page 22: Preparing The Dishwasher Enclosure

    PREPARING THE DISHWASHER ENCLOSURE Product Dimensions Rear view Front view Back view 450mm 575mm The water supply line, power cable and drain hose should go through this space behind the dishwasher. Then, the power cable run in channels under the dishwasher to connections in the Front.

  • Page 23: Installing The Dishwasher

    INSTALLING THE DISHWASHER Be sure that you or your installer follow these instructions closely so that the new dishwasher works properly and that you're not at risk of injury when washing dishes. Step 1 Check The Parts And Tools Before starting on the installation, prepare all the necessary tools and parts required to install the dishwasher.

  • Page 24: Tools Required

    Tools required Flashlight Electric drill Safety glasses Gloves Adjustable wrench Wire stripper Nipper Pliers Phillips screwdriver Tape measure Pencil Flat screwdriver Tubing cutter Level Cutting knife Hole saw Hex L-wrench Torx t20...

  • Page 25: Step 2 Select The Best Location For The Dishwasher

    INSTALLING THE DISHWASHER New installation If the dishwasher is a new installation, most of the installation work must be done before the dishwasher is moved into place. Replacement If the dishwasher is replacing an old dishwasher, you must check the exising dishwasher connections for compatibility with the new dishwasher.

  • Page 26: Step 3 Check Water Supply Requirements And Cautions

    STEP 3 CHECK WATER SUPPLY REQUIREMENTS AND CAUTIONS The hot water supply line pressure must be between 0.04-1MPa. between 120 ° F(49° C) ~131 ° F(55° C). Adjust the water heater to deliver water The dishwasher must be connected to a hot water supply between 120 ° F(49° C) ~131 ° F(55° C). This temperature range provides the best washing result and shortest cycle time.

  • Page 27: Step 4 Check The Electrical Requirements And Cautions

    INSTALLING THE DISHWASHER Step 4 Check The Electrical Requirements And Cautions The electrical requirements for the dishwasher are as follows: In the United States, install in accordance with the National Electric Code/State and Municipal codes and/or local codes. In Canada, install in accordance with the Canadian Electric Code C22.1-latest edition/Provincial and Municipal codes and/or local codes.

  • Page 28: Step 5 Unpacking And Inspecting The Dishwasher

    Step 5 Unpacking And Inspecting The Dishwasher Iunbox the dishwasher in an open area free of obstruction both around the carton and overhead. We recommend that you retain the carton and all of the packing materials until the dishwasher is fully installed and operational to ensure you have removed all the product's components from the carton prior to disposal.
  • Page 29 INSTALLING THE DISHWASHER Plumbing 1. Check the hot water connection on the front left-side of the base of the dishwasher. The mounting plate should be secured to the front of the base, the threads inside the connection should be smooth and shiny, and the area should be clean and free of any debris.

  • Page 30: Step 6 Preparing The Dishwasher

    Step 6 Preparing The Dishwasher 1. Ensure that the circuit breaker and water supply valve are turned off before proceeding with the following steps. Before you move or lay down the dishwasher for installation, make sure to adjust the height of the legs so the legs are as short as possible.

  • Page 31: Step 7 Placing The Dishwasher And Connecting The Hot Water Supply Line

    INSTALLING THE DISHWASHER Step 7 placing The Dishwasher And Connecting The Hot Water Supply Line 1. Adjust the three leveling legs at the bottom of the dishwasher after measuring the height of the cabinet opening from under the countertop to the floor. (See Step 8, Leveling the Dishwasher.) 2.

  • Page 32: Step 8 Leveling The Dishwasher

    Step 8 Leveling The Dishwasher 1. Open the door and place the level against the top of the tub on the inside and check if the the dishwasher is level.If it is not level, rotate the leveling legs at the bottom front of the dishwasher until the dishwasher is level.See the first note below for instructions on adusting the height of the front legs.

  • Page 33: Step 9 Securing The Dishwasher

    INSTALLING THE DISHWASHER Step 9 Securing The Dishwasher You must fix the dishwasher to the countertop or cabinet side walls for additional stability and safety. If the countertop is made of wood or the material will not be damaged by drilling, follow the instructions in 2-1 below.

  • Page 34: Step 10 Connecting The Drain Hose

    Adjustment cap Screw to side wall Step 10 Connecting The Drain Hose 1. Check the parts on the sink to which the drain hose will be connected. 2. There are several ways to insert the drain hose into the drain hose connector of the sink, as shown in the followi n g figures.
  • Page 35 INSTALLING THE DISHWASHER Case 2. With disposal With disposal Disposal with an air gap Drain hose2 Check the size of the sink's drain hose connector(21mm- as shown in Figure 11 below). If the end of the drain hose does not fit onto the drain hose connector of the sink, use an adaptor purchasable at a plumbing/hardware supply store.
  • Page 36 The drain hose internal diameteris 21mm Secure the drain hose to the sink wall using cable ties or other fastening materials. Otherwise, the drain hose may bend at the end. causing a drainage problem or excessive supply of water. Front of dishwasher Counter TOP NOTE: The top of the drain...

  • Page 37: Step 11 Wiring Connections

    INSTALLING THE DISHWASHER Step 11 Wiring Connections Before connecting the power cable to the dishwasher, make sure the circuit breaker is off. In the junction box located at the front bottom right of the dishwasher, find the three power wires from the dishwasher including the grounding line.

  • Page 38: Step 12 Completing The Installation

    Step 12 Completing The Installation 1. Open the door and remove all foam, paper packaging, and unnecessary parts. 2. Turn on the circuit breaker you turned off before you began the installation. 3. Open the water supply valve to supply water to the dishwasher. 4.

  • Page 39: Specifications

    SPECIFICATIONS Power supply 120 V 60 Hz Water pressure 0.04 - 1 MPa Dimensions 450mm x 580mm x 825mm (Width x Depth xHeight) Nominal inlet water 120 ° F(49° C) temperature Specifications are subject to change without notice for quality improvement purposes. The actual appearance of the dishwasher may differ from the illustrations in this manual.
