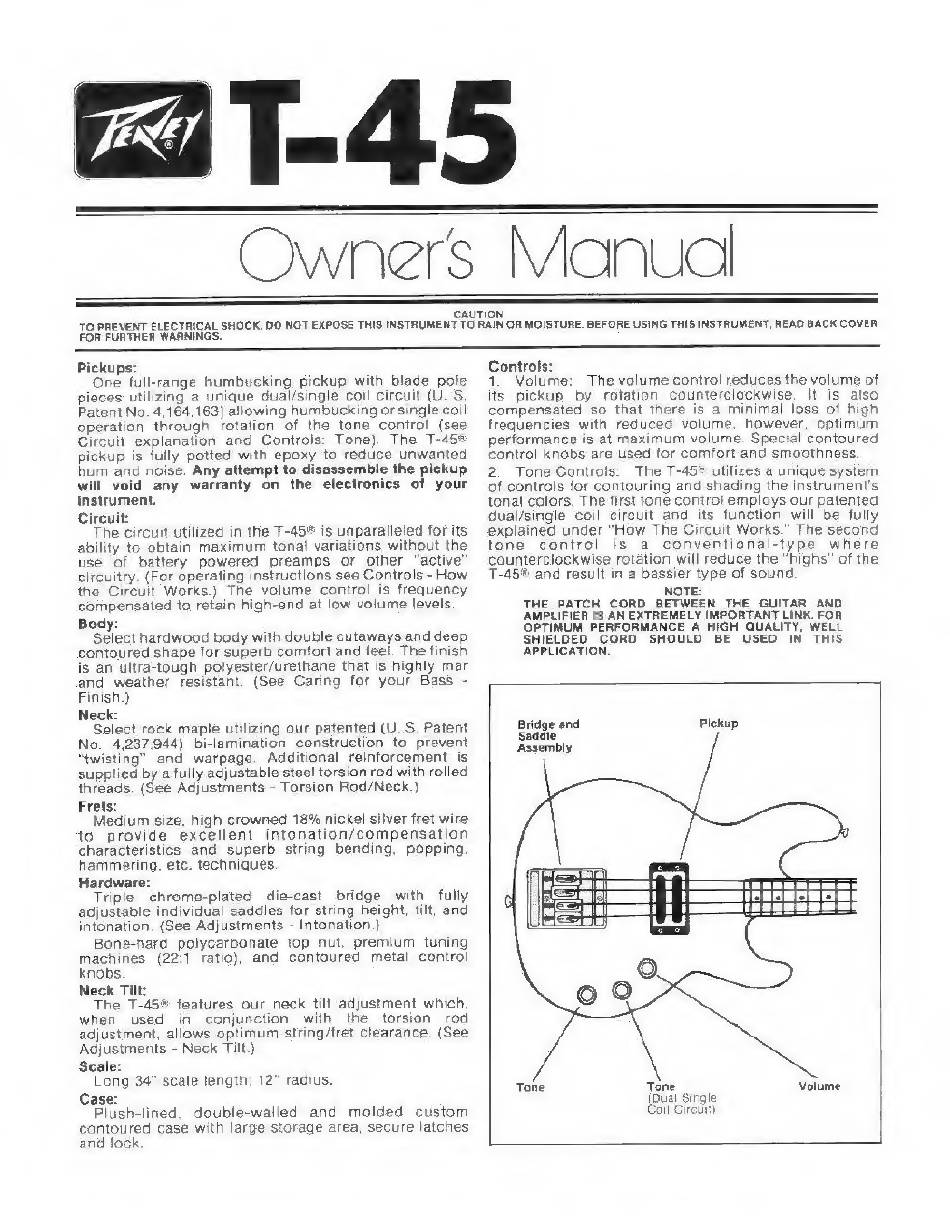

Peavey T-45 Owner's Manual

1-45
CAUTION
TO PREVENT ELECTRICAL SHOCK, DO NOT EXPOSE THIS INSTRUMENT TO RAIN OR MOISTURE. BEFORE USING THIS INSTRUMENT, REAO BACK COVER
FOR FURTHER WARNINGS.
ickups:
One full-range humbucking pickup with blade pole
pieces utilizing a unique dual/single coil circuit (U. S.
Patent No. 4, 164, 163) allowing humbuck ing or single coil
operation through rotation of the tone control (see
Circuit explanation and Controls: Tone), The T-45°
pickup is fully potted with epoxy to reduce unwanted
hum and noise. Any attempt to disassemble the pickup
void any warranty on the electronics of your
strument.
Circuit:
The circuit utilized in the T-45* is unparalleled for its
ability to obtain maximum tonal variations without the
use of battery powered preamps or other "active
circuitry. (For operating instructions see Controls - How
the Circuit Works.) The volume contro! is frequency
compensated to retain high-end at low volume levels
Body:
Select hardwood body with double cutaways and deep
contoured shape for superb comfort and teel. The finish
is an ultra-tough polyester/urethane that is highly mar
and weather resistant. (See Caring for your Bass -
Finish.)
Neck:
Select rock maple utilizing our patented (U. S. Patent
No. 4,237,944) bi-lamination construction to prevent
"twisting" and warpage. Additional reinforcement is
supplied by a fully adjustable steel torsion rod with rolled
threads. (See Adjustments - Torsion Rod/Neck.)
Frets:
Medium size, high crowned 18% nickel silver fret wire
to provide excellent intonation/compensation
characteristics and superb string bending, popping
hammering, etc. techniques.
Hardware:
Triple chrome-plated die-cast bridge with fully
adjustable individual saddles for string height, tilt, and
intonation, (See Adjustments - Intonation.|
Bone-hard polycarbonate top nut, premium tuning
wi
machines (22:1 ratio), and contoured metal contro!
knobs
Neck Til
The T-45® features our neck tilt adjustment which
when used in conjunction with the torsion rod
adjustment, allows optimum string/tret clearance (See
Adjustments - Neck Tilt.)
Scale:
Long 34" scale length: 12
Case:
Plush-lined, double-walled and molded custom
contoured case with large storage area, secure latches
and lock.
radius.
Controls:
1. Volume: The volume control reduces the volume of
its pickup by rotation counterclockwise. It is also
compensated so that there is a minimal loss of high
frequencies with reduced volume, however, optimum
performance is at maximum volume. Special contoured
control knobs are used tor comfort and smoothness.
2. Tone Controls: The T-45* utilizes a unique system
of controls for contouring and shading the instrument's
tonal colors, The first tone control employs our patented
dual/single coil circuit and its function will be fully
explained under "How The Circuit Works." The second
tone control is a conventional-type where
counterclockwise rotation will reduce the "highs" of the
T-45% and result in a bassier type of Sound
NOTE
THE PATCH CORD BETWEEN THE GUITAR AND
AMPLIFIER IS AN EXTREMELY IMPORTANT LINK. FOR
OPTIMUM PERFORMANCE A HIGH QUALITY, WELL
SHIELDED CORD SHOULD BE USED IN THIS
APPLICATION
Bridge and Pickup
Saddle
Assembly
Tone
(Dual Single
Cail Gircurt)
Tone Volume
