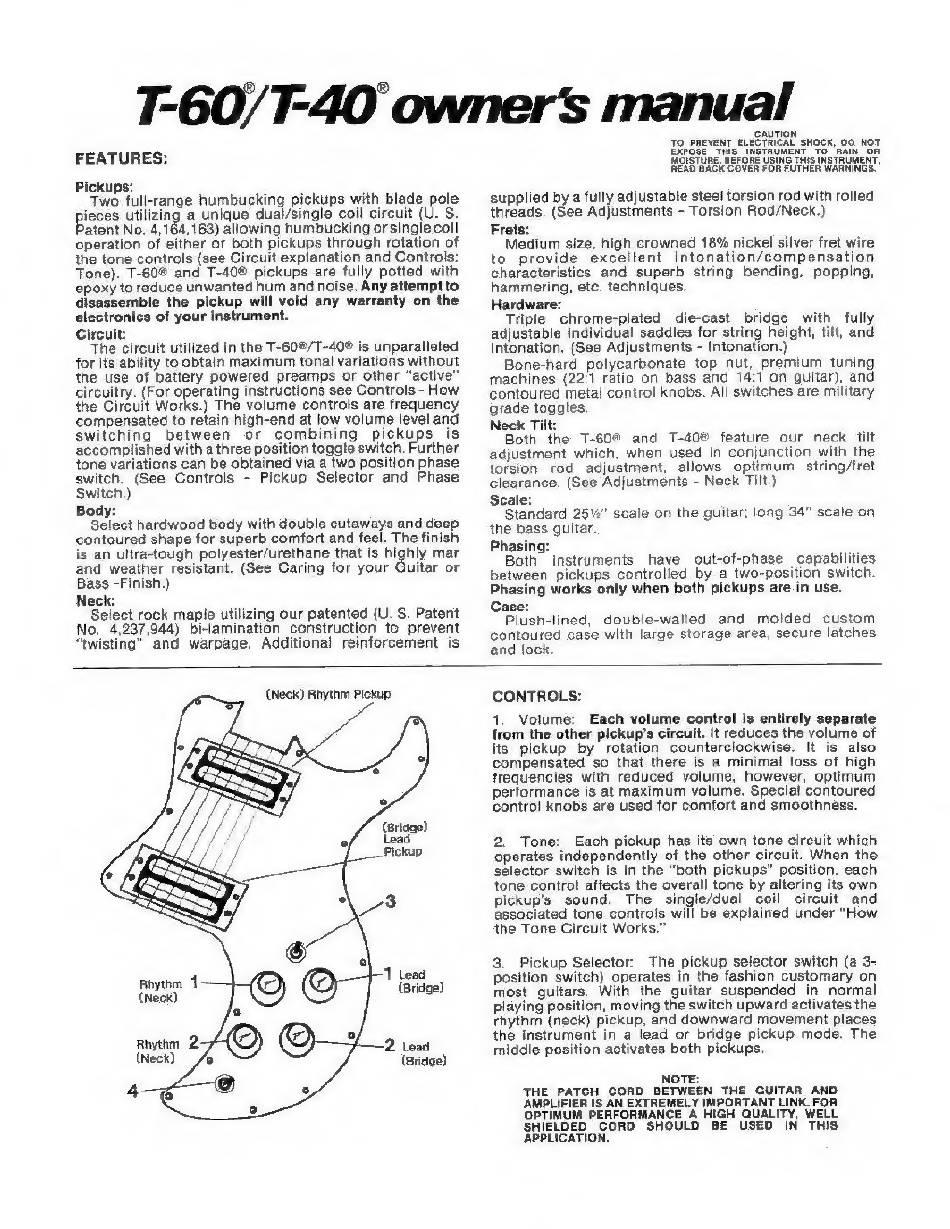

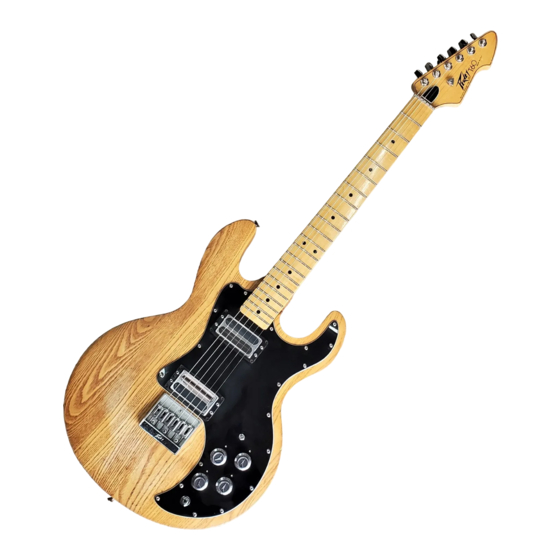

Peavey T-60 Owner's Manual

FEATURES:
Pickups:
Two full-range humbucking pickups with blade pole
pieces utilizing a unique duai/single coil circuit (U. S.
Patent No. 4, 164,163) allowing humbucking or single coil
operation of either or both pickups through rotation of
the tone controls (see Circuit explanation and Controls:
Tone). T-608 and T-40® pickups are fully potted with
epoxy to reduce unwanted hum and noise. Any attempt to
disassemble the pickup will void any warranty on the
electronics of your instrument.
Circuit:
The circuit utilized in the T-603/T-40® is unparalleled
for its ability to obtain maximum tonal variations without
the use of battery powered preamps or other "active"
circuitry. (For operating instructions see Controls - How
the Circuit Works.) The volume controls are frequency
compensated to retain high-end at low volume level and
switching between or combining pickups is
accomplished with a three position toggle switch. Further
tone variations can be obtained via a two position phase
switch. (See Controls - Pickup Selector and Phase
Switch.)
Body:
Select hardwood body with double cutaways and deep
contoured shape for superb comfort and feel. The finish
is an ultra-tough polyester/urethane that is highly mar
and weather resistant. (See Caring for your Guitar or
Bass -Finish.)
Neck:
Select rock maple utilizing our patented (U. S. Patent
No. 4,237,944) bi-lamination construction to prevent
"twisting" and warpage. Additional reinforcement is
caution
TO PREVENT ELECTRICAL SHOCK, 0O NOT
EXPOSE THIS. INSTRUMENT "TO "RAIN "OF,
MOISTURE. B E F O R E USING THIS INSTRUMENT,
READ BACK COVER FOR FUTHER WARNINGS.
supplied by a fully adjustable steel torsion rod with rolled
threads. (See Adjustments - Torsion Rod/Neck.)
Frets:
Medium size, high crowned 18% nickel silver fret wire
to provide excellent intonation/compensation
characteristics and superb string bending, popping,
hammering, etc. techniques.
Hardware:
Triple chrome-plated die-cast bridge with fully
adjustable individual saddles for string height, tilt, and
intonation. (See Adjustments - Intonation.)
Bone-hard polycarbonate top nut, premium tuning
machines (22:1 ratio on bass and 14:1 on guitar), and
contoured metal control knobs. All switches are military
grade toggles.
Neck Tilt:
Both the T-60® and T-40® feature our neck tilt
adjustment which, when used in conjunction with the
torsion rod adjustment, allows optimum string/fret
clearance. (See Adjustments - Neck Tilt.)
Scale:
Standard 25%" scale on the guitar; long 34" scale on
the bass guitar.
Phasing:
Both instruments have out-of-phase capabilities
between pickups controlled by a two-position switch:
Phasing works only when both pickups are in use.
Case:
Plush-lined, double-walled and molded custom
contoured case with large storage area, secure latches
and lock.
(Neck) Rhythm Pickup
1 Lead
(Neck) (Bridge)
rithm 2 fag
(Neck)
(Bridge)
CONTROLS:
1. Volume: Each volume control is entirely separate
from the other pickup's circuit. It reduces the volume of
its pickup by rotation counterclockwise. It is also
compensated so that there is a minimal loss of high
frequencies with reduced volume, however, optimum
performance is at maximum volume. Special contoured
control knobs are used for comfort and smoothness.
2. Tone: Each pickup has its own tone circuit which
operates independently of the other circuit. When the
selector switch is in the "both pickups" position, each
tone control affects the overall tone by altering its own
pickup's sound. The single/dual coil circuit and
associated tone controls will be explained under "How
the Tone Circuit Works."
3. Pickup Selector: The pickup selector switch (a 3-
position switch) operates in the fashion customary on
most guitars. With the guitar suspended in normal
playing position, moving the switch upward activates the
rhythm (neck) pickup, and downward movement places
the instrument in a lead or bridge pickup mode. The
middle position activates both pickups.
NOTE:
THE PATCH CORD BETWEEN THE GUITAR AND
AMPLIFIER IS AN EXTREMELY IMPORTANT LINK. FOR
OPTIMUM PERFORMANCE A HIGH QUALITY, WELL
SHIELDED CORD SHOULD BE USED IN THIS
APPLICATION.
