Navitel R600 Manual

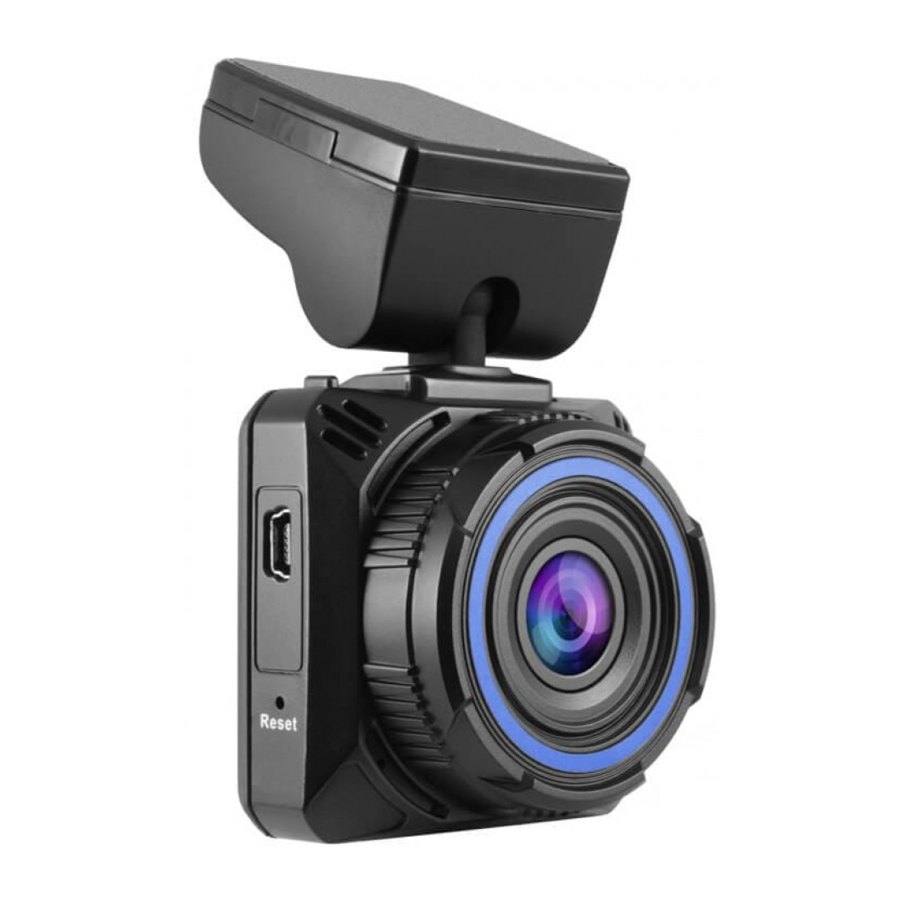

Device layout

Adhesive mount (3M sticker)
Mini-USB port for charging
Menu
Up
Down
OK
Mount lock
Speaker
Reset
Mini-USB port
Microphone
Power
Camera
MicroSD slot
LED indicator
Display

Specifications

Processor	NOVATEK NT96650
Display	2", 960×240, TN
Camera	SONY CMOS 323
Recording format	MOV
Video resolution	1920×1080, 30 fps
Image format	JPG
Image resolution	12 MP
View angle	170°
Storage	MicroSD card
MicroSD card capacity	Max. 256 GB
USB	mini-USB
Battery	180 mAh × 2
Power	5 V, 1.5 А
Frequency	50/60 Hz
Microphone/speaker	Yes
Language	Czech, English, French, German, Polish, Russian, Slovak, Spanish

Note: the specifications may change due to upgrades.

Installation

Put the microSD card into the DVR. Use a high-speed SD card (Class10 or above); capacity should be within 8-256 GB.
- To avoid malfunctions of the DVR and/or SD-card, don't insert and remove SD-card during DVR operation.
- Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Secure the device on the windshield with the holder.
Connect the car charger to the cigarette lighter socket.
Connect the car charger to the DVR (mini-USB).
Adjust the camera position.
Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing blue light).

Buttons

Button	Functions
Power	Press and hold for 3 seconds to turn the device on/off. Press to turn the screen on/off.
Menu	Press to enter Menu mode. In Menu, press to exit any menu or list of functions.
Up/Down	In Record mode, press Up to turn the microphone on/off. In Record mode (REC), press Down to lock a file (protected file cannot be deleted or overwritten). In Capture mode, press to zoom in/out. In Video/Photo mode, press to select the previous/next file. In Menu, press to select the previous/next menu item.
ОК	In Record mode (STBY), press to start recording; press again to stop recording. In Capture mode, press to take a picture. In Video mode, press to select a file, or pause/resume video. In Photo mode, press to select a file. In Menu, press to select a menu item.
Reset	If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.
NAVITEL s.r.o. hereby declares that the device NAVITEL R600 is compatible with the European directive EMC 2014/30/EU. The full text of Declaration of conformity is available at the following internet address:
www.navitel.cz/en/declaration_of_conformity/r600

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the OK button to stop recording (the blue light will become steady). Press OK again to record another video. Each video will be saved automatically.
Capture	In Capture mode, press the OK button to take a photo (it will be saved automatically).
Video	In Video mode, press the Up and Down buttons to select a file; press the OK button to play a file. During playback, press OK to pause/unpause; press the Up and Down keys to fast forward/rewind.
Photo	In Photo mode, press the Up and Down buttons to select a file; press the OK button to play a file.
Record audio	Record video with or without sound.
Lock file	In Record mode (REC), press Down to protect the current recording. A key symbol will appear on the center top of the screen. In Video/Photo mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current/Unlock All to remove protection.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
G-sensor	If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor	In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked). If nothing happens for over 60 seconds, the device will shut down.
Battery	Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light will gradually dim; the red light going out means the battery is full.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.

Precautions

Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
Permissible ambient temperature in operating mode: 0 to +35 °С. Storage temperature: +5 to +45 °С. Relative humidity: 5% to 90% without condensation (25 °С).
Put the device away from fire sources to avoid explosion or fire.
Do not expose the device to physical impacts.
Avoid contacting the device with sources of electromagnetic radiation.
Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
Do not disassemble or repair device by yourself. In case of device failure, contact the service center.
