Med-Pat Inn-Phone XL-IP User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

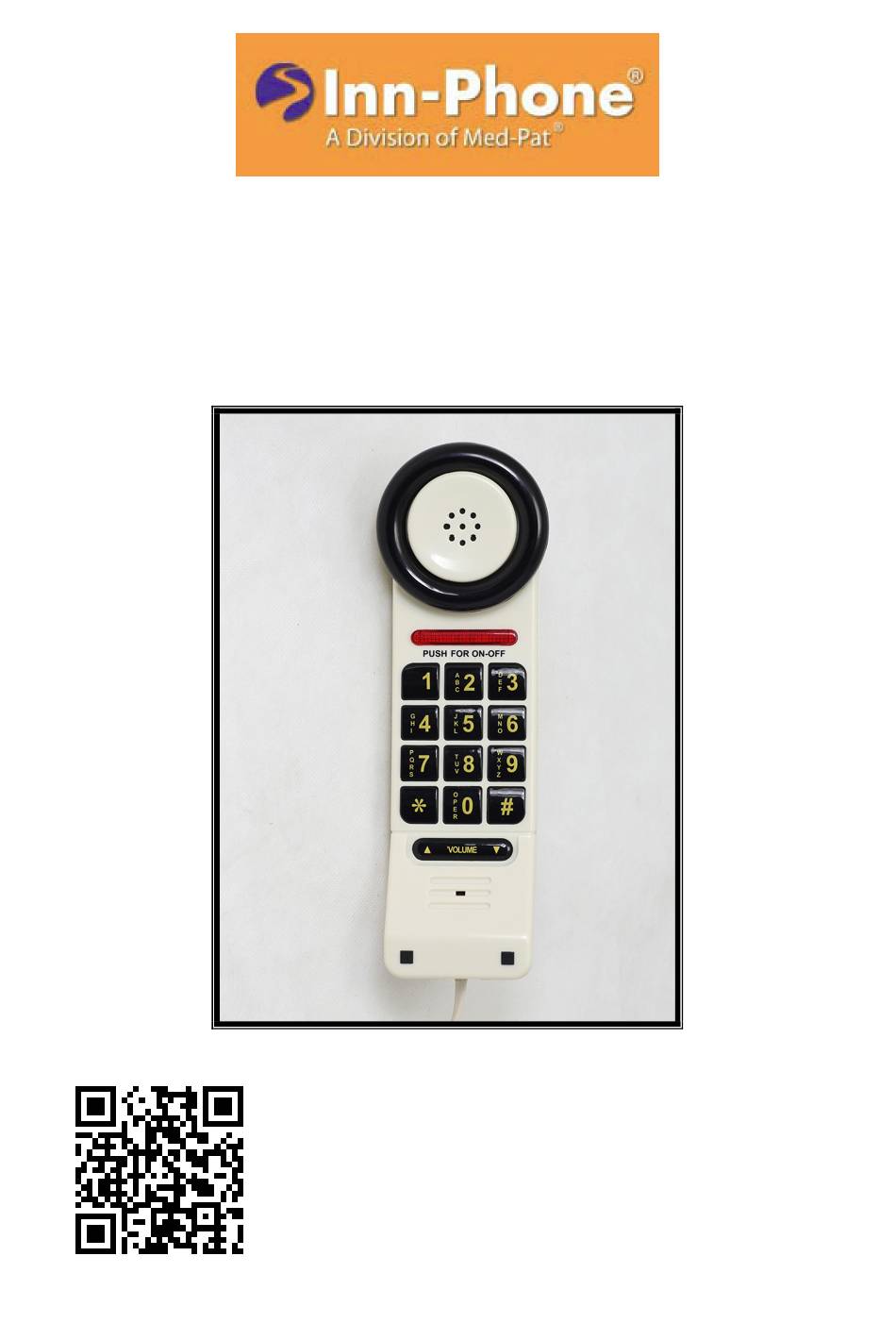

Inn-Phone VOIP Phone
Model: XL-IP
User Manual
Version 1.1
(QR code)
Smartphone Scan to download PDF version

Advertisement

loading
Need help?

Need help?

Do you have a question about the Inn-Phone XL-IP and is the answer not in the manual?

Questions and answers

Related Manuals for Med-Pat Inn-Phone XL-IP

Summary of Contents for Med-Pat Inn-Phone XL-IP

  • Page 1 Inn-Phone VOIP Phone Model: XL-IP User Manual Version 1.1 (QR code) Smartphone Scan to download PDF version...
  • Page 2 Inn-Phone XL-IP User Manual Introduction ........................3 Hardware Overview ...................... 3 Software Overview ......................4 Setup the IP Phone system by using Web Browser ............4 Login ……........................5 System Information ………....................5 Phone Settings …………………................... 6 2.3.1 Call Forward ……………....................6 2.3.2...
  • Page 3 Inn-Phone XL-IP User Manual Introduction Before using the SIP Phone, some configurations are required to make the IP Phone work properly. The manual will illustrate how to configure the ip phone via web page Hardware Overview One RJ-45 Networking interfaces for WAN port which supports 10/100Mps Fast Ethernet.
  • Page 4 Inn-Phone XL-IP User Manual Page 4...
  • Page 5 Inn-Phone XL-IP User Manual Software Overview Network Protocol Codec SIP 2 (RFC3261) G711 aLaw IP/TCP/UDP/RTP/SNTP G711 uLaw DHCP Client/PPPoE Client/PPTP Client G722 HTTP Server G723 DNS Client G729 LLDP iLBC Voice Quality Tone Comfortable noise generator Ring Tone Voice Activity Detector...
  • Page 6 Inn-Phone XL-IP User Manual System Information After login the web page, user can see the system information such as model name and firmware version. In addition, there is a function list in the left hand side. User can use mouse to click the function to setup and configure the IP phone.
  • Page 7 Inn-Phone XL-IP User Manual Phone Settings Phone Settings contains Call Forward, SNTP Settings, Volume Settings, Melody Settings, DND Settings, Dial Plan, Call Waiting Settings and Alarm Settings. 2.3.1 Call Forward 2.3.1.1 All Forward All incoming call will be forward to the number that is filled. Please input the name in the name field and the phone number or IP address in the URL field.
  • Page 8 Inn-Phone XL-IP User Manual 2.3.2 SNTP Settings User can enable SNTP Setting to synchronize the time from an outside Time Server to the IP Phone. Since all time sources over Internet supply GMT time only, user should also set suitable Time Zone from the drop-down combo box. Also, user can disable SNTP and input time to the fields of Local Time manually.
  • Page 9 Inn-Phone XL-IP User Manual 2.3.4 Melody Settings User can select one of melodies from Ringer Type for ringing tone of incoming call. Please click the “Apply” button after finishing. 2.3.5 DND Settings User can setup Do Not Disturb either from a period of time or always on. Callers will hear busy ring tone while one of DND Settings is enabled.
  • Page 10 Inn-Phone XL-IP User Manual 2.3.6 Dial Plan 2.3.6.1 Replace Rule The Dial Plan function provides basic dial number replacement or drop rule. Maximum 4 rules user can apply at a same time. The rules will only be effective when matching digits are located at the beginning of dialed numbers.
  • Page 11 Inn-Phone XL-IP User Manual 2.3.6.6 Dial Tone For the Dial Tone option, default is dual tone 350Hz/440Hz, it is a standard of North American. The “General” one is 400Hz, it is suitable in Japan and China. Please click the “Apply” button after finishing.
  • Page 12 Inn-Phone XL-IP User Manual 2.3.8 Alarm Settings User can let the IP phone ring as an alarm at dedicated time schedule. Please click the “Apply” button after finishing. Network In Network page, user can configure all the network settings and check the network status of IP phone.
  • Page 13 Inn-Phone XL-IP User Manual 2.4.1.4 User can manually input the IP address of Primary DNS server and Secondary DNS server, or set automatically obtain them from DHCP server. In general practice, IP address of DNS servers will be automatically assigned in both DHCP and PPPoE mode.
  • Page 14 Inn-Phone XL-IP User Manual 2.4.2 VLAN Settings User can create independent logical networks within a physical network by deploying VLAN environment. 2.4.2.1 VID (802.1Q/TAG) If user enable VLAN Packet, VLAN ID/VLAN TAG should be given for inserting into packet header in order to classify the packets belong to Virtual Local Area Network..
  • Page 15 Inn-Phone XL-IP User Manual 2.4.3 PPTP Settings To connect remote VPN server by point-to-point tunneling protocol. After connected, the subnet of IP phone is equal to the network of remote VPN server. The IP phone becomes a member of remote network. All data traffic between remote server and IP phone will be encrypted.
  • Page 16 Inn-Phone XL-IP User Manual SIP Settings In order to let SIP phone work properly, user should setup SIP Service Domain, SIP Port, Codec, Codec ID, DTMF, STUN server and others. Some information of them user should obtain from SIP service provider.
  • Page 17 Inn-Phone XL-IP User Manual 2.5.1.9 Standby Domain Similar to Standby Proxy, it is the IP address of domain which will be standby if primary domain cannot be connected or registered. 2.5.1.10 Standby Outgoing Proxy Similar to Standby Proxy, it is the IP address of outgoing proxy which will be standby for outgoing call.
  • Page 18 Inn-Phone XL-IP User Manual 2.5.2 Port Settings To change the port for SIP and RTP connection. 2.5.2.1 SIP Port Default is 5060, user can change to any port number from 100 to 65535 2.5.2.2 RTP Port Usually from 10000 to 20000, default is 20000, user can change to any port number from 100 to 65535.
  • Page 19 Inn-Phone XL-IP User Manual 2.5.3.6 Voice CNG To enable or disable Comfort Noise Generator. Page 19...
  • Page 20 Inn-Phone XL-IP User Manual 2.5.4 Codec ID Settings To change RFC2833 event ID. When SIP phone communicate with other SIP device, if the codec ID that other SIP device deployed is non-standard, problem will occur. User can adjust the codec ID of SIP phone from default to a matching one. Please click the “Apply” button after finishing.
  • Page 21 Inn-Phone XL-IP User Manual 2.5.7 Other Settings 2.5.7.1 Voice QoS (Diff-Serv) Voice Quality of Service allows user set the priority of voice packet pass through the router or firewall which connects to Internet. The higher value is set, the higher priority it gets.
  • Page 22 Inn-Phone XL-IP User Manual 2.5.7.8 Session Switch To enable / disable Session Switch Feature which is based onGeneralized Multiprotocal Label Switch (RFC4208)Subscribe 2.5.7.9 Session Time To set minimum Session Time for Session Switch. 2.5.7.10 Support 100rel To enable / disable the module that provides management of Reliability of Provisional Responses.
  • Page 23 Inn-Phone XL-IP User Manual Others User can configure the IP Phone by config file in XML format and store system log of IP phone to a remote server. 2.6.1 Auto Config To configure the IP phone by config file via local PC, tftp, ftp or http server. User should input IP address of Config Server, Path, Username and Password.
  • Page 24 Inn-Phone XL-IP User Manual 2.6.1.8 Name of config file with MAC address IP Phone can be configured by different config file. It lets administrator more easily to manage a group of IP Phones with individual setting. If the name of config file in HTTP, FTP or TFTP server is exact the MAC address of IP Phone, for example, MAC address of IP Phone is 2e:2e:d3:9d:31:72, name of config file is 2e2ed39d3172.xml, user can...
  • Page 25 Inn-Phone XL-IP User Manual Update 2.7.1 Auto Update The IP phone will automatically update it’s firmware by checking the firmware version via TFTP, FTP or HTTP after rebooting. If the number of version file is larger than current version, IP phone will download the update file and upgrade itself. Otherwise, it will do nothing. The update procedure will take about several minutes, please make sure power supply to IP phone won’t be interrupted during update.
  • Page 26 Inn-Phone XL-IP User Manual 2.7.2 Update System To manually update the firmware of IP phone via TFTP, FTP, HTTP or local PC. If update the IP phone from firmware file in PC, just browse the location of firmware file in PC and click “Apply”...
  • Page 27 Inn-Phone XL-IP User Manual 2.7.3 Default Settings To restore the default setting. Please click “Apply” button after finishing. Page 27...
  • Page 28 Inn-Phone XL-IP User Manual System Auth To change the user name and password of Super User. Save Change Some config items should be saved and the IP phone should be rebooted until the setting takes effect. Once user click the link of “Save Change”, a page with “Reboot” button will appear to remind user reboot the IP phone.
  • Page 29 Inn-Phone XL-IP User Manual Optional Accessories for Use with the XL-IP Telephone (not included and sold separately) 1. Bed-Rail Clip 2. Bed-Rail Holder – Sits on Table Top or Mount to Bedrail 3. Wall Clip – Wall Mountable Telephone Holder...
  • Page 30 Inn-Phone XL-IP User Manual Copyright and Trademarks Specifications are subject to change without notice. Inn-Phone is a registered trademark or trademark of Med-Pat, Inc. and/or its affiliates in the U.S.A. and certain other countries. Copyright © 2012 Med-Pat, Inc. All rights reserved.
  • Page 31 Inn-Phone XL-IP User Manual Print in China...
