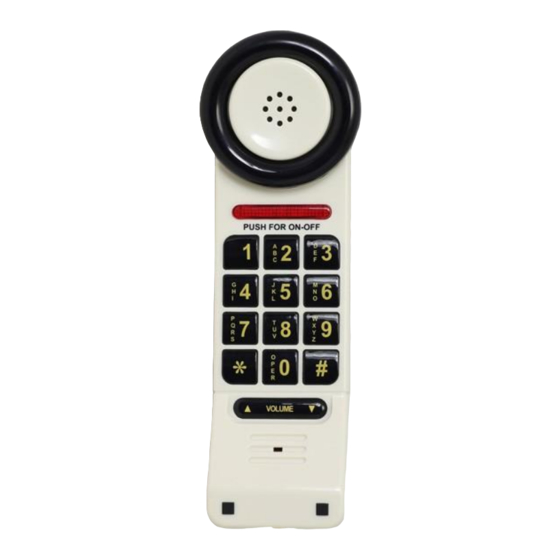

- Page 1 VOIP Phone Model: XL-IP User Manual Version1.2 (QR code) Smartphone Scan to downloadPDF version...
-
Page 2: Table Of Contents
XL-IP User Manual 1 Introduction.........................3 1. 1 HardwareOverview......................3 1. 2 SoftwareOverview......................6 1. 3 Combination operation..................... 6 2 SetuptheIP Phonesystem by using Web Browser..............7 2. 1 Login..........................7 2. 2 System Information......................7 3 Accounts..........................8 3. 1 General Settings......................8 3. - Page 3 XL-IP User Manual 5.3.1 STUN Settings....................... 21 5. 4 Open VPN Settings......................22 6 Maintenance........................22 6.1 WEB..........................22 6. 2 Auto Provisioning......................23 6. 3 Syslog..........................24 6. 4 Pcap..........................24 6.5 Config.......................... 25 6.5.1 Update........................25 6.5.2 Backup........................25 6.5.3 Clear........................25 6. 6 Firmware........................25 6.6.1 Update firmware....................
-
Page 4: Introduction
XL-IP User Manual Introduction Before using the SIP Phone, some configurations are required to make the IP Phone work properly. The manual will illustrate how to configure the ip phone via web page. HardwareOverview One RJ-45 Networking interfaces for WAN port which supports10/100Mps Fast Ethernet. - Page 5 XL-IP User Manual...
- Page 6 XL-IP User Manual...
-
Page 7: Softwareoverview
XL-IP XL-IP XL-IP UserManual SoftwareOverview Network Protocol Codec SIP2 (RFC3261) G71 aLaw IP/TCP/UDP/RTP/SNTP G71 uLaw DHCP Client/PP PoE Client/PPTP Client G722 HTTP Server G723 DNS Client G729 LLDP iLBC Voice Quality Tone Comfortable noise generator Ring Tone Voice Activity Detector... -
Page 8: Setuptheip Phonesystem By Using Web Browser
XL-IP XL-IP XL-IP UserManual Setupthe IP Phone system by using Web Browser Before configure the IP Phone, Firstly user should press the keys “47*#” keys of IP phone in order to obtain the IP address which is assigned from a DHCP server. -
Page 9: Accounts
XL-IP XL-IP XL-IP UserManual Accounts The account setting page is displayed, and you can set the basic, audio coding, call, and advanced Settings of the account. General Settings Show registration status of this realm. Please click the “ Apply ” button after finishing. -
Page 10: Codecs Settings
XL-IP XL-IP XL-IP UserManual Codecs Settings To change RFC2833event ID. When SIP phone communicate with other SIP device, if the codec ID that other SIP device deployed is non-standard, problem will occur. User can adjust the codec ID of SIP phone from default to a matching one. Please click the “Apply”... -
Page 11: Dtmf Type
XL-IP XL-IP XL-IP UserManual To enable Choose G.723 encoder. iLBC To enable Choose iLBC encoder. AMR_WB To enable Choose AMR_WB encoder. To enable Choose GSM encoder. opus To enable Choose opus encoder. 3.2.3 DTMF Type Currently, there are four common standards: DTMF, RFC2833, Audio and SIP Info, and Audio+SIP Info. -
Page 12: Call Forward
XL-IP XL-IP XL-IP UserManual 3.3.1 Call Forward Always Forward All incoming call will be forward to the number that is filled. Please input the name in the name field and the phone number or IP address in the URL field. -
Page 13: Auto Answer
XL-IP XL-IP XL-IP UserManual 3.3.5 Auto Answer When the automatic answer period ends, the system automatically answers the number of the calling party and communicates with the calling party.Automatically answer a call by handsfree. Enable the auto answer option and auto answer time in your phone call Settings.Please click the “Apply”... -
Page 14: Replace Rule
XL-IP XL-IP XL-IP UserManual 3.3.7 Replace Rule The Dial Plan function provides basic dial number replacement or drop rule. Maximum 4 rules user can apply at a same time. The rules will only be effective when matching digits are located at the beginning of dialed numbers. -
Page 15: Phone
XL-IP XL-IP XL-IP UserManual Phone On this page, you can set the date and time, personalization, function, and language. Volume Settings Screen Settings include call volume and ringtone volume. menu： Phone>Preference>Screen Settings Call volume 4.1.1 ou can adjust the voice volume, handheld voice volume, during a call. The value ranges from 1 to 15 seconds. -
Page 16: Dial Tone
XL-IP XL-IP XL-IP UserManual Dial Tone 4.1.3 At present, our company combines dial tone and ring tone. If one is modified, the other will be modified.The value ranges from 1 to 15 seconds .Please click the “Apply” button after finishing. -
Page 17: Dial Timeout Time&Call Waiting Tone
XL-IP XL-IP XL-IP UserManual Dial Timeout Time&Call Waiting Tone 4.2.2 Timeout period: duration for calling another phone. Click the "Apply" button when you are done. Call Waiting Tone:The phone has an incoming call duration.Please click the “Apply” button after finishing. -
Page 18: Ringtones
XL-IP XL-IP XL-IP UserManual Ringtones The ringtone Settings page is displayed. 4.3.1 Upload Ringtone File On the ringtone setting page, click the "Select File" button, select the ringtone file to be uploaded, and click "OK". Click Upload on the ringtone Settings page to upload the ringtone. - Page 19 XL-IP XL-IP XL-IP UserManual DHCP（动态）： When DHCP is set, IP Phone acts as a DHCP client and obtains all TCP/IP parameters from DHCP server. The sub net of LAN port and the device that connects to LAN port must be the same and must be different to WAN port.
-
Page 20: 802.1X Settings
XL-IP XL-IP XL-IP UserManual menu： Network>LAN>Network Settings>Static IP 5.1.2 802.1X Settings Enable or disable a user or device to access a LAN or WLAN through an Access port and change the user name and password. Click the "Apply" button when you are done. -
Page 21: Lldp Settings
XL-IP XL-IP XL-IP UserManual 5.2.1 LLDP Settings To enable/disable Link Layer Discovery Protocol. User can also set the interval for sending information by IP Phone after enabling it.Please click the “ Apply ” button after finishing. menu： Network>Qos & VLAN>LLDP Settings 5.2.2... -
Page 22: Qos) Settings
XL-IP XL-IP XL-IP UserManual menu： Network>Qos & VLAN>PC Port VLAN Settings 5.2.4 (QoS) Settings To change the port for SIP and RTP connection. RTP/SIP Quality of Service Allows users to set the priority of RTP/SIP packets through the router or firewall connected to the Internet. The higher the value, the higher the priority.Please click the “Apply”... -
Page 23: Open Vpn Settings
XL-IP XL-IP XL-IP UserManual menu： Network> >STUN Settings NAT Travel Open VPN Settings Use the point-to-point tunnel protocol to connect to the remote VPN server. After the connection is successful, the sub net of the IP phone is the same as the remote VPN server network. -
Page 24: Auto Provisioning
XL-IP XL-IP XL-IP UserManual menu： Maintenance>WEB >WEB Settings Auto Provisioning When user deploys a large number of SIP Phone son network, user can use DHCP Option 66 to automatically instruct the SIP Phone with the provisioning URL. DHCP Server with Option 66 will instruct individual SIP Phone the URL path of individual configuration file that was stored in TFTP Server during SIP Phone acquires the IP address from it. -
Page 25: Syslog
XL-IP XL-IP XL-IP UserManual menu： Maintenance>Auto Provisioning >Auto Provisioning Settings Syslog You can write the system logs of the IP phone to the remote log server to run syslog. Enter the IP address of the Log server and click Apply. -
Page 26: Config
XL-IP XL-IP XL-IP UserManual 【Start】Button to start packet capture. 【Stop】After starting packet capture, if packet capture stops, click [Stop] button to Stop packet capture. 【Export】After stopping packet capture, click [Export] button to Export captured packets. Config The configuration page is displayed. You can update, back up, and clear device configurations. -
Page 27: Update Firmware
XL-IP XL-IP XL-IP UserManual 6.6.1 Update firmware To upgrade the firmware locally by uploading the firmware from the computer, click the "Upload" button and click the "Apply" button to complete the version update. menu： Maintenance>firmware>Update firmware Reboot To restore the default setting. Please click“Apply” button after finishing. -
Page 28: Saving Contacts
XL-IP XL-IP XL-IP UserManual menu： Directory>Contacts>Contacts 7.1.4 Saving Contacts After a user adds/ Edit/ Search a contact, the contact needs to be listed in the local phone book. Click the [Save] button to Save the contact. menu： Directory>Contacts>Local Phone book>Save 7.1.5... -
Page 29: Move To Blacklist
XL-IP XL-IP XL-IP UserManual menu： Directory>Contacts>Local Phone book>Delete 7.1.6 Move to blacklist Enter the Contacts setting page, select the Contacts To be moved To the blacklist in the Contacts List, and click the "Move To Black List" button. menu： Directory>Contacts>Local Phone book>>Move... -
Page 30: Editing Blacklist
XL-IP XL-IP XL-IP UserManual 7.2.2 Editing Blacklist The blacklist page is displayed. In the Blacklist list, select the contact you want to edit. After editing, click the "Edit" button to complete the operation of editing contacts. 7.2.3 Search Blacklist Enter the blacklist name, office phone number, mobile phone number or other numbers, and click the "Search"... -
Page 31: Deleting Blacklist
XL-IP XL-IP XL-IP UserManual 7.2.5 Deleting Blacklist Enter the blacklist setting page, select the blacklist to be deleted from the Black List, and click "Delete". menu： Directory>Local Phone book>Blacklist>Delete 7.2.6 Removing Blacklist Enter the Blacklist setting page, select the blacklist To be moved To the Contacts List from the Black List, and click Move To Contacts List. -
Page 32: Group
XL-IP XL-IP XL-IP UserManual 7. 3 Group The group setting page is displayed 7.3.1 Adding Group Enter the group setting page. After editing the group, click the "Add" button to complete the group addition operation. 7.3.2 Editing Group Enter the group setting page, enter the name of the group you want to edit, and click "Edit". -
Page 33: Import And Export Phone Book
XL-IP XL-IP XL-IP UserManual 7. 4 Import and Export Phone book On the Import and Export Phone book Settings page, click Export to Export the Phone book, or select a local Phone book file and click Import to Import the Phone book. -
Page 34: Ldap
XL-IP User Manual LDAP The LDAP Settings page is displayed. After the Settings are complete, click the [Apply] button to complete the LDAP Settings. menu： Directory>LDAP>LDAP Settings... - Page 35 XL-IP User Manual...
- Page 36 XL-IP User Manual Copyright and Trademarks Specifications are subject to change without notice. Inn-Phone is a registered trademark or trademark of Med-Pat, Inc. and/or its affiliates in the U.S.A. and certain other countries. Copyright © 2015 Med-Pat, Inc. All rights reserved.
