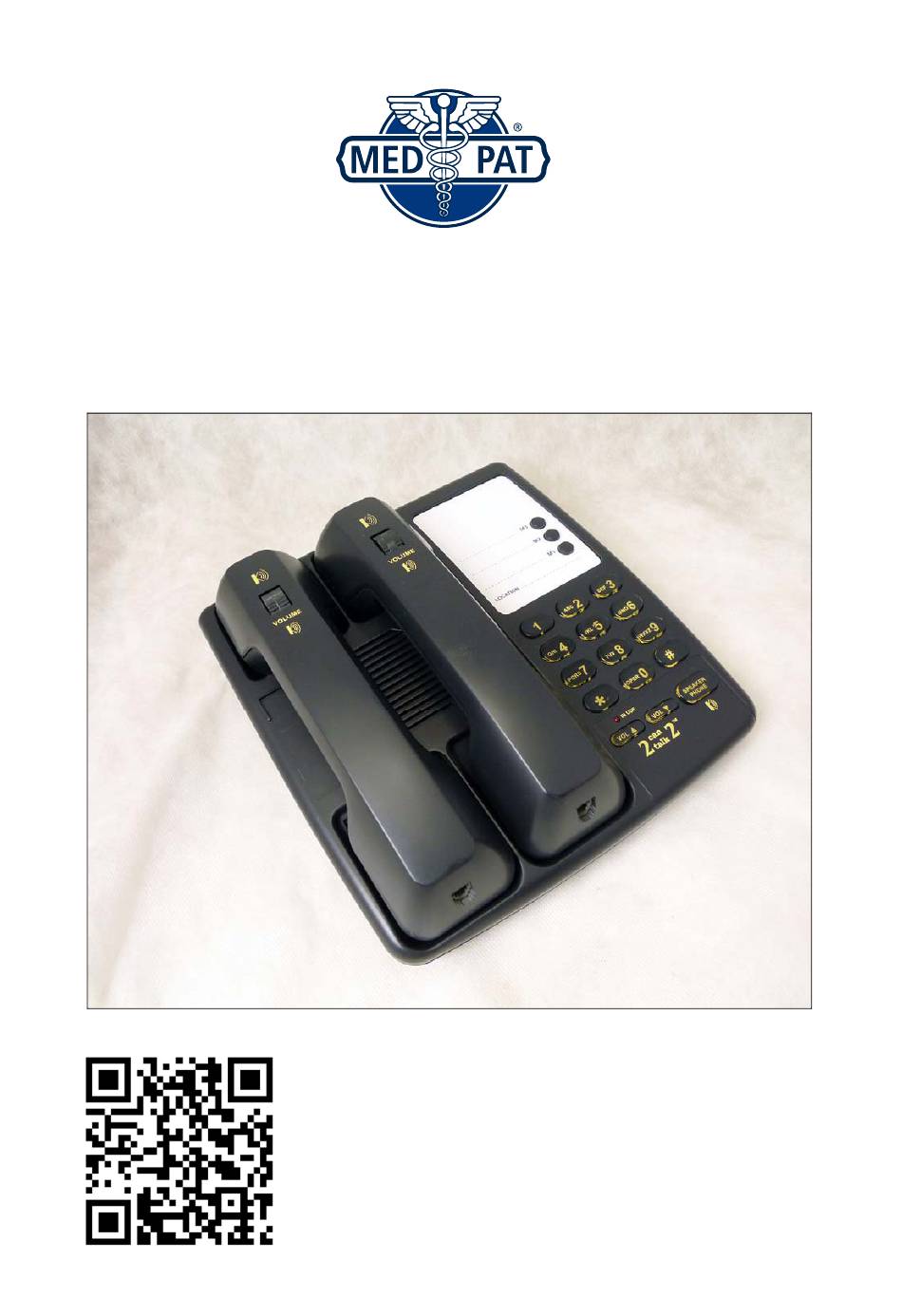

  • Page 1 TwoHandsetVOIP Phone Model: D2200-SIP UserManual Version2.0 (QR code) Smartphone Scan to download PDF version...

  • Page 2: Table Of Contents

    D2200-SIPUser Manual Introduction ..........................4 Hardware Overview ......................... 4 Software Overview ...................... 6 Setupthe IPPhonesystem by usingWeb Browser ..............6 Login …… ........................... 7 SystemInformation ……… ......................7 SpeedDial Settings ………....................8 2.3.1 Setti n g Speed Di a l vi a web page ……………………………………………………………………………….8 2.
  • Page 3 D2200-SIPUser Manual 2.7.3 Advanced Settings ……………....................30 Update ………………….…………..................... 30 2.8.1 Auto Update …………….…………....................30 2.8.2 Update System ……………… ..................... 31 2.8.3 Default Settings ………….………… ....................32 System Auth. ………….……….… ....................32 2.10 Save Change .……….…………..................33 Copyri g ht and T rademarks ………………………………………………………………………….

  • Page 4: Introduction

    D2200-SIPUser Manual Introduction Before using the SIPPhone, some configurations are required to make the IP Phone work properly. Themanual will illustrate how to configure the ip phone via web page Hardware Overview Two RJ-45Networking interfaces support 10/100Mps FastEthernet. User can connect WAN port to ADSLor Soft PBX,the LANport to PCcomputer.
  • Page 5 D2200-SIPUser Manual Page 5...

  • Page 6: Software Overview

    D2200-SIPUser Manual Software Overview Network Protocol Codec SIP2 (RFC3261) G711 aLaw IP/TCP/UDP/RTP/SNTP G711 uLaw DHCPClient/PPPoE Client/PPTP Client G722 LLDP-MED G723 HTTPServer G729 DNSClient iLBC Voice Quality Tone Comfortable noise generator RingTone Voice Activity Detector 350Hz/440HzDial Tone Voice QoS 400HzDial Tone SIPQoS BusyTone Jitter Buffer...

  • Page 7: Login

    D2200-SIPUser Manual Login Pleaseinput the default usernameand passwordinto the blank fields. Thedefault username of administrator is superuser,thedefault password is 123456.Thenclickthe Login button to login the SIPPhone. SystemInformation After login the web page,user canseethe systeminformation suchasmodel name and firmware version. In addition, there is a function list in the left hand side. Usercanusemouseto click the function to setup and configure the IP phone.

  • Page 8: 2.3 Speed Dial Settings

    D2200-SIPUser Manual 2.3 Speed Dial Settings 2.3.1 Setting Speed Dial via web page In SpeedDial Phone List, user can add or delete SpeedDial number. Maximum 10 entries can be setup in SpeedDial Phone List. To add a phone number into the SpeedDial Phone List, user needs to input position, name, and URL.

  • Page 9: Phone Settings

    D2200-SIPUser Manual 2.3.2 Setting Speed Dial by keypad The pattern for setting SpeedDial is **73* + position + * + phone number that user wants to add to speeddial list + # keyto end the setup. For example, dialing **73*0*18004813293# can add 18004813293 to position 0. Dialing **73*1*12345678# can add 12345678 to position1.

  • Page 10: Sntpsettings

    D2200-SIPUser Manual 2.4.2 SNTPSettings Usercan enable SNTPSettingto synchronize the time from an outside Time Serverto the IPPhone.Sinceall time sourcesover Internet supply GMTtime only, user should alsoset suitable Time Zonefrom the drop-down combo box. Also,user can disable SNTPandinput time to the fields of LocalTime manually. Pleaseclickthe “Apply” button after finishing. 2.4.3 VolumeSettings User can setup Handset Volume, SpeakerVolume and Ringer Volume here.

  • Page 11: Melody Settings

    D2200-SIPUser Manual 2.4.4 Melody Settings User can select one of melodies from Ringer Type for ringing tone of incoming call. Pleaseclickthe “Apply” button after finishing. 2.4.5 DNDSettings User can setup Do Not Disturb either from a period of time or always on. Callers will hear busy ring tone while one of DNDSettings is enabled.

  • Page 12: Dialplan

    D2200-SIPUser Manual 2.4.6 DialPlan 2.4.6.1 ReplaceRule TheDial Planfunction provides basicdial number replacement or drop rule. Maximum 4 rules user can apply at a sametime. The rules will only be effective when matching digits are located at the beginning of dialed numbers. Examplefor operation of “replace number by”: Digitsfor matching Operation...

  • Page 13: Callwaiting Settings

    D2200-SIPUser Manual 2.4.6.6 Dial Tone For the Dial Tone option, default is dual tone 350Hz/440Hz,it is a standard of North American. The“General” one is 400Hz,it is suitable in Japanand China. Pleaseclickthe “Apply” button after finishing. 2.4.7 CallWaiting Settings User can enable or disable the call waiting function. Pleaseclick the “Apply” button after finishing.

  • Page 14: Alarmsettings

    D2200-SIPUser Manual 2.4.8 AlarmSettings Usercan let the IP phone ring as an alarm at dedicated time schedule. Pleaseclick the “Apply” button after finishing. Network In Network page, user can configure all the network settings and check the network status of IP phone. 2.5.1 WAN Settings Let user configure all parameters for WAN port.
  • Page 15 D2200-SIPUser Manual 2.5.1.4 User can manually input the IP address of Primary DNSserver and Secondary DNS server, or set automatically obtain them from DHCPserver. In general practice, IP address of DNSservers will be automatically assignedin both DHCPand PPPoEmode. 2.5.1.5 Vendor In some cases, the vendor parameter must be submitted to PPPoEservice provider during login.

  • Page 16: Lansettings

    D2200-SIPUser Manual 2.5.2 LANSettings Set network parameters for LAN port. user should refer to current network environment to configure the IPphone properly. 2.5.2.1 LANMode Bridge Mode means the WAN port and LAN port are transparent.The IP address of the device which connects to LANport, will be treated assameto WANport over Internet. NAT Mode means the IP phone will act as a router, the IP addressof LANport will be translated to the same of WAN port.

  • Page 17: Vlansettings

    D2200-SIPUser Manual 2.5.3 VLANSettings User can create independent logical networks within a physical network by deploying VLANenvironment. 2.5.3.1 VID (802.1Q/TAG) If user enable VLAN Packet, VLAN ID/VLAN TAG should be given for inserting into packet header in order to classifythe packetsbelong to Virtual LocalArea Network.. 2.5.3.2 UserPriority (802.1P) Usercan set the frame priority level for different classesof network traffic.

  • Page 18: Pptpsettings

    D2200-SIPUser Manual 2.5.5 PPTPSettings To connect remote VPNserver by point-to-point tunneling protocol. After connected, the subnet of IP phone is equal to the network of remote VPNserver. The IP phone becomesa member of remote network. All data traffic between remote server and IP phone will be encrypted.

  • Page 19: Manually Set Networkmode Of Wan

    D2200-SIPUser Manual 2.5.7 Manually set NetworkMode of WAN User can manually set the two kind of network mode of SIPPhone by inputting some digits of keypad. 2.5.7.1 FixedIP Mode To press20120912*# during SIPPhone is idle. SIPPhone will go to reboot and use the fixed IPaddressthat wassavedin configuration before.

  • Page 20: 2.6 Sip Settings

    D2200-SIPUser Manual 2.6 SIP Settings In order to let SIPphone work properly, user should setup SIPService Domain, SIP Port, Codec, Codec ID, DTMF, STUNserver and others. Some information of them user should obtain from SIPserviceprovider. 2.6.1 Service Domain Usercan setup total six SIPaccountsfor receiving inbound calls and usethe first realm for outbound call.

  • Page 21: Port Settings

    D2200-SIPUser Manual 2.6.1.9 Status Showregistration status of this realm. Pleaseclickthe “Apply” button after finishing. 2.6.2 Port Settings To changethe port for SIPand RTPconnection. 2.6.2.1 SIP Port Default is 5060, user can changeto any port number from 100 to 65535 2.6.2.2 RTPPort Usually from 10000 to 20000, default is 20000, user can change to any port number from 100 to 65535.

  • Page 22: Codecsettings

    D2200-SIPUser Manual 2.6.3 CodecSettings 2.6.3.1 CodecPriority Setting for priority of preferred codecs. If first one is unsupported by domain, the secondone will be automatically usedand so on. 2.6.3.2 RTPPacket Length To set the millisecond of RTPPacketLength for both codec G711 and G729. 2.6.3.3 iLBC15K2 To enable or disable ILBCdeploys 15k2 rate.

  • Page 23: Codecid Settings

    D2200-SIPUser Manual 2.6.4 CodecID Settings To change RFC2833event ID. When SIPphone communicate with other SIPdevice, if the codec ID that other SIPdevice deployed is non-standard, problem will occur. Usercan adjust the codec ID of SIPphone from default to a matching one. Pleaseclick the “Apply” button after finishing.

  • Page 24: Dtmfsettings

    D2200-SIPUser Manual 2.6.5 DTMFSettings There are three common standards of DTMF, RFC2833,Inband and SIP Info. User should consult to service provider which one is correct and suitable to setting. Pleaseclick the “Apply” button after finishing. 2.6.6 STUNSettings If SIPphone is behind NAT, user should use a STUNserver which is outside current local network, to translate the IP address from the private to public.
  • Page 25 D2200-SIPUser Manual 2.6.7.2 SIP QoS (Diff-Serv) SIPQuality of Serviceallows user set the priority of SIPpacket passthrough the router or firewall which connects to Internet. The higher value is set, the higher priority it gets. 2.6.7.3 Send KeepAlive Packet Keeping send UDP packets from SIPphone to domain or any other device that SIP phone connectedto, in order to keep the transmission between two devicesalive.
  • Page 26 D2200-SIPUser Manual 2.6.7.13 Support 100rel To enable / disable the module that provides management of Reliability of Provisional Responses. 2.6.7.14 SupportUpdateMethod To enable / disable the update request for session. 2.6.7.15 Rport To enable / disable support for response-port parameter in header (RFC3581). 2.6.7.16 Use TelURL To enable / disable URLfor telephone call (RFC2806) Page 26...

  • Page 27: Others

    D2200-SIPUser Manual Others Usercan configure the IPPhoneby config file in XMLformat and store systemlog of IP phone to a remote server. 2.7.1 ConfigSpeed Dial To configure SpeedDial by config file via local PC,tftp, ftp or http server. Thefile name must be “speedbook.xml”, anyother name will be ignored. Format is asfollows: <?xml version="1.0"...

  • Page 28: Auto Config

    D2200-SIPUser Manual 2.7.1.5 FTPPassword Password of FTPaccount. 2.7.1.6 FTPFile Path The exact path of config file in FTPor TFTPserver. 2.7.2 Auto Config To configure the IP phone by config file via local PC, tftp, ftp or http server. User should input IP address of Config Server, Path, Username and Password. To update the config file from server to IP phone, please click “Update”...
  • Page 29 D2200-SIPUser Manual 2.7.2.4 FTPUsername Username of FTPaccount. 2.7.2.5 FTPPassword Password of FTPaccount. 2.7.2.6 FTPFile Path The exact path of config file in FTPor TFTPserver. 2.7.2.7 DownloadXML After input all required information, user can download the config file from server by right click the button of “Download XML”.For Firefox user, choose “SaveLink As”.

  • Page 30: Advancedsettings

    D2200-SIPUser Manual 2.7.3 AdvancedSettings User can write system log of IP phone to a remote Log Server with syslogd running. Pleaseinput the IPaddressof LogServer,then click “Apply” button. Update 2.8.1 Auto Update TheIPphone will automatically update it’s firmware by checkingthe firmware version via TFTP,FTPorHTTPafter rebooting.

  • Page 31: Update System

    D2200-SIPUser Manual 2.8.1.6 FTPFile Path The exact path of firmware file in TFTPor FTPserver. 2.8.1.7 HTTPFile Path Theexact path of firmware file in HTTPserver. 2.8.2 Update System To manually update the firmware of IP phone via TFTP,FTP,HTTPor local PC.If update the IP phone from firmware file in PC,just browse the location of firmware file in PCand click “Apply”...

  • Page 32: Defaultsettings

    D2200-SIPUser Manual 2.8.2.6 FTPFile Path The exact path of firmware file in TFTPor FTPserver. 2.8.2.7 HTTPFile Path Theexact path of firmware file in HTTPserver 2.8.3 DefaultSettings To restore the default setting. Pleaseclick“Apply” button after finishing. SystemAuth To change the user name and password of Super User. Page 32...

  • Page 33: Save Change

    D2200-SIPUser Manual 2.10 Save Change Some config items should be saved and the IP phone should be rebooted until the setting takes effect. Onceuser click the link of “SaveChange”,a pagewith “Reboot” button will appear to remind user reboot the IPphone. Page 33...

  • Page 34: Copyright And Trademarks

    D2200-SIPUser Manual Copyright and Trademarks Specificationsare subject to changewithout notice. Inn-Phone is a registered trademark or trademark of Med-Pat, Inc. and/or its affiliates in the U.S.A.and certain other countries. Copyright © 2015 Med-Pat, Inc. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in parts, without the written consent of Med-Pat Everyeffort hasbeen made to ensure that the information in this manual is accurate.Med-Pat is...
