Summary of Contents for ROL ERGO COMPACT 2

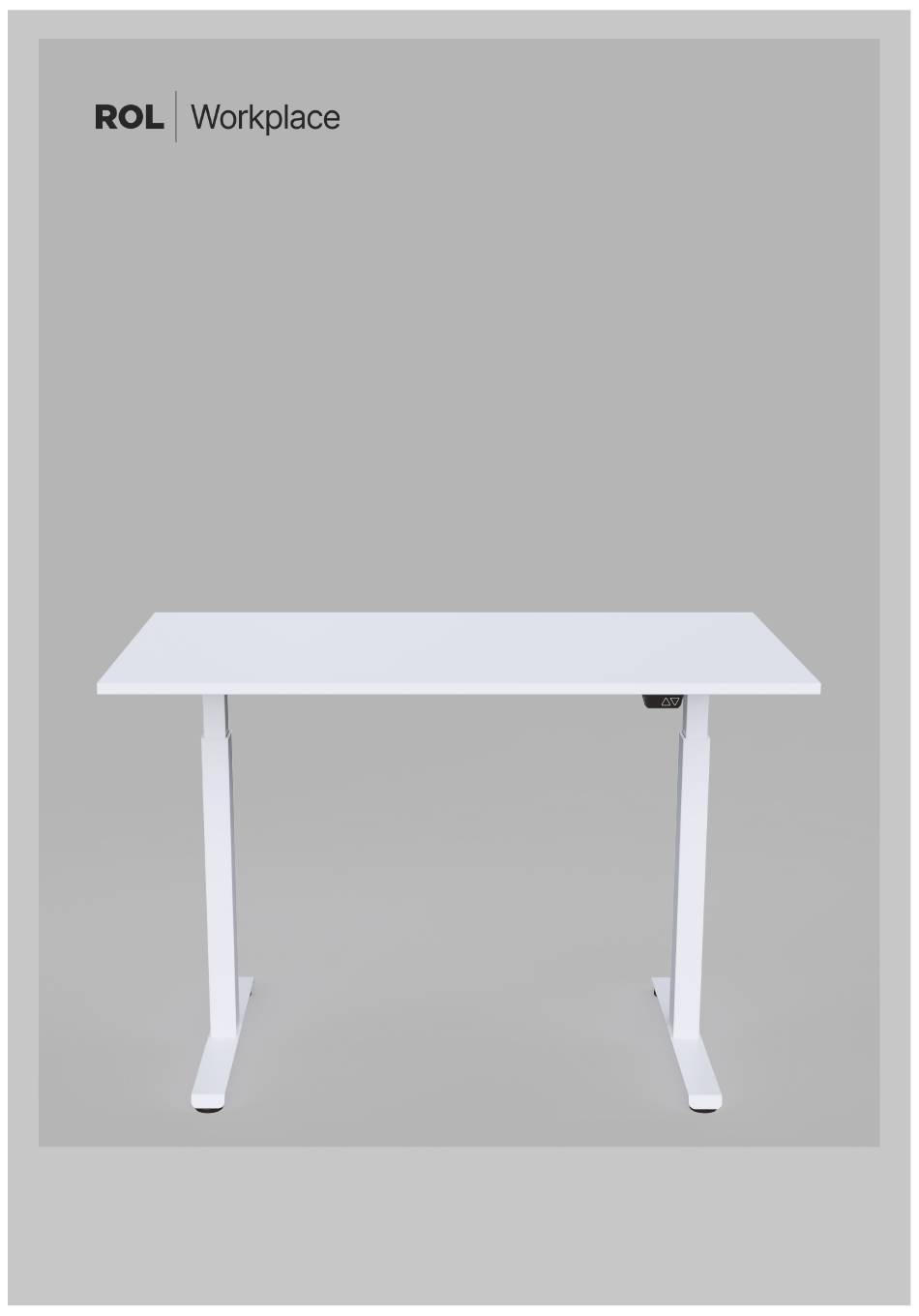

- Page 1 User manual Compact 2...

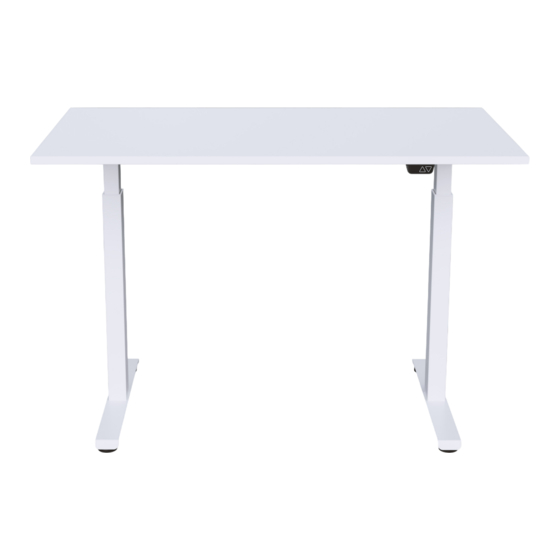

- Page 3 Electrical height adjustable frame GF-470 with Compact 2 system: COMPACT 2 Conforms with the provisions of the following EU Directives, including amendments, and with national legislation implementing these directives: Machine Directive 2014/35/EU...
- Page 4 General Information I. European Union (EU) If you are a resident of a member state of the European Union, read the EU chapter (pages 1-9). You can download the user manual by clicking the symbol corresponding to your language, BG, CS, DA, DE, EL, ES, ET, FI, FR, GA, HR, HU, IT, LV, LT, MT, NL, PL, PT, RO, SK, SL, SV. II.
- Page 7 Safety Instructions 1.1 Read instructions The person responsible for installation, servicing, and repairing, as well as the daily user of the desk, should carefully read these instructions and save them for future use. 1.2 Download instructions You can download these instructions by scanning the QR code which is placed on the column (leg) label.
- Page 8 Children should not play with this product. Cleaning and maintenance should only be done by adults, or under adult supervision. 2.2 Product specifications Product Model COMPACT 2, GF 470 Power Input 100-240 V, 50-60Hz Sound level <50 dB(A) Stand by power consumption <0.02W...
- Page 9 Adjustments 3.1 Installation instructions Only use the parts (fixing kit etc.) that are included in the packaging. Assemble the desk using the provided assembly instructions. Start by connecting the motor cables to the control box. Next, attach the hand controller to the control box. After that, connect the power cord to the control box.
- Page 10 3.4 Safety regulations When the desk moves up/down, keep the necessary safety distance to avoid the risk of entrapment between the moving desktop and fixed objects in the surrounding area. When the desk moves up/down, the user shall keep watch so that nobody is injured, or no object is damaged.
- Page 11 4.3 Product service Do not attempt to repair this product yourself. Opening or removing covers can expose you to dangerous electricity or other risks. * 4.4 Manufacturer details Manufacturer: ROL Ergo AB Address: Flygplatsvägen 555 93 Jönköping, Sweden Made in: Lithuania/Sweden 4.5 Disposal instructions...
- Page 12 Operating Instructions 5.1 Basic functions Read the user manual carefully before installing or operating the control unit. If the chosen hand controller is not covered in this user manual, please see the separate user manual supplied with the hand controller.* 5.1.1 Upward desktop movement To move the desk up: Press the up button and hold until desired height is reached.
- Page 13 “Upper limit” “Lower limit” To move the desk past a saved height: Press the up or down button for at least 5 seconds, until the desk moves up or down. Above Below “Upper limit” “Lower limit”* >5 sec >5 sec 5.2 Manual reset If you want to clear the memory positions or If a motor or other electronic part is disconnected from the column (leg) during or after assembly, you must perform a...
- Page 14 Troubleshooting 6.1 Frequently asked questions Problem Possible source Action Make sure that all cables are undamaged and connected Reconnect all the cables firmly in place The desk does not move Unplug the desk from the electric socket for Follow the instructions to approximately one minute perform a reset and reconnect...
- Page 15 If you are experiencing technical problems with your desk, please refer to your seller in the first instance for customer support information. If you require extra support than that provided by your seller, the frame manufacturer customer support can be reached at info@rolgroup.com.
- Page 19 Safety Information Your safety and the safety of others is very important. Please familiarize yourself with all instructions and safety warnings before operating the desk. Please keep this manual for future reference. The vendor is not liable for damage to people, animals or objects caused by improper or unauthorized use.
- Page 20 Danger !To reduce the risk of electric shock! • Improper usage, abuse, or misuse of the control box, handset, motors and other electrical components may result in an electrical shock injury or possible death. • Do not open the control box unit or handset under any circumstances. The control box and handset contain no serviceable parts.
- Page 21 Warning !To reduce the risk of burns, fire, electric shock, or injury to people! • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 22 Caution • The motors control unit is not designed for continuous operation. Changing the desktop position without interruption must not exceed the intended duty cycle. The unit is thermally protected and will temporarily shut down if use exceeds the duty cycle.
- Page 23 2.3 Product service Do not attempt to repair this product yourself. Opening or removing covers can expose you to dangerous electricity or other risks. 2.4 Manufacturer details Manufacturer: ROL Ergo AB Address: Flygplatsvägen 555 93 Jönköping, Sweden Made in: Lithuania/Sweden 2.5 Disposal instructions...
- Page 24 Operating Instructions 3.1 Basic functions Read the user manual carefully before installing or operating the control unit. If the chosen hand controller is not covered in this user manual, please see the separate user manual supplied with the hand controller.* 3.1.1 Upward desktop movement To move the desk up: Press the up button and hold until desired height is reached.
- Page 25 “Upper limit” “Lower limit” To move the desk past a saved height: Press the up or down button for at least 5 seconds, until the desk moves up or down. Below Above “Lower limit”* “Upper limit” >5 sec >5 sec CAUTION Setting lower simple memory will replace the preset safety stop at 10 mm.
- Page 26 Troubleshooting 4.1 Frequently asked questions Problem Possible source Action Make sure that all cables are undamaged and Reconnect all the cables connected firmly in place The desk does not move Unplug the desk from the electric socket for Follow the instructions to perform a approximately one minute reset and reconnect...
- Page 28 UM ROL COM-2 68012411_E...
