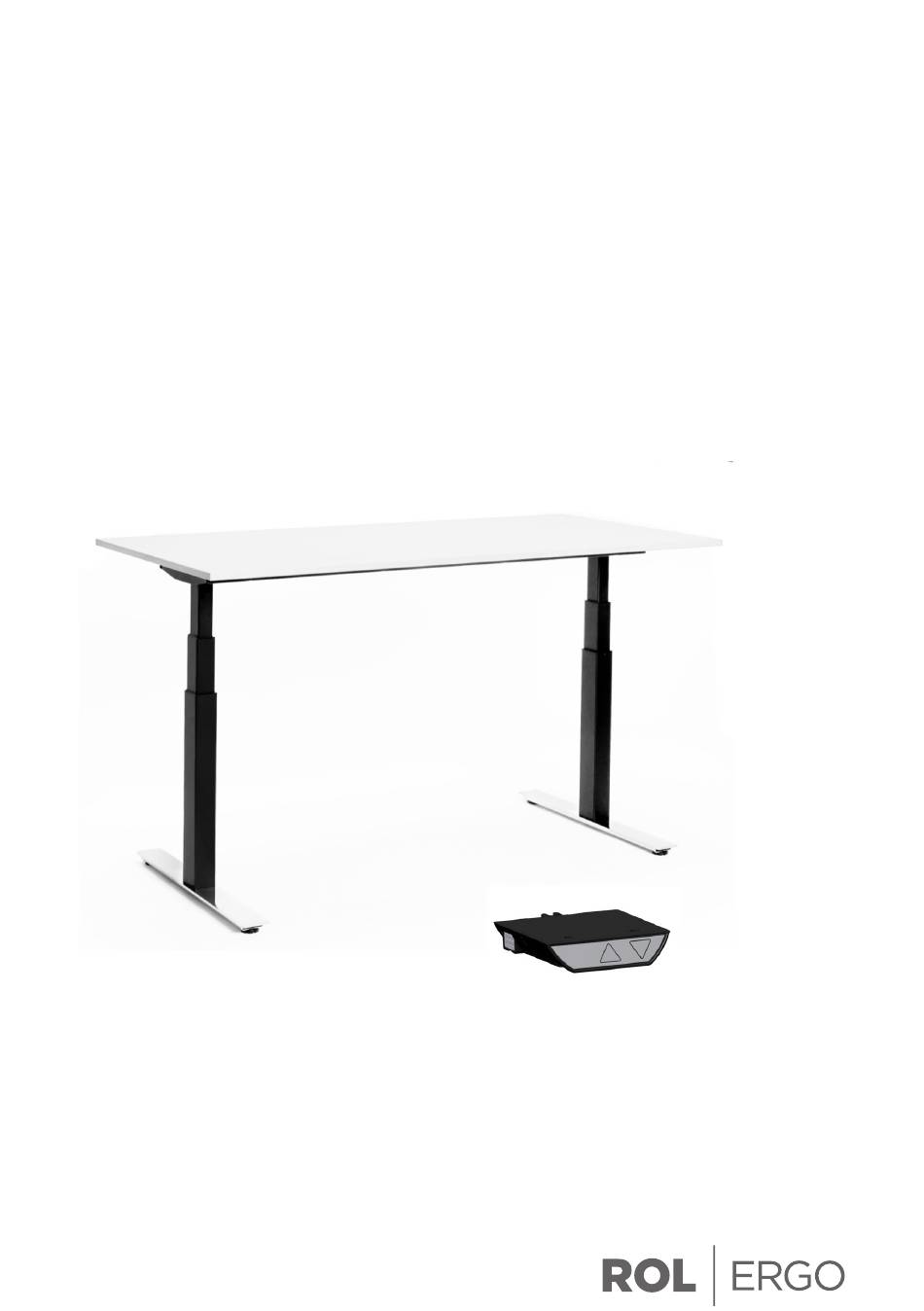

METRIC

USER MANUAL

Series EE and ECS2
Stroke 670/650/500/470
ROL | ERGO Sweden
W: www.rolergo.com
P: +46 36 36 88 80

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ROL ERGO EE Series

  • Page 1: User Manual

    METRIC USER MANUAL Series EE and ECS2 Stroke 670/650/500/470 ROL | ERGO Sweden W: www.rolergo.com P: +46 36 36 88 80...
  • Page 2: Table Of Contents

    CONTENTS IMPORTANT INFORMATION - SAFETY FIRST! ..... 3 Important saftey instructions ..................4 User information ........................7 Before you start ........................8 Electrical rating ........................8 ASSEMBLY & ADJUSTMENT ............ 8 Assembly Instruction ......................8 Setup procedure ........................9 Optional mounting guidelines ..................9 System configuration (example) ................. 10 Adjustments .........................11 ASSEMBLY &...
  • Page 3: Important Information - Safety First

    IMPORTANT INFORMATION - SAFETY FIRST! Your safety and the safety of others is very important. Please familiarize yourself with all instructions and safety warnings before operating the table. Please keep this manual for future reference. To help you make informed decisions about safety, we have provided operating proce- dures and other information on labels and in this user’s manual.
  • Page 4: Important Saftey Instructions

    Important saftey instructions Please save this instruction. When using an electrical table, basic precautions should always be followed, including the following. Read all instructions before using table. DANGER To reduce the risk of electric shock: Always unplug this furnishing from the electrical outlet before cleaning. WARNING To reduce the risk of burns, fire, electric shock, or injury to persons: Unplug from outlet before putting on or taking off parts.
  • Page 5 WARNING Risk of Injury to Persons: Do not use this table to lift people and do not use the table to lift heavy part or use this table as a platform for storage. Maximum intended load is 120 kg uniformly distributed (265 pounds) including the table top.
  • Page 6 13. In the event of a malfunction (e.g. if the control unit keeps adjusting the desk becau- se a movement button has jammed), please unplug the unit immediately. 14. Do not expose the power supply, handset or other electrical device to water or other liquids including moisture, drips, splashes or spills.
  • Page 7: User Information

    The table must be operated in a dry, enclosed space, such as an office or similar. 10. Do not operate outdoors. The table is equipped with Collision Detection System (CDS). In the event of a faulty (motor or component) the desktop may move slightly before the safety feature is engaged.
  • Page 8: Before You Start

    Before you start Check for and remove obstacles in path of the table top. Before first use, the control unit must register the lowest point of elevation to reset, as follows: Under normal conditions the system communicate internal and know the position of each column.
  • Page 9: Setup Procedure

    Setup procedure CAUTION Risk of electrical shock: The power cord must be unplugged while the control unit is being commissioned. This table is equipped with ROL iDrive system, to setup the controlling device proceed as follows. Connect the handset to the relevant 8-pin motor cables (2) Connect the Power Supply to the handset.
  • Page 10: System Configuration (Example)

    DANGER Grounding Instruction: This product does NOT require grounding to earth. This product is double insulated and equipped with a non- polarized 120V plug and 2-conductor cord. The plug must be plugged into an appropriate building outlet that is properly installed in accordance with all local codes and ordinances.
  • Page 11: Adjustments

    Adjustments The table control, handset and motors are sealed units and have no parts that can be serviced or adjusted by the user. In case of failure or unexpected operation or from maintenance control your vendor and arrange for service by a qualified technician. ASSEMBLY &...
  • Page 12: Basic Functions

    CAUTION Risk of Pinching. When you change the desktop position (especially without using pinch protection), you must ensure that no people or objects are located in the hazardous area nor may reach into it. NOTICE In case of a main power breakdown, or if the power cord is unplugged during the move- ment of the drives, a manual reset may be necessary! Please see section 3.2.
  • Page 13: Advanced Functions, Manuel Reset

    Pinch protection (optional)! The ECS is equipped with an intelligent software pinch protection. During loo ration the currents to each connected motor is continuously measured and any variation of current is evaluated about 50 times each second! If a collision is detected system will immedia- tely stop and back off about 2 cm! IMPORTANT! Make sure to remove the blocking item causing the pinch before trying to operate the table again.
  • Page 14: Maintenance & Repairs

    CAUTION Risk of Pinching. MAINTENANCE & REPAIRS Cleaning, Inspection and Storage Clean the table frame by wiping it down with a microfiber cloth. Never use solvent or abrasive or corrosive compounds. Products must be cleaned at regular intervals to remove dust and dirt and inspected for mechanical damage and normal wear and tear.
  • Page 15 where necessary to ensure safe operation of the table. If the table cannot be raised or lowered, check the cable connection between: • the power supply and the motor/motor house (leg system) • the handset and the motor/motor house • the legs/motors If the table still does operational, the control system may have triggered the overheating or duty cycle protection.
  • Page 16: Servicing Of Double-Insulated Products

    Pinch protection (optional)! The ECS2 is equipped with an intelligent software pinch protection. During loo ration the currents to each connected motor is continuously measured and any variation of current is evaluated about 50 times each second! If a collision is detected system will immedia- tely stop and back off about 2 cm! IMPORTANT! Make sure to remove the blocking item causing the pinch before trying to operate the table again.
  • Page 17 Power supply: P/N 68002235 Length x width x height 152 x 59 x 34 mm 360 gr Cables: Length 1500mm (primary side) separately item, 78 gr P/N 68002232 Length 3000mm (primary side) separately item, 133 gr P/N 68002233 Length 2000mm (secondary side, fixed connected to the power supply) ROL | ERGO Sweden W: www.rolergo.com P: +46 36 36 88 80...
  • Page 18: Dimensions Column System: Series Ee, Ecs2

    Dimensions column system: Series EE, ECS2 with 670/650/500 stroke MIN LEVEL MAX LEVEL WORKTOP M8x1.25 Fixing holes for crossbar ROL | ERGO Sweden W: www.rolergo.com P: +46 36 36 88 80...
  • Page 19: Dimensions Column System: Series Ee, Ecs2

    Dimensions column system: Series EE, ECS2 with 470 stroke MAX LEVEL MIN LEVEL WORKTOP M8x1.25 crossbar Fixing holes for crossbar ROL | ERGO Sweden W: www.rolergo.com P: +46 36 36 88 80...
