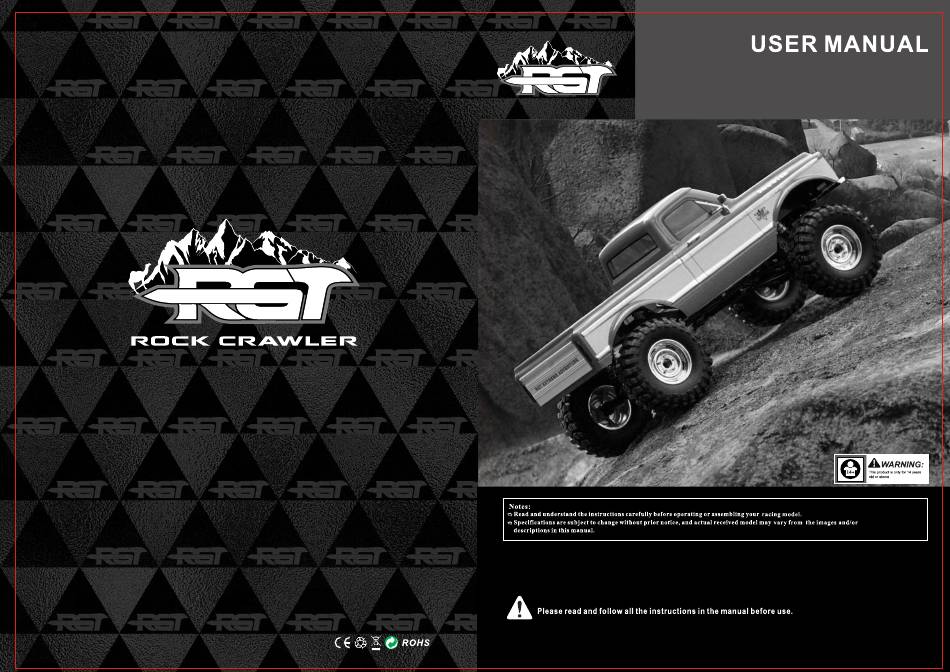

BRUSHLESS CRAWLER
T
he product has conducted IQC (Input Quality Control) and full inspection before delivery. The manufacturer is responsible
for quality assurance. Remote Control model is assembled manually, and then there may have some defects in the production
process. Once the product is modified or incorrect operation, it cannot apply for replacement and return services, for the parts
and accessories may be damaged. Please contact the retail seller for after-sales service when needed.
T
he product conforms to technical requirements of export safety regulations.
Factory Address: Huang Jiang Town, Dong Guan City,Guang Dong Province, China
Production Date: refer to packing instruction
NO.:136100-PRO
MADE IN CHINA
Advertisement
Related Manuals for RGT 136100-PRO
Summary of Contents for RGT 136100-PRO
- Page 1 BRUSHLESS CRAWLER NO.:136100-PRO he product has conducted IQC (Input Quality Control) and full inspection before delivery. The manufacturer is responsible for quality assurance. Remote Control model is assembled manually, and then there may have some defects in the production process. Once the product is modified or incorrect operation, it cannot apply for replacement and return services, for the parts and accessories may be damaged.
- Page 2 Thanks for purchasing our RC car. The power system for RC model can be very dangerous, so please read this manual carefully. In that we have no control over the correct use, installation, application, or maintenance of our products, no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product.
- Page 3 5. Battery Specifications for Product 1. 136100-PRO Challenger Specifications WARNING: NO battery includes in factory.Recommend?battery: 2S~3S LIPO battery or 5-9 cells NIMH battery Wheel Base Motor Item No 136100-Pro 275mm 2200KV (please match the ESC mode with the corresponding battery type)Pay attention to the battery size and plug specification when purchasing.The maximum battery measurement is 142*48*55mm?LxWxH).
- Page 4 6-2. Transmitter Steering and Throttle Instruction 6-1. 2.4GHZ Radio System Panel Flip Cover Note: Steering Please trim the Throttle Trim (TH. Trim) until the vehicle Wheel(CH1) stops in case the vehicle goes forwards or backwards itself just after it is turned on. (Steering D/R) (ST .TRIM) Throttle...
- Page 5 6-3. Transmitter Steering Trim and Throttle Trim 8. Fusion Mini RTR USER MANUAL 8-1. Specifications C.C.W 13.7 mm 45.8 mm 1.Move the control wheel to the left, vehicle turns left. 2xM3 Left 2.Do not move the control wheel, 14 mm the front wheels are aligned and Right 9 mm...
- Page 6 11. Troubleshooting 9. ESC Setup Problem Possible Cause Solution 9-1. Specifications Electronic plugs loose or fall off Switch off and reconnect The calibration must be done on the first use of the ESC, or if a new radio or receiver is installed otherwise the ESC cannot work properly. We recommend to set the fail-safe function of throttle channel（“F/S”）to close output mode or set the protection value to the neutral position, making the motor stop running when the receiver Vehicle battery not charged, cannot receive signal of the radio.
- Page 7 Transmission Assembly-1 Transmission Assembly-2 R86047 R86849 (5*10*4mm) (2*7.5mm) R86706 R86804 (2*7.5) R86676 R86800 R86803 R86798 R86677 R86594 R86047 (M4) (5*10*4mm) R86047 (5*10*4) R86777 R86777 R86047 R86047 R86060 (5*10*4mm) R86777 R86696 (5*10*4) R86799 (3*10mm) (5.1*6. 5*3) R86802 (19mm) R86801 R86675 R86594 (4*8*3) R86674 R86060...
- Page 8 Front Axle Assembly Steering Servo/Servo link/ Assembly Steering Link R86069 P860134 (3*14mm) R86370 R86714 (2*10mm) (5*8*3mm) R86843 (3*23mm) R86713 R86430 (7*11*3mm) R86059 (3*8mm) R86876(Pink) R86877(Black) R86051 R86714 (M3) 48.5mm (5*8*3mm) R86076 R86059 (3*8mm) R86876(Pink) R86430 R86239 R86061 (7*11*3mm) R86877(Black) (3*12mm) R86063 (3*16mm) R86068...
- Page 9 Front and Rear Upper Link /Chassis Rails Assembly-L Front and Rear Lower Link Assembly R86879 R86059 (3*8mm) R86060 R86065 (3*10mm) R86823 (3*20mm) R86823 R86064 (3*18mm) 64.6mm R86059 (3*8mm) 50mm R86833 64.6mm R86060 (3*10mm) R86051 (M3) R86878 67.3mm R86065 (3*20mm) 82mm R86833 R86835 R86834...
- Page 10 Front Axle Box Assembly Shock Absorber Assembly R86061 (3*12mm) R86594 R86708 (2.3mm) R86708 R86051 R86825 (M3) (Black) R86856 (Red) Front Suspension Linkage Installation R86843 (3*23mm) R86825 R86762 R86061 (3*12mm) R86843 R86066 (3*23mm) (3*25mm) R86061 (3*12mm) R86762 R86762 R86061 (3*12mm) R86843 (3*23mm) Rear Axle Box Assembly R86061...
- Page 11 Wheel Complet To Vehicle Body Decorations R86062 (3*14mm) R86823 R86830 R86830 R86880 R86052 R86381 (M4) (2.5*8mm) R86052 (M4) R86880 R86439-S R86137 (2*5mm) R86881 R86381 (2.5*8mm) Headlight/Taillight Installation Body Decorations R86529 (2*6mm) R86024 R86702 R86381 R86768 (2.5*8mm) R86708 (2.8*8*0.25mm) (2.8*1.9mm) R86830 R86529 (2*6mm) R86529...
- Page 12 Pre-Assembled PC Body Assembly Spare Part R86876 R86817 R86818 R86877 R86854 (AL.) (AL.) (AL.) (AL.) (AL.) Front Axle Box (Pink) Rear Axle Box (Pink) Steering Mount(L/R)(Pink) Front Axle Box (Black) Rear Axle Box (Black) R86878 R86820 P860134 R86822 R86855 (AL.) (AL.) (AL.) (Copper.)
- Page 13 Spare Part Spare Part R86836 R86837 R86838 R86749 R86839 R86060 R86061 R86062 R86063 R86064 Servo link (48.5mm) Rear Upper Link 67.3mm +Steering Link Rear Lower Link 82mm Crown Gear (64T) Pinion Gear(14T) Button Head 3*10mm Button Head 3*12mm Button Head 3*14mm Button Head 3*16mm...
- Page 14 Optionals Part P860065 P860066 P860132 P860133 P860135 (Copper ) Front Bumper Mount(AL.) Wheel (AL.) Wheel (AL.) Side Plate(AL.) Steering Mount(L/R) R86784 R86826 R86828 R86827 Battery(7.4V2000mAh) Wheel Rim(Black) Wheel Complete L/R Tire W/Foam R86903 R86904 R86905 Pinion Gear(11T)-Ø2.3mm Pinion Gear(12T)-Ø2.3mm Pinion Gear(13T)-Ø2.3mm...
