RGT OFF-ROAD CRAWLER User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

T
he product has conducted IQC (Input Quality Control) and full inspection before delivery. The manufacturer is responsible
for quality assurance. Remote Control model is assembled manually, and then there may have some defects in the production
process. Once the product is modified or incorrect operation, it cannot apply for replacement and return services, for the parts
and accessories may be damaged. Please contact the retail seller for after-sales service when needed.
T
he product conforms to technical requirements of export safety regulations.
Factory Address: Huang Jiang Town, Dong Guan City,Guang Dong Province, China
Production Date: refer to packing instruction
OFF-ROAD CRAWLER
NO.EX86170
MADE IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OFF-ROAD CRAWLER and is the answer not in the manual?

Questions and answers

Related Manuals for RGT OFF-ROAD CRAWLER

Summary of Contents for RGT OFF-ROAD CRAWLER

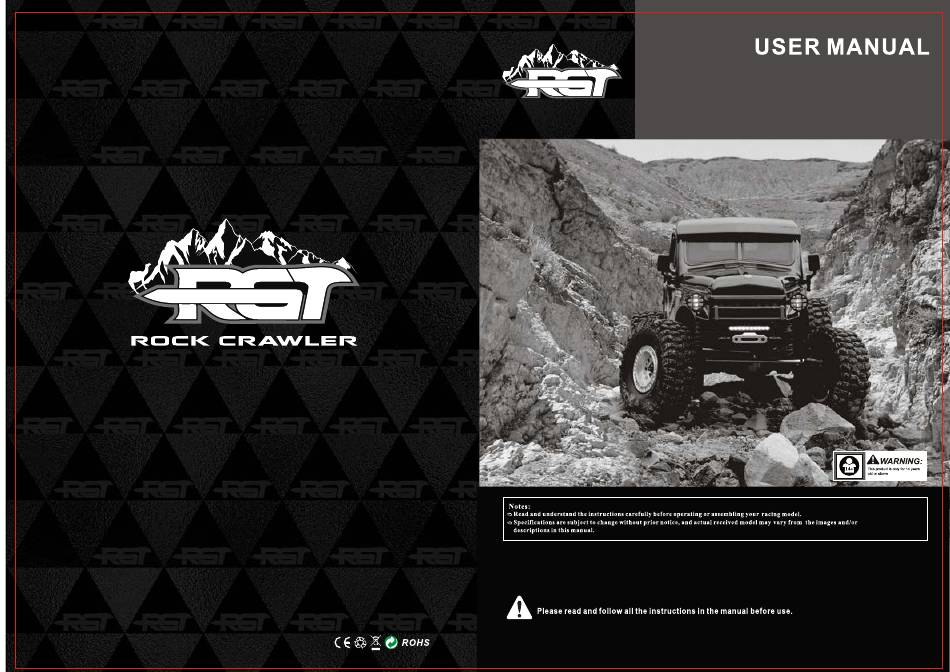

  • Page 1 OFF-ROAD CRAWLER NO.EX86170 he product has conducted IQC (Input Quality Control) and full inspection before delivery. The manufacturer is responsible for quality assurance. Remote Control model is assembled manually, and then there may have some defects in the production process. Once the product is modified or incorrect operation, it cannot apply for replacement and return services, for the parts and accessories may be damaged.
  • Page 2 Thanks for purchasing our RC car. The power system for RC model can be very dangerous, so please read this manual carefully. In that we have no control over the correct use, installation, application, or maintenance of our products, no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product.
  • Page 3 3-5. Vehicle parts Baffle Front Body Hole Dig Servo Bumper 1. Please read the manual carefully and prepare the following things before use. Battery Tray 2Speed Servo 4.0mm 4.5mm 5.5mm 7.0mm Receiver Box Steering Servo Winch steel wire Transmission Winch Servo Motor Steering Knuckle Shock Absorber...
  • Page 4 4-2. Battery Specifications for Product 4-3.Scheme of installation WARNING: NO battery includes in factory.Recommend?battery: 2S~3S LIPO battery or 5-9 cells NIMH battery (please match the ESC mode with the corresponding battery type)Pay attention to the battery size and plug Power Switch specification when purchasing.The maximum battery measurement is 142*48*55mm LxWxH).
  • Page 5 ST.REV Steering Trim(ST. Rev) is used to reverse the direciton of servo movement. The ST .REV switches are the reverse buttons for Ch1. If the switch is up it indicates reverse, and the down Indicates normal. Left Anti-clockwise Right clockwise Bine Vehicle turning left when the control wheel is turned to the left (Steering Rev.
  • Page 6 5-5 DIG Function instruction Factory Setting The standard mode - 4WD Front Rear (4WD) Front-wheel drive mode Front Rear (2WD) Front-wheel drive mode Front Rear + Rear Housing Lock (2WD/DIG) Reverse Switch 2WD+rear housing lock 5-6. Shifting the High-Low Transmission Low Gear High Gear Please stop or slow down the vehicle when...

  • Page 7: Troubleshooting

    9. Troubleshooting 7. EX86170 Challenger Specifications Problem Possible Cause Solution 502mm Electronic plugs loose or fall off Switch off and reconnect 19.72in Vehicle battery not charged, activating the ESC low voltage Replace/recharge the vehicle battery cut-off to protect the battery Motor or ESC dirty or damaged replace new Motor (recommend to purchase facoty Motor) Car does not...
  • Page 8 Motor/Transmission Assembly Diff.gear Assembly Transmission Assembly-1 R86505 R86061 R86046 R86501 (3*12) R86648 R86047 R86706 (2*10) R86072 (2.5*10) R86649 R86648 R86009 R86535 R86697 R86682 R86006 (M4) R86705 R86010 R86061 R86006 R86683 (3*12) R86535 R86060 R86046 (M4) (3*10) R86535 Axle Assembly R86514 R86061 (M2.5) (3*12)
  • Page 9 Steering Servo Front Diff. ILLlustration R86059 (3*8) R86059 R86060 (3*10) (3*8) R86066 R86540 (3*25) R86058 (3*6) R86045 R86541 R86058 (3*6) 56mm R86646 R86068 (3*8) R86045 R86060 (3*10) R86316 R86535 R86242 (M4) R86706 (2*7.5) R86674 R86428 R86316 R86051 R86047 (M3) R86244 R86061 (3*12) R86591...
  • Page 10 Rear Drive Tube Assembly Rear Suspension Linkage Installation R86066 R86066 (3*25) (3*25) R86058 (3*6) R86315 R86664 R86058 (3*6) 75mm R86664 R86059 R86320 R86051 (3*8) R86664 (M3) 85mm R86059 (3*8) R86066 R86315 (3*25) R86664 Main Body (Front Right) Main Body (Rear Right) R86679 R86059 R86059...

  • Page 11: Rear Shock Absorber

    Mounting Center Gear Box Installing Reer Axle Complete R86650 R86596 (3*12) R86060 (3*10) R86592 R86065 (3*20) R86596 R86068 (3*12) (3*8) R86060 (3*10) R86065 (3*20) Installing Front Axle Complete Rear Shock Absorber R86592 R86065 (3*20) R86065 (3*20) R86065 (3*20*4P) R86065 (3*20) R86065 (3*20)

  • Page 12: Tube Assembly

    Anti-Roll Bar Assembly Winch Assembly R86321 (3*4) R86695 R86059 R86661 (3*8) R86688 R86059 (3*8) R86059 (3*8) R86663 R86700 R86063 R86689 R86289 (3*16) (M2) (2*8) R86065 R86060 (3*20) (3*10) R86700 R86060 (3*10) R86048 R86063 (3*16) Front Shock Absorber R86048 R86687 R86690 (2.5*16) Tube Assembly R86058...

  • Page 13: Battery Tray Assembly

    Installing Wheel Complet To Vehicle R86665 R86539 R86537 R86539 R86289 (2*8) R86665 R86539 R86537 R86539 R86052 R86529 (2*6) R86289 (2*8) Speed Servo Assembly R86711 R86707 (2*5) Battery Tray Assembly R86615 Note: Battery Please distinguish left and R86365 R86710 right when install wheel. (2*5) R86653 Installing Receiver...

  • Page 14: Roll-Cage Assembly

    Roll-Cage Assembly Roll-Cage Assembly- Roll-Cage Assembly- R86059 3*8(8P) R86658 R86060 (3*10) R86060 R86060 (3*10) (3*10) R86060 R86699 (3*10) R86060 (3*10) R86658 R86699 R86699 R86060 (3*10) R86658 R86658 R86059 R86699 (3*8) R86704-0(Clear) R86704-1(Yellow) R86059 Roll-Cage Assembly- R86704-2(Red) (3*8) R86704-3(Green) R86692 (1.4*5) R86692 (1.4*5) R86657...

  • Page 15: Chassis Assembly

    Chassis Assembly Chassis Assembly R86703-0(Clear) R86703-1(Yellow) R86691 R86667 (4* 10) R86703-2(Red) R86703-3(Green) P86483-0(Clear) R86711 P86483-1(Yellow) R86667 R86667 P86483-2(Red) P86483-3(Green) R86321 R86667 (3* 4) R86529 (2*6) R86667 R86444 (2.5*10) R86062 R86698 (3*14) R86668 R86529 R86059 (2*6) (3* 8) R86702 R86062 (3*14) R86059 (3*8) Chassis Assembly...

  • Page 16: Spare Part

    Spare Part Spare Part Front-PC body Rear-side PC body L/R PC Body R86640 R86641 R86642 R86643 R86644 R86709-0(Clear) R86703-0(Clear) R86704-0(Clear) R86709-1(Yellow) R86703-1(Yellow) R86704-1(Yellow) R86709-2(Red) R86703-2(Red) R86704-2(Red) R86709-3(Green) R86703-3(Green) R86704-3(Green) Front Bumper Bumper Mount Rear Shock Tower L/R Rear Wheel Dust Guard L/R Pedal L/R Pre-Assembled PC Body R86645...
  • Page 17 Spare Part Spare Part R86187 R86514 R86678 R86598 P860045 R86060 R86061 R86062 R86063 R86065 Button Head 3*20mm Sping Slipper Spacer/Plate Winch Tube CVD Drive shaft Front /Rear Axle Box( Button Head 3*10mm Button Head 3*12mm Button Head 3*14mm Button Head 3*16mm R86679 R86680 R86242...
  • Page 18 R86625 R86571 P860049-1 “Hobbywing QUICRUR” 80A customed crawler ESC and 570-35 T crawler motor. Crawler Battery (silver) (7.4V6200mAh/Plug:T) Caster Mounts (L/R)( Upgrade power Kit RGT crawler motor 570/35T ESC-80A P860050-1 P860051-1 P860052-1 P860018 P860065 (silver) (silver) (silver) Steering Mount R( Steering Mount L( Rear Straight Axle Cover(AL.)
