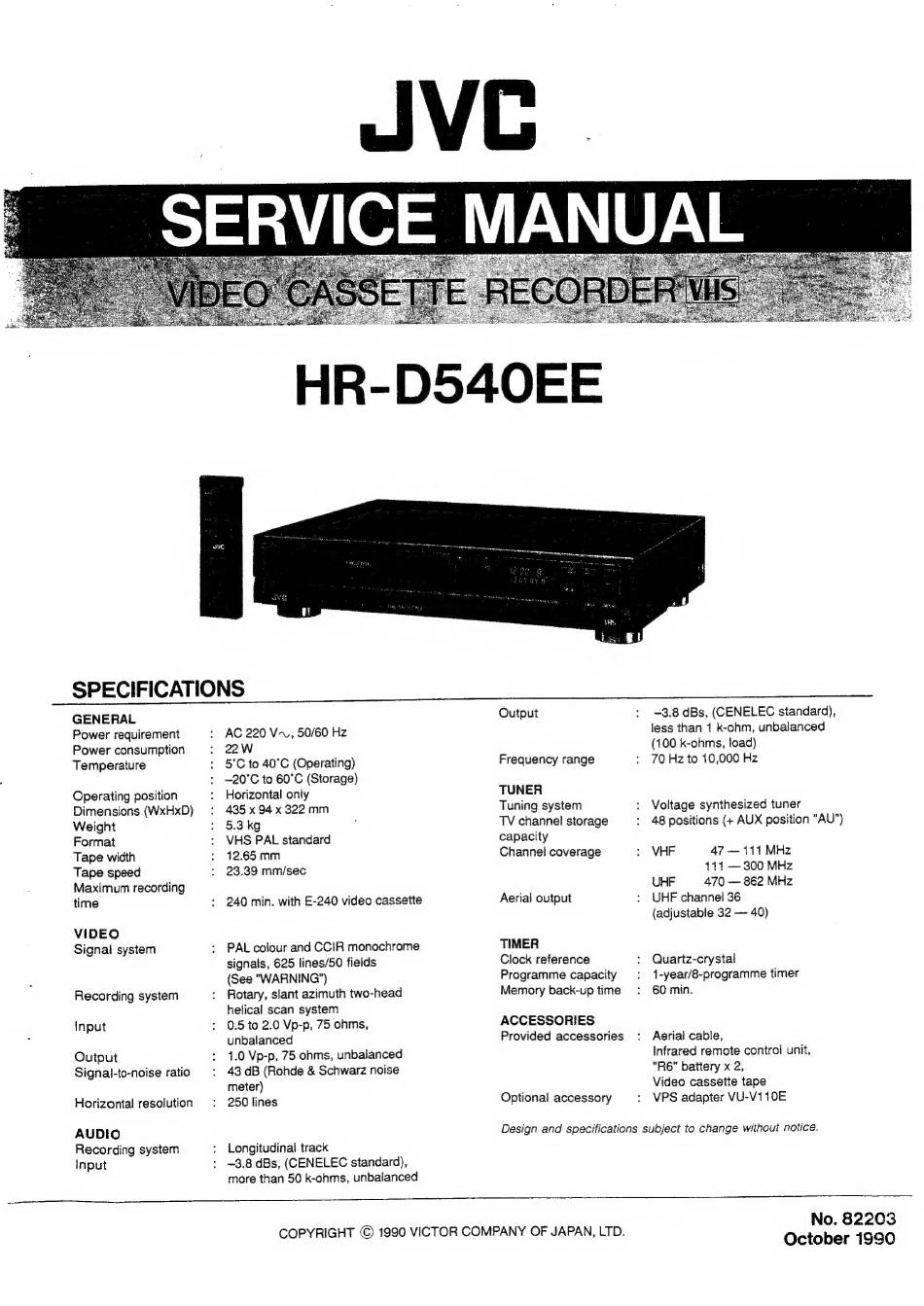

JVC HR-D540EE Service Manual

SPECIFICATIONS
GENERAL
Power requirement
Power consumption
Temperature
Cperating position
Dimensions (WxHxD)
Weight
Format
Tape width
Tape speed
Maximum recording
time
VIDEO
Signal system
Recording system
Input
Output
Signai-to-noise ratio
Horizontal resolution
AUDIO
Recording system
Input
AC 220 V~, 50/60 Hz
22W
5°C to 40°C (Operating)
-20°C to 60°C (Storage)
Horizontal only
435 x 94 x 322 mm
5.3 kg
VHS PAL standard
12.65 mm
23.39 mm/sec
240 min. with E-240 video cassette
PAL colour and CCIR monochrome
signals, 625 lines/50 fields
(See "WARNING")
Rotary, slant azimuth two-head
helical scan system
0.5 to 2.0 Vp-p, 75 ohms,
unbalanced
1.0 Vp-p, 75 ohms, unbalanced
43 dB (Rohde & Schwarz noise
meter)
250 lines
Longitudinal track
—3.8 dBs, (CENELEC standard),
more than 50 k-ohms, unbalanced
Output
Frequency range
TUNER
Tuning system
TV channel storage
capacity
Channel coverage
Aerial output
TIMER
Clock reference
Programme capacity
Memory back-up time
ACCESSORIES
Provided accessories
Optional accessory
~3.8 dBs, (CENELEC standard),
less than 1 k-ohm, unbalanced
(100 k-ohms, load)
70 Hz to 10,000 Hz
Voltage synthesized tuner
48 positions (+ AUX position "AU")
VHF 47 — 111 MHz
114 — 300 MHz
UHF 470 — 862 MHz
UHF channel 36
(adjustable 32 — 40)
Quartz-crystal
1-year/8-programme timer
60 min.
Aerial cable,
Infrared remote control unit,
"R6" battery x 2,
Video cassette tape
VPS adapter VU-V110E
Design and specifications subject to change without notice.
COPYRIGHT © 1990 VICTOR COMPANY OF JAPAN, LTD.
No. 82203
October 1990
