Summary of Contents for Candy CDB 264 N

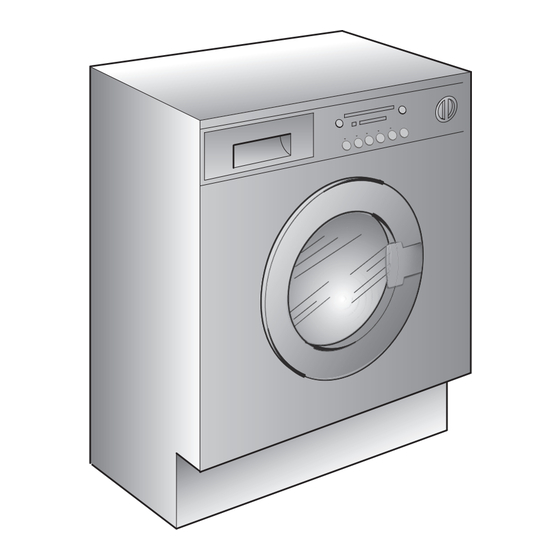

- Page 1 Washer Dryer Instructions for use CDB 264 N Auto...
- Page 2 Introduction Please read these instructions for use carefully and all other information enclosed with the washing machine. Keep all documentation in a safe place for future reference or for any future owners. This appliances is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments;...
- Page 3 Contents Page Introduction General delivery notes Safety notes Quick start Description of controls Programme Table Programme selector Detergent drawer Detergents, washing aids and amounts to use Useful advice for the user The main wash Drying Automatic washing/drying cycle Drying cycle Cleaning and routine maintenance Investigating malfunctions Technical data...
- Page 4 A) Pull out the plug B) Turn off the tap C) Candy equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person. D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet.
- Page 5 M) N.B! If the appliance is installed on a carpeted floor ensure that the ventilation holes on the base of the appliance are not obstructed. N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.
- Page 6 Description of controls Fig. 1 CE M G F Rapid 59 Min 90° 90’ 60’ 30’ 15’ STOP 1200 800 60° + Pre 60° 120’ 90’ 60’ 30’ M&W 40° 40° Rapid 32’ 30° Time Sensor 50° 30° 60° + Pre 30°...
- Page 7 Door handle To open the door turn the handle in the manner illustrated in fig. PROGRAMME selector with "OFF" position Rotates in both directions. The machine is turned on by selecting a programme via the programme selector. This status will be indicated by the "STOP"...
- Page 8 “DELAY START button” Appliance start time can be set with this button, delaying the start by 3, 6 or 9 hours. Proceed as follows to set a delayed start: Select a programme (“STOP” indicator light blinks) Press "Delay Start" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding light will blink).
- Page 9 “SPIN SELECTION” button The spin cycle is very important to remove as much water as possible from the laundry without damaging the fabrics. You can adjust the spin speed of the machine to suit your needs. By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.
- Page 10 “ALLERGY CARE” button By pressing this button you can activate a special new wash cycle in the Cotton and Mixed Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of garments and the delicate skin of those who wear them. The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection.
- Page 11 USEFUL TIPS: The 30 minute drying programme is recommended for small loads (less than 1 kg) or slightly damp loads. Your washer-dryer ends the cycle automatically when it reaches the drying level selected. For the correct operation of the appliance, it is preferable not to interrupt the drying phase unless it is really necessary.
- Page 12 START/PAUSE button When a programme is selecting, wait for the “STOP” indicator light to flash before pressing the "Start/Pause" button. Press to start the selected cycle (according to the selected cycle one indicator lights will go on) . NOTE: When the "Start/Pause" button has been pressed, the appliance can take few seconds before it starts working.
- Page 14 TABLE OF PROGRAMMES PROGRAMME WEIGHT TEMP. PROGRAM FOR: CHARGE DETERGENT SELECTOR ON: °C Resistant fabrics 90° 90° Whites Cotton, linen Cotton, mixed Whites with 60° + Pre 60° resistant Prewash 60° 60° Fast coloureds Cotton, mixed 40° 40° Non fast coloureds 30°...
- Page 15 Please read these notes When washing heavily soiled laundry it is recommended the load is reduced to 4 kg maximum. Information for the test laboratories (Ref. EN 50229 Standards) Washing Use the programme ** Drying First drying with 4kg (the load consist: pillowcases and hand-towels) selecting the cotton drying programme ( ) cupboard dry ( Second drying with 2kg (the load consist: 2 sheets and hand towels) selecting the cotton...
- Page 16 Programme selector For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and lenght of cycle (see table of washing cycle programmes). COTTONS COTTON The Cotton programme is designed for maximum washing and rinsing efficiency.
- Page 17 “MIX & WASH SYSTEM” PROGRAMME “MIX & WASH SYSTEM” PROGRAMME M&W 40° This is an exclusive Candy system and involves 2 great advantages for This is an exclusive Candy system and involves 2 great advantages for the consumer: the consumer: •...
- Page 18 DRYING Note: Dispensers used for concentrated powders and liquid detergents must be removed from the drum before commencing the tumble drying programmes. The drum changes direction during the drying cycle to prevent the laundry from tangling and hence produce even drying. Cool air is used during the last ten minutes of the drying cycle to minimise creasing.
- Page 19 Detergent drawer The detergent drawer is split into 3 compartments: - the compartment labelled "I" is for prewash detergent; - the compartment labelled " " is for special additives, fabric softeners, fragrances, starch, brighteners etc; - the compartment labelled "II" is for main wash detergent.
- Page 20 Detergents, washing aids and amounts to use Choice of detergent General purpose detergents - Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry. - Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil.
- Page 21 Dosages Only use detergents which are suitable for use in a washing machine. You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.
- Page 22 Useful advice for users Tips on using your domestic appliance in the most environmentally-friendly and economical Do a full load in your washing machine To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, not exceed the recommended maximum load size.
- Page 23 Main wash Sorting the laundry - It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items. - If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them. - Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry...
- Page 24 The correct way to wash Preparing the laundry A) Select the laundry. Loading the laundry B) Open the porthole. C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of laundry are obstructing the lock. Putting detergent in machine D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer’s...
- Page 25 DRYING DON’T DRY GARMENTS MADE FROM FOAM RUBBER OR FLAMMABLE MATERIALS. IMPORTANT: THIS DRYER CAN ONLY BE USED FOR LAUNDRY WHICH HAS BEEN WASHED AND SPIN DRIED. WARNING: Indications given are general, therefore some practice is needed for the best drying results. We recommend setting a lower drying time than indicated, when first using, so as to establish the degree of dryness required.
- Page 26 Automatic washing/drying Warning: only a maximum 4 kg of dry laundry can be loaded otherwise the dried laundry will be not satisfactory. WASHING: Open the drawer, choose the detergent and put in the correct amount. Refer to the list of washing programmes according to fabrics to be washed (e.g. very dirty cotton) and without pressing Start button, prepare wash as described: Turning the selector knob, the required programme is activated.
- Page 27 Drying cycle The correct way to dry: - Open door. - Fill with up to 4 kg - in case of large items (e.g. sheets) or very absorbent items (e.g. towels or jeans), it is a good idea to reduce the load. - Close door.
- Page 28 Table of drying times (in minutes): PROGRAMME COTTON MIXED Min 1 Kg Max 4 Kg Min 1 Kg Max 3 Kg Extra from 30’ to 230’ from 30’ to 170’ Cupboard from 30’ to 220’ from 30’ to 150’ Iron from 30’...
- Page 29 Cleaning and routine maintenance Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance: - Cleaning the drawer compartments. - Cleaning the filter.
- Page 30 Investigating malfunctions What might be the cause of… Defects you can remedy yourself MALFUNCTION CAUSE REMEDY 1. Does not work on any Plug not in socket. Plug it in. programme Not switched on. Switch on. Power failure. Check. Fuse blown. Check.
- Page 31 Note: The use of environmentally-friendly, phosphate-free detergents can have the following effects: - waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected; - presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
- Page 32 Fig. 2 Technical data 6 kg Max. load of dry laundry Max. load of dry laundry for drying 4 kg Water pressure 0,05 ÷ 0,8 MPa Measurements 60 cm Width 54 cm Depth 82 cm Height NB: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area) - as shown in diagram above.
- Page 33 SETTING UP + INSTALLATION Remove the polystyrene base and place the machine near its permanent position (diagram 1). Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2). Remove the 3 fixing screws marked (A) and remove the 3 spacers marked (B) (diagram 3).
- Page 34 Note: we recommend you keep the screws to immobilise the machine for future transit. The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation. Water connection The appliance must be connected to the water mains using new hose-sets.
- Page 35 Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer. For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50 cm and a maximum of 85 cm from the ground.
- Page 36 INSTRUCTIONS FOR INSTRUCTIONS FOR MOUNTING DOOR MOUNTING DOOR Drill holes in the door using the cardboard Drill holes in the door template as indicated in using the cardboard Fig. 1 to mount the hinges template as indicated in and closure magnet in Fig.
- Page 37 Mount the door with Montare la porta hinges by screwing with corredata di cerniere screws (L) to the front of avvitando le viti (L) sul the washing machine. frontale della lavabiancheria. NOTE: You are advised to mount the door so that it Nota: È...
- Page 39 The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.
- Page 40 This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
